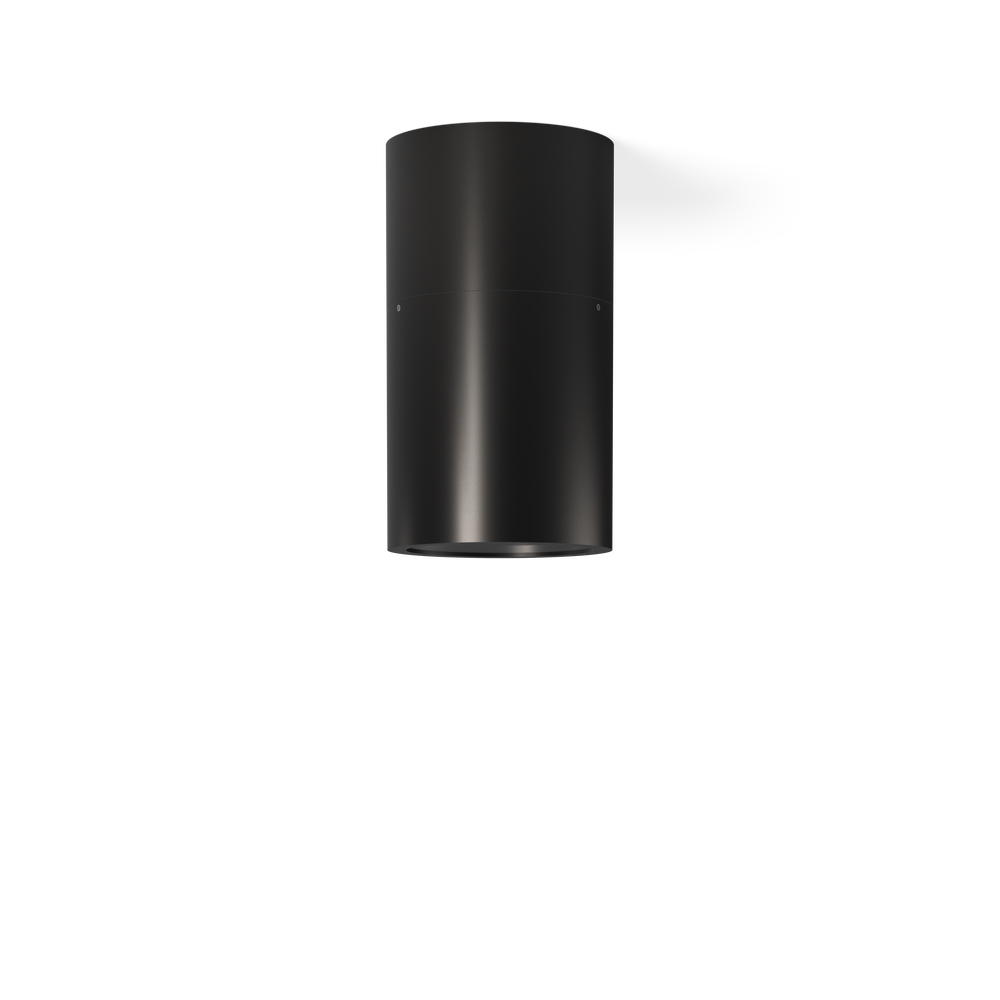

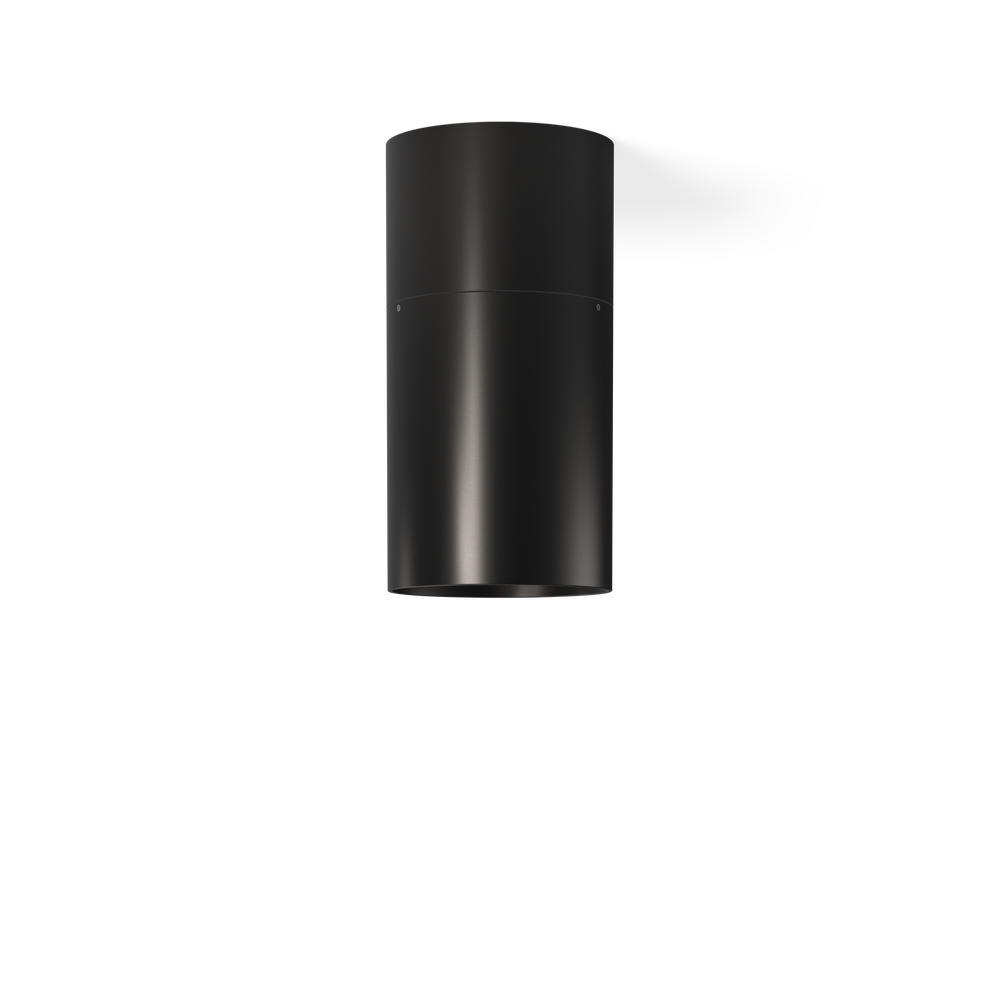

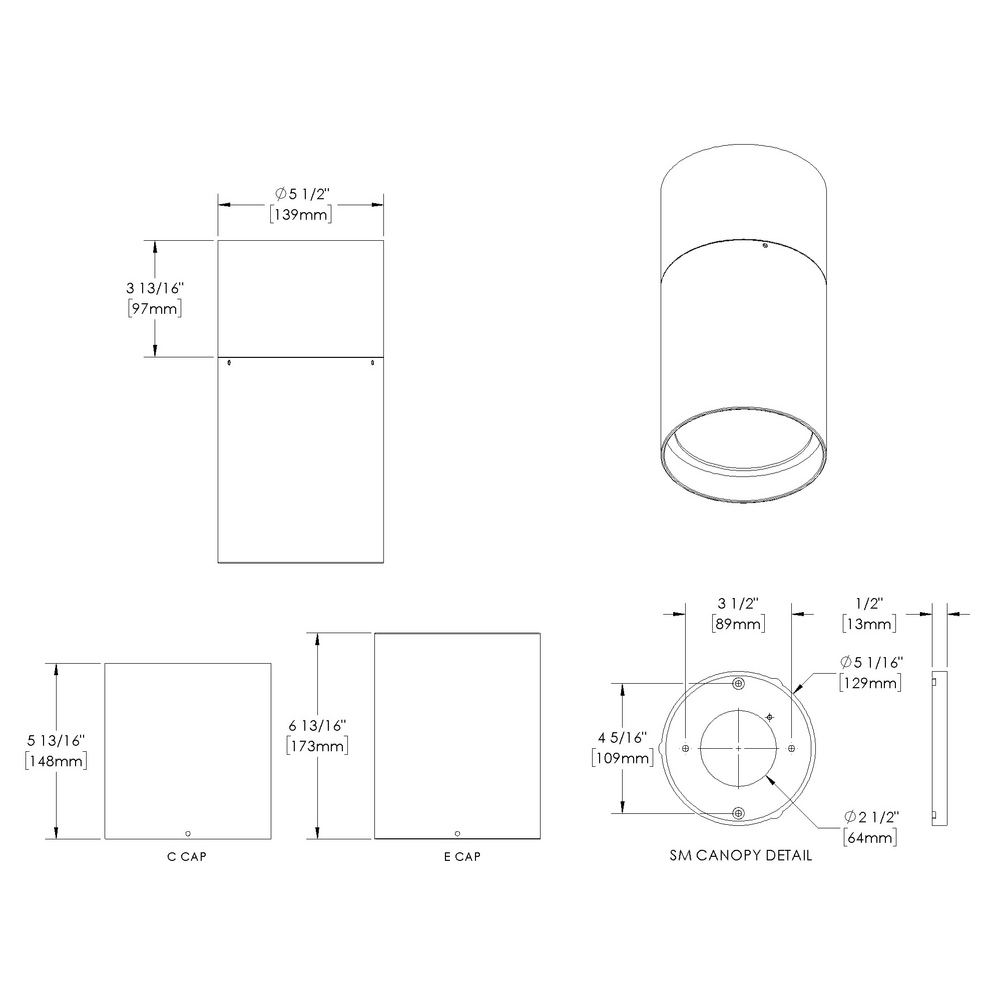

ALPINE - Ceiling Mount - Line Voltage - LED COB - Symmetrical Optics
(formerly Alpine Surface Downlight / SM-AP-LED)




New
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
AP-
01
CM-
02
LID-
03
LCB-
04
AL-
05
SM-
06B
___-
06C
___-
06D
___-
06E
___-
07
___-
08
___-
09
___-
10B
WL00-
11
___-
12
Click options to build your configurationCompleting the first column to render configured product images below

01 SERIES
02 CATEGORY
03 DRIVER
04 LIGHT SOURCE (TYPE)
05 MATERIAL
06B MOUNT
06C STYLE
06D VERSION
06E INPUT VOLTAGE
07 LIGHT SOURCE
08 OPTIC
09 CONTROL
10B SHIELDING
11 WIRING LENGTH
12 FINISH
Standard Finishes
, , , , , , , Premium Finishes
, , , , , , , , , , , , , , , , , Other - RAL
Other - Custom Color
- Light Source
- Technical
- Finishes
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
x46
NFL - Narrow Flood
25
2700
80
42
3817
15755
1050
50000
x46
WFL - Wide Flood
60
2700
80
42
2707
3386
1050
50000
x47
NFL - Narrow Flood
25
3000
80
42
4071
16805
1050
50000
x47
WFL - Wide Flood
60
3000
80
42
2888
3612
1050
50000
x48
NFL - Narrow Flood
25
4000
80
42
4241
17505
1050
50000
x48
WFL - Wide Flood
60
4000
80
42
3008
3725
1050
50000
Features

Anti-condensation vent allows moisture to exit the fixture but never enter in

Lens factory adhered to fixture cap providing hermetically sealed optical compartment

Manufactured in the USA with sustainable processes

Water-tight anti-siphon plug prevents moisture ingress from wireways

Secured with tamper-resistant, stainless steel hardware

Easily replaceable modular components reduce waste and extend fixture life
Slip fit cap & high temp. silicone 'O' ring provides reliable water-tight seal

Solid billet fixture body provides unmatched durability and heat management
