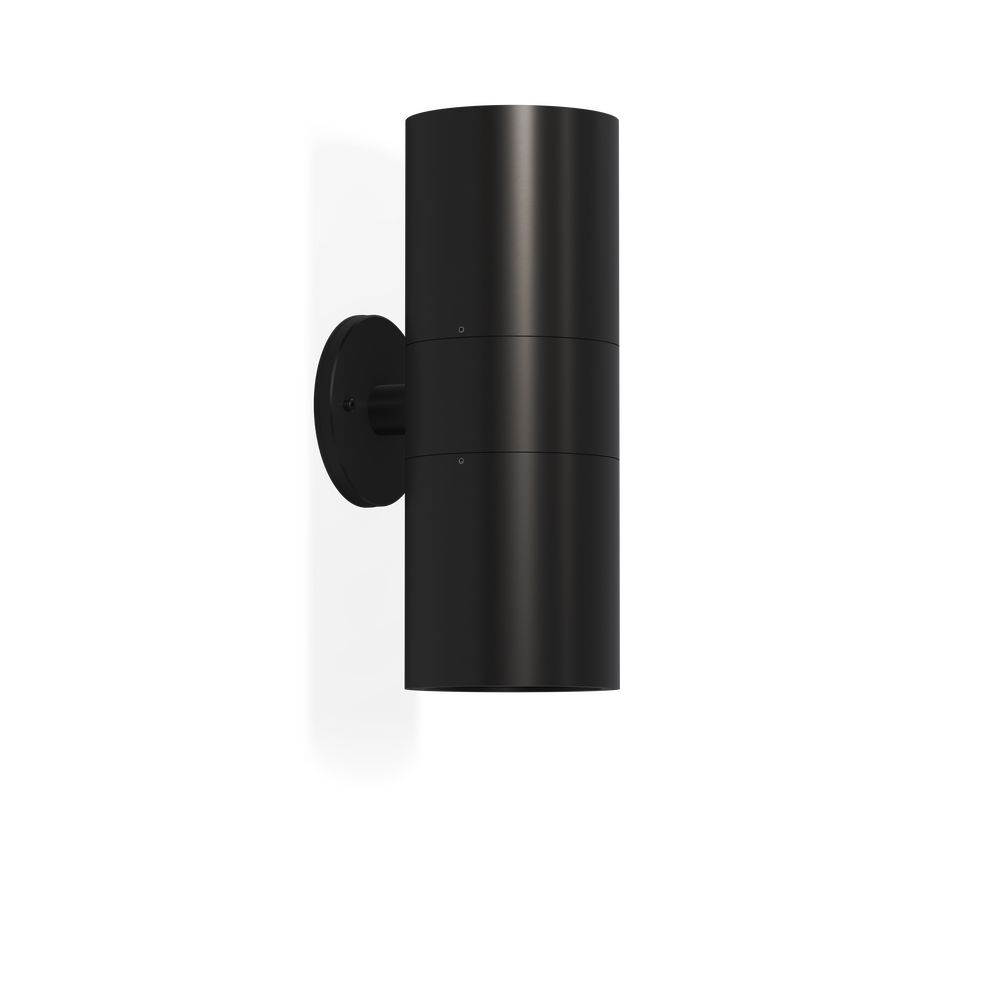

ALPINE - Wall Mount - Line Voltage - Lamp PAR30 - Dual - Downlight and Uplight
(formerly Mammoth / MA-PAR30)
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
AP-
01
WM-
02
LID-
03
LAP30-
04
AL-
05
BC-
06B
CC-
06C
DD-
06D
___-
07
(Up)
(Up)
___-
07
(Down)
(Down)
___-
10A
(Up)
(Up)
___-
10A
(Down)
(Down)
___-
10B
(Up)
(Up)
___-
10B
(Down)
(Down)
WL00-
11
___-
12
Click options to build your configurationCompleting the first column to render configured product images below
IMPORTANT: Only light sources with the same input power (W) can be chosen together.
- Light Source
- Technical
- Finishes
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
520
SP - Spot
15
2700
95
11
950
10000
50000
521
NFL - Narrow Flood
25
2700
95
11
950
4500
50000
524
NFL - Narrow Flood
25
3000
95
11
990
4700
50000
Features
Anti-condensation vent allows moisture to exit the fixture but never enter in
Lens factory adhered to fixture cap providing hermetically sealed optical compartment
Machined solid billet canopy provides unmatched strength and durability
Manufactured in the USA with sustainable processes
Water-tight anti-siphon plug prevents moisture ingress from wireways
Secured with tamper-resistant, stainless steel hardware
Easily replaceable modular components reduce waste and extend fixture life
Slip fit cap & high temp. silicone 'O' ring provides reliable water-tight seal
Solid billet fixture body provides unmatched durability and heat management
