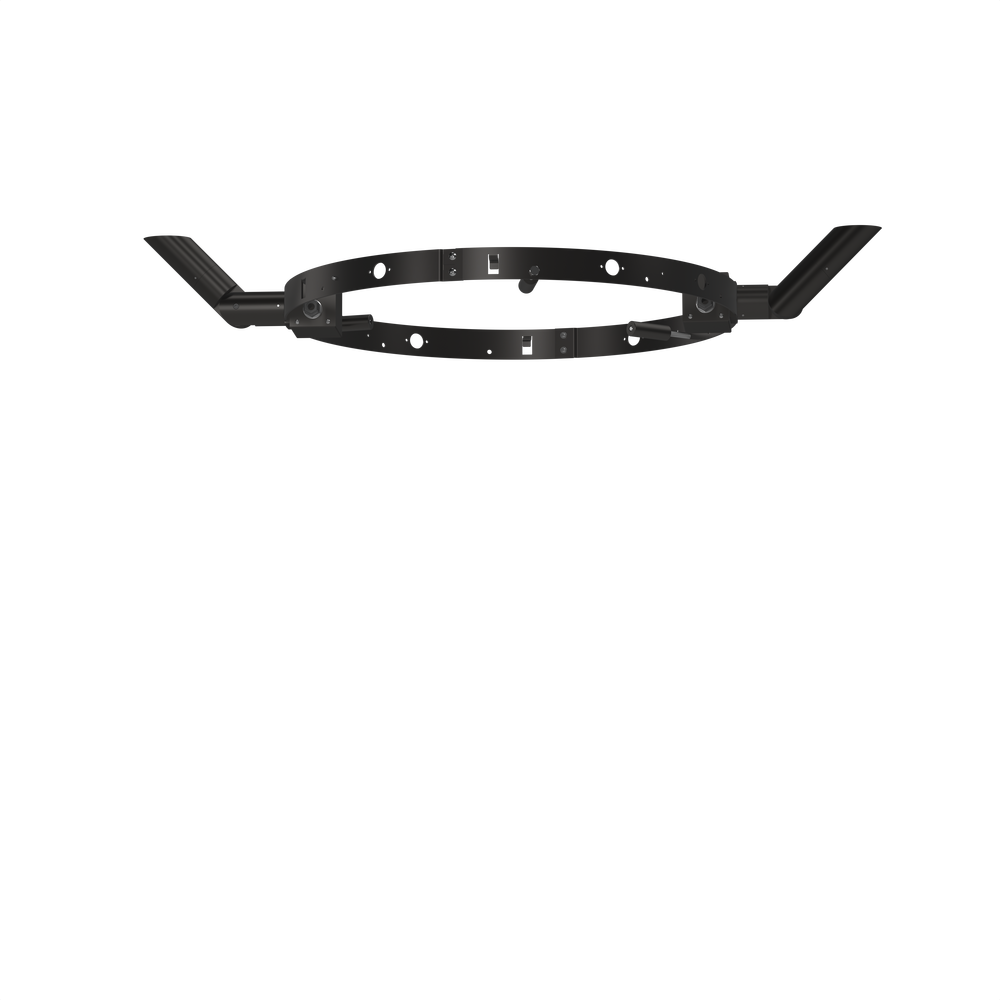

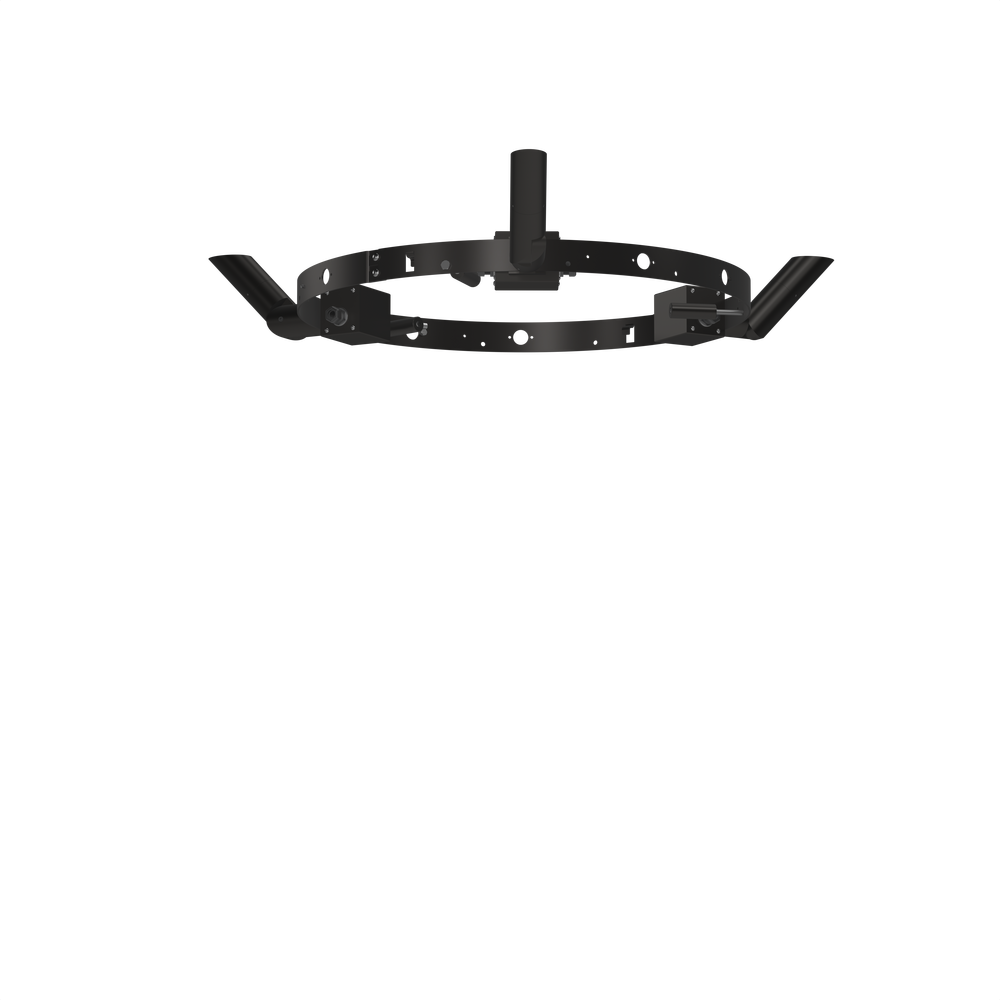

ARTI STAR - Tree Mount - Line Voltage Via Transformer - LED High-Power
(formerly ArtiStar Integral 7W Palm Tree Ring / PTR with AR-LED-TR)
Wildlife Friendly
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
AR-
01
TM-
02
LIT-
03
LHP-
04
AL-
05
___-
06C
___-
06D
___-
06F
___-
07
___-
08
NON-
09
___-
10A
___-
10B
WL00-
11
___-
12
Click options to build your configurationCompleting the first column to render configured product images below
- Light Source
- Technical
- Transformers
- Finishes
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
e74
NSP - Narrow Spot
13
Amber
7
299
3927
700
50000
e74
SP - Spot
16
Amber
7
291
2978
700
50000
e74
SP2 - Spot
23
Amber
7
260
1131
700
50000
e74
MFL - Medium Flood
31
Amber
7
262
741
700
50000
e79
NSP - Narrow Spot
13
2700
90
7
700
50000
e79
SP - Spot
16
2700
90
7
700
50000
e79
SP2 - Spot
23
2700
90
7
700
50000
e79
MFL - Medium Flood
31
2700
90
7
700
50000
e80
NSP - Narrow Spot
13
3000
90
7
700
50000
e80
SP - Spot
16
3000
90
7
700
50000
e80
SP2 - Spot
23
3000
90
7
700
50000
e80
MFL - Medium Flood
31
3000
90
7
700
50000
e81
NSP - Narrow Spot
13
3500
80
7
700
50000
e81
SP - Spot
16
3500
80
7
700
50000
e81
SP2 - Spot
23
3500
80
7
700
50000
e81
MFL - Medium Flood
31
3500
80
7
700
50000
Features
Anti-condensation vent allows moisture to exit the fixture but never enter in
Lens factory adhered to fixture cap providing hermetically sealed optical compartment
Manufactured in the USA with sustainable processes
Aim & Lock knuckle eliminates need for re-aiming & adjustments
Water-tight anti-siphon plug prevents moisture ingress from wireways
Secured with tamper-resistant, stainless steel hardware
Easily replaceable modular components reduce waste and extend fixture life
Slip fit cap & high temp. silicone 'O' ring provides reliable water-tight seal
Solid billet fixture body provides unmatched durability and heat management
