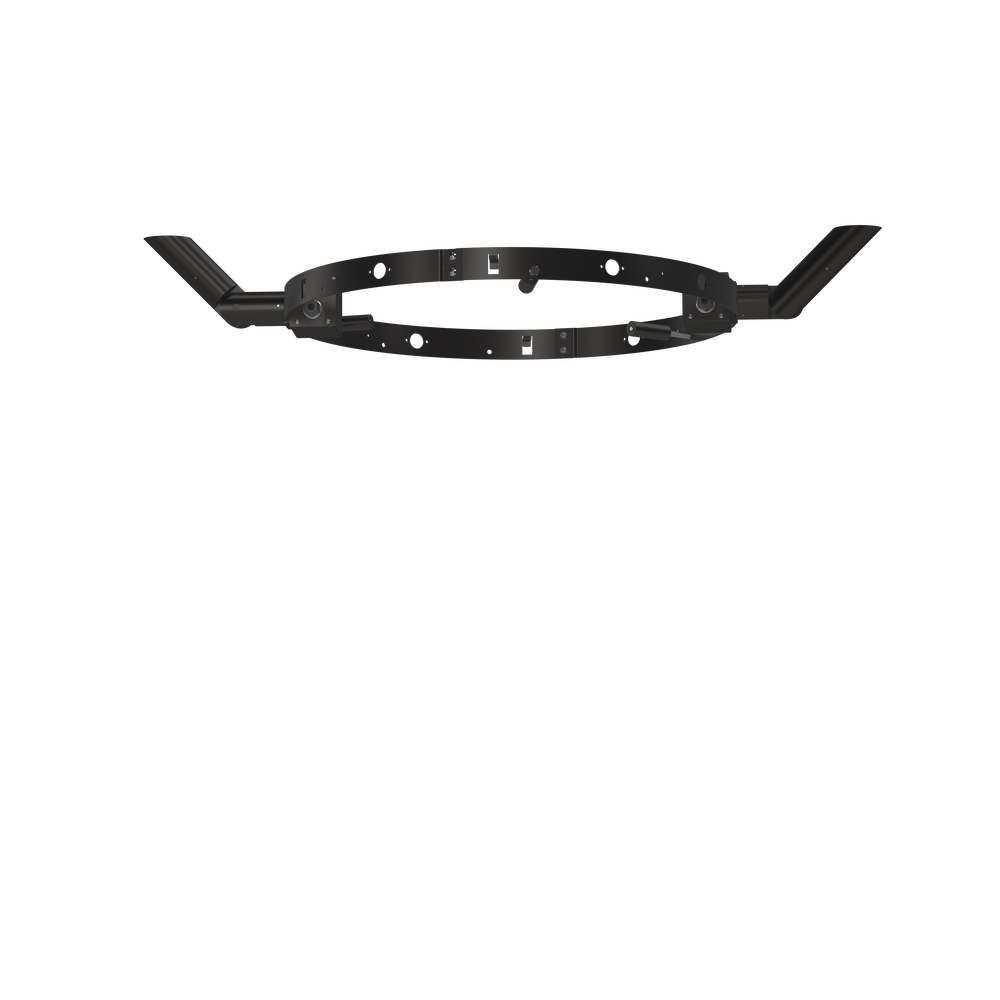

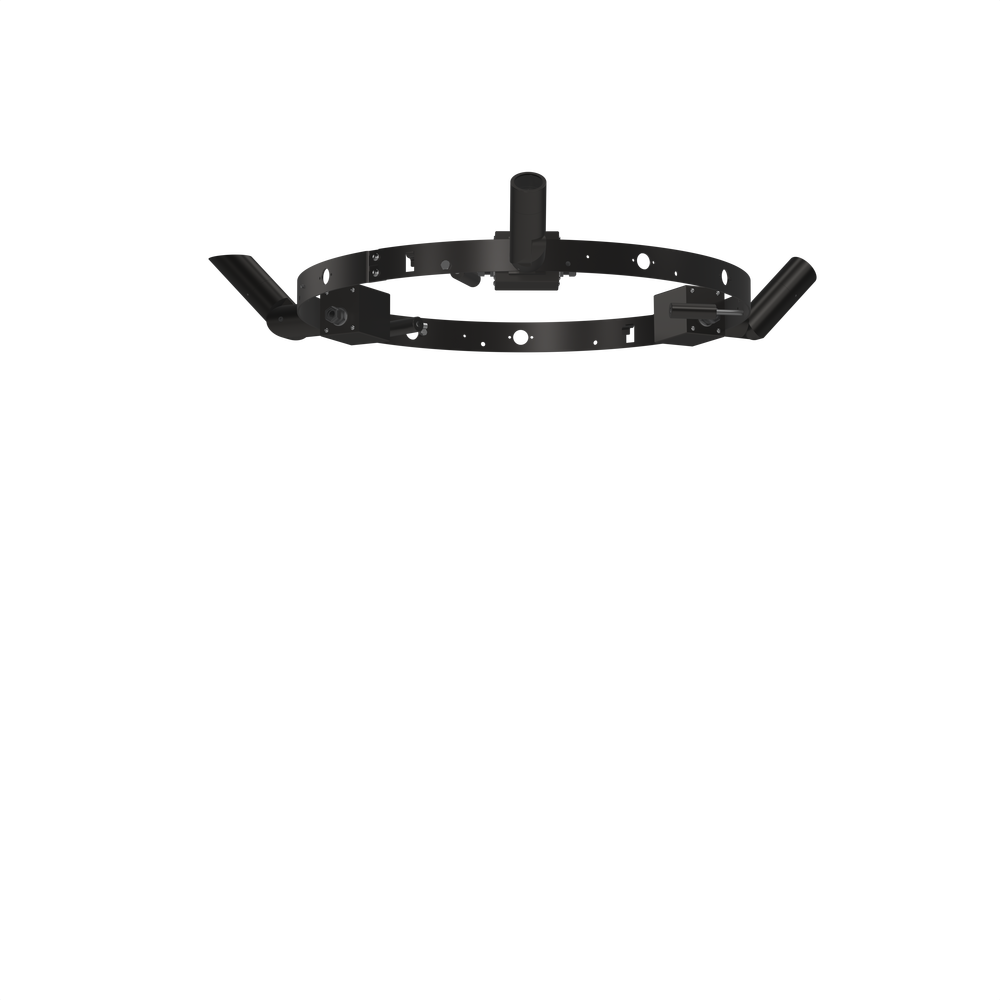

ARTI STAR - Tree Mount - Line Voltage - LED COB
(formerly ArtiStar Integral 10W Palm Tree Ring / PTR with AR-LED-TR)
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
AR-
01
TM-
02
LID-
03
LCB-
04
AL-
05
___-
06C
___-
06D
___-
06E
___-
06F
___-
07
___-
08
___-
09
___-
10A
___-
10B
WL00-
11
___-
12
Click options to build your configurationCompleting the first column to render configured product images below
- Light Source
- Technical
- Finishes
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
x55
FL - Flood
60
2700
90
10
350
50000
x55
SP - Spot
60
2700
90
10
350
50000
x55
WFL - Wide Flood
60
2700
90
10
350
50000
x56
FL - Flood
60
3000
90
10
350
50000
x56
SP - Spot
60
3000
90
10
350
50000
x56
WFL - Wide Flood
60
3000
90
10
350
50000
x57
FL - Flood
60
3500
90
10
350
50000
x57
SP - Spot
60
3500
90
10
350
50000
x57
WFL - Wide Flood
60
3500
90
10
350
50000
Features
Anti-condensation vent allows moisture to exit the fixture but never enter in
Lens factory adhered to fixture cap providing hermetically sealed optical compartment
Manufactured in the USA with sustainable processes
Aim & Lock knuckle eliminates need for re-aiming & adjustments
Water-tight anti-siphon plug prevents moisture ingress from wireways
Secured with tamper-resistant, stainless steel hardware
Easily replaceable modular components reduce waste and extend fixture life
Slip fit cap & high temp. silicone 'O' ring provides reliable water-tight seal
Solid billet fixture body provides unmatched durability and heat management
