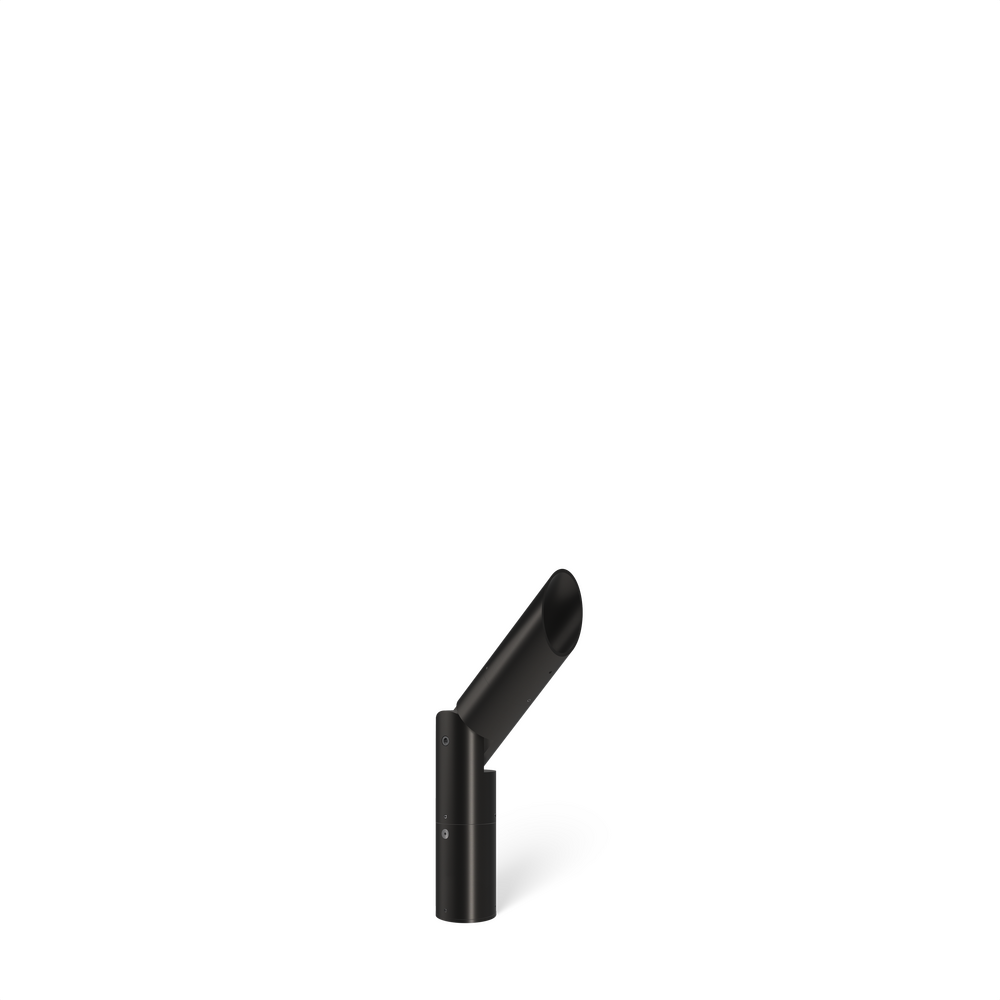

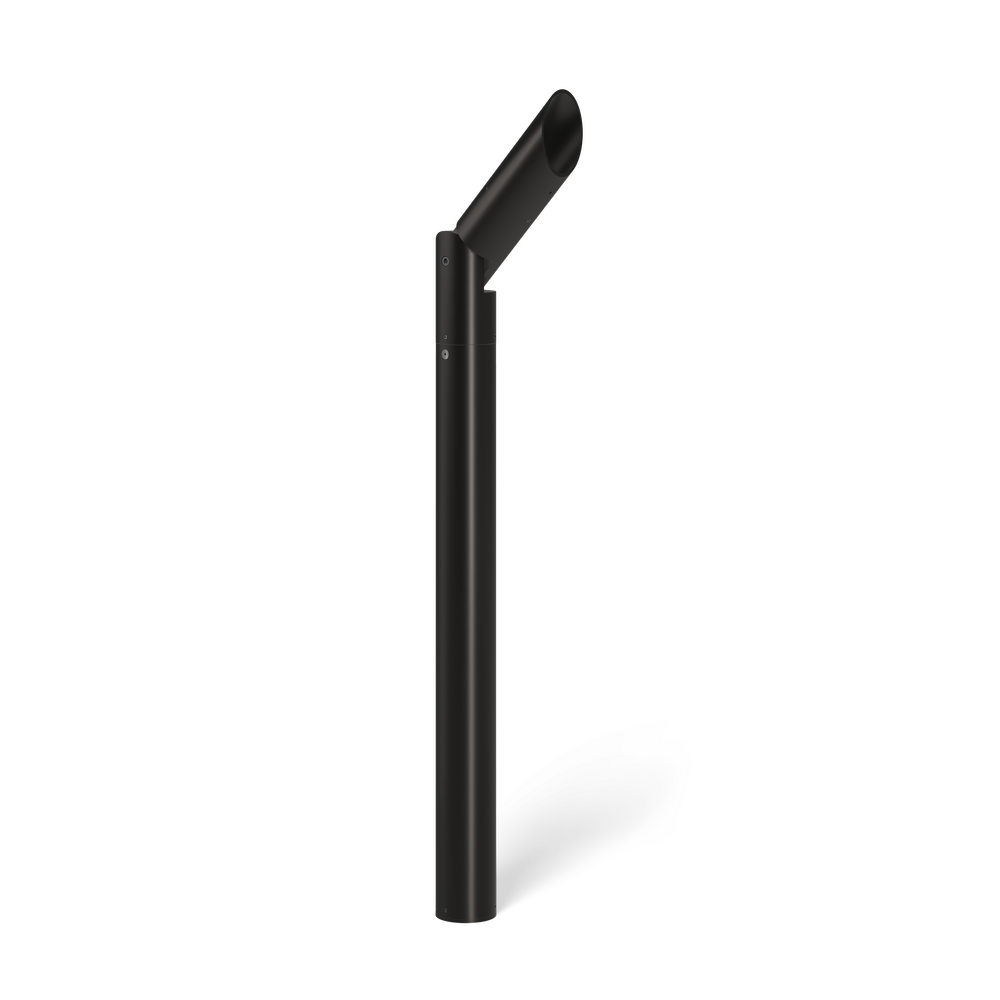

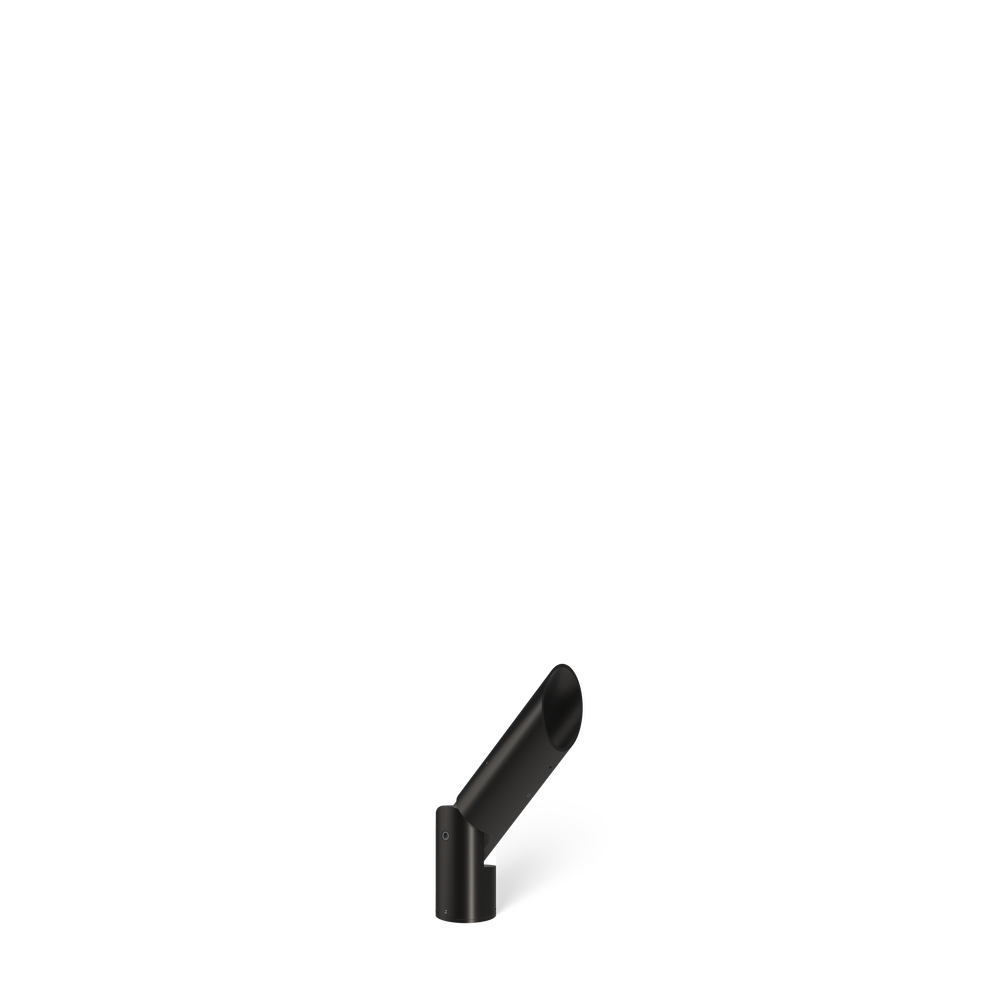

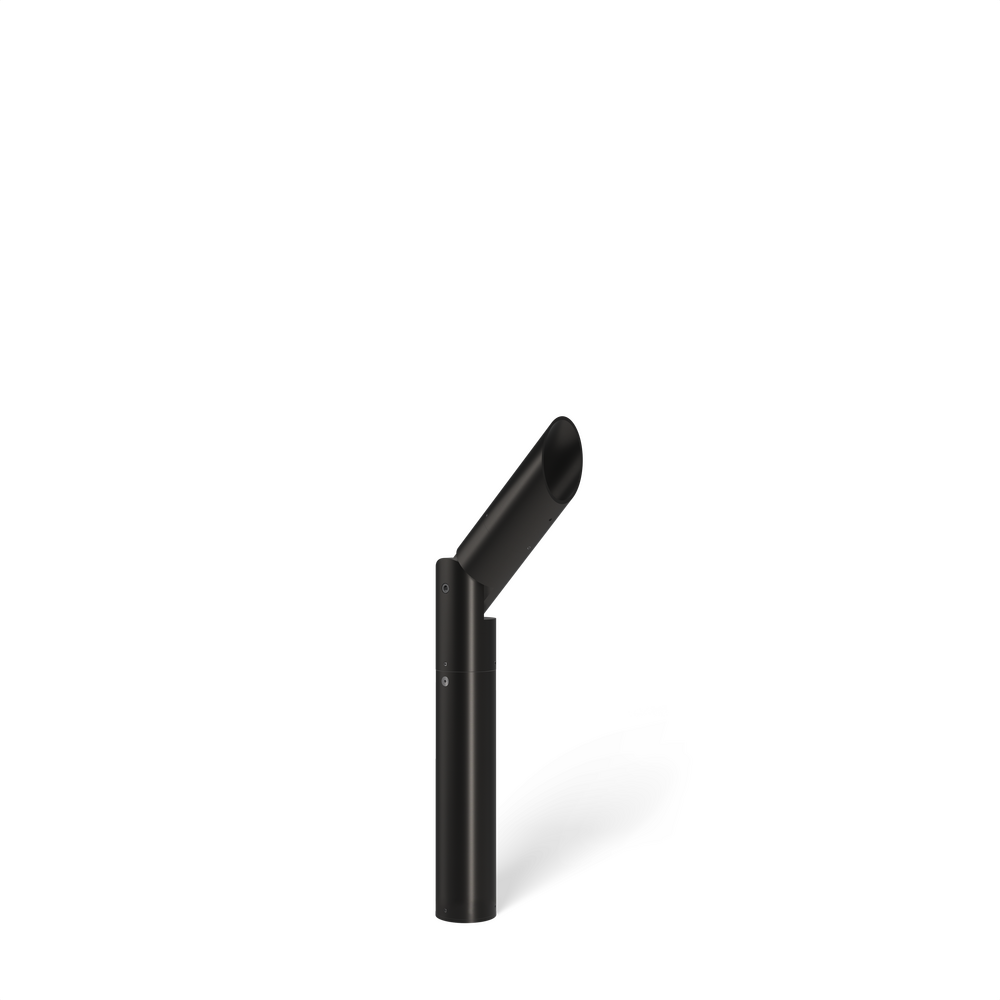

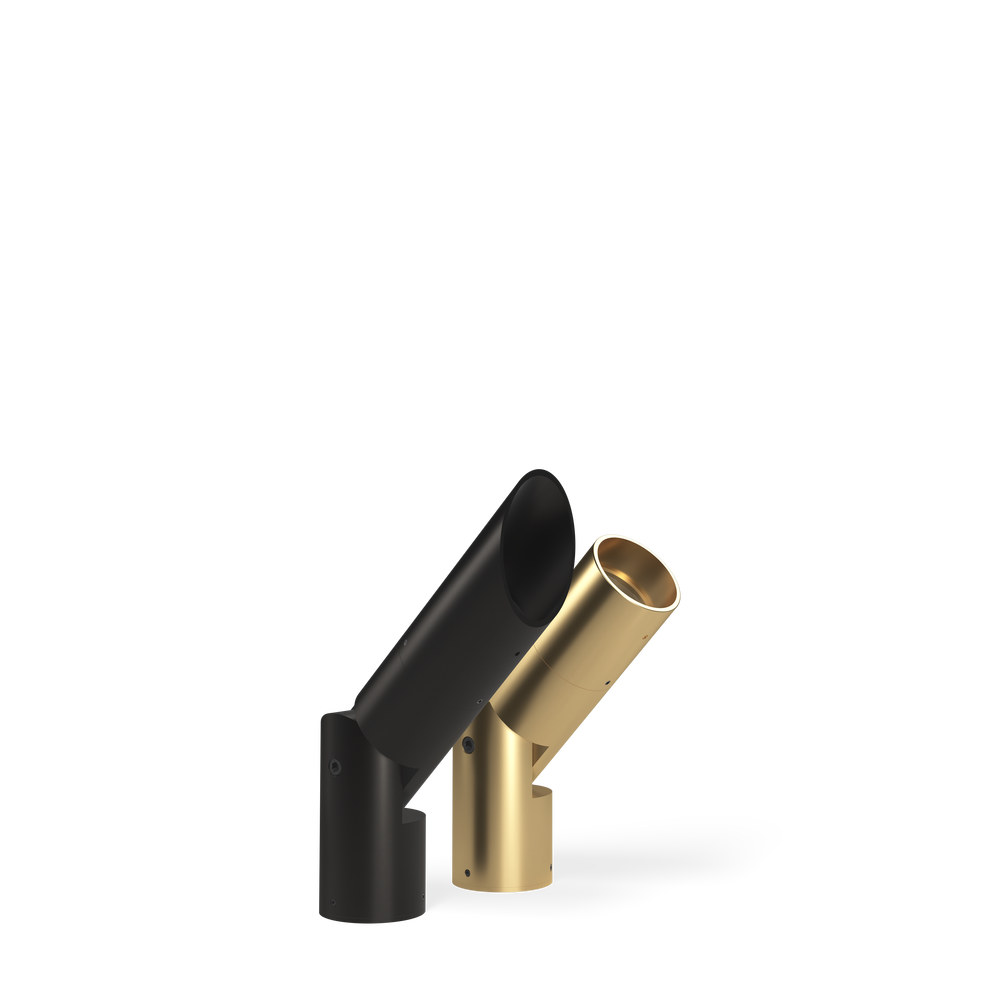

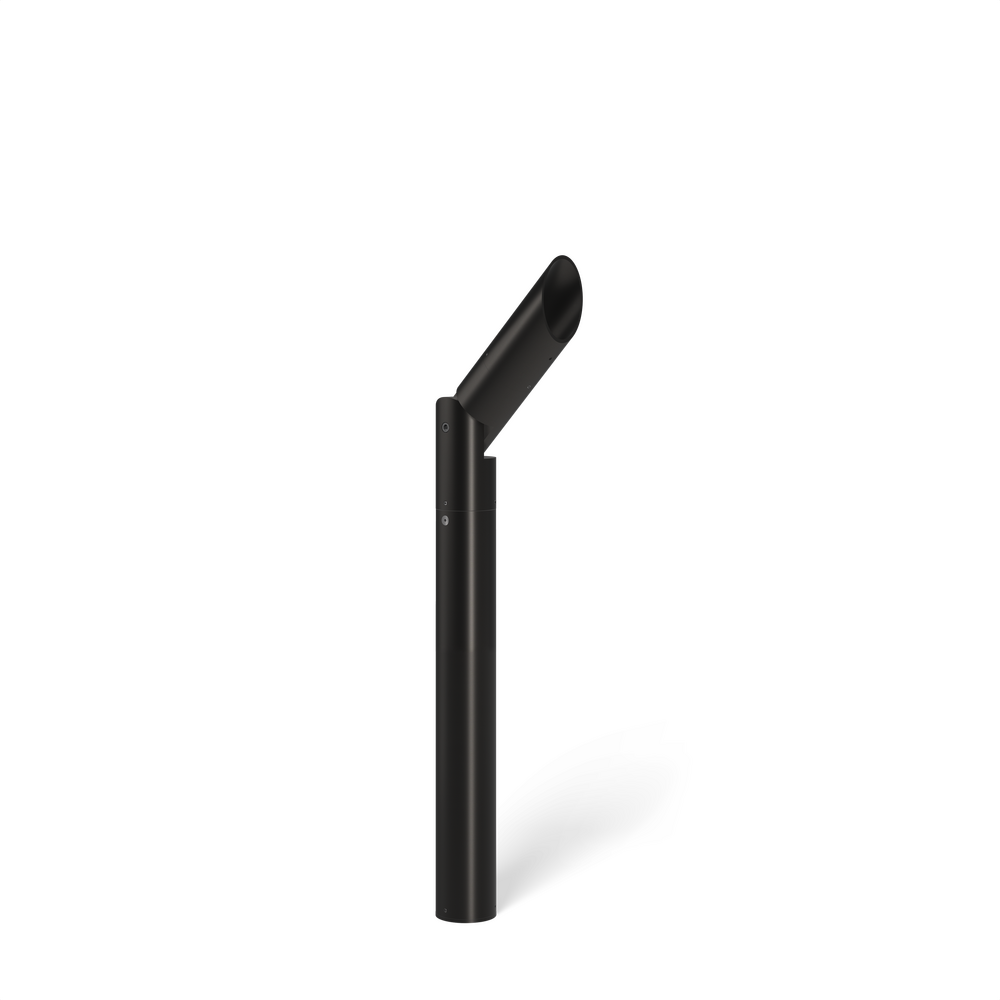

ARTI STAR - Floodlight - Low Voltage - Lamp MR16 Gu5.3

(formerly ArtiStar Remote MR16 / AR-MR)

Wildlife Friendly

ARTI STAR - Floodlight - Low Voltage - Lamp MR16 Gu5.3

Downloads

Family Spec Sheet (.pdf)

Product Images (.zip)

Technical Drawing (.zip)

Installation Instructions (.pdf)

Page Navigation

Configure Product

Product Details

Mountings & Power Supplies

NOTE: Not all configurations may be compatible with one another. Please configure the product for specific 2D, Photometry, Downloads, Spec Sheet and Compatible mountings and power supplies.

Configure Product

Download as configured

NOTE: Please configure the LEFT column found below to activate these download links.

Date:

Project:

Type:

WARNING: This is a low voltage product. Please check "Mountings With A Power Supply" or "Power Supplies" to order remote transformer separately.

AR-

FL-

LOD-

LAM16-

___-

06B

___-

06C

___-

06F

___-

10A

___-

10B

WL00-

___-

Click options to build your configuration
Completing the first column to render configured product images below

01 SERIES

02 CATEGORY

03 DRIVER

04 LIGHT SOURCE (TYPE)

05 MATERIAL

06B MOUNT

06C STYLE

06F SIZE

07 LIGHT SOURCE

10A LENS

10B SHIELDING

11 WIRING LENGTH

12 FINISH

Standard Finishes

, , , , , , ,

Premium Finishes

, , , , , , , , , , , , , , , , ,

Other - RAL

Other - Custom Color

Brass Finishes

, ,

Light Source
Technical
Finishes

Light Source

Optic

Beam Angle

CCT (K)

CRI

Input Power (W)

Delivered Lumens (Lm)

CBCP

MacAdam Ellipses (SDCM)

Operating Current (mA)

L70 (Hours)

L90B10 (Hours)

IES File

IES Pdf

Diagram CONE

359

NSP - Narrow Spot

2700

7.5

620

8000

35000

361

NFL - Narrow Flood

2700

7.5

650

3170

35000

362

MFL - Medium Flood

2700

7.5

650

1550

35000

363

NSP - Narrow Spot

3000

7.5

640

8400

35000

365

NFL - Narrow Flood

3000

7.5

660

3300

35000

366

MFL - Medium Flood

3000

7.5

660

1650

35000

Features

Anti-condensation vent allows moisture to exit the fixture but never enter in

Lens factory adhered to fixture cap providing hermetically sealed optical compartment

Manufactured in the USA with sustainable processes

Aim & Lock knuckle eliminates need for re-aiming & adjustments

Water-tight anti-siphon plug prevents moisture ingress from wireways

Secured with tamper-resistant, stainless steel hardware

Easily replaceable modular components reduce waste and extend fixture life

Slip fit cap & high temp. silicone 'O' ring provides reliable water-tight seal

Solid billet fixture body provides unmatched durability and heat management

Technical

Mountings & Power Supplies

NOTE: Ordered separately. Configure fixture first to guarantee compatibility.

WARNING: This is a low voltage product. Please check "Mountings With A Power Supply" or "Power Supplies" to order remote transformer separately.

Power Supply

Power Canopy

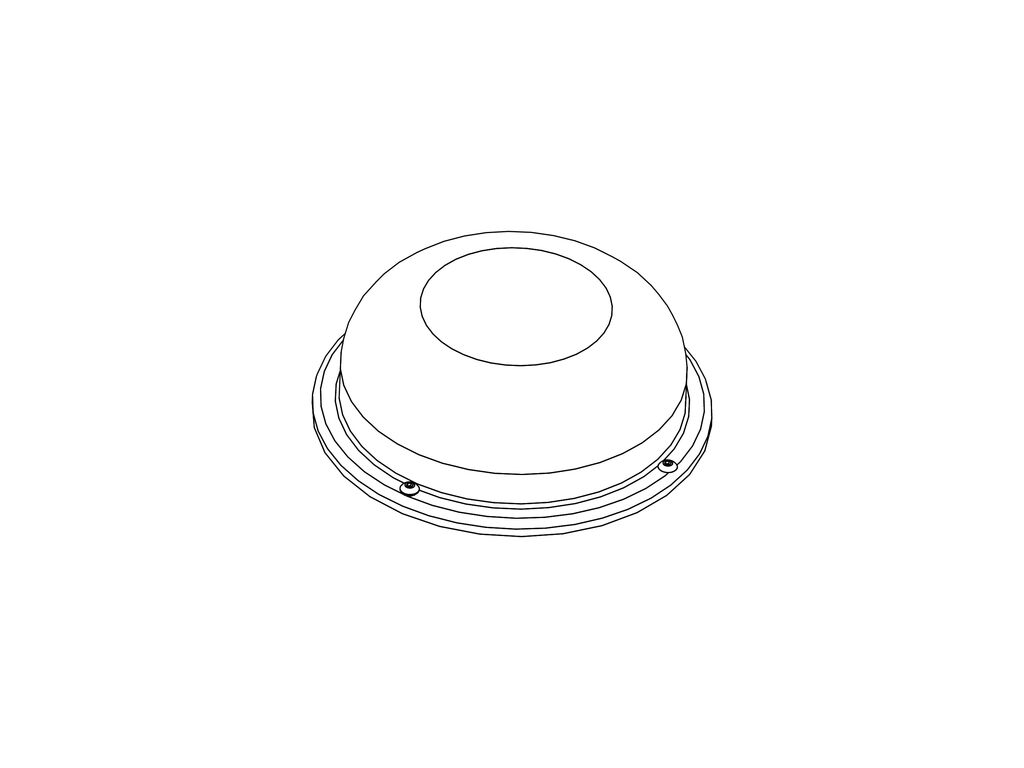

Power Canopy PC1 - Remote Transformer - Aluminum

[PC1-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Power Canopy PC1 - Remote Transformer - Brass

[PC1-TR-RM-BR]

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Power Canopy PC1 - Remote Two Transformers - Aluminum

[PC1-TRT-RM-AL]

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Power Canopy PC1 - Remote Two Transformers - Brass

[PC1-TRT-RM-BR]

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module

Universal Power Module PM1 - Camlock Mount - Round - With Mounting Brackets - Remote Transformer - Aluminum

[PM1-CR-MB-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Camlock Mount - Round - With Mounting Brackets - Remote Two Transformers - Aluminum

[PM1-CR-MB-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Camlock Mount - Round - Remote Transformer - Aluminum

[PM1-CR-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Camlock Mount - Round - Remote Two Transformers - Aluminum

[PM1-CR-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Camlock Mount - Rectangular - With Mounting Brackets - Remote Transformer - Aluminum

[PM1-CT-MB-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Camlock Mount - Rectangular - With Mounting Brackets - Remote Two Transformers - Aluminum

[PM1-CT-MB-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Camlock Mount - Rectangular - Remote Transformer - Aluminum

[PM1-CT-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Camlock Mount - Rectangular - Remote Two Transformers - Aluminum

[PM1-CT-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Surface Mount - Remote Transformer - Aluminum

[PM1-SM-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Surface Mount - Remote Two Transformers - Aluminum

[PM1-SM-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum

4" to 7" tree/branch diameter

[PM1-TS-24-MB-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Remote Two Transformers - Aluminum

4" to 7" tree/branch diameter

[PM1-TS-24-MB-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - 24" - With Safety Cable - Remote Transformer - Aluminum

4" to 7" tree/branch diameter

[PM1-TS-24-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - 24" - With Safety Cable - Remote Two Transformers - Aluminum

4" to 7" tree/branch diameter

[PM1-TS-24-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum

4" to 15" tree/branch diameter

[PM1-TS-48-MB-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Remote Two Transformers - Aluminum

4" to 15" tree/branch diameter

[PM1-TS-48-MB-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - 48" - With Safety Cable - Remote Transformer - Aluminum

4" to 15" tree/branch diameter

[PM1-TS-48-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - 48" - With Safety Cable - Remote Two Transformers - Aluminum

4" to 15" tree/branch diameter

[PM1-TS-48-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum

4" to 22" tree/branch diameter

[PM1-TS-72-MB-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Remote Two Transformers - Aluminum

4" to 22" tree/branch diameter

[PM1-TS-72-MB-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - 72" - With Safety Cable - Remote Transformer - Aluminum

4" to 22" tree/branch diameter

[PM1-TS-72-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - 72" - With Safety Cable - Remote Two Transformers - Aluminum

4" to 22" tree/branch diameter

[PM1-TS-72-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - Custom - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum

[PM1-TS-CS-MB-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - Custom - With Safety Cable and Mounting Brackets - Remote Two Transformers - Aluminum

[PM1-TS-CS-MB-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - Custom - With Safety Cable - Remote Transformer - Aluminum

[PM1-TS-CS-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - Custom - With Safety Cable - Remote Two Transformers - Aluminum

[PM1-TS-CS-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Camlock Mount - Round - With Mounting Brackets - Remote Transformer - Aluminum

[PM2-CR-MB-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Camlock Mount - Round - With Mounting Brackets - Remote Two Transformers - Aluminum

[PM2-CR-MB-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Camlock Mount - Round - Remote Transformer - Aluminum

[PM2-CR-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Camlock Mount - Round - Remote Two Transformers - Aluminum

[PM2-CR-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Camlock Mount - Rectangular - With Mounting Brackets - Remote Transformer - Aluminum

[PM2-CT-MB-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Camlock Mount - Rectangular - With Mounting Brackets - Remote Two Transformers - Aluminum

[PM2-CT-MB-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Camlock Mount - Rectangular - Remote Transformer - Aluminum

[PM2-CT-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Camlock Mount - Rectangular - Remote Two Transformers - Aluminum

[PM2-CT-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Surface Mount - Remote Transformer - Aluminum

[PM2-SM-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Surface Mount - Remote Two Transformers - Aluminum

[PM2-SM-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum

4" to 7" tree/branch diameter

[PM2-TS-24-MB-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Remote Two Transformers - Aluminum

4" to 7" tree/branch diameter

[PM2-TS-24-MB-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Remote Transformer - Aluminum

4" to 7" tree/branch diameter

[PM2-TS-24-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Remote Two Transformers - Aluminum

4" to 7" tree/branch diameter

[PM2-TS-24-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum

4" to 15" tree/branch diameter

[PM2-TS-48-MB-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Remote Two Transformers - Aluminum

4" to 15" tree/branch diameter

[PM2-TS-48-MB-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Remote Transformer - Aluminum

4" to 15" tree/branch diameter

[PM2-TS-48-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Remote Two Transformers - Aluminum

4" to 15" tree/branch diameter

[PM2-TS-48-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum

4" to 22" tree/branch diameter

[PM2-TS-72-MB-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Remote Two Transformers - Aluminum

4" to 22" tree/branch diameter

[PM2-TS-72-MB-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Remote Transformer - Aluminum

4" to 22" tree/branch diameter

[PM2-TS-72-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Remote Two Transformers - Aluminum

4" to 22" tree/branch diameter

[PM2-TS-72-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - Custom - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum

[PM2-TS-CS-MB-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - Custom - With Safety Cable and Mounting Brackets - Remote Two Transformers - Aluminum

[PM2-TS-CS-MB-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - Custom - With Safety Cable - Remote Transformer - Aluminum

[PM2-TS-CS-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - Custom - With Safety Cable - Remote Two Transformers - Aluminum

[PM2-TS-CS-TRT-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Power Pipe

Power Pipe PP1 - 12” Junction Box - Remote Transformer - Aluminum

[PP1-J12-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Power Pipe PP1 - 18" Junction Box - Remote Transformer - Aluminum

[PP1-J18-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Power Pipe PP1 - 12” Stake - Remote Transformer - Aluminum

[PP1-S12-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Power Pipe PP1 - 18” Stake - Remote Transformer - Aluminum

[PP1-S18-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Power Pipe PP1 - 12” Junction Box - Remote Transformer - Brass

[PP1-J12-TR-RM-BR]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Power Pipe PP1 - 18" Junction Box - Remote Transformer - Brass

[PP1-J18-TR-RM-BR]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Power Pipe PP1 - 12” Stake - Remote Transformer - Brass

[PP1-S12-TR-RM-BR]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Power Pipe PP1 - 18” Stake - Remote Transformer - Brass

[PP1-S18-TR-RM-BR]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

In-grade HP2

In-grade HP2 - No Grout Mask - Remote Transformer - Aluminum

[HP2-NG-TR-RM-AL]

[TR-150-120-MLV] 150W - 120V - MLV Dimming

[TR-150-277-MLV] 150W - 277V - MLV Dimming

[TR-75-120-MLV] 75W - 120V - MLV Dimming

[TR-75-277-MLV] 75W - 277V - MLV Dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

In-grade HP2 - No Grout Mask - Remote Transformer - Brass

[HP2-NG-TR-RM-BR]

[TR-150-120-MLV] 150W - 120V - MLV Dimming

[TR-150-277-MLV] 150W - 277V - MLV Dimming

[TR-75-120-MLV] 75W - 120V - MLV Dimming

[TR-75-277-MLV] 75W - 277V - MLV Dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

In-grade HP2 - No Grout Mask - Remote Transformer - Stainless Steel

[HP2-NG-TR-RM-SS]

[TR-150-120-MLV] 150W - 120V - MLV Dimming

[TR-150-277-MLV] 150W - 277V - MLV Dimming

[TR-75-120-MLV] 75W - 120V - MLV Dimming

[TR-75-277-MLV] 75W - 277V - MLV Dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

In-grade HP2 - Round Grout Mask - Remote Transformer - Aluminum

[HP2-RG-TR-RM-AL]

[TR-150-120-MLV] 150W - 120V - MLV Dimming

[TR-150-277-MLV] 150W - 277V - MLV Dimming

[TR-75-120-MLV] 75W - 120V - MLV Dimming

[TR-75-277-MLV] 75W - 277V - MLV Dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

In-grade HP2 - Round Grout Mask - Remote Transformer - Brass

[HP2-RG-TR-RM-BR]

[TR-150-120-MLV] 150W - 120V - MLV Dimming

[TR-150-277-MLV] 150W - 277V - MLV Dimming

[TR-75-120-MLV] 75W - 120V - MLV Dimming

[TR-75-277-MLV] 75W - 277V - MLV Dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

In-grade HP2 - Round Grout Mask - Remote Transformer - Stainless Steel

[HP2-RG-TR-RM-SS]

[TR-150-120-MLV] 150W - 120V - MLV Dimming

[TR-150-277-MLV] 150W - 277V - MLV Dimming

[TR-75-120-MLV] 75W - 120V - MLV Dimming

[TR-75-277-MLV] 75W - 277V - MLV Dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

In-grade HP2 - Square Grout Mask - Remote Transformer - Aluminum

[HP2-SG-TR-RM-AL]

[TR-150-120-MLV] 150W - 120V - MLV Dimming

[TR-150-277-MLV] 150W - 277V - MLV Dimming

[TR-75-120-MLV] 75W - 120V - MLV Dimming

[TR-75-277-MLV] 75W - 277V - MLV Dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

In-grade HP2 - Square Grout Mask - Remote Transformer - Brass

[HP2-SG-TR-RM-BR]

[TR-150-120-MLV] 150W - 120V - MLV Dimming

[TR-150-277-MLV] 150W - 277V - MLV Dimming

[TR-75-120-MLV] 75W - 120V - MLV Dimming

[TR-75-277-MLV] 75W - 277V - MLV Dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

In-grade HP2 - Square Grout Mask - Remote Transformer - Stainless Steel

[HP2-SG-TR-RM-SS]

[TR-150-120-MLV] 150W - 120V - MLV Dimming

[TR-150-277-MLV] 150W - 277V - MLV Dimming

[TR-75-120-MLV] 75W - 120V - MLV Dimming

[TR-75-277-MLV] 75W - 277V - MLV Dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Transformer

Magnetic Transformer 150W

[TR150]

[120-MLV] 120V - 12VAC Transformer

[277-MLV] 277V - 12VAC Transformer

Spec Sheet (.pdf) Installation instructions (.pdf)

Magnetic Transformer 300W

[TR300]

[120-MLV] 120V - 12VAC Transformer

[277-MLV] 277V - 12VAC Transformer

Spec Sheet (.pdf) Installation instructions (.pdf)

Magnetic Transformer 600W

[TR600]

[277-MLV] 277V - 12VAC Transformer

[120-MLV] 120V - 12VAC Transformer

Spec Sheet (.pdf) Installation instructions (.pdf)

Magnetic Transformer 60W

[TR60]

[120-MLV] 120V - 12VAC Transformer

[277-MLV] 277V - 12VAC Transformer

Spec Sheet (.pdf) Installation instructions (.pdf)

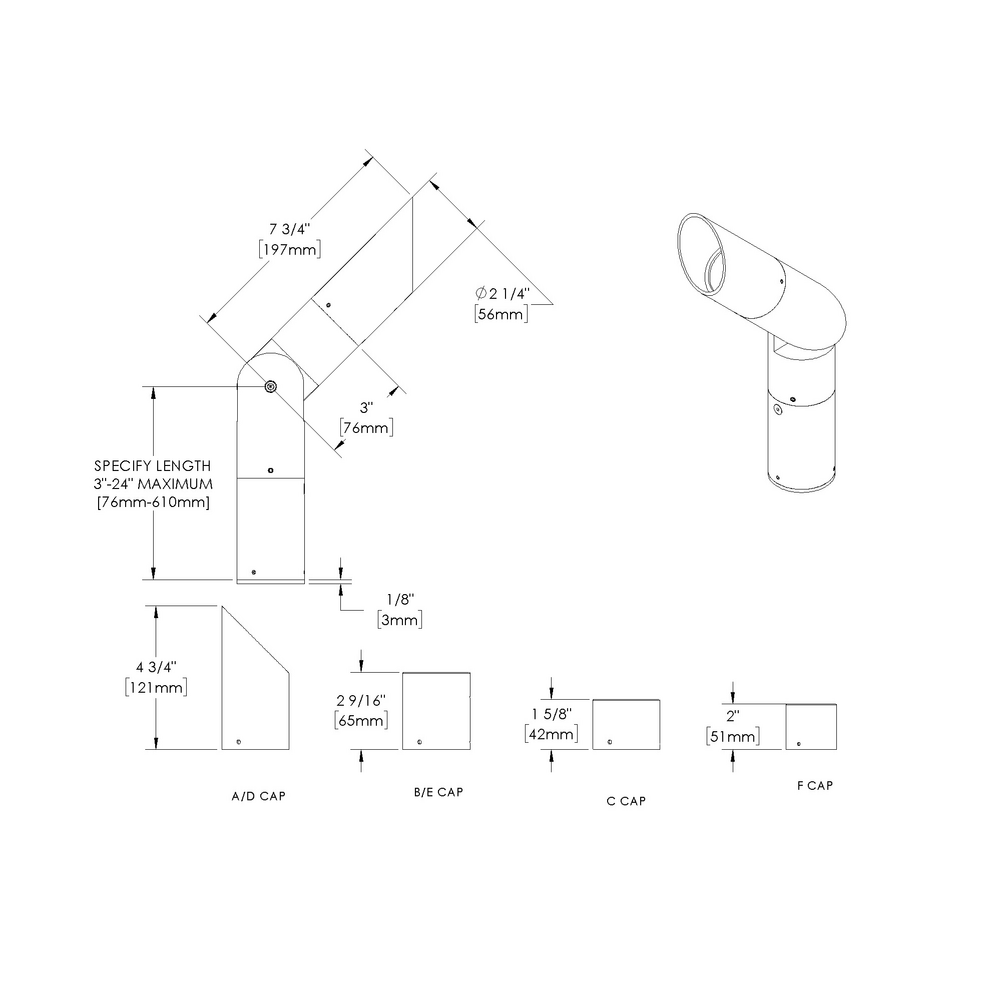

ARTI STAR - Floodlight - Low Voltage - Lamp MR16 Gu5.3

(formerly ArtiStar Remote MR16 / AR-MR)

Downloads

Page Navigation

Configure Product

Features

Technical

Mountings & Power Supplies

Power Canopy

Universal Power Module

Power Pipe

In-grade HP2

Transformer

CONTACT

PARTNER COMPANIES

SITE MAP

LINKS

CONTINUING EDUCATION

PARTNER COMPANIES

SITE MAP

LINKS

CONTINUING EDUCATION
