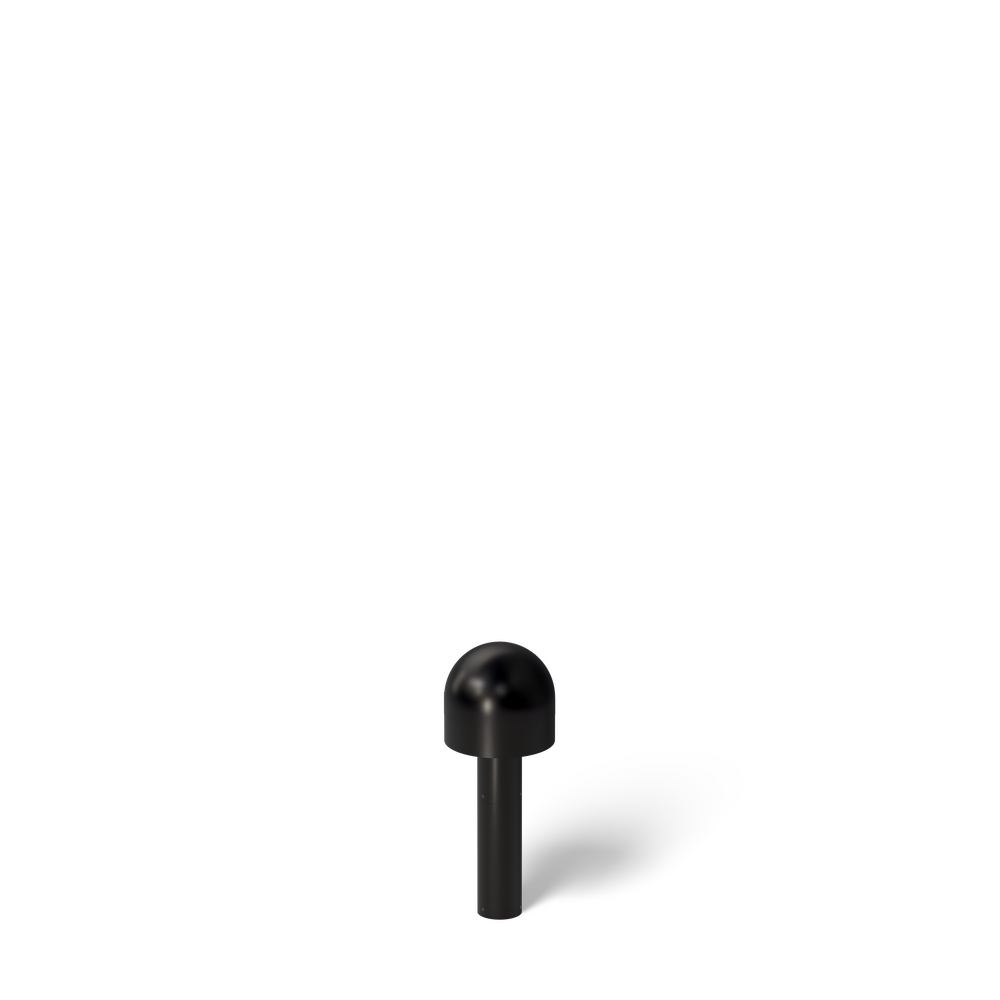

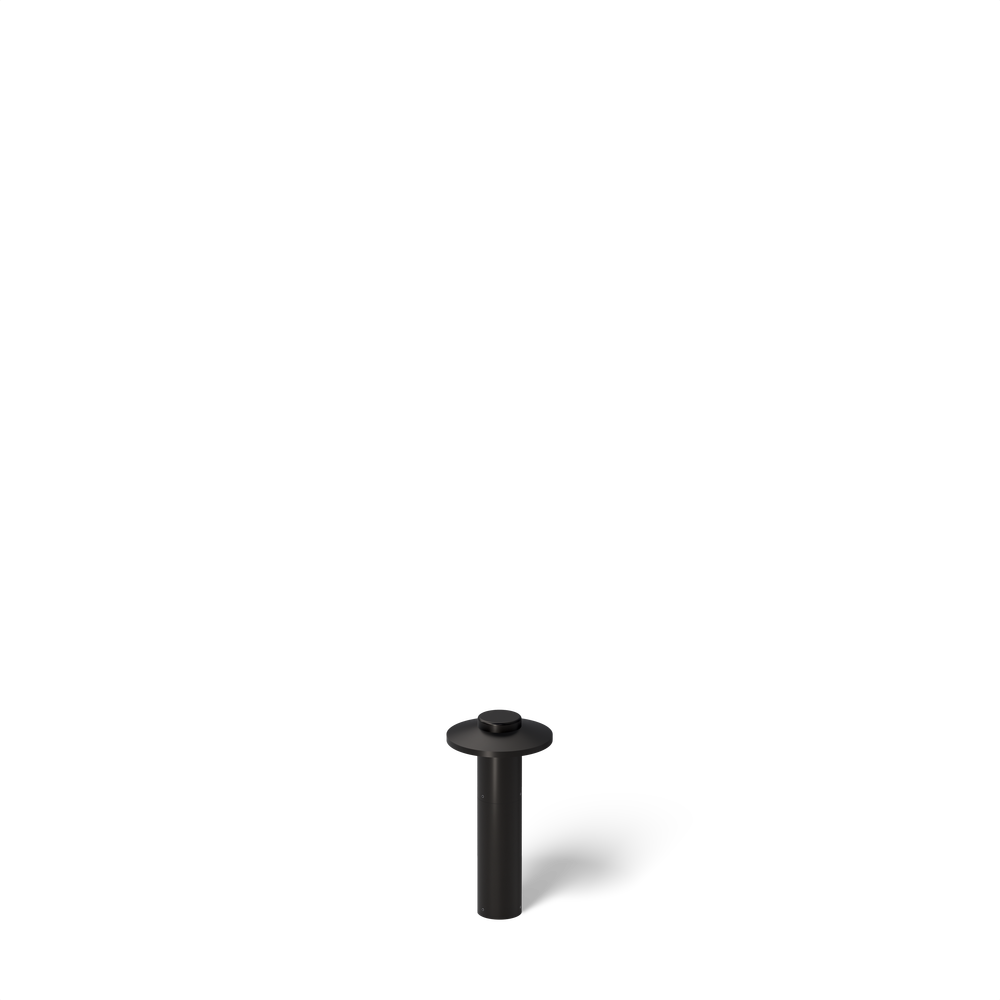

CAMINO STAR - Bollard - Line Voltage Via Transformer - LED High-Power - Aluminum
(formerly Camino Star / CS-LED)
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
CS-
01
BO-
02
LIT-
03
LHP-
04
AL-
05
___-
06B
___-
06C
___-
06F
___-
07
NON-
09
WL00-
11
___-
12
Click options to build your configurationCompleting the first column to render configured product images below
- Light Source
- Technical
- Transformers
- Finishes
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
e73
-
360h x 270v
Amber
3
500
50000
e85
-
360h x 270v
2700
90
3
500
50000
e86
-
360h x 270v
3000
90
3
500
50000
e87
-
360h x 270v
3500
90
3
500
50000
Features
Anti-condensation vent allows moisture to exit the fixture but never enter in
Lens factory adhered to fixture cap providing hermetically sealed optical compartment
Manufactured in the USA with sustainable processes
Water-tight anti-siphon plug prevents moisture ingress from wireways
Secured with tamper-resistant, stainless steel hardware
Easily replaceable modular components reduce waste and extend fixture life
Slip fit cap & high temp. silicone 'O' ring provides reliable water-tight seal
Solid billet fixture body provides unmatched durability and heat management
