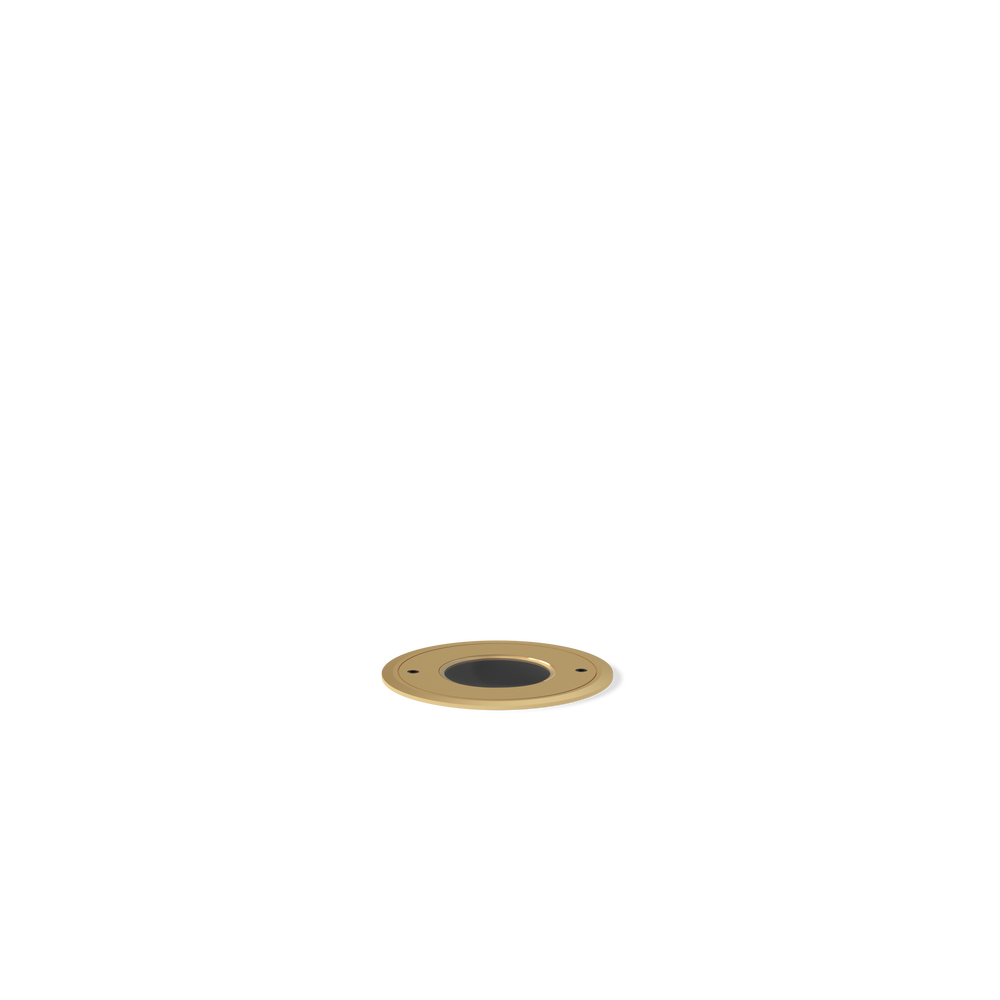

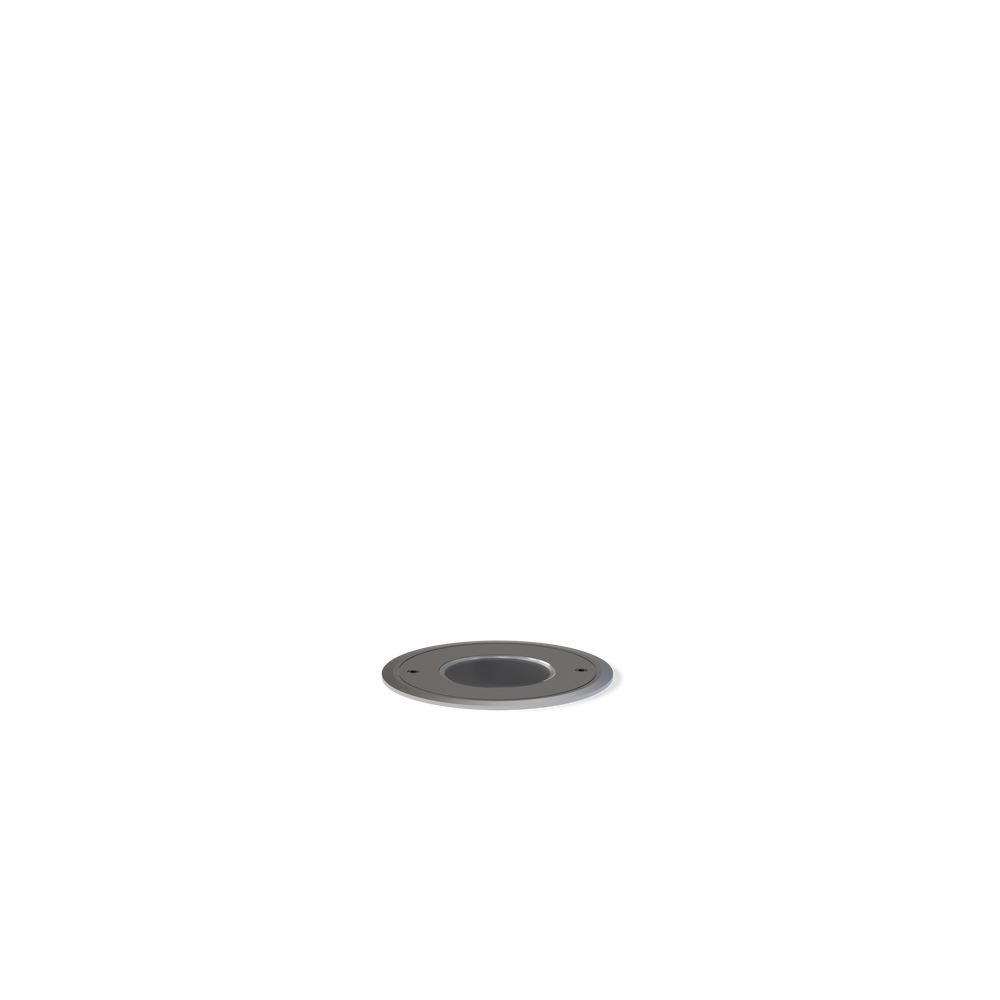

DENALI - In-grade - Remote Driver - LED COB - Surface Mount
(formerly Denali Recessed Uplight Surface Mount / UL-S-DE)
Upgraded
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
WARNING: This is a remote driver product. Please check "Mountings With A Power Supply" or "Power Supplies" to order remote driver separately. (IMPORTANT: Driver wattage MUST match selected fixture wattage. Example: 12W Light Source = 12W Driver)"
DE-
01
IN-
02
RMD-
03
LCB-
04
___-
05
FSM-
06B
___-
07
___-
08
___-
10A
___-
10B
___-
11
___-
12
Click options to build your configurationCompleting the first column to render configured product images below
01 SERIES
02 CATEGORY
03 DRIVER
04 LIGHT SOURCE (TYPE)
05 MATERIAL
06B MOUNT
07 LIGHT SOURCE
08 OPTIC
10A LENS
10B SHIELDING
11 WIRING LENGTH
12 FINISH
- Light Source
- Technical

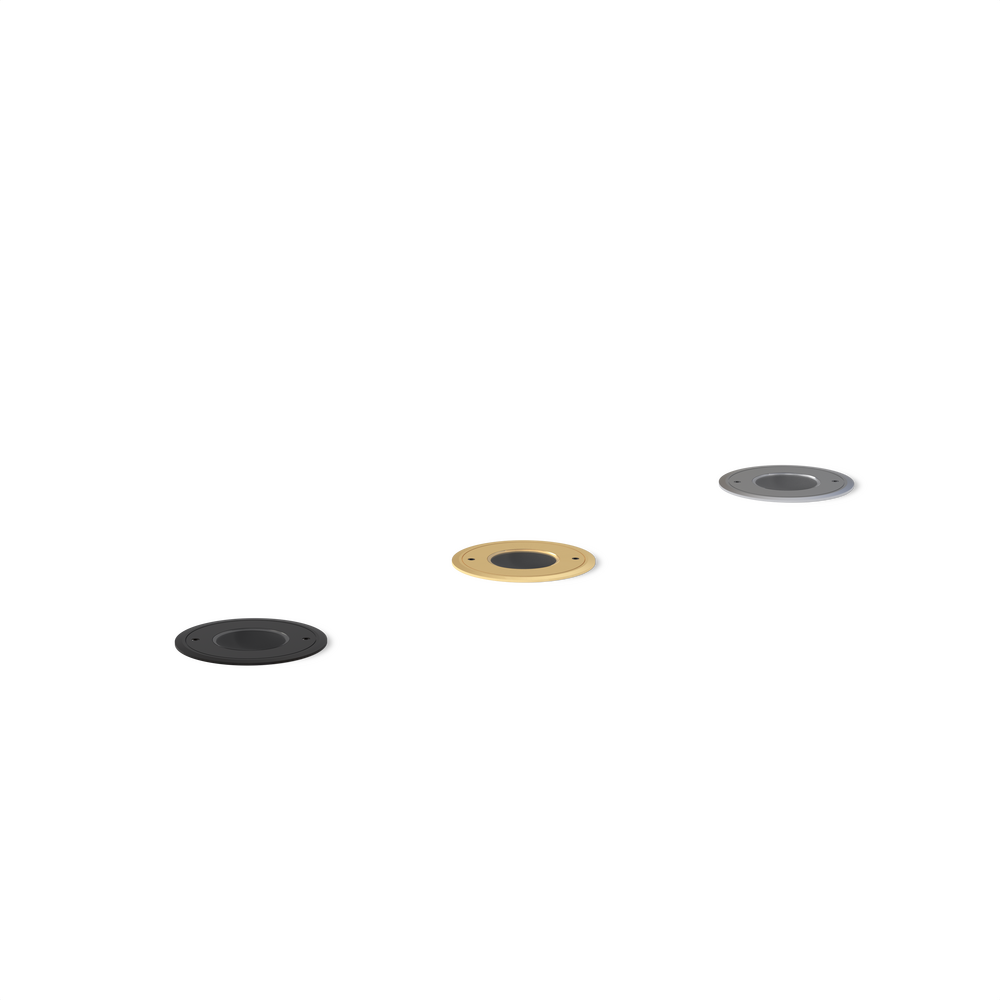

- Finishes
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
x67
SP - Spot
15
2700
90
27
1676
14852
700
50000
x67
MFL - Medium Flood
35
2700
90
27
1504
4411
700
50000
x67
WFL - Wide Flood
60
2700
90
27
1312
1437
700
50000
x68
SP - Spot
15
3000
90
27
1779
15770
700
50000
x68
MFL - Medium Flood
35
3000
90
27
1597
4683
700
50000
x68
WFL - Wide Flood
60
3000
90
27
1394
1526
700
50000
Features
Lens factory adhered to fixture cap providing hermetically sealed optical compartment
Secured with flush, countersunk tamper resistant hardware
Machined solid billet faceplate provides unmatched strength and durability
Manufactured in the USA with sustainable processes
Water-tight anti-siphon plug prevents moisture ingress from wireways
Easily replaceable modular components reduce waste and extend fixture life
Solid billet fixture body provides unmatched durability and heat management

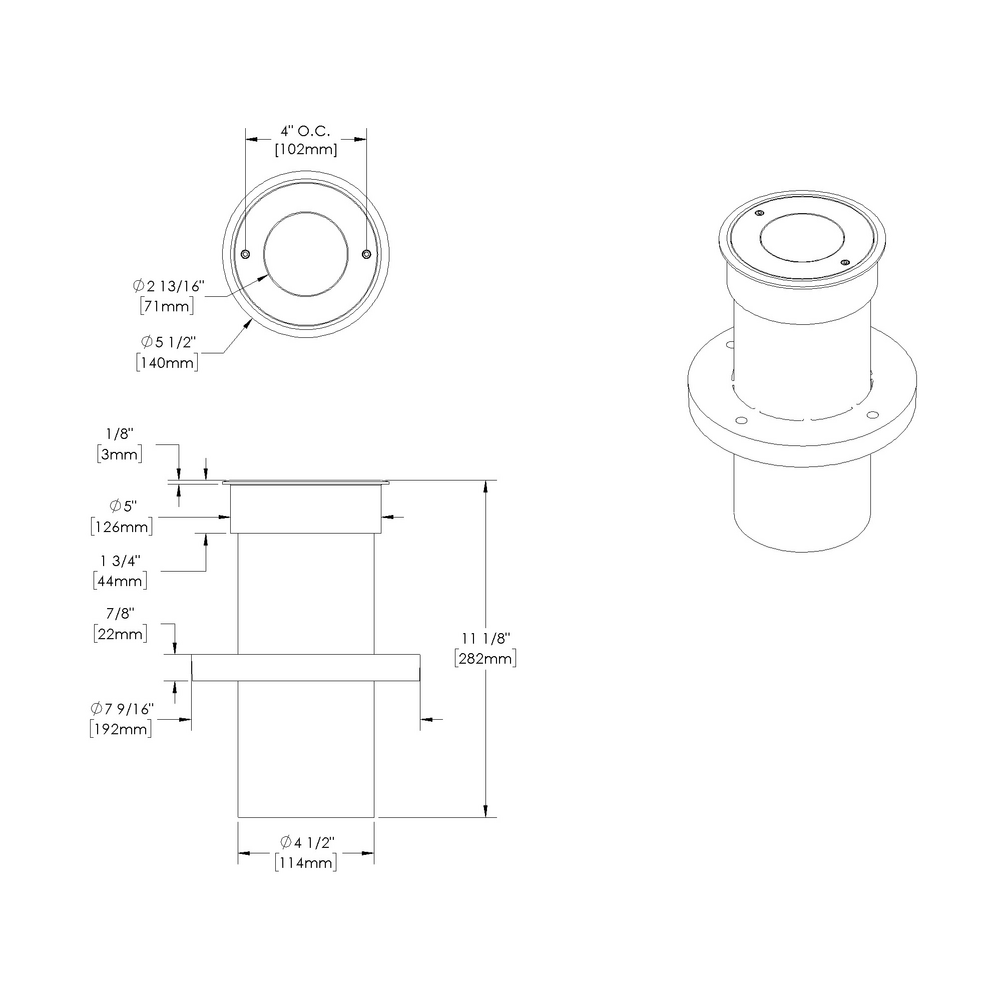

Technical
Mountings & Power Supplies
NOTE: Ordered separately. Configure fixture first to guarantee compatibility.WARNING: This is a remote driver product. Please check "Mountings With A Power Supply" or "Power Supplies" to order remote driver separately. (IMPORTANT: Driver wattage MUST match selected fixture wattage. Example: 12W Light Source = 12W Driver)"
- Power Supplies
Driver Within Junction Box
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Remote Driver - Aluminum
4" to 7" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Remote Two Drivers - Aluminum
4" to 7" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Remote Driver - Aluminum
4" to 7" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Remote Two Drivers - Aluminum
4" to 7" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Remote Driver - Aluminum
4" to 15" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Remote Two Drivers - Aluminum
4" to 15" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Remote Driver - Aluminum
4" to 15" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Remote Two Drivers - Aluminum
4" to 15" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Remote Driver - Aluminum
4" to 22" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Remote Two Drivers - Aluminum
4" to 22" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Remote Driver - Aluminum
4" to 22" tree/branch diameter
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Remote Two Drivers - Aluminum
4" to 22" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
