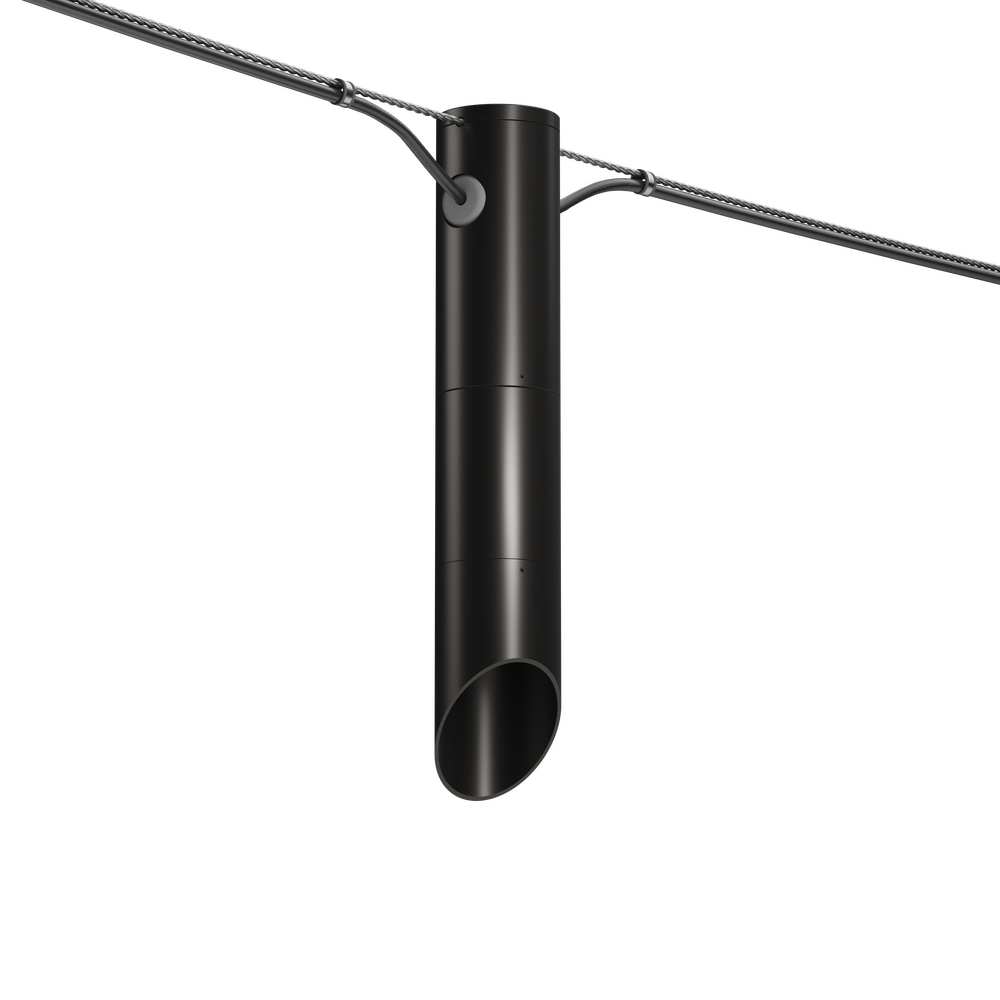

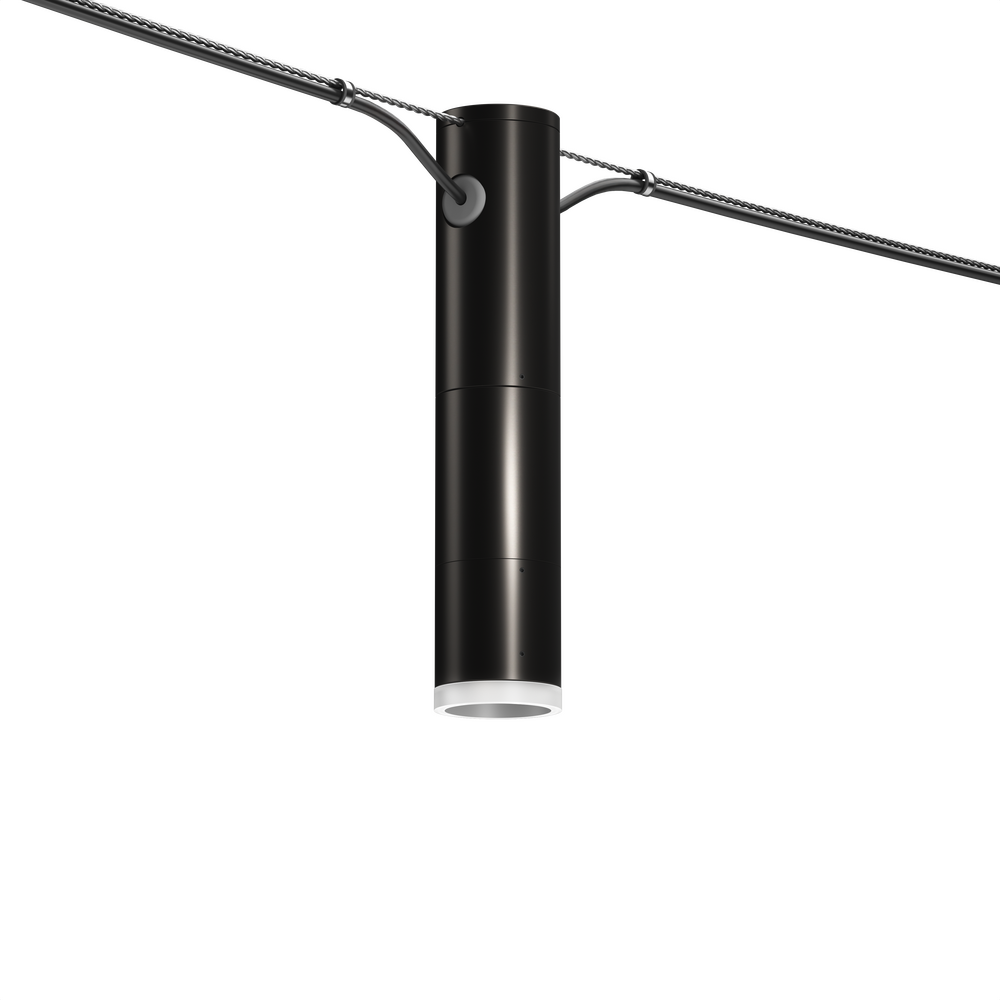

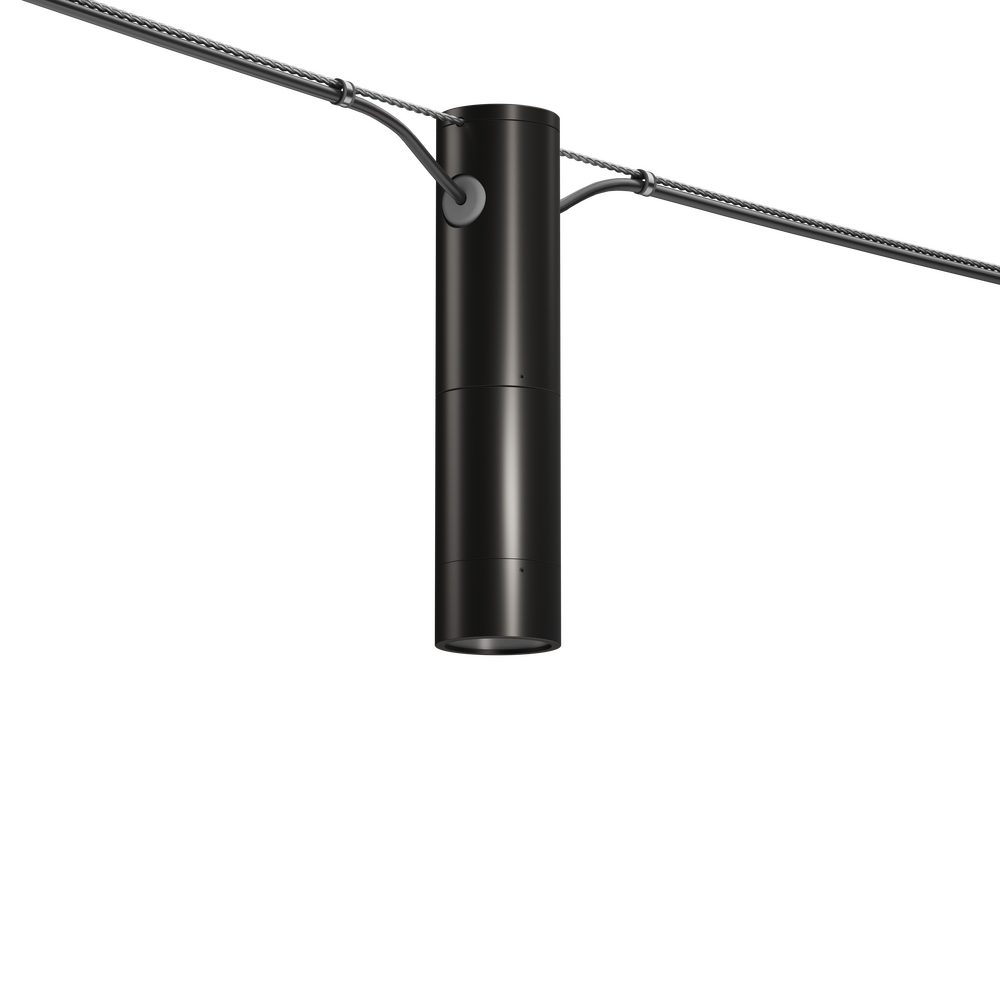

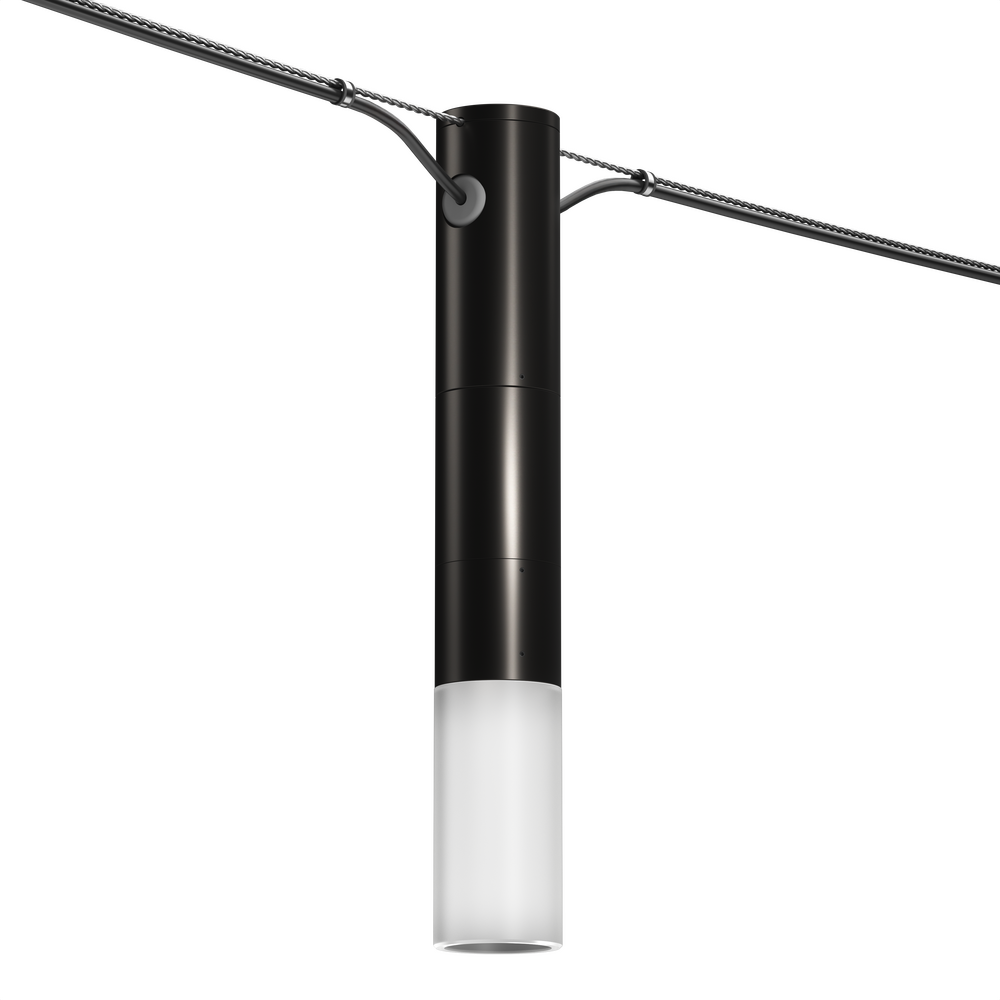

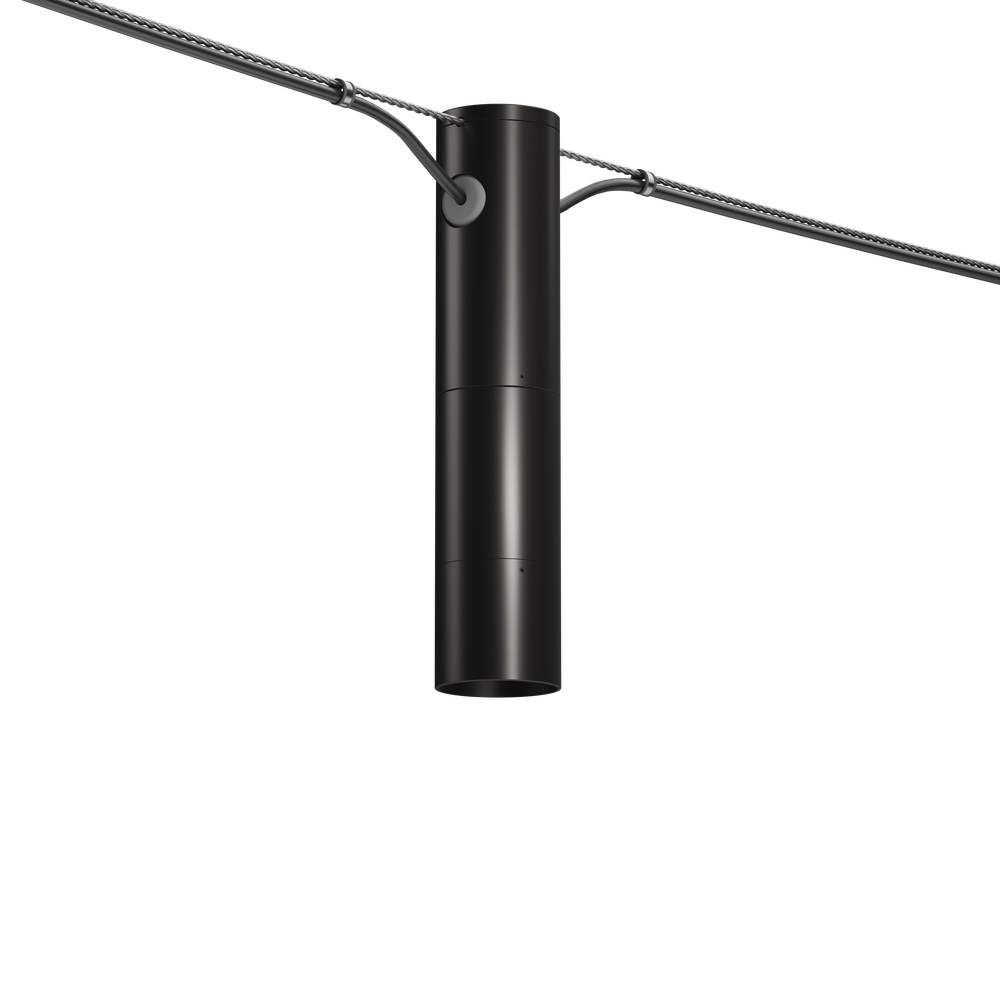

DENALI - Catenary - Line Voltage - LED COB
(formerly Denali Integral Catenary / CY-DE)
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
DE-
01
CA-
02
LID-
03
LCB-
04
AL-
05
___-
06C
___-
07
___-
08
INC-
09
___-
10A
___-
10B
WL00-
11
___-
12
WC-DE-
13
Click options to build your configurationCompleting the first column to render configured product images below
- Light Source
- Technical
- Finishes
- Options
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
x67
SP - Spot
15
2700
90
27
1676
14852
700
50000
x67
MFL - Medium Flood
35
2700
90
27
1504
4411
700
50000
x67
WFL - Wide Flood
60
2700
90
27
1312
1437
700
50000
x68
SP - Spot
15
3000
90
27
1779
15770
700
50000
x68
MFL - Medium Flood
35
3000
90
27
1597
4683
700
50000
x68
WFL - Wide Flood
60
3000
90
27
1394
1526
700
50000
Features
Anti-condensation vent allows moisture to exit the fixture but never enter in

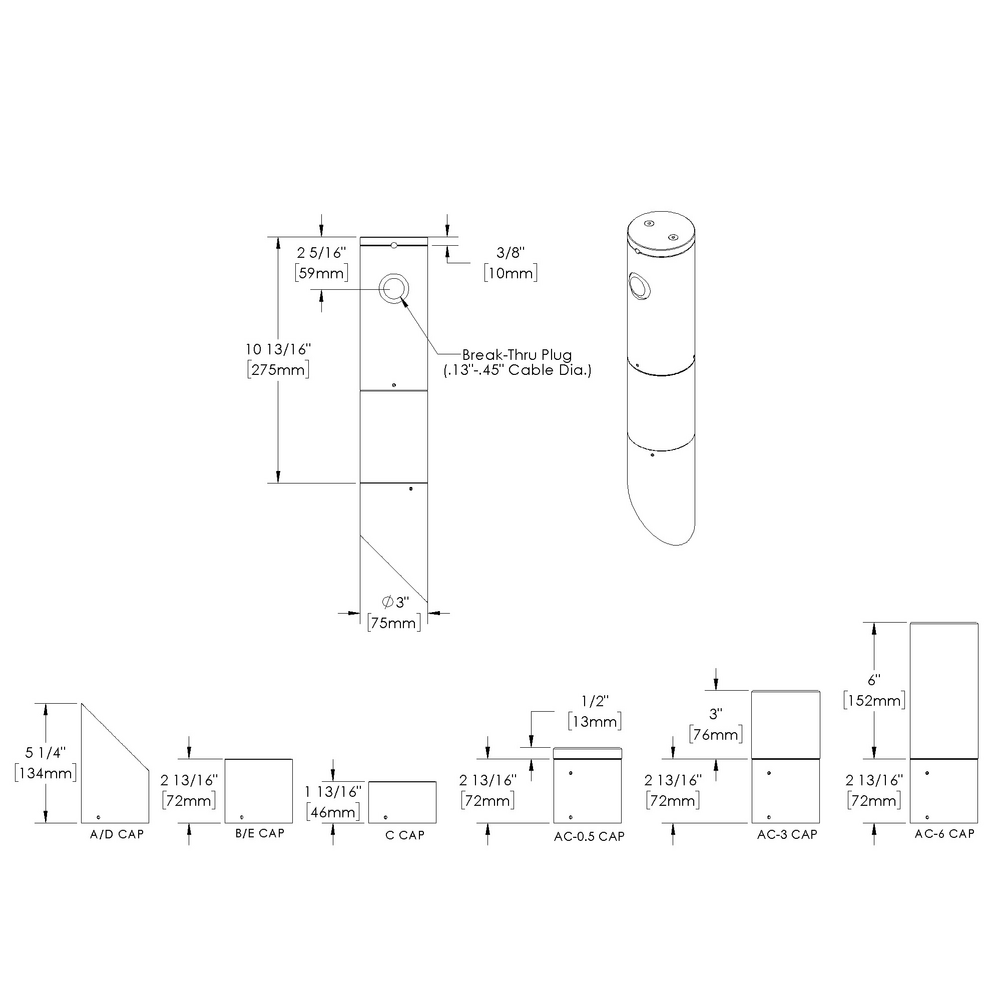

Water-tight break-thru plug allows cable to run through fixture body while keeping moisture out
Lens factory adhered to fixture cap providing hermetically sealed optical compartment
Manufactured in the USA with sustainable processes
Secured with tamper-resistant, stainless steel hardware
Easily replaceable modular components reduce waste and extend fixture life
Slip fit cap & high temp. silicone 'O' ring provides reliable water-tight seal
Solid billet fixture body provides unmatched durability and heat management
