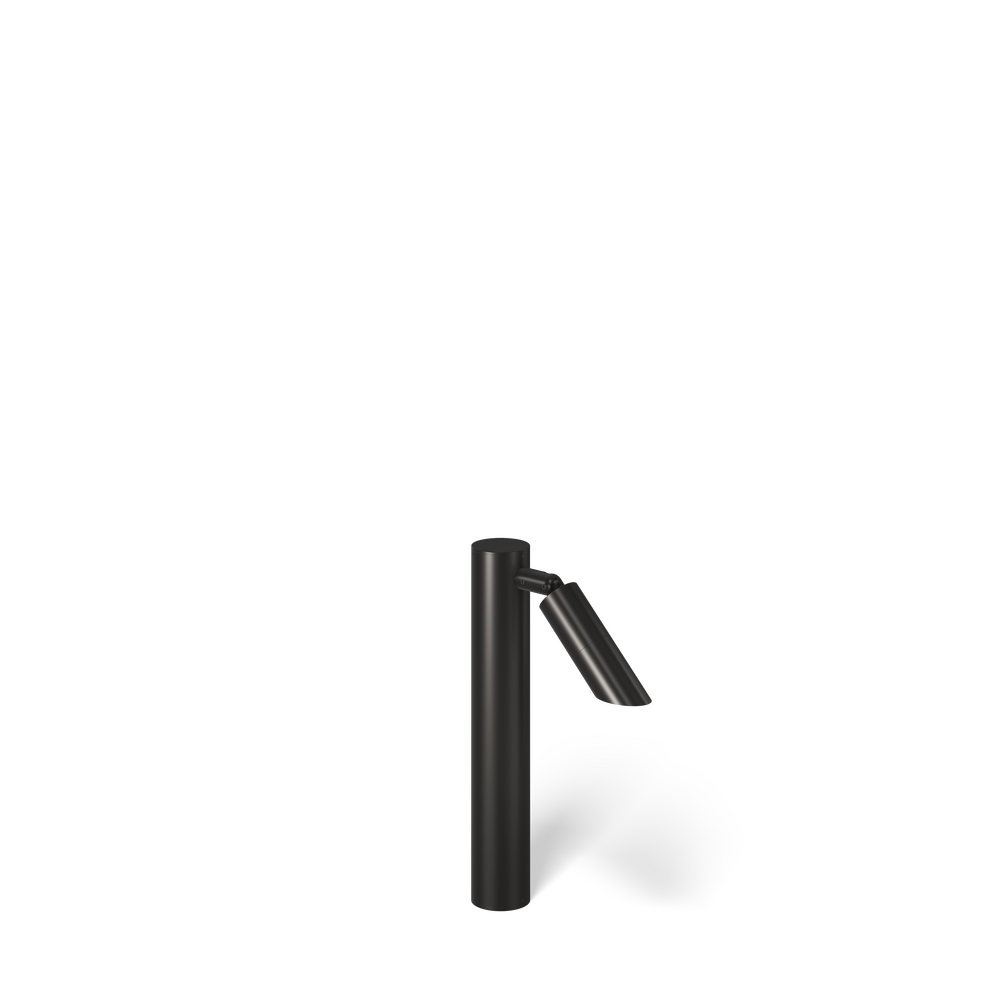

DENALI - Pole Top - Line Voltage - LED COB - Horizontal
(formerly Denali Pole Top / PT-DE-TR)
New
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
DE-
01
PT-
02
LID-
03
LCB-
04
AL-
05
___-
06C
___-
06D
___-
06E
___-
07
___-
08
___-
09
___-
10A
___-
10B
WL00-
11
___-
12
Click options to build your configurationCompleting the first column to render configured product images below
- Light Source
- Technical
- Finishes
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
x101
SP - Spot
17
2700
90
13
574
4486
440
50000
x101
FL - Flood
45
2700
90
13
720
1228
440
50000
x101
WFL - Wide Flood
53
2700
90
13
817
1023
440
50000
x102
SP - Spot
17
3000
90
13
631
4936
440
50000
x102
FL - Flood
45
3000
90
13
793
1350
440
50000
x102
WFL - Wide Flood
53
3000
90
13
899
1126
440
50000
x104
SP - Spot
17
3500
90
13
611
4775
440
50000
x104
FL - Flood
45
3500
90
13
767
1307
440
50000
x104
WFL - Wide Flood
53
3500
90
13
869
1089
440
50000
x121
SP - Spot
17
4000
90
13
681
5324
440
50000
x121
FL - Flood
45
4000
90
13
855
1457
440
50000
x121
WFL - Wide Flood
53
4000
90
13
969
1214
440
50000
x126
SP - Spot
17
2700
90
21
818
6120
700
50000
x126
FL - Flood
45
2700
90
21
920
1650
700
50000
x126
WFL - Wide Flood
53
2700
90
21
959
1270
700
50000
x127
SP - Spot
17
3000
90
21
1007
7535
700
50000
x127
FL - Flood
45
3000
90
21
1133
2031
700
50000
x127
WFL - Wide Flood
53
3000
90
21
1180
1564
700
50000
x128
SP - Spot
17
3500
90
21
723
5406
700
50000
x128
FL - Flood
45
3500
90
21
813
1457
700
50000
x128
WFL - Wide Flood
53
3500
90
21
847
1225
700
50000
x129
SP - Spot
17
4000
90
21
1089
8148
700
50000
x129
FL - Flood
45
4000
90
21
1225
2196
700
50000
x129
WFL - Wide Flood
53
4000
90
21
1277
1691
700
50000
Features
Anti-condensation vent allows moisture to exit the fixture but never enter in
Lens factory adhered to fixture cap providing hermetically sealed optical compartment
Manufactured in the USA with sustainable processes
Aim & Lock knuckle eliminates need for re-aiming & adjustments
Water-tight anti-siphon plug prevents moisture ingress from wireways
Secured with tamper-resistant, stainless steel hardware
Easily replaceable modular components reduce waste and extend fixture life
Slip fit cap & high temp. silicone 'O' ring provides reliable water-tight seal
Solid billet fixture body provides unmatched durability and heat management
360HD knuckle provides 360° horizontal rotation and vertical adjustment
