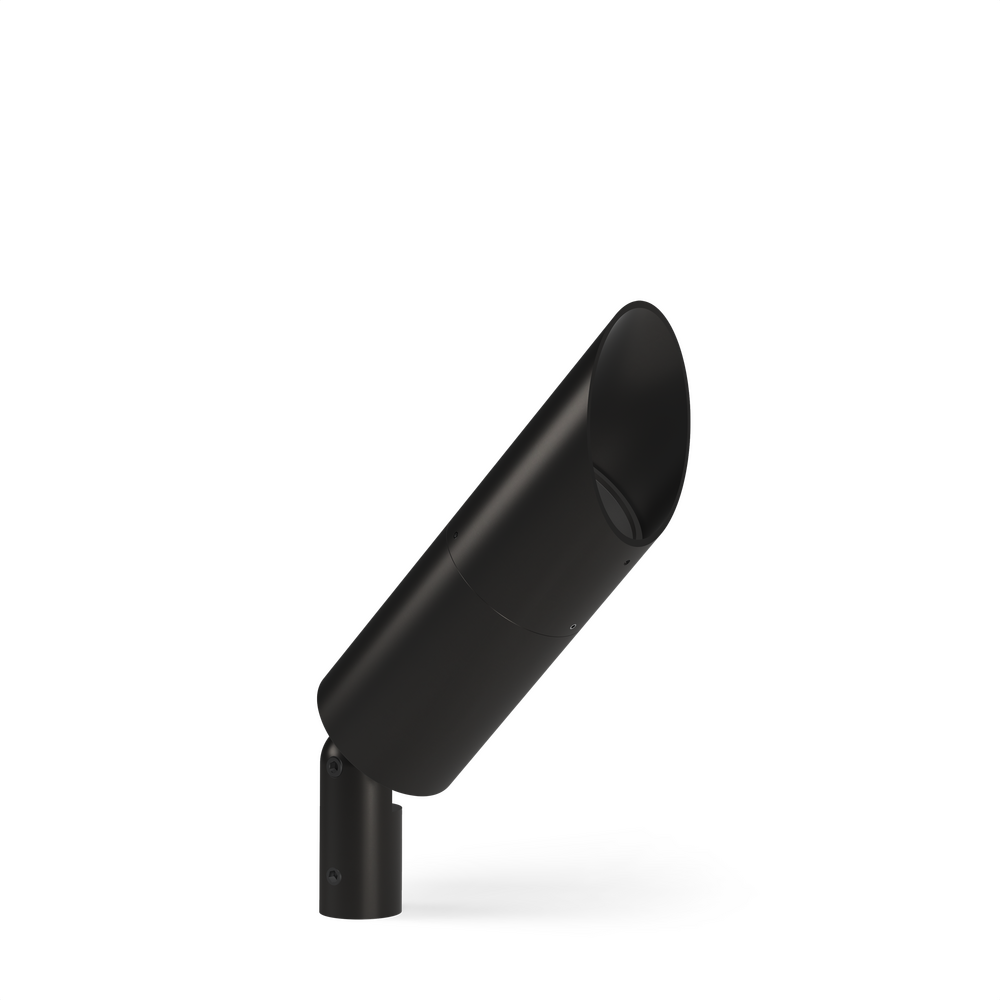

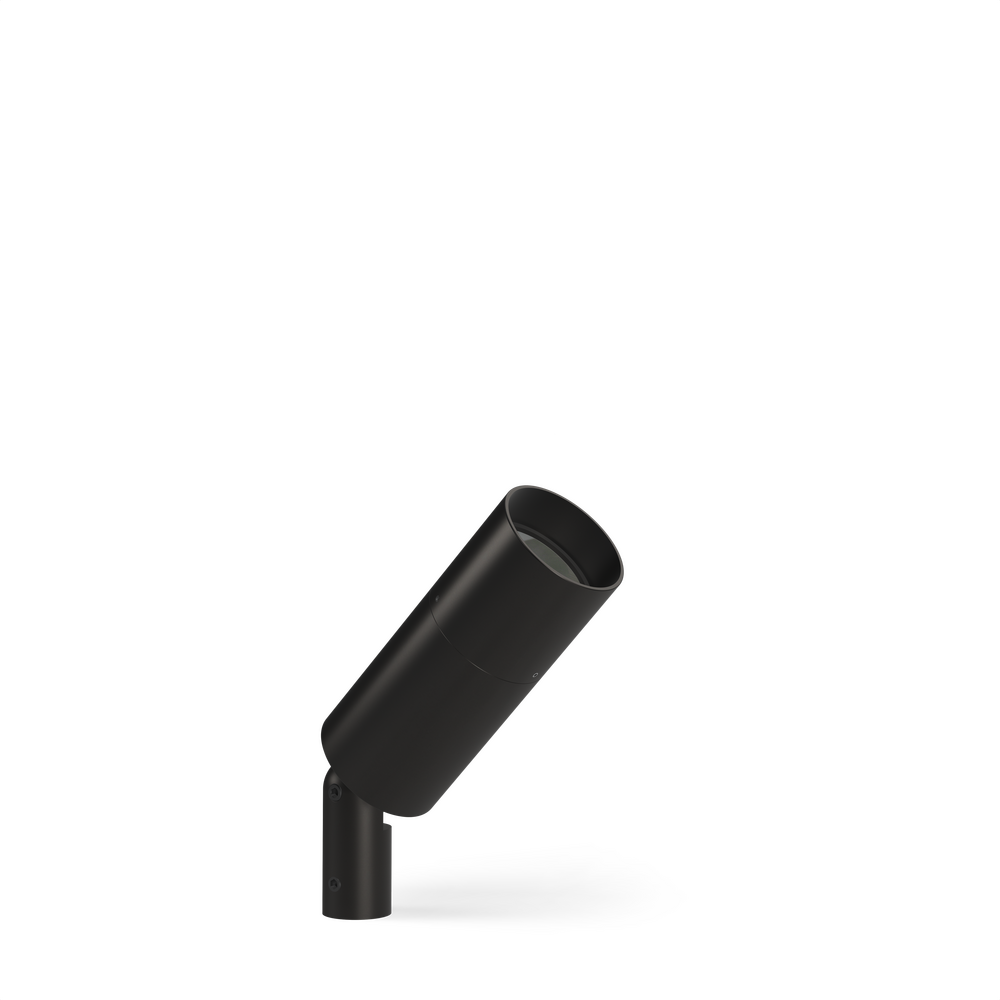

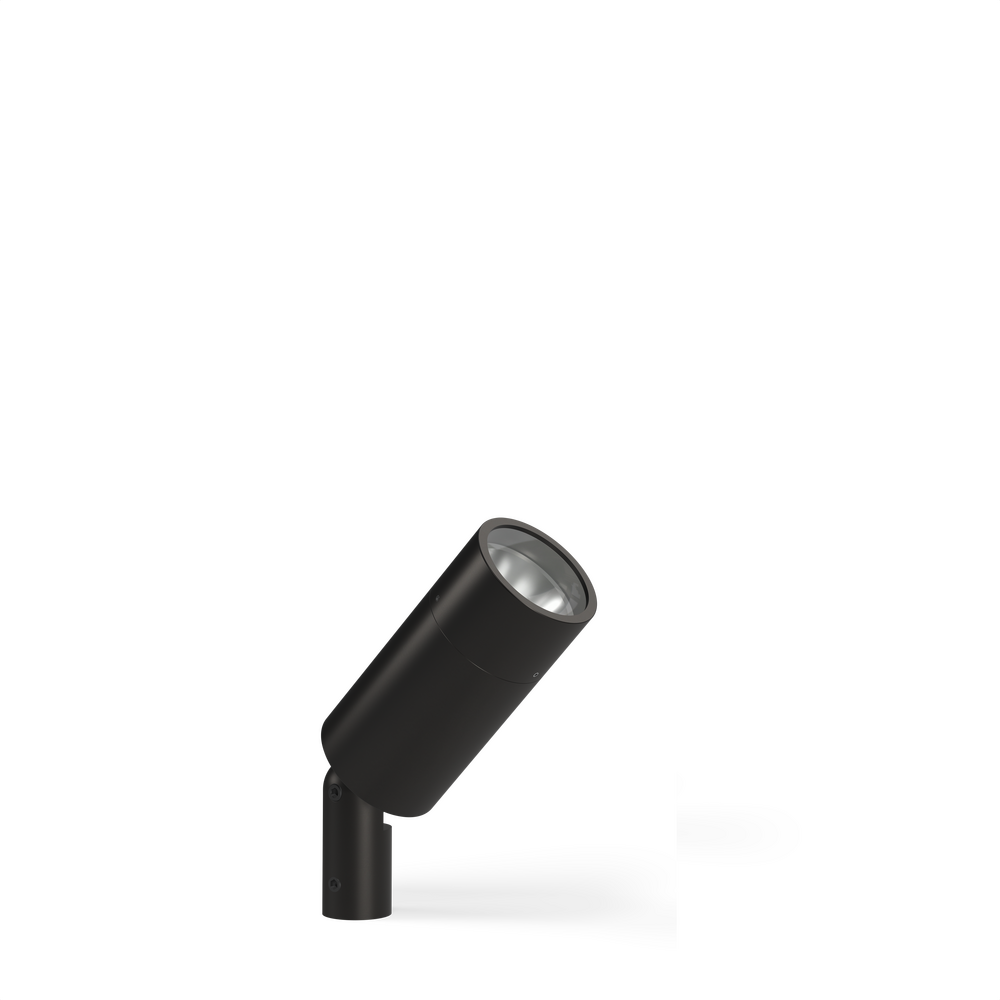

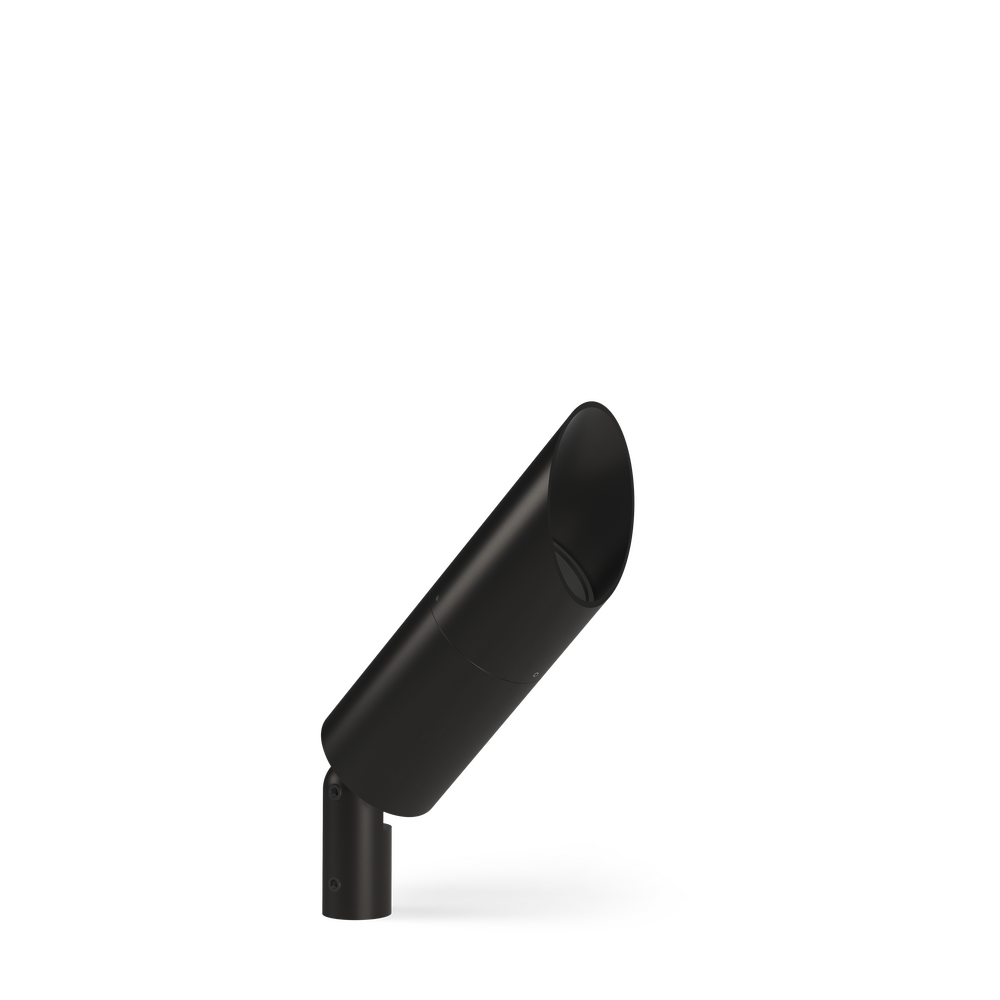

DENALI - Floodlight - Remote Driver - LED COB
(formerly Denali Remote / DE-LED)
Upgraded
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
WARNING: This is a remote driver product. Please check "Mountings With A Power Supply" or "Power Supplies" to order remote driver separately. (IMPORTANT: Driver wattage MUST match selected fixture wattage. Example: 12W Light Source = 12W Driver)
DE-
01
FL-
02
RMD-
03
LCB-
04
AL-
05
TKM-
06B
___-
06C
___-
07
___-
08
___-
10A
___-
10B
WL00-
11
___-
12
Click options to build your configurationCompleting the first column to render configured product images below
01 SERIES
02 CATEGORY
03 DRIVER
04 LIGHT SOURCE (TYPE)
05 MATERIAL
06B MOUNT
06C STYLE
07 LIGHT SOURCE
08 OPTIC
10A LENS
10B SHIELDING
11 WIRING LENGTH
12 FINISH
- Light Source
- Technical
- Finishes
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
x67
SP - Spot
15
2700
90
27
1676
14852
700
50000
x67
MFL - Medium Flood
35
2700
90
27
1504
4411
700
50000
x67
WFL - Wide Flood
60
2700
90
27
1312
1437
700
50000
x68
SP - Spot
15
3000
90
27
1779
15770
700
50000
x68
MFL - Medium Flood
35
3000
90
27
1597
4683
700
50000
x68
WFL - Wide Flood
60
3000
90
27
1394
1526
700
50000
Features
Anti-condensation vent allows moisture to exit the fixture but never enter in
Lens factory adhered to fixture cap providing hermetically sealed optical compartment
Manufactured in the USA with sustainable processes
Aim & Lock knuckle eliminates need for re-aiming & adjustments
Water-tight anti-siphon plug prevents moisture ingress from wireways
Secured with tamper-resistant, stainless steel hardware
Easily replaceable modular components reduce waste and extend fixture life
Slip fit cap & high temp. silicone 'O' ring provides reliable water-tight seal
Solid billet fixture body provides unmatched durability and heat management
360HD knuckle provides 360° horizontal rotation and vertical adjustment
Technical
Mountings & Power Supplies
NOTE: Ordered separately. Configure fixture first to guarantee compatibility.WARNING: This is a remote driver product. Please check "Mountings With A Power Supply" or "Power Supplies" to order remote driver separately. (IMPORTANT: Driver wattage MUST match selected fixture wattage. Example: 12W Light Source = 12W Driver)
- Mountings
- Mountings with Power Supply
- Power Supplies

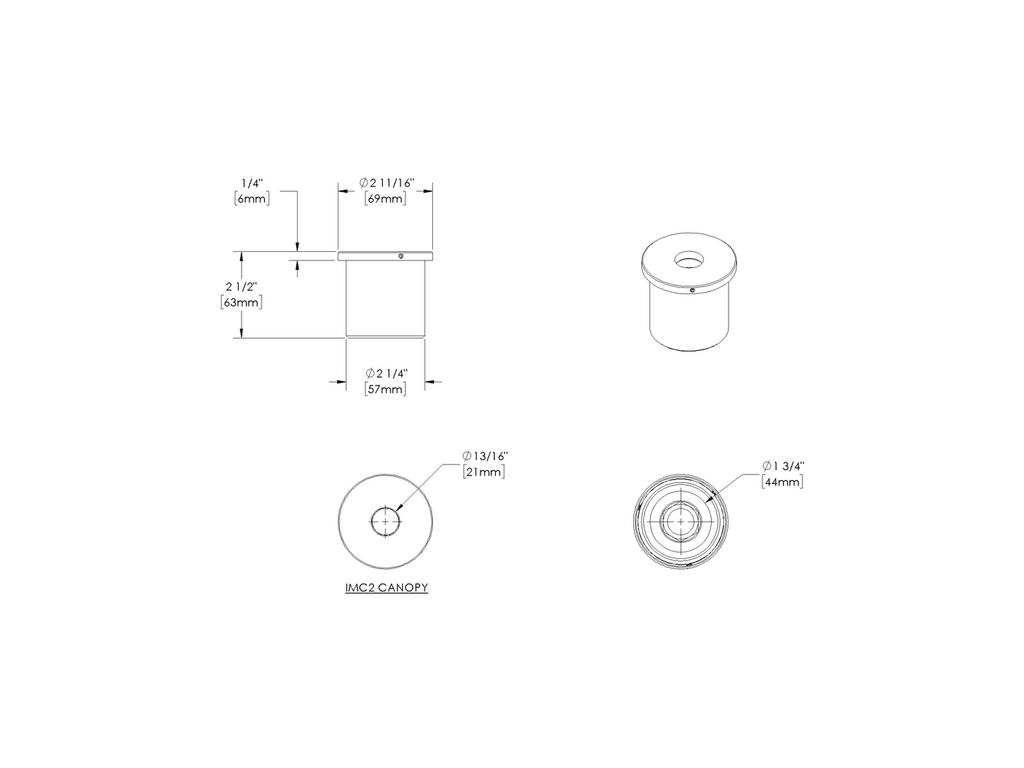

Canopy
Canopy BC10 - Aluminum
3" x 5" Rectangular
Canopy BC11 - Aluminum
2 7/8" x 4 5/8" Rectangular
Canopy BC6 - Aluminum
5" Round Machined
Canopy BC15 - Aluminum
6" Round, Dual Mount
Pipe
Tree Strap
Tree Strap MB2 - 24" - Aluminum
4" to 7" tree/branch diameter
Tree Strap MB2 - 48" - Aluminum
4" to 15" tree/branch diameter
Tree Strap MB2 - 72" - Aluminum
4" to 22" tree/branch diameter
Tree Strap MB2 - Custom - Aluminum
Custom strap length. Contact factory.
Universal Power Module
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Single - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Two Fixtures - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Single - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Single - Offset - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Two Fixtures - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Single - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Single - Offset - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Two Fixtures - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Single - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Single - Offset - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Two Fixtures - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Single - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Single - Offset - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Two Fixtures - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Single - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Single - Offset - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Two Fixtures - Aluminum
4" to 22" tree/branch diameter
In-grade HP2
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Power Canopy
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Driver - Single Fixture - Offset - Aluminum
4" to 7" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Driver - Two Fixtures - Aluminum
4" to 7" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Driver - Single Fixture - Offset - Aluminum
4" to 7" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Driver - Two Fixtures - Aluminum
4" to 7" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Driver - Single Fixture - Offset - Aluminum
4" to 15" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Driver - Two Fixtures - Aluminum
4" to 15" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Driver - Single Fixture - Offset - Aluminum
4" to 15" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Driver - Two Fixtures - Aluminum
4" to 15" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Driver - Single Fixture - Offset - Aluminum
4" to 22" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Driver - Two Fixtures - Aluminum
4" to 22" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Driver - Single Fixture - Offset - Aluminum
4" to 22" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Driver - Two Fixtures - Aluminum
4" to 22" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Power Pipe
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Tenon Mount
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
Driver Housing
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
In-grade HP2
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Remote Driver - Aluminum
4" to 7" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Remote Two Drivers - Aluminum
4" to 7" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Remote Driver - Aluminum
4" to 7" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Remote Two Drivers - Aluminum
4" to 7" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Remote Driver - Aluminum
4" to 15" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Remote Two Drivers - Aluminum
4" to 15" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Remote Driver - Aluminum
4" to 15" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Remote Two Drivers - Aluminum
4" to 15" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Remote Driver - Aluminum
4" to 22" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Remote Two Drivers - Aluminum
4" to 22" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Remote Driver - Aluminum
4" to 22" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Remote Two Drivers - Aluminum
4" to 22" tree/branch diameter
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
Driver Housing RM/DRM
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
[LCB-12W-MT-010] LCB - 12W - 120V,277V - 0-10V
[LCB-12W-MT-ELV] LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-12W-MT-INC] LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
[LCB-20W-MT-010] LCB - 20W - 120V,277V - 0-10V
[LCB-20W-MT-ELV] LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-20W-MT-INC] LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
[LCB-27W-MT-010] LCB - 27W - 120V,277V - 0-10V
[LCB-27W-MT-ELV] LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
[LCB-27W-MT-INC] LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
