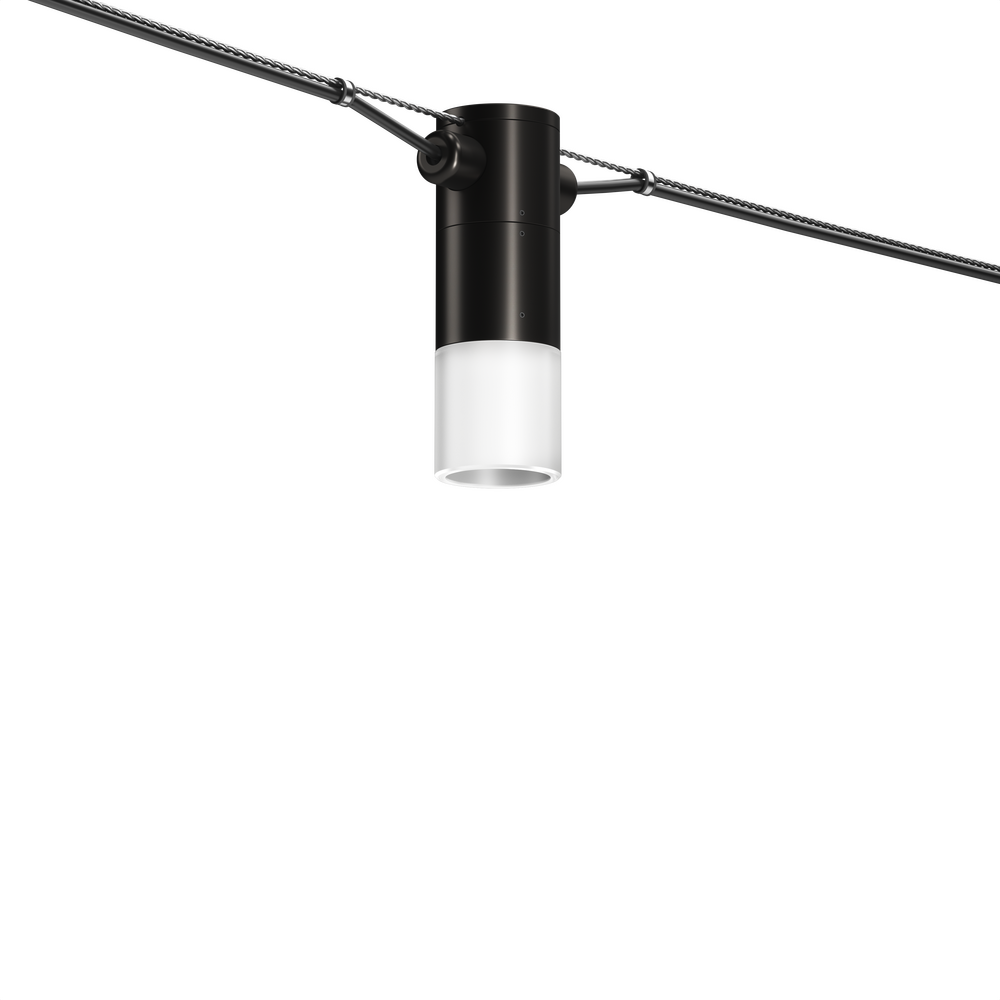

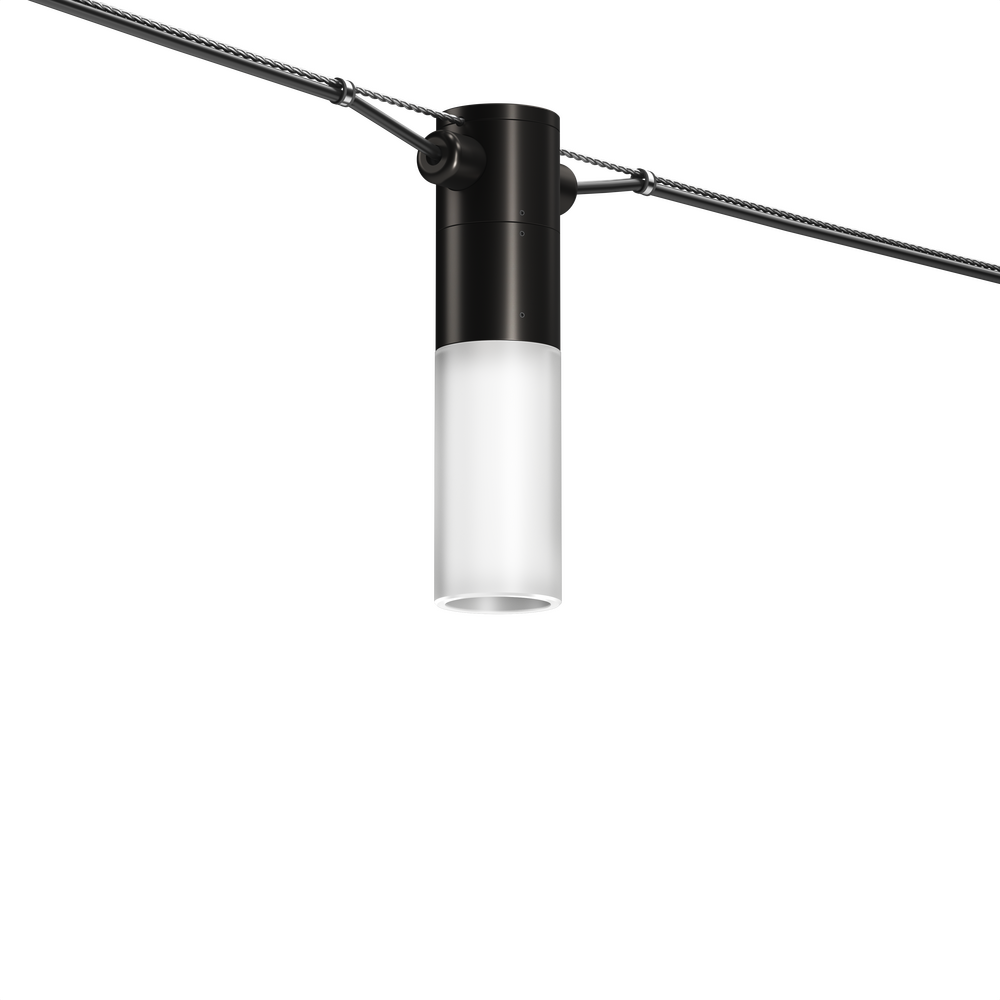

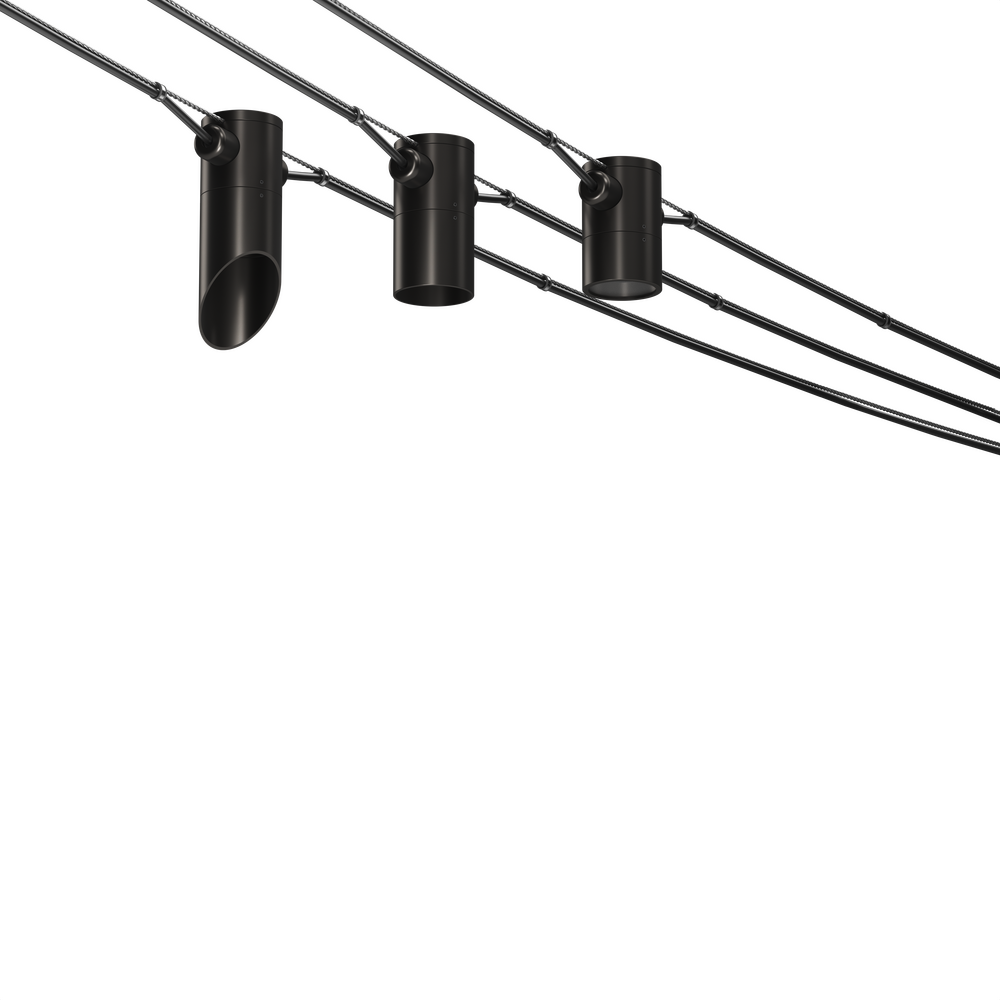

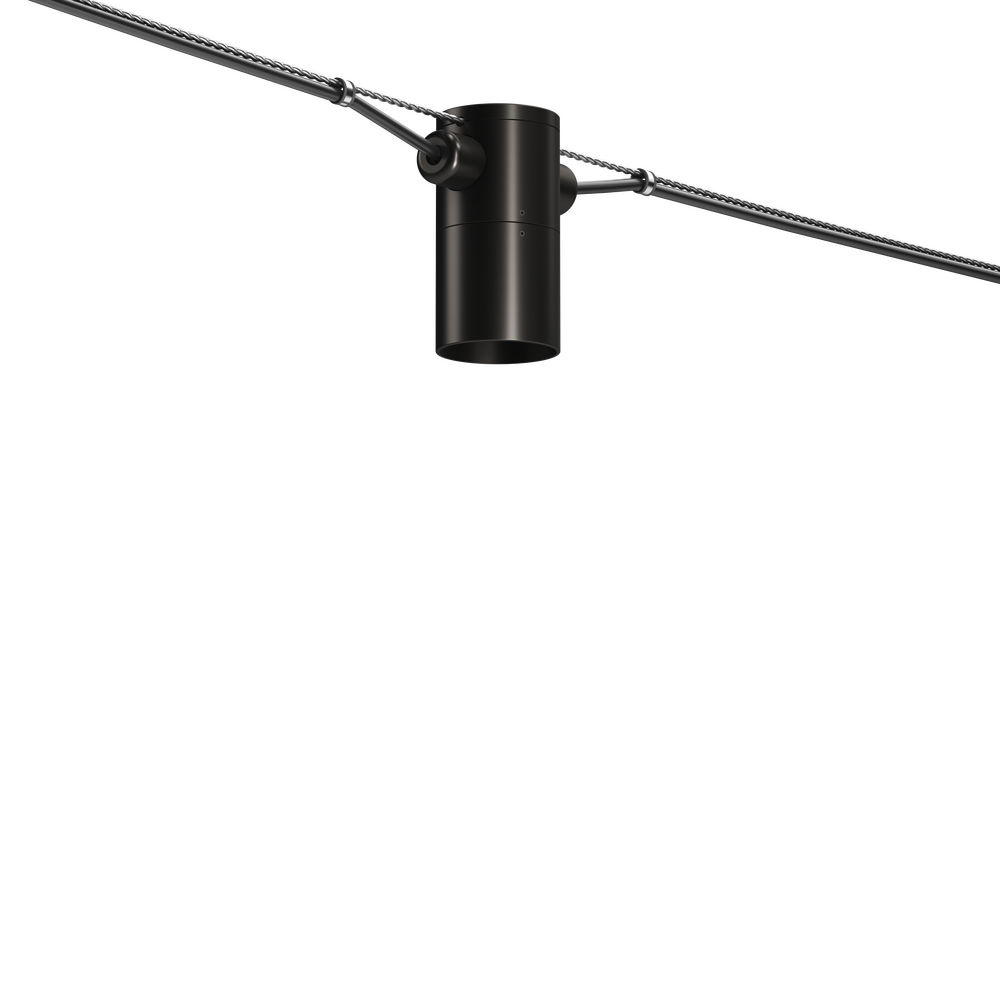

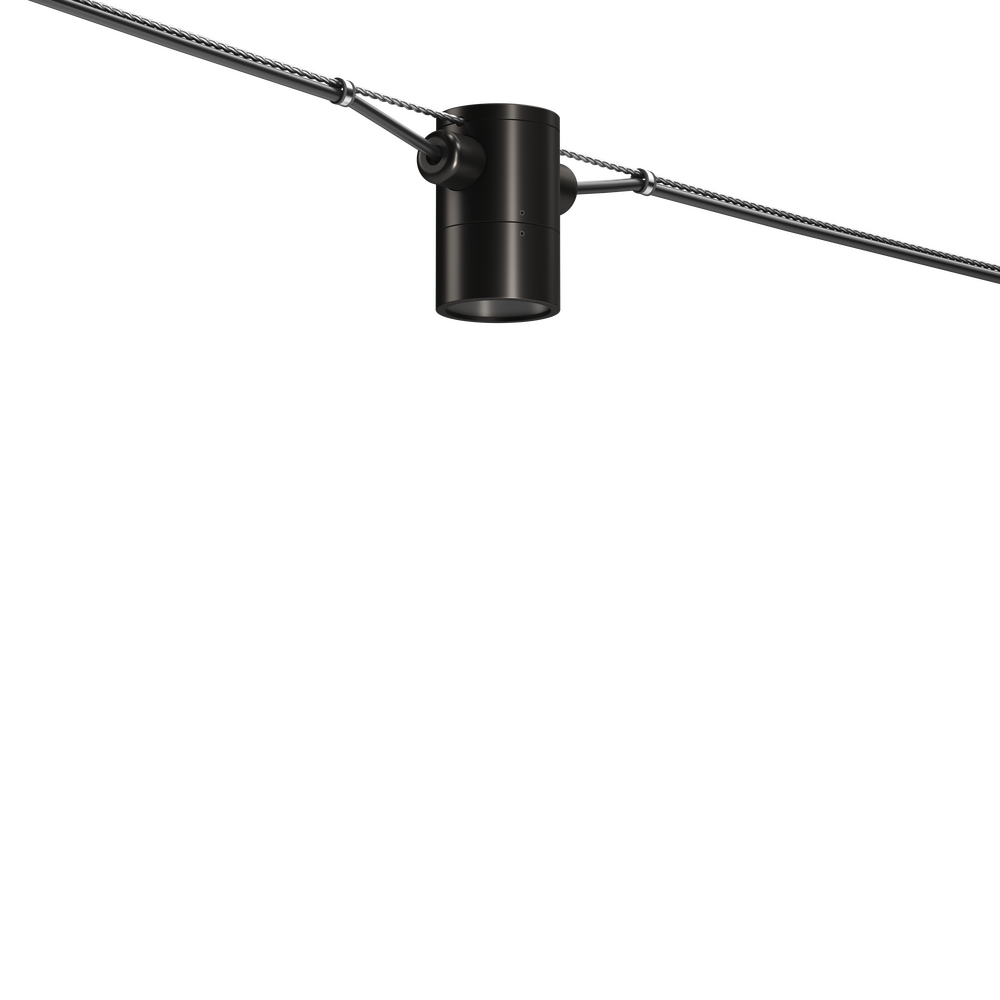

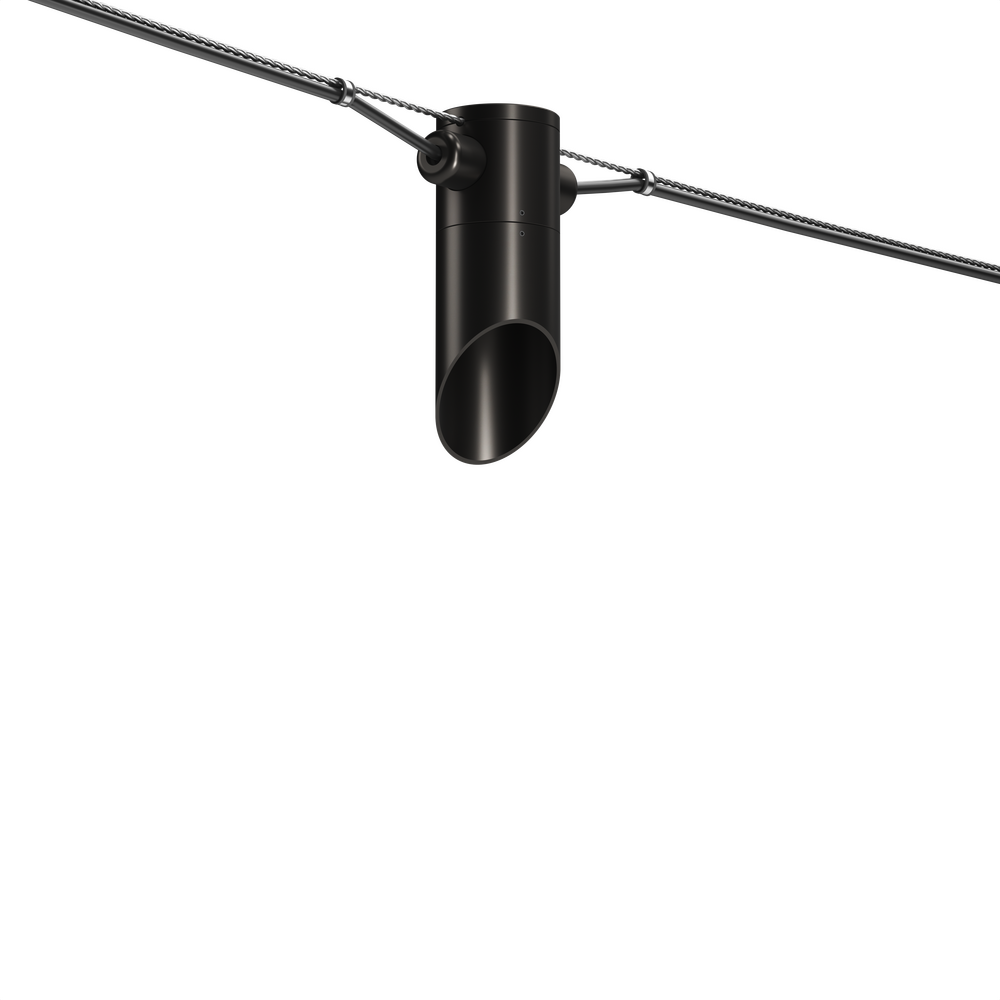

DEMI - Catenary - Line Voltage - LED High-Power
(formerly Demi Catenary / CY-DI)
New
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
DI-
01
CA-
02
LID-
03
LHP-
04
AL-
05
___-
06C
___-
06E
___-
07
___-
08
___-
09
___-
10A
___-
10B
WL00-
11
___-
12
Click options to build your configurationCompleting the first column to render configured product images below
- Light Source
- Technical
- Finishes
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf

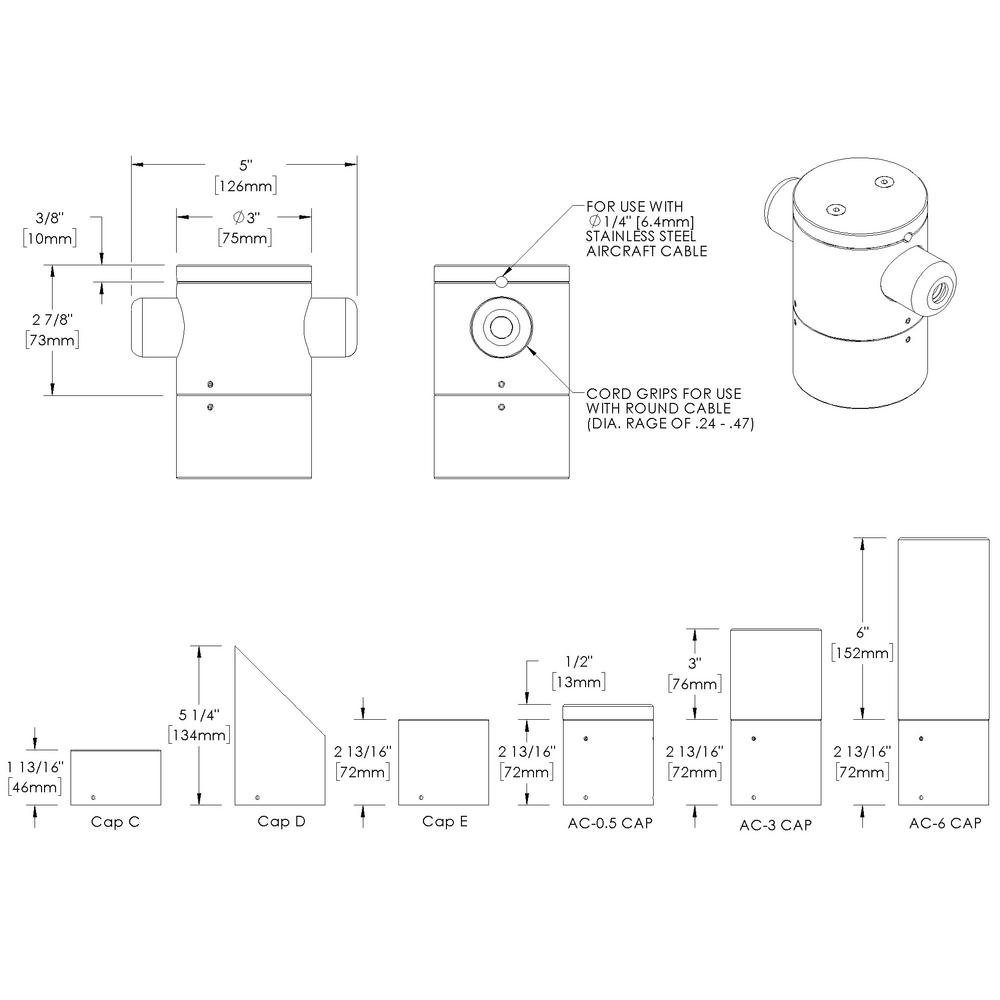

Diagram CONE
e154
VNSP - Very Narrow Spot
7
2700
90
9
650
50000
e154
NSP - Narrow Spot
10
2700
90
9
650
50000
e154
SP - Spot
17.5
2700
90
9
650
50000
e154
MFL - Medium Flood
30
2700
90
9
650
50000
e154
FL - Flood
41
2700
90
9
650
50000
e155
VNSP - Very Narrow Spot
7
3000
90
9
650
50000
e155
NSP - Narrow Spot
10
3000
90
9
650
50000
e155
SP - Spot
17.5
3000
90
9
650
50000
e155
MFL - Medium Flood
30
3000
90
9
650
50000
e155
FL - Flood
41
3000
90
9
650
50000
e156
VNSP - Very Narrow Spot
7
3500
90
9
650
50000
e156
NSP - Narrow Spot
10
3500
90
9
650
50000
e156
SP - Spot
17.5
3500
90
9
650
50000
e156
MFL - Medium Flood
30
3500
90
9
650
50000
e156
FL - Flood
41
3500
90
9
650
50000
e157
VNSP - Very Narrow Spot
7
4000
90
9
650
50000
e157
NSP - Narrow Spot
10
4000
90
9
650
50000
e157
SP - Spot
17.5
4000
90
9
650
50000
e157
MFL - Medium Flood
30
4000
90
9
650
50000
e157
FL - Flood
41
4000
90
9
650
50000
Features
Anti-condensation vent allows moisture to exit the fixture but never enter in
Water-tight break-thru plug allows cable to run through fixture body while keeping moisture out
Lens factory adhered to fixture cap providing hermetically sealed optical compartment
Manufactured in the USA with sustainable processes
Secured with tamper-resistant, stainless steel hardware
Easily replaceable modular components reduce waste and extend fixture life
Slip fit cap & high temp. silicone 'O' ring provides reliable water-tight seal
Solid billet fixture body provides unmatched durability and heat management
