MICRO DRIVE STAR - In-grade - Low Voltage - LED High-Power - Faceplate Surface Mount - Micro

(formerly Mini DriveStar Surface Mount / MD-LED)

MICRO DRIVE STAR - In-grade - Low Voltage - LED High-Power - Faceplate Surface Mount - Micro

Downloads

Family Spec Sheet (.pdf)

Product Images (.zip)

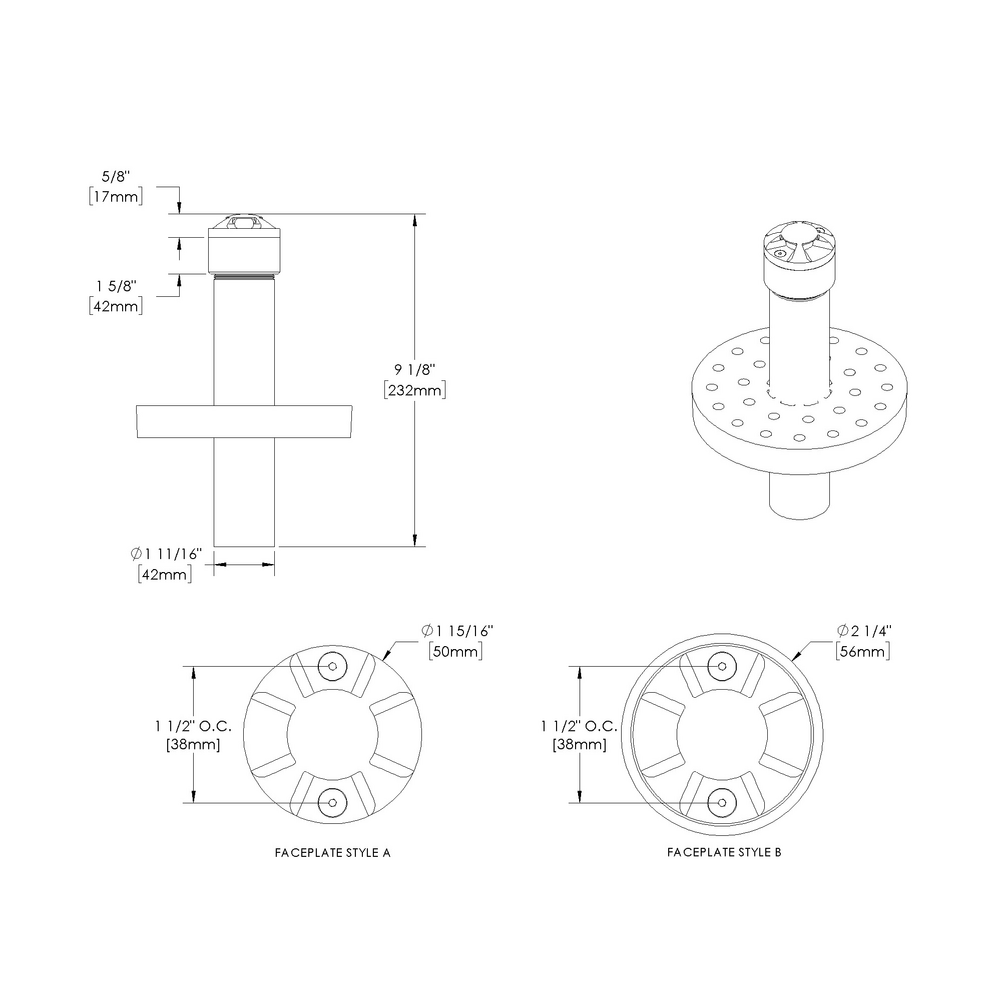

Technical Drawing (.zip)

Installation Instructions (.pdf)

Page Navigation

Configure Product

Product Details

Mountings & Power Supplies

NOTE: Not all configurations may be compatible with one another. Please configure the product for specific 2D, Photometry, Downloads, Spec Sheet and Compatible mountings and power supplies.

Configure Product

Download as configured

NOTE: Please configure the LEFT column found below to activate these download links.

Date:

Project:

Type:

WARNING: This is a low voltage product. Please check "Mountings With A Power Supply" or "Power Supplies" to order remote transformer separately.

DR2-

IN-

LOD-

LHP-

___-

FSM-

06B

___-

06C

MIC-

06D

___-

Click options to build your configuration
Completing the first column to render configured product images below

01 SERIES

02 CATEGORY

03 DRIVER

04 LIGHT SOURCE (TYPE)

05 MATERIAL

06B MOUNT

06C STYLE

06D VERSION

07 LIGHT SOURCE

11 WIRING LENGTH

12 FINISH

Standard Finishes

, , , , , , ,

Premium Finishes

, , , , , , , , , , , , , , , , ,

Other - RAL

Other - Custom Color

Brass Finishes

, ,

Stainless Steel Finishes

Light Source
Technical
Finishes

Light Source

Optic

Beam Angle

CCT (K)

CRI

Input Power (W)

Delivered Lumens (Lm)

CBCP

MacAdam Ellipses (SDCM)

Operating Current (mA)

L70 (Hours)

L90B10 (Hours)

IES File

IES Pdf

Diagram CONE

e70

2700

250

50000

e71

3000

250

50000

e72

4000

250

50000

e73

Amber

250

50000

e85

2700

250

50000

e86

3000

250

50000

e87

3500

250

50000

Features

Anti-condensation vent allows moisture to exit the fixture but never enter in

Lens factory adhered to fixture cap providing hermetically sealed optical compartment

Secured with flush, countersunk tamper resistant hardware

Machined solid billet faceplate provides unmatched strength and durability

Heavy wall corrosion-free composite housing for direct burial in soil or concrete

Designed and engineered for easy install

Manufactured in the USA with sustainable processes

Water-tight anti-siphon plug prevents moisture ingress from wireways

Easily replaceable modular components reduce waste and extend fixture life

Technical

Mountings & Power Supplies

NOTE: Ordered separately. Configure fixture first to guarantee compatibility.

WARNING: This is a low voltage product. Please check "Mountings With A Power Supply" or "Power Supplies" to order remote transformer separately.

Power Supply

Universal Power Module

Universal Power Module PM1 - Camlock Mount - Round - With Mounting Brackets - Remote Transformer - Aluminum

[PM1-CR-MB-TR-RM-AL]

[TRe20-MT-NON] 20W - 120V to 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Camlock Mount - Round - With Mounting Brackets - Remote Two Transformers - Aluminum

[PM1-CR-MB-TRT-RM-AL]

[TRe20-MT-NON] 20W - 120V to 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Camlock Mount - Round - Remote Transformer - Aluminum

[PM1-CR-TR-RM-AL]
