GOLD STAR - In-grade - Low Voltage - LED High-Power - Square
(formerly Square Gold Star / GQ-LED)




Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
WARNING: This is a low voltage product. Please check "Mountings With A Power Supply" or "Power Supplies" to order remote transformer separately.
GD-
01
IN-
02
LOD-
03
LHP-
04
___-
05
SQ-
06A
FSM-
06B
___-
07
___-
08
___-
10A
___-
10B
___-
11
___-
12
Click options to build your configurationCompleting the first column to render configured product images below

01 SERIES
02 CATEGORY
03 DRIVER
04 LIGHT SOURCE (TYPE)
05 MATERIAL
06A SHAPE
06B MOUNT
07 LIGHT SOURCE
08 OPTIC
10A LENS
10B SHIELDING
11 WIRING LENGTH
12 FINISH
Standard Finishes
, , , , , , , Premium Finishes
, , , , , , , , , , , , , , , , , Other - RAL
Other - Custom Color
Brass Finishes
, , Stainless Steel Finishes
, - Light Source
- Technical
- Finishes
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
e74

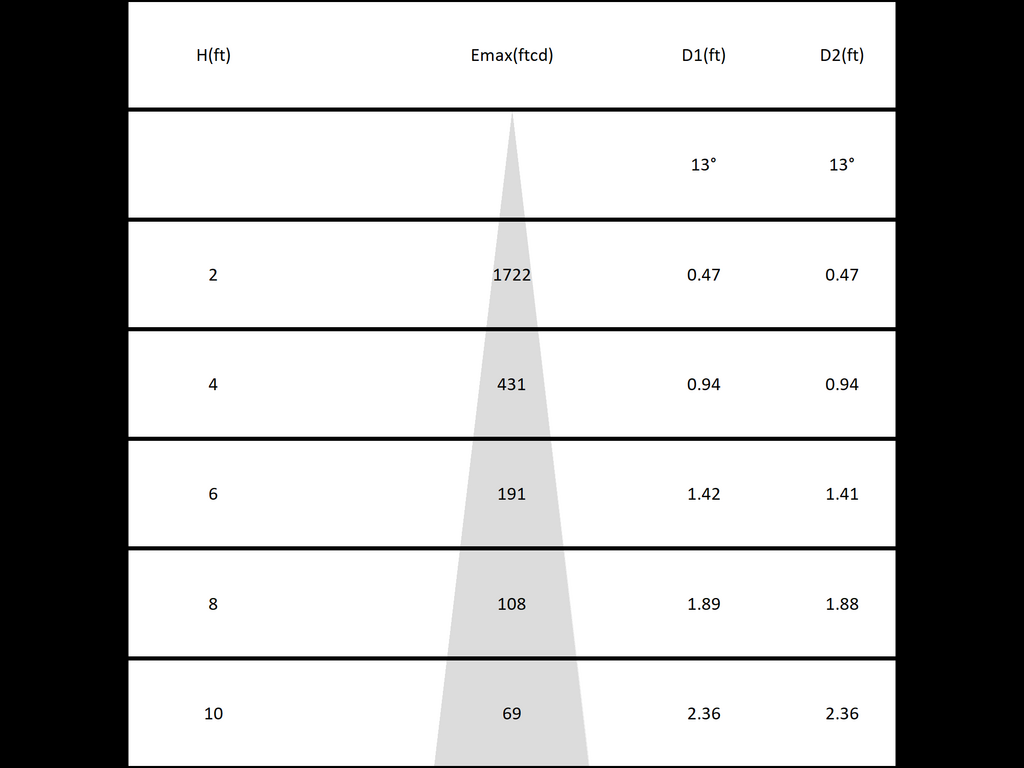

NSP - Narrow Spot
13
Amber
7
299
3927
700
50000
e74
SP - Spot
16
Amber
7
291
2978
700
50000
e74

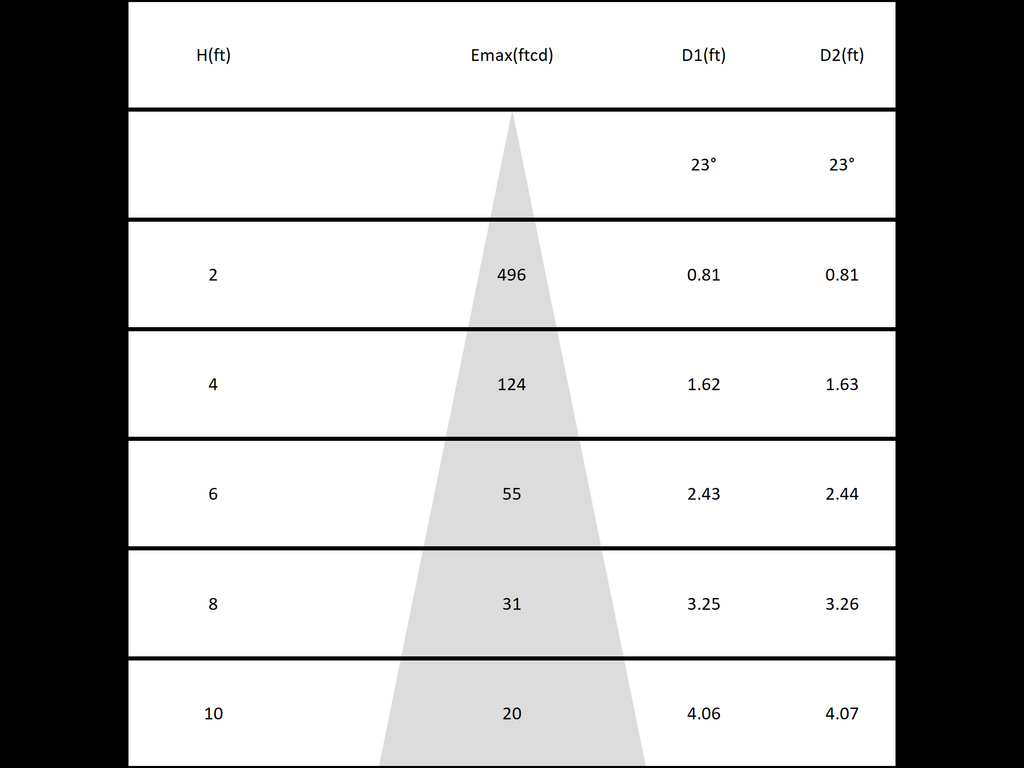

SP2 - Spot
23
Amber
7
260
1131
700
50000
e74

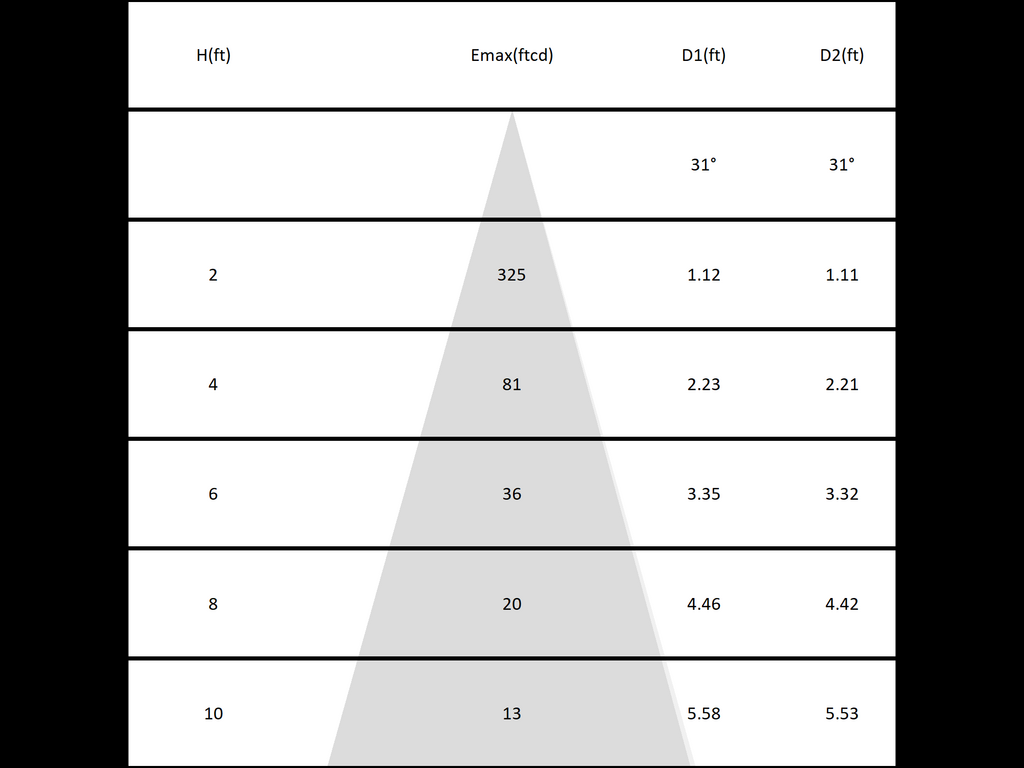

MFL - Medium Flood
31
Amber
7
262
741
700
50000
e79
NSP - Narrow Spot
13
2700
90
7
700
50000
e79
SP - Spot
16
2700
90
7
700
50000
e79
SP2 - Spot
23
2700
90
7
700
50000
e79
MFL - Medium Flood
31
2700
90
7
700
50000
e80
NSP - Narrow Spot
13
3000
90
7
700
50000
e80
SP - Spot
16
3000
90
7
700
50000
e80
SP2 - Spot
23
3000
90
7
700
50000
e80
MFL - Medium Flood
31
3000
90
7
700
50000
e81
NSP - Narrow Spot
7
3500
80
7
700
50000
e81
SP - Spot
16
3500
80
7
700
50000
e81
SP2 - Spot
23
3500
80
7
700
50000
e81
MFL - Medium Flood
31
3500
80
7
700
50000
Features

Anti-condensation vent allows moisture to exit the fixture but never enter in

Lens factory adhered to fixture cap providing hermetically sealed optical compartment

Secured with flush, countersunk tamper resistant hardware

Machined solid billet faceplate provides unmatched strength and durability

Manufactured in the USA with sustainable processes

Water-tight anti-siphon plug prevents moisture ingress from wireways

Easily replaceable modular components reduce waste and extend fixture life

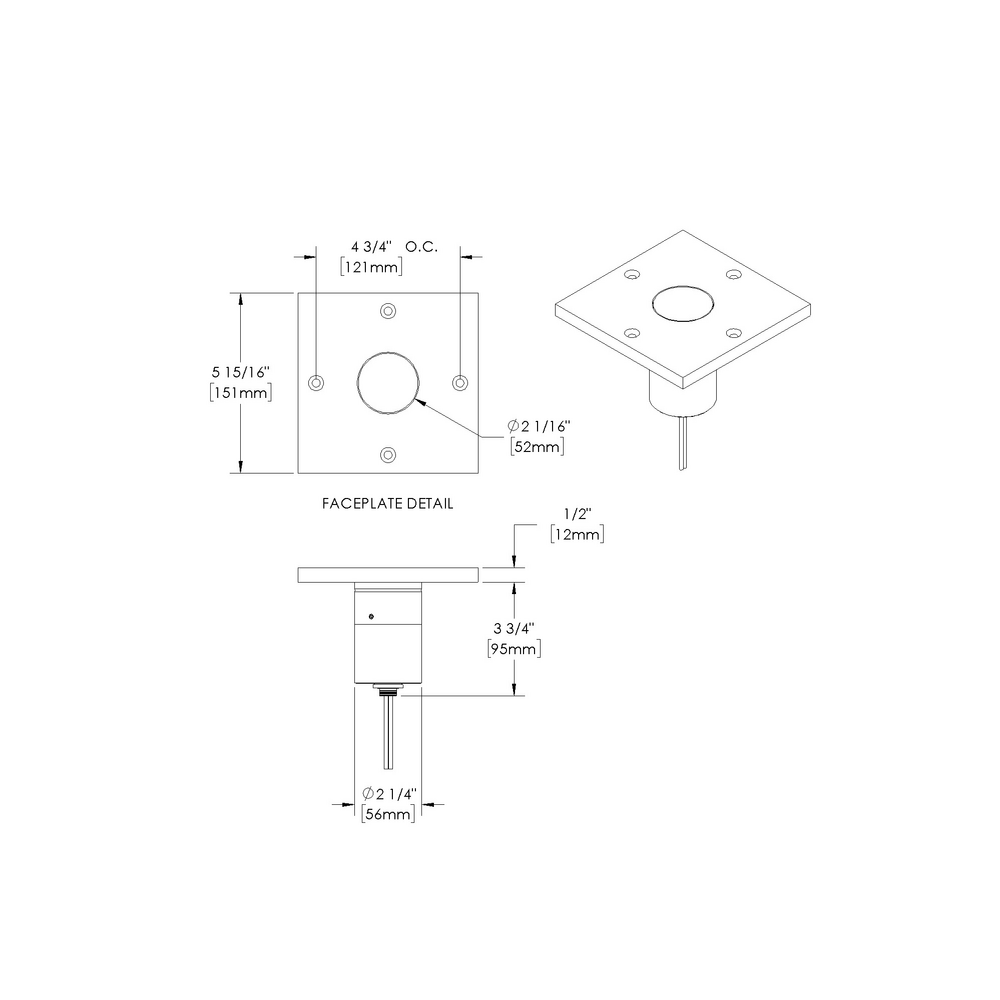

Technical
Mountings & Power Supplies
NOTE: Ordered separately. Configure fixture first to guarantee compatibility.WARNING: This is a low voltage product. Please check "Mountings With A Power Supply" or "Power Supplies" to order remote transformer separately.
