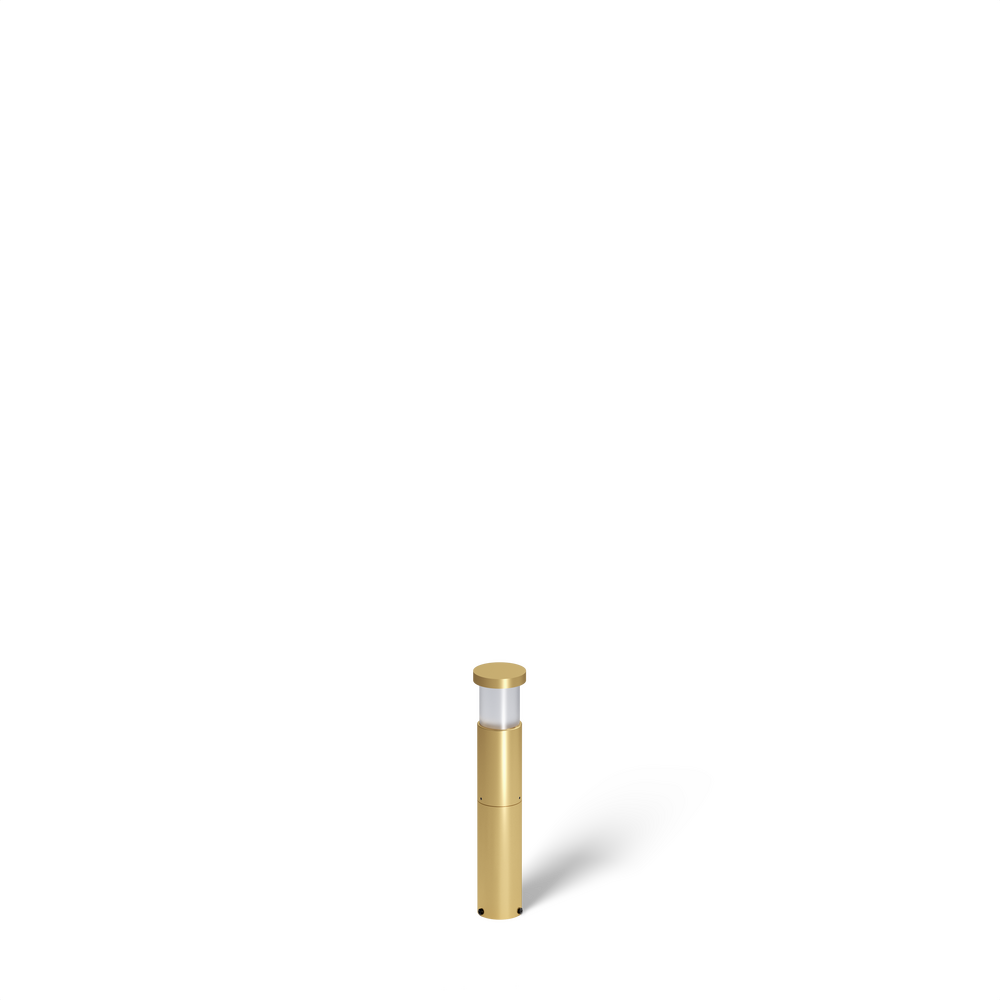

GLOW STAR - Bollard - Line Voltage Via Transformer - Lamp MR16 Gu5.3 - Brass - Style E - Height: 6” - 24” - Pipe PI1 - 18" Junction Box
(formerly Glow Star / B-GL-MR)
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
GL-
01
BO-
02
LIT-
03
LAM16-
04
BR-
05
PI1-J18-
06B
SE-
06C
___-
06E
___-
06F
___-
07
___-
09
WL00-
11
___-
12
Click options to build your configurationCompleting the first column to render configured product images below
- Light Source
- Technical
- Transformers
- Finishes
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
359
NSP - Narrow Spot
10
2700
90
7.5
35000
361
NFL - Narrow Flood
25
2700
90
7.5
35000
362
MFL - Medium Flood
36
2700
90
7.5
35000
363
NSP - Narrow Spot
10
3000
90
7.5
35000
365
NFL - Narrow Flood
25
3000
90
7.5
35000
366
MFL - Medium Flood
36
3000
90
7.5
35000
Features
Anti-condensation vent allows moisture to exit the fixture but never enter in
Lens factory adhered to fixture cap providing hermetically sealed optical compartment
Manufactured in the USA with sustainable processes
Water-tight anti-siphon plug prevents moisture ingress from wireways
Secured with tamper-resistant, stainless steel hardware
Easily replaceable modular components reduce waste and extend fixture life
Slip fit cap & high temp. silicone 'O' ring provides reliable water-tight seal
Solid billet fixture body provides unmatched durability and heat management
