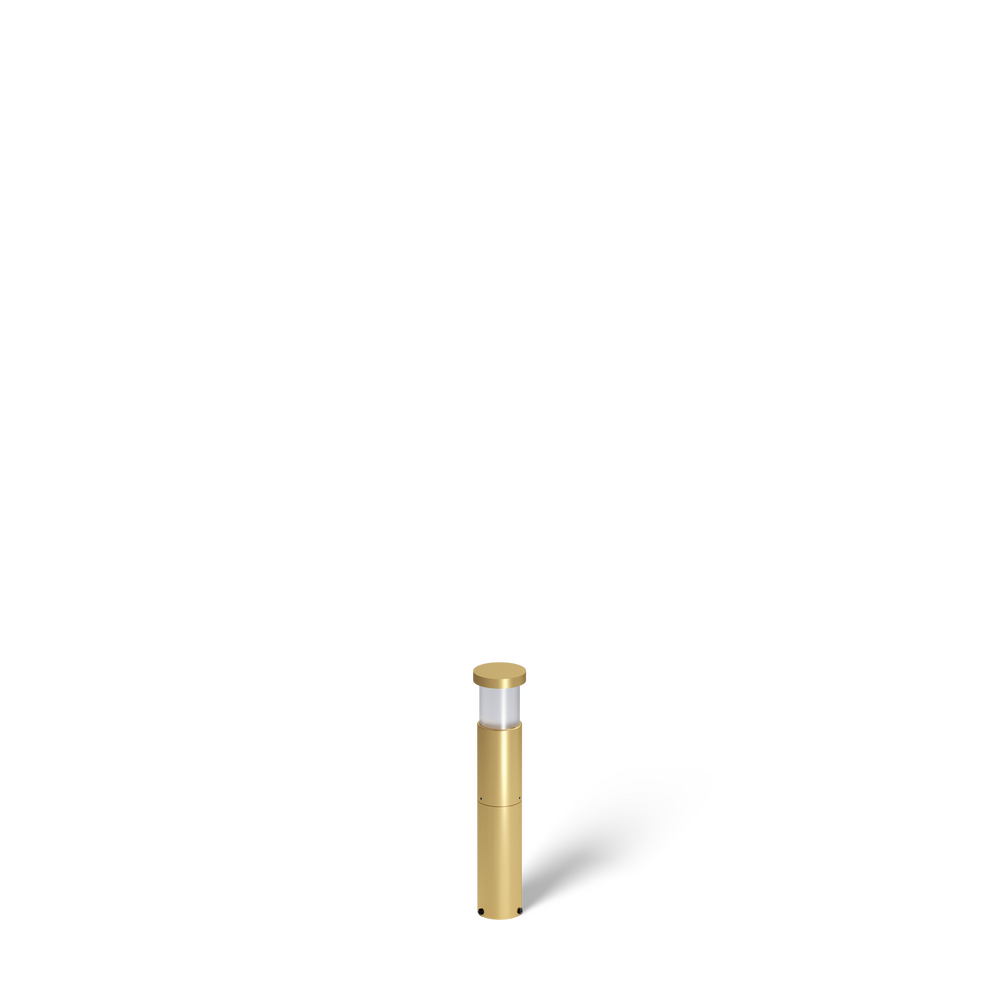

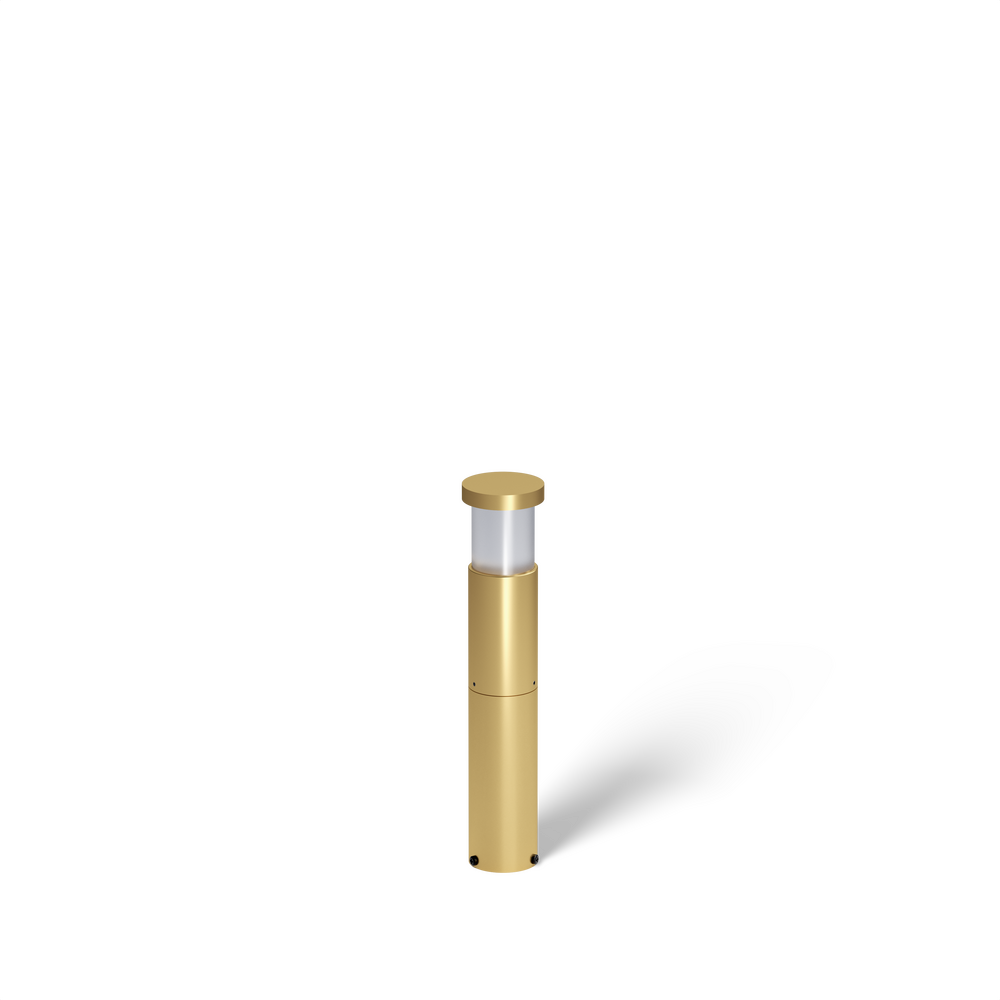

GLOW STAR - Bollard - Line Voltage Via Transformer - LED High-Power - Brass - Style E - Height: 6” - 24” - Pipe PI1 - 18" Junction Box
(formerly Glow Star / B-GL-LED)
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
GL-
01
BO-
02
LIT-
03
LHP-
04
BR-
05
PI1-J18-
06B
SE-
06C
___-
06F
___-
07
NON-
09
WL00-
11
___-
12
Click options to build your configurationCompleting the first column to render configured product images below
01 SERIES
02 CATEGORY
03 DRIVER
04 LIGHT SOURCE (TYPE)
05 MATERIAL
06B MOUNT
06C STYLE
06F SIZE
07 LIGHT SOURCE
09 CONTROL
11 WIRING LENGTH
12 FINISH
- Light Source
- Technical
- Transformers
- Finishes
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf

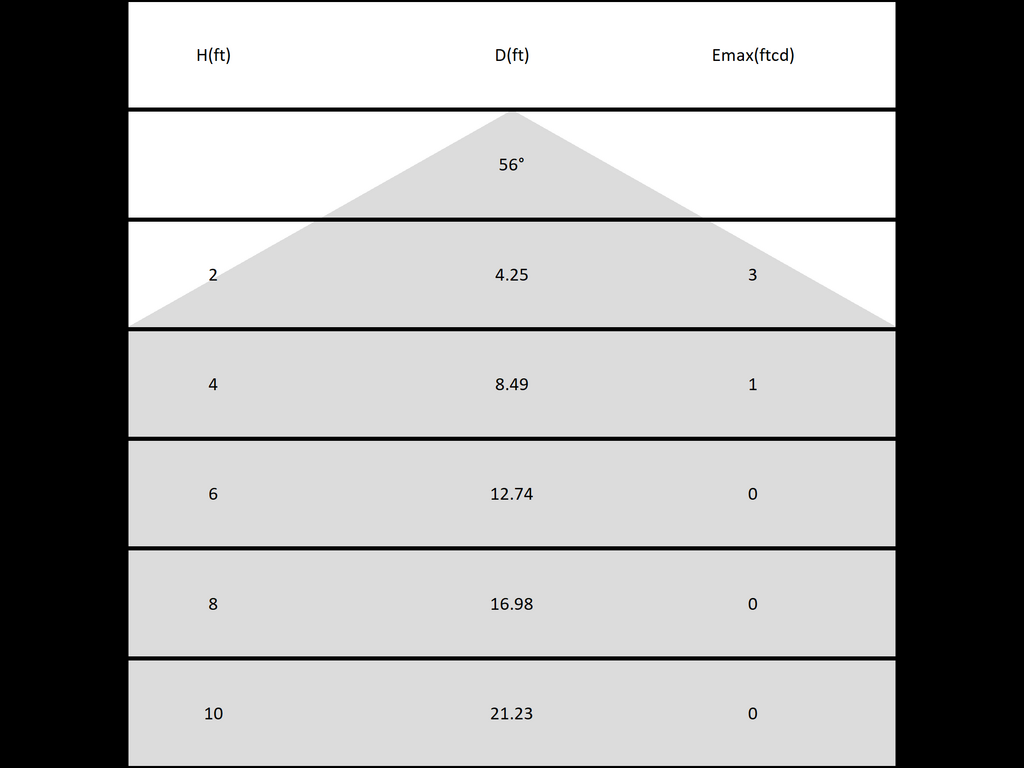

Diagram CONE
e64
-
2700
80
7
700
50000
e65
-
3000
80
7
700
50000
e74
-
Amber
7
700
50000
e79
-
2700
90
7
700
50000
e80
-
3000
90
7
700
50000
e81
-
3500
80
7
700
50000
Features
Anti-condensation vent allows moisture to exit the fixture but never enter in
Lens factory adhered to fixture cap providing hermetically sealed optical compartment
Manufactured in the USA with sustainable processes
Water-tight anti-siphon plug prevents moisture ingress from wireways
Secured with tamper-resistant, stainless steel hardware
Easily replaceable modular components reduce waste and extend fixture life
Slip fit cap & high temp. silicone 'O' ring provides reliable water-tight seal
Solid billet fixture body provides unmatched durability and heat management
