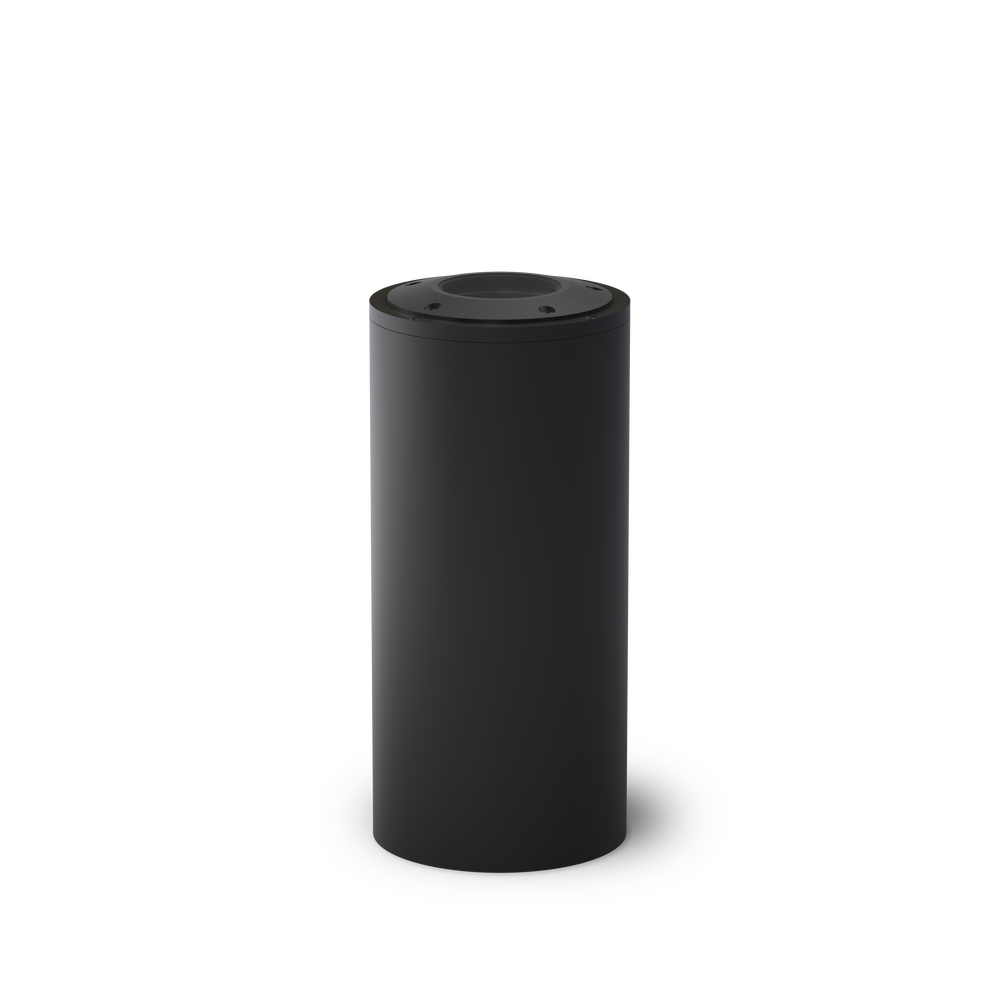

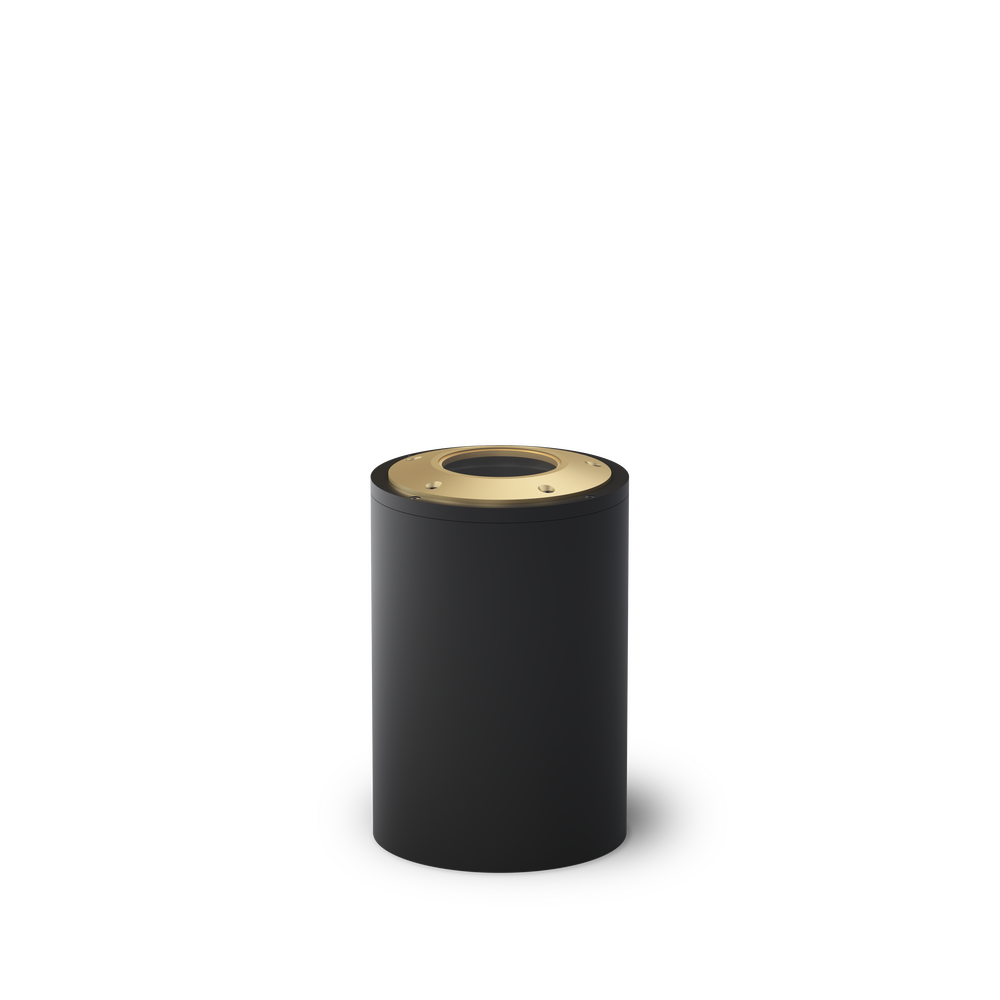

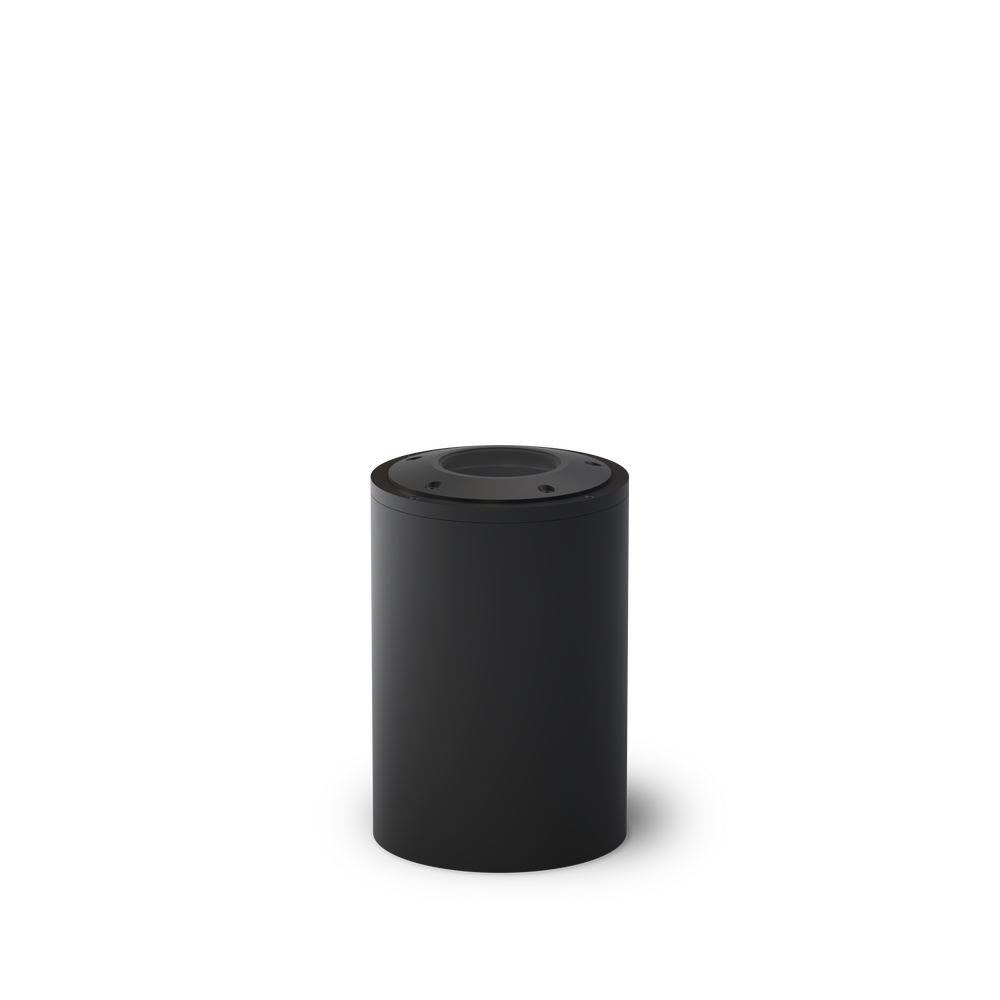

HP2 - In-grade - Line Voltage - LED COB - Deep Housing - Above Ground
(formerly Above Ground In-grade / AGI2)
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
HP2-
01
IN-
02
LID-
03
LCB-
04
___-
05
FSM-
06B
HDA-
06D
___-
06E
___-
06F
___-
07
___-
08
___-
09
___-
10A
___-
10B
WL00-
11
___-
12
AH-
13
Click options to build your configurationCompleting the first column to render configured product images below
- Light Source
- Technical
- Finishes
- Options
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
x70
NFL - Narrow Flood
25
2700
90
34
700
50000
x70
WFL - Wide Flood
60
2700
90
34
700
50000
x71
NFL - Narrow Flood
25
3000
90
34
700
50000
x71
WFL - Wide Flood
60
3000
90
34
700
50000
x76
NFL - Narrow Flood
25
3500
80
34
700
50000
x76
WFL - Wide Flood
60
3500
80
34
700
50000
Features
Anti-condensation vent allows moisture to exit the fixture but never enter in
Internal optics with adjustable aim
Lens factory adhered to fixture cap providing hermetically sealed optical compartment
Secured with flush, countersunk tamper resistant hardware
Machined solid billet faceplate provides unmatched strength and durability
Heavy wall corrosion-free composite housing for direct burial in soil or concrete
Designed and engineered for easy install
Manufactured in the USA with sustainable processes
Water-tight anti-siphon plug prevents moisture ingress from wireways
Easily replaceable modular components reduce waste and extend fixture life
