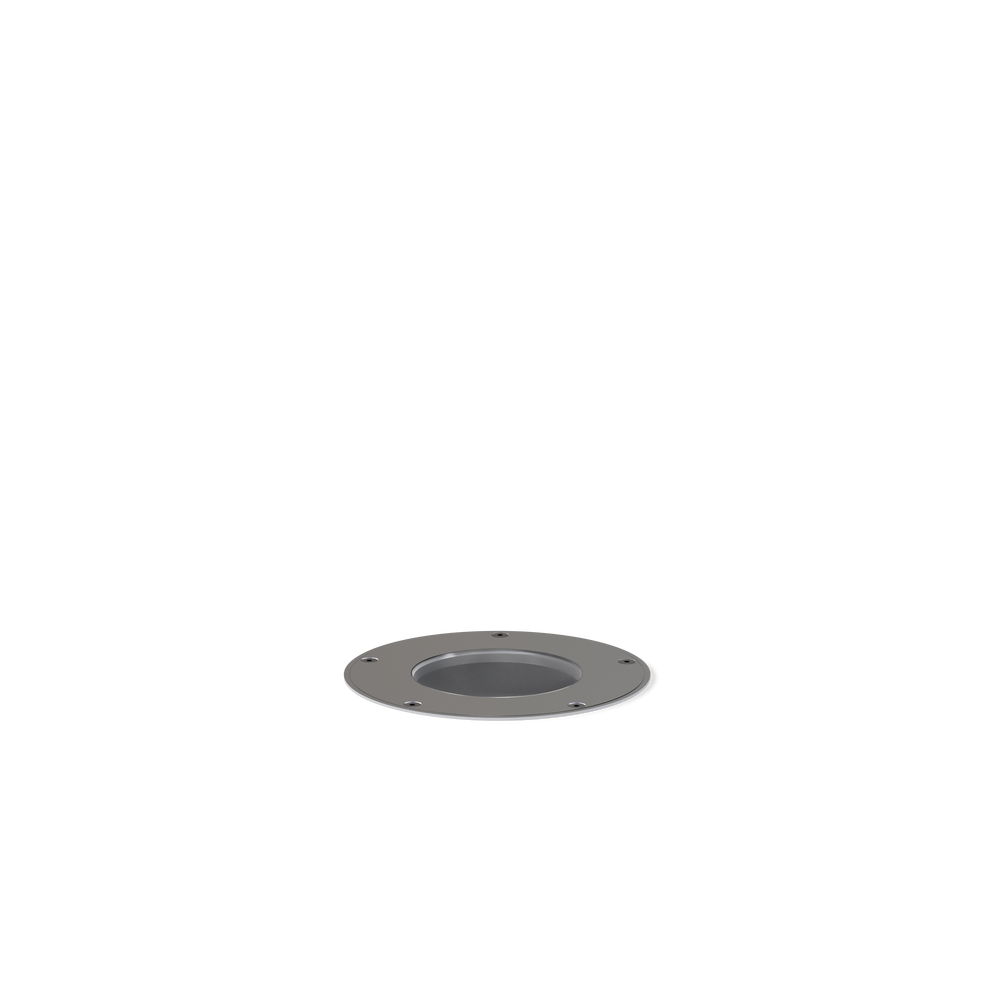

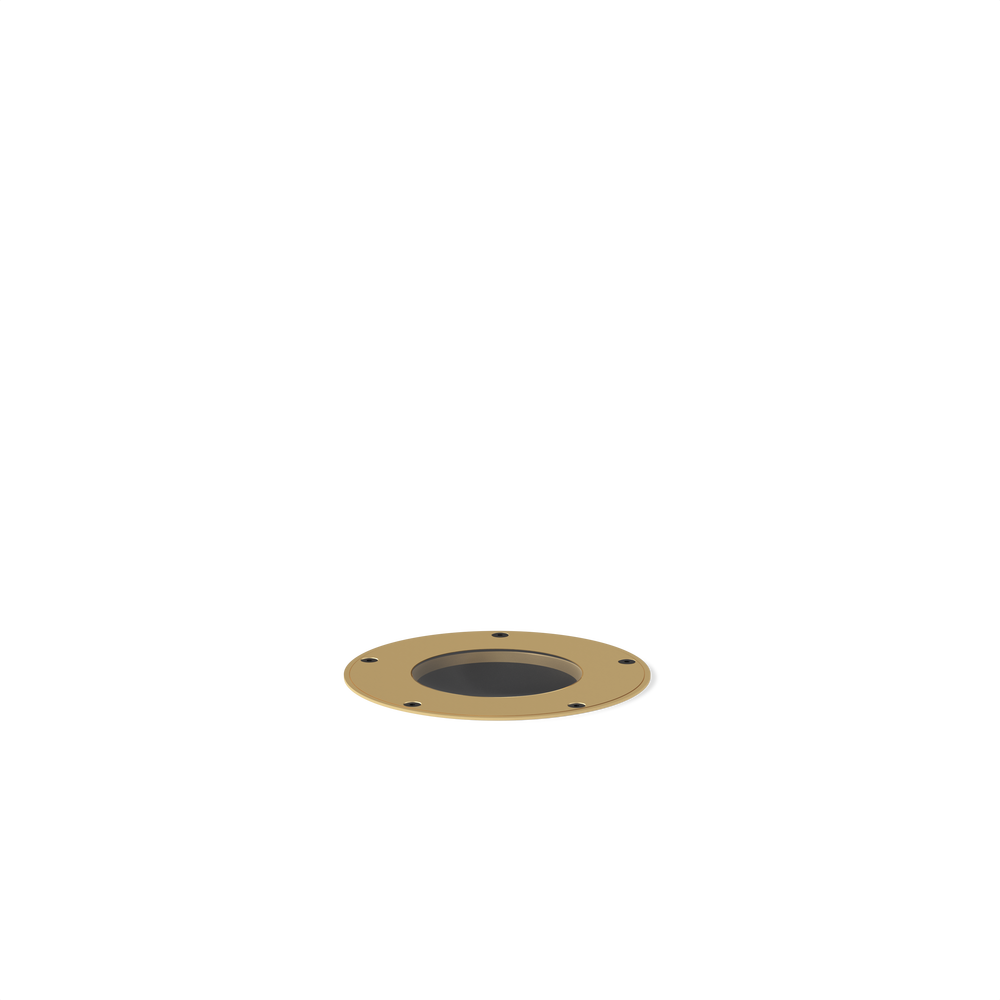

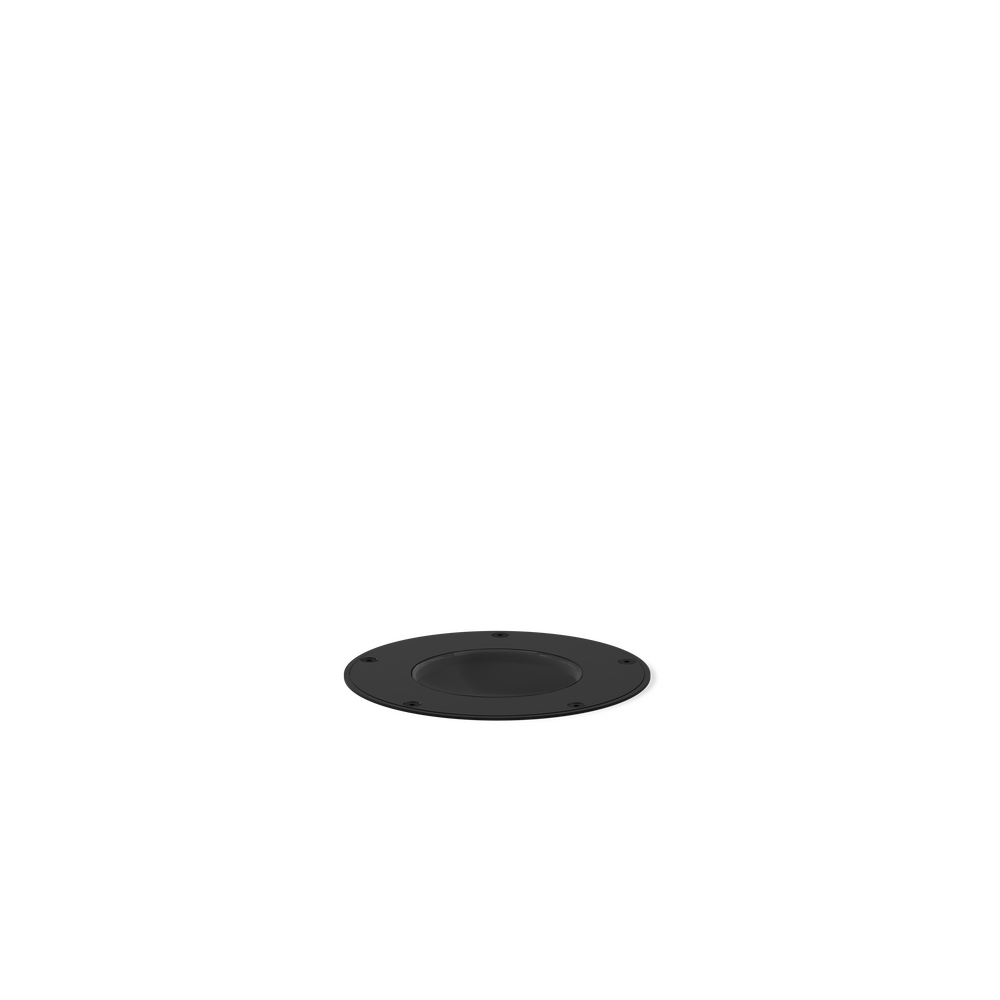

HP2 - In-grade - Line Voltage - Lamp PAR30 - Deep Housing - Faceplate Flush Mount
(formerly HP2 PAR20/30 Deep Housing / HP2-PAR30)
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
HP2-
01
IN-
02
LID-
03
LAP30-
04
___-
05
FFM-
06B
HDE-
06D
___-
07
___-
10A
___-
10B
WL00-
11
___-
12
___-
13
Click options to build your configurationCompleting the first column to render configured product images below
- Light Source
- Technical
- Finishes
- Options
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
408
NSP - Narrow Spot
10
2850
100
39
550
6100
35000
409
NFL - Narrow Flood
25
2850
100
39
550
1700
35000
410
WFL - Wide Flood
50
2850
100
39
550
600
35000
411
NSP - Narrow Spot
10
2900
100
60
1070
12000
35000
412
NFL - Narrow Flood
25
2900
100
60
1070
3300
35000
413
WFL - Wide Flood
50
2900
100
60
1070
1300
35000
Features
Anti-condensation vent allows moisture to exit the fixture but never enter in
Internal optics with adjustable aim
Lens factory adhered to fixture cap providing hermetically sealed optical compartment
Secured with flush, countersunk tamper resistant hardware
Machined solid billet faceplate provides unmatched strength and durability
Heavy wall corrosion-free composite housing for direct burial in soil or concrete
Designed and engineered for easy install
Manufactured in the USA with sustainable processes
Water-tight anti-siphon plug prevents moisture ingress from wireways
Easily replaceable modular components reduce waste and extend fixture life
