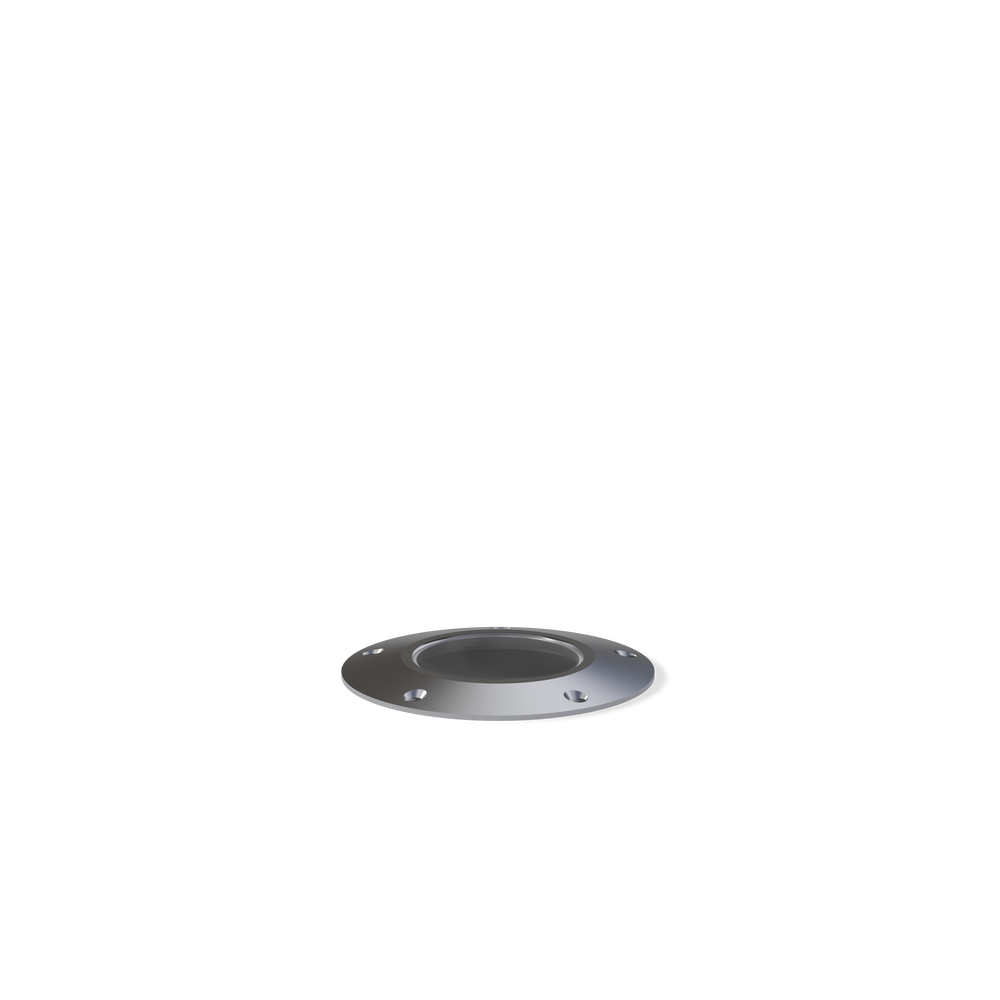

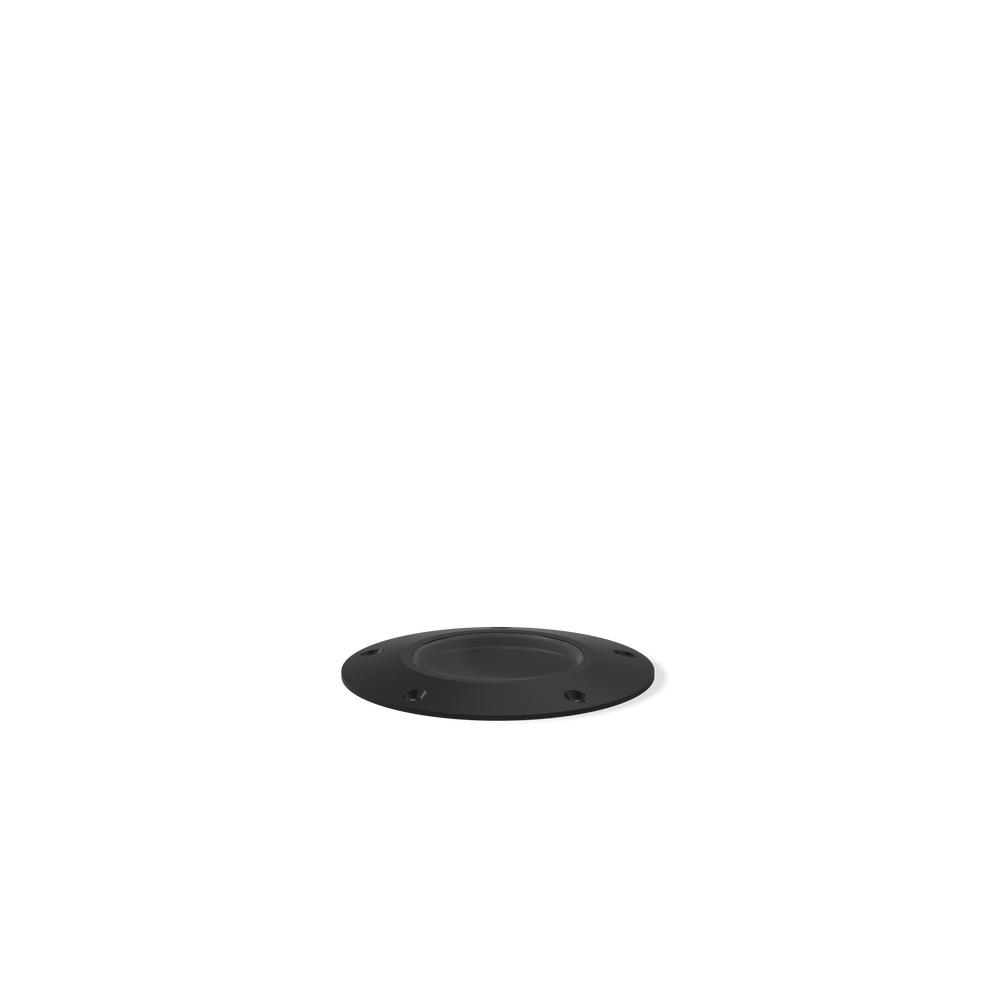

HP2 - In-grade - Remote Driver - Lamp MR16 Gu5.3 - Deep Housing - Faceplate Surface Mount

(formerly CO2 Remote Deep Housing MR16 / CO2-MR-RD)

HP2 - In-grade - Remote Driver - Lamp MR16 Gu5.3 - Deep Housing - Faceplate Surface Mount

Downloads

Family Spec Sheet (.pdf)

Product Images (.zip)

BIM - Revit (.zip)

Installation Instructions (.pdf)

Page Navigation

Configure Product

Product Details

Mountings & Power Supplies

NOTE: Not all configurations may be compatible with one another. Please configure the product for specific 2D, Photometry, Downloads, Spec Sheet and Compatible mountings and power supplies.

Configure Product

Download as configured

NOTE: Please configure the LEFT column found below to activate these download links.

Date:

Project:

Type:

WARNING: This is a remote driver product. Please check "Mountings With A Power Supply" or "Power Supplies" to order remote driver separately. (IMPORTANT: Driver wattage MUST match selected fixture wattage. Example: 12W Light Source = 12W Driver)

HP2-

IN-

RMD-

LAM16-

___-

FSM-

06B

HDE-

06D

___-

10A

___-

10B

WL00-

___-

Click options to build your configuration
Completing the first column to render configured product images below

01 SERIES

02 CATEGORY

03 DRIVER

04 LIGHT SOURCE (TYPE)

05 MATERIAL

06B MOUNT

06D VERSION

07 LIGHT SOURCE

10A LENS

10B SHIELDING

11 WIRING LENGTH

12 FINISH

Standard Finishes

, , , , , , ,

Premium Finishes

, , , , , , , , , , , , , , , , ,

Other - RAL

Other - Custom Color

Brass Finishes

, ,

Stainless Steel Finishes

13 OPTION

Light Source
Technical
Finishes
Options

Light Source

Optic

Beam Angle

CCT (K)

CRI

Input Power (W)

Delivered Lumens (Lm)

CBCP

MacAdam Ellipses (SDCM)

Operating Current (mA)

L70 (Hours)

L90B10 (Hours)

IES File

IES Pdf

Diagram CONE

359

NSP - Narrow Spot

2700

7.5

575

8000

35000

361

NFL - Narrow Flood

2700

7.5

600

3170

35000

362

MFL - Medium Flood

2700

7.5

600

1550

35000

363

NSP - Narrow Spot

3000

7.5

600

8400

35000

365

NFL - Narrow Flood

3000

7.5

630

3300

35000

366

MFL - Medium Flood

3000

7.5

630

1650

35000

Features

Anti-condensation vent allows moisture to exit the fixture but never enter in

Internal optics with adjustable aim

Lens factory adhered to fixture cap providing hermetically sealed optical compartment

Secured with flush, countersunk tamper resistant hardware

Machined solid billet faceplate provides unmatched strength and durability

Heavy wall corrosion-free composite housing for direct burial in soil or concrete

Designed and engineered for easy install

Manufactured in the USA with sustainable processes

Water-tight anti-siphon plug prevents moisture ingress from wireways

Easily replaceable modular components reduce waste and extend fixture life

Technical

Mountings & Power Supplies

NOTE: Ordered separately. Configure fixture first to guarantee compatibility.

Power Supply

Universal Power Module

Universal Power Module PM1 - Camlock Mount - Round - With Mounting Brackets - Remote Transformer - Aluminum

[PM1-CR-MB-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Camlock Mount - Round - Remote Transformer - Aluminum

[PM1-CR-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Camlock Mount - Rectangular - With Mounting Brackets - Remote Transformer - Aluminum

[PM1-CT-MB-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Camlock Mount - Rectangular - Remote Transformer - Aluminum

[PM1-CT-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Surface Mount - Remote Transformer - Aluminum

[PM1-SM-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum

4" to 7" tree/branch diameter

[PM1-TS-24-MB-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - 24" - With Safety Cable - Remote Transformer - Aluminum

4" to 7" tree/branch diameter

[PM1-TS-24-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum

4" to 15" tree/branch diameter

[PM1-TS-48-MB-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - 48" - With Safety Cable - Remote Transformer - Aluminum

4" to 15" tree/branch diameter

[PM1-TS-48-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum

4" to 22" tree/branch diameter

[PM1-TS-72-MB-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - 72" - With Safety Cable - Remote Transformer - Aluminum

4" to 22" tree/branch diameter

[PM1-TS-72-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - Custom - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum

[PM1-TS-CS-MB-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM1 - Tree Strap Mount - Custom - With Safety Cable - Remote Transformer - Aluminum

[PM1-TS-CS-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Camlock Mount - Round - With Mounting Brackets - Remote Transformer - Aluminum

[PM2-CR-MB-TR-RM-AL]

[TRSS75-277-NON] 75W - 277V - Non-dimming

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Camlock Mount - Round - Remote Transformer - Aluminum

[PM2-CR-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Camlock Mount - Rectangular - With Mounting Brackets - Remote Transformer - Aluminum

[PM2-CT-MB-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Camlock Mount - Rectangular - Remote Transformer - Aluminum

[PM2-CT-TR-RM-AL]

[TRSS75-277-NON] 75W - 277V - Non-dimming

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Surface Mount - Remote Transformer - Aluminum

[PM2-SM-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum

4" to 7" tree/branch diameter

[PM2-TS-24-MB-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Remote Transformer - Aluminum

4" to 7" tree/branch diameter

[PM2-TS-24-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum

4" to 15" tree/branch diameter

[PM2-TS-48-MB-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Remote Transformer - Aluminum

4" to 15" tree/branch diameter

[PM2-TS-48-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum

4" to 22" tree/branch diameter

[PM2-TS-72-MB-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Remote Transformer - Aluminum

4" to 22" tree/branch diameter

[PM2-TS-72-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - Custom - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum

[PM2-TS-CS-MB-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Universal Power Module PM2 - Tree Strap Mount - Custom - With Safety Cable - Remote Transformer - Aluminum

[PM2-TS-CS-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Power Pipe

Power Pipe PP1 - 12” Junction Box - Remote Transformer - Aluminum

[PP1-J12-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Power Pipe PP1 - 12” Junction Box - Remote Transformer - Brass

[PP1-J12-TR-RM-BR]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Power Pipe PP1 - 12” Junction Box - Remote Transformer - Stainless Steel

[PP1-J12-TR-RM-SS]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Power Pipe PP1 - 18" Junction Box - Remote Transformer - Aluminum

[PP1-J18-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Power Pipe PP1 - 18" Junction Box - Remote Transformer - Brass

[PP1-J18-TR-RM-BR]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Power Pipe PP1 - 18" Junction Box - Remote Transformer - Stainless Steel

[PP1-J18-TR-RM-SS]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Power Pipe PP1 - 12” Stake - Remote Transformer - Aluminum

[PP1-S12-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Power Pipe PP1 - 12” Stake - Remote Transformer - Brass

[PP1-S12-TR-RM-BR]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Power Pipe PP1 - 12” Stake - Remote Transformer - Stainless Steel

[PP1-S12-TR-RM-SS]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Power Pipe PP1 - 18” Stake - Remote Transformer - Aluminum

[PP1-S18-TR-RM-AL]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Power Pipe PP1 - 18” Stake - Remote Transformer - Brass

[PP1-S18-TR-RM-BR]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

Power Pipe PP1 - 18” Stake - Remote Transformer - Stainless Steel

[PP1-S18-TR-RM-SS]

[TRSS75-120-ELV] 60W - 120V - ELV Dimming

[TRSS75-277-NON] 75W - 277V - Non-dimming

Spec Sheet (.pdf) Installation instructions (.pdf)

HP2 - In-grade - Remote Driver - Lamp MR16 Gu5.3 - Deep Housing - Faceplate Surface Mount

(formerly CO2 Remote Deep Housing MR16 / CO2-MR-RD)

Downloads

Page Navigation

Configure Product

Features

Technical

Mountings & Power Supplies

Universal Power Module

Power Pipe

CONTACT

PARTNER COMPANIES

SITE MAP

LINKS

CONTINUING EDUCATION

PARTNER COMPANIES

SITE MAP

LINKS

CONTINUING EDUCATION
