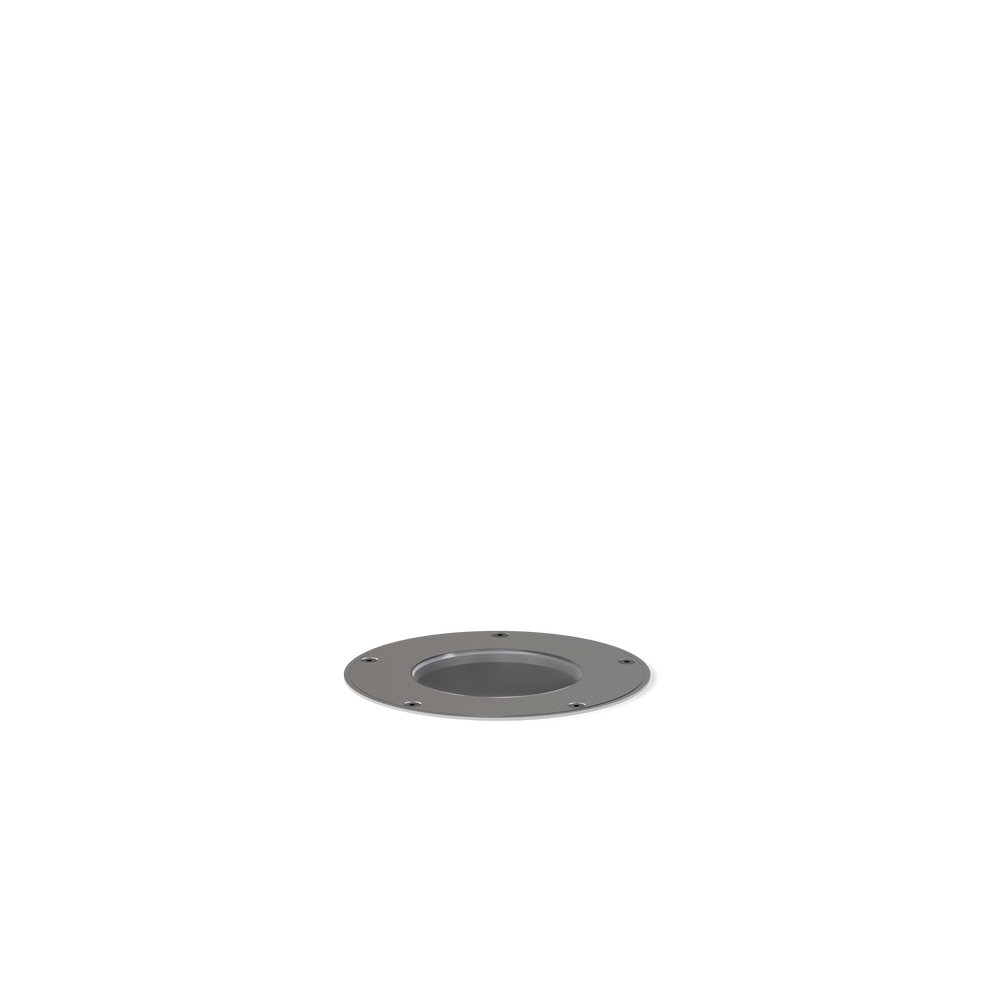

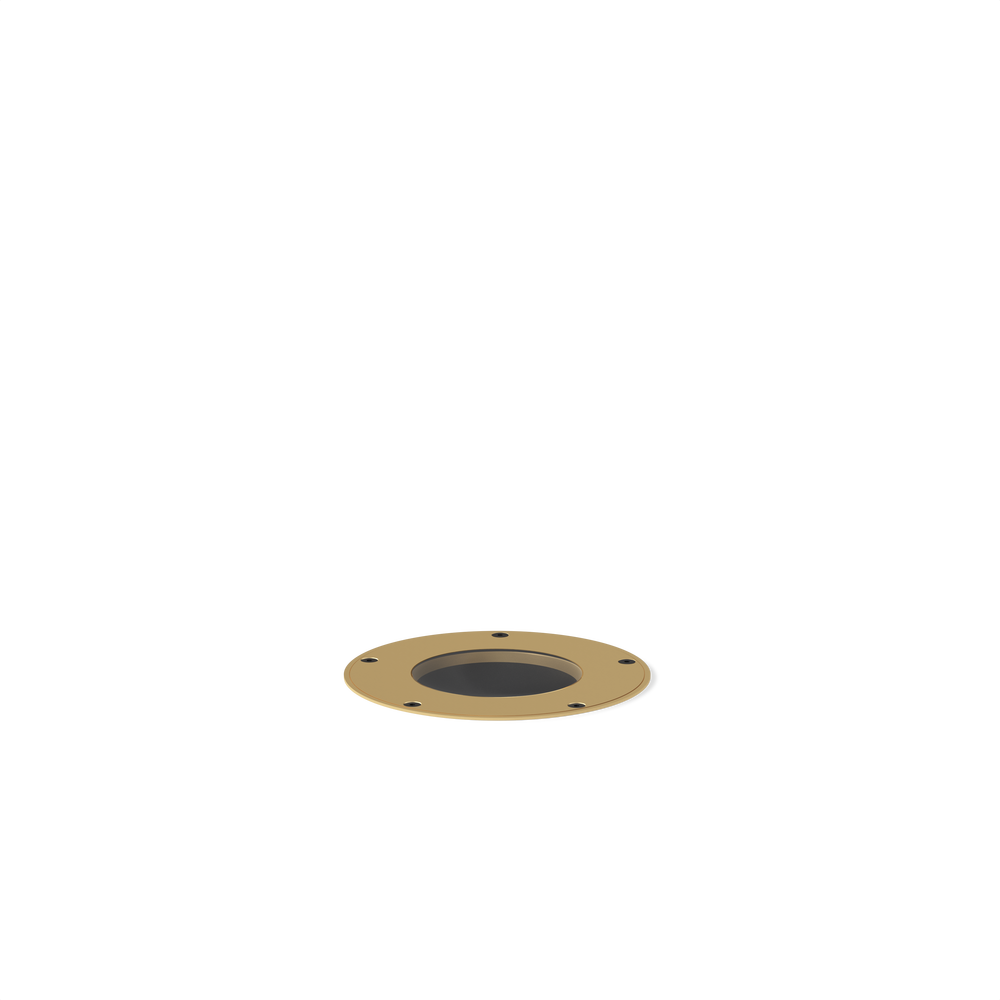

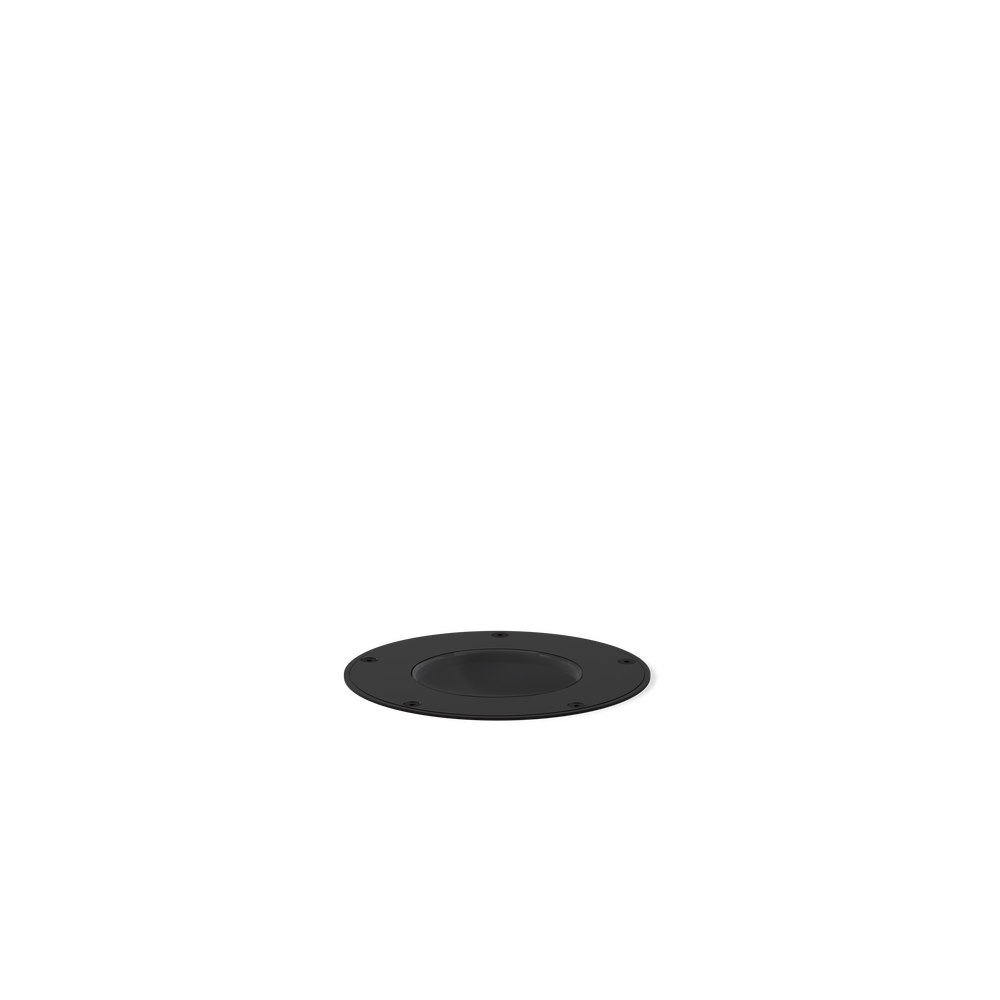

HP2 - In-grade - Remote Driver - Lamp MR16 Gu5.3 - Shallow Housing - Faceplate Flush Mount
(formerly HP2 Remote Shallow Housing MR16 / HP2-MR-RS)
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
WARNING: This is a remote driver product. Please check "Mountings With A Power Supply" or "Power Supplies" to order remote driver separately. (IMPORTANT: Driver wattage MUST match selected fixture wattage. Example: 12W Light Source = 12W Driver)
HP2-
01
IN-
02
RMD-
03
LAM16-
04
___-
05
FFM-
06B
HSH-
06D
___-
07
___-
10A
___-
10B
___-
11
___-
12
___-
13
Click options to build your configurationCompleting the first column to render configured product images below
- Light Source
- Technical
- Finishes
- Options
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
359
NSP - Narrow Spot
10
2700
90
7.5
575
8000
35000
361
NFL - Narrow Flood
25
2700
90
7.5
600
3170
35000
362
MFL - Medium Flood
36
2700
90
7.5
600
1550
35000
363
NSP - Narrow Spot
10
3000
90
7.5
600
8400
35000
365
NFL - Narrow Flood
25
3000
90
7.5
630
3300
35000
366
MFL - Medium Flood
36
3000
90
7.5
630
1650
35000
Features
Anti-condensation vent allows moisture to exit the fixture but never enter in
Internal optics with adjustable aim
Lens factory adhered to fixture cap providing hermetically sealed optical compartment
Secured with flush, countersunk tamper resistant hardware
Machined solid billet faceplate provides unmatched strength and durability
Heavy wall corrosion-free composite housing for direct burial in soil or concrete
Designed and engineered for easy install
Manufactured in the USA with sustainable processes
Water-tight anti-siphon plug prevents moisture ingress from wireways
Easily replaceable modular components reduce waste and extend fixture life
Technical
Mountings & Power Supplies
NOTE: Ordered separately. Configure fixture first to guarantee compatibility.WARNING: This is a remote driver product. Please check "Mountings With A Power Supply" or "Power Supplies" to order remote driver separately. (IMPORTANT: Driver wattage MUST match selected fixture wattage. Example: 12W Light Source = 12W Driver)
- Power Supply
Universal Power Module
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
Universal Power Module PM1 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum
4" to 7" tree/branch diameter
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
Universal Power Module PM1 - Tree Strap Mount - 24" - With Safety Cable - Remote Transformer - Aluminum
4" to 7" tree/branch diameter
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
Universal Power Module PM1 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum
4" to 15" tree/branch diameter
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
Universal Power Module PM1 - Tree Strap Mount - 48" - With Safety Cable - Remote Transformer - Aluminum
4" to 15" tree/branch diameter
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
Universal Power Module PM1 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum
4" to 22" tree/branch diameter
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
Universal Power Module PM1 - Tree Strap Mount - 72" - With Safety Cable - Remote Transformer - Aluminum
4" to 22" tree/branch diameter
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
Universal Power Module PM1 - Tree Strap Mount - Custom - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum
Custom strap length. Contact factory.
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
Universal Power Module PM1 - Tree Strap Mount - Custom - With Safety Cable - Remote Transformer - Aluminum
Custom strap length. Contact factory.
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum
4" to 7" tree/branch diameter
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Remote Transformer - Aluminum
4" to 7" tree/branch diameter
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum
4" to 15" tree/branch diameter
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Remote Transformer - Aluminum
4" to 15" tree/branch diameter
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum
4" to 22" tree/branch diameter
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Remote Transformer - Aluminum
4" to 22" tree/branch diameter
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
Universal Power Module PM2 - Tree Strap Mount - Custom - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum
Custom strap length. Contact factory.
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
Universal Power Module PM2 - Tree Strap Mount - Custom - With Safety Cable - Remote Transformer - Aluminum
Custom strap length. Contact factory.
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
Power Pipe
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
[TRSS75-120-ELV] 60W - 120V - ELV Dimming
[TRSS75-277-NON] 75W - 277V - Non-dimming
