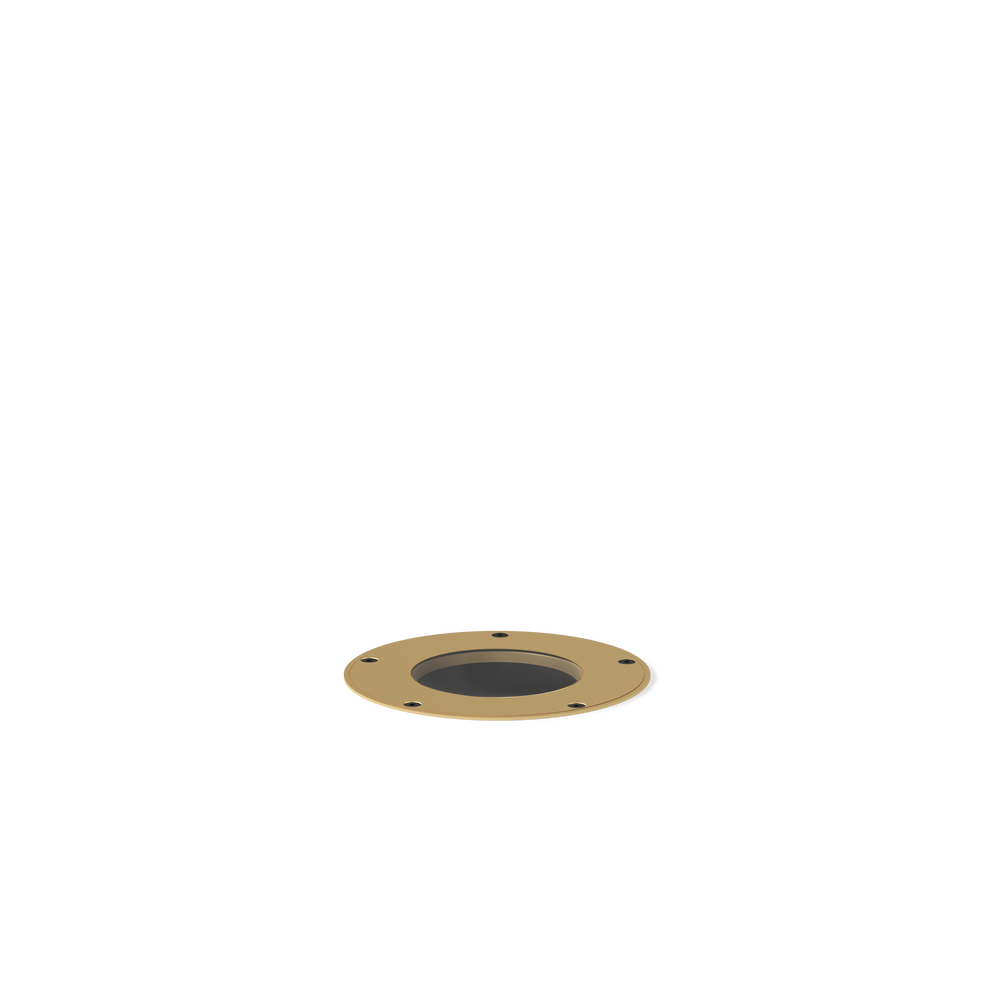

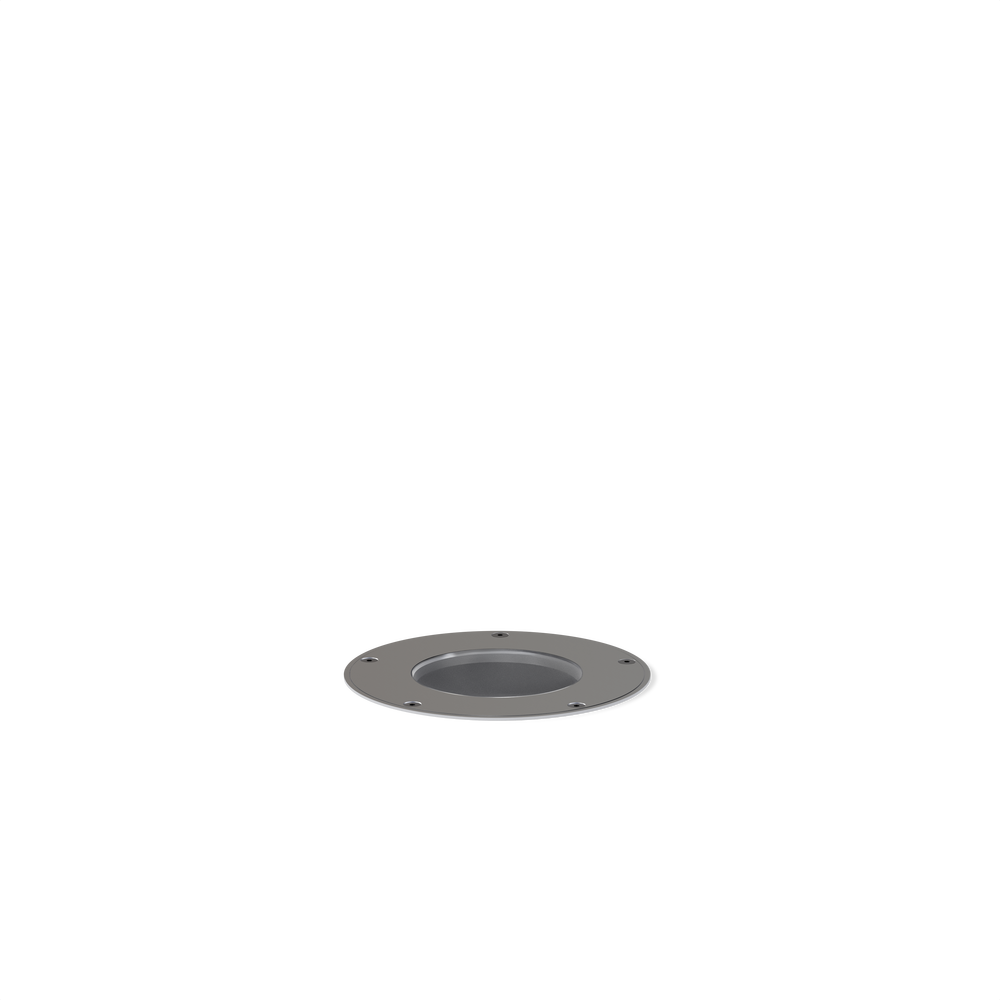

HP2 - In-grade - Line Voltage - LED COB - Deep Housing - Faceplate Flush Mount
(formerly HP2 Integral 12, 20, or 34W / HP2-LED-TR-x)




Upgraded
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
HP2-
01
IN-
02
LID-
03
LCB-
04
___-
05
FFM-
06B
HDE-
06D
___-
06E
___-
07
___-
08
___-
09
___-
10A
___-
10B
WL00-
11
___-
12
___-
13
Click options to build your configurationCompleting the first column to render configured product images below

01 SERIES
02 CATEGORY
03 DRIVER
04 LIGHT SOURCE (TYPE)
05 MATERIAL
06B MOUNT
06D VERSION
06E INPUT VOLTAGE
07 LIGHT SOURCE
08 OPTIC
09 CONTROL
10A LENS
10B SHIELDING
11 WIRING LENGTH
12 FINISH
Standard Finishes
, , , , , , , Premium Finishes
, , , , , , , , , , , , , , , , , Other - RAL
Other - Custom Color
Brass Finishes
, , Stainless Steel Finishes
, 13 OPTION
- Light Source
- Technical
- Finishes
- Options
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf

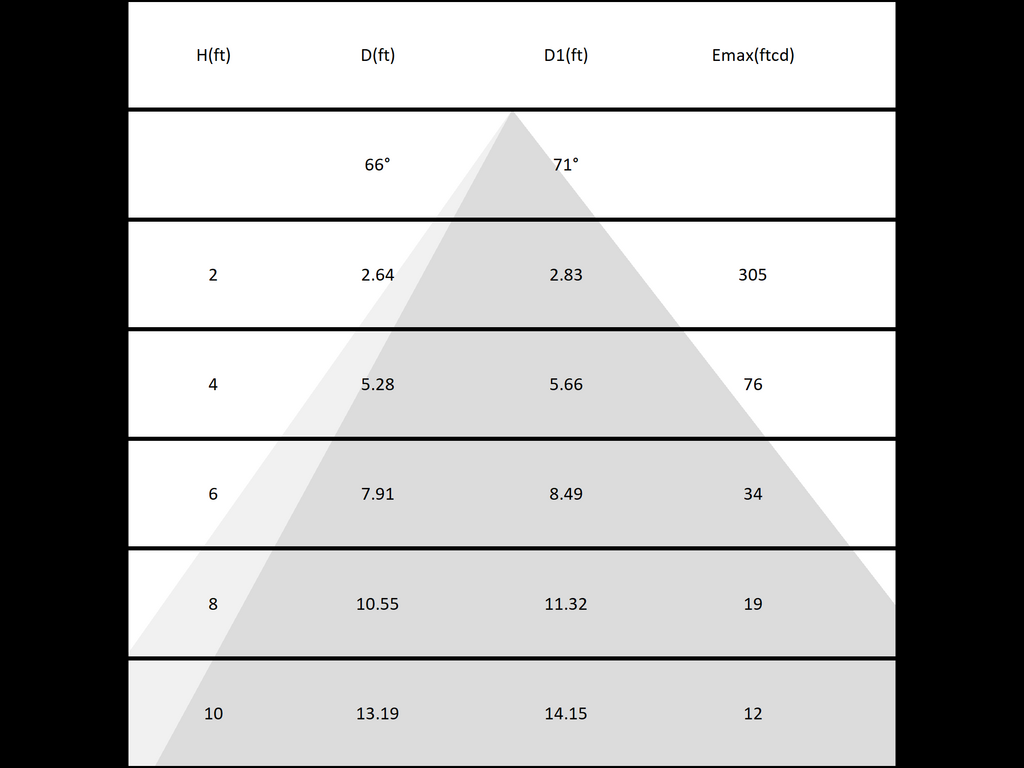

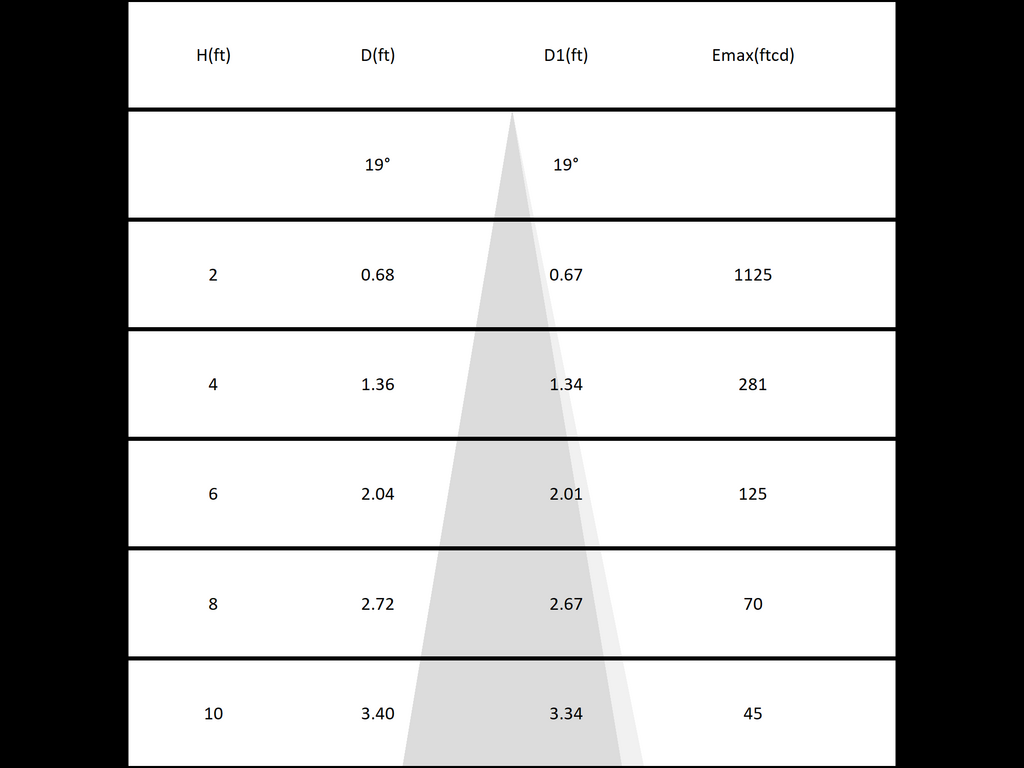

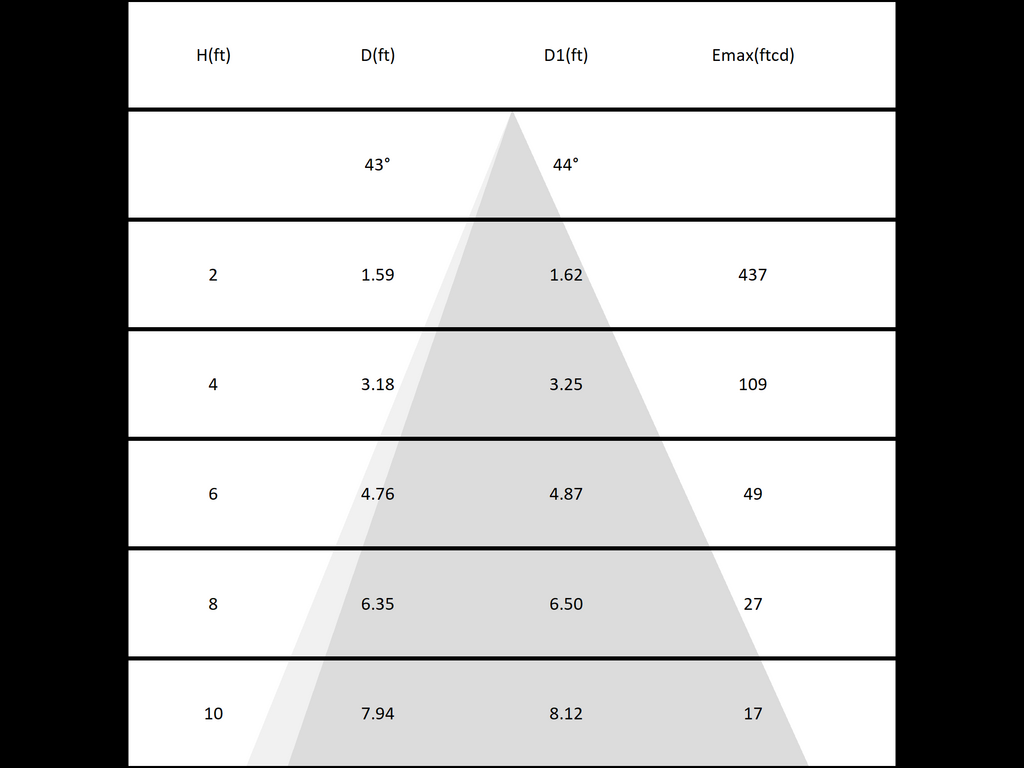

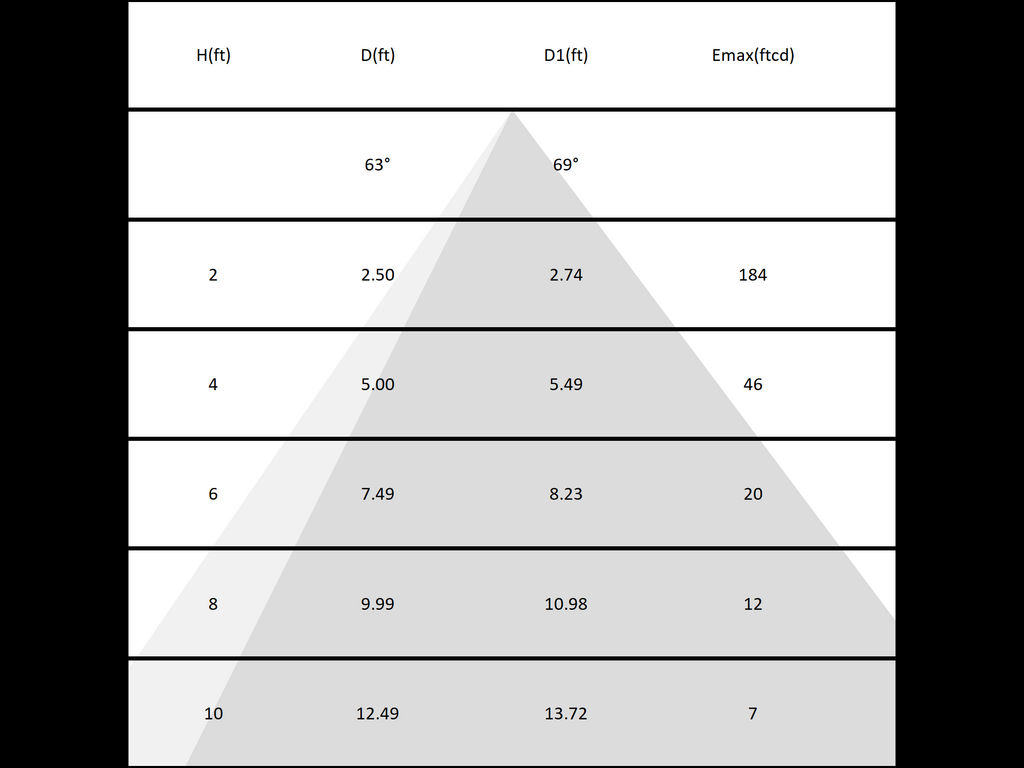

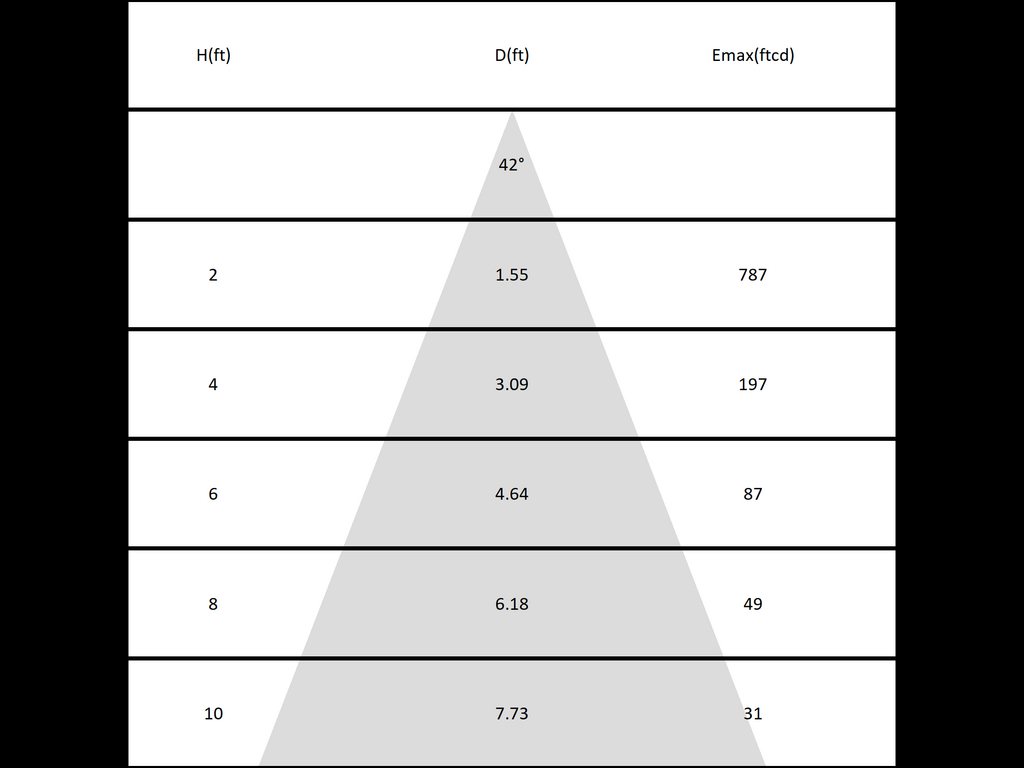

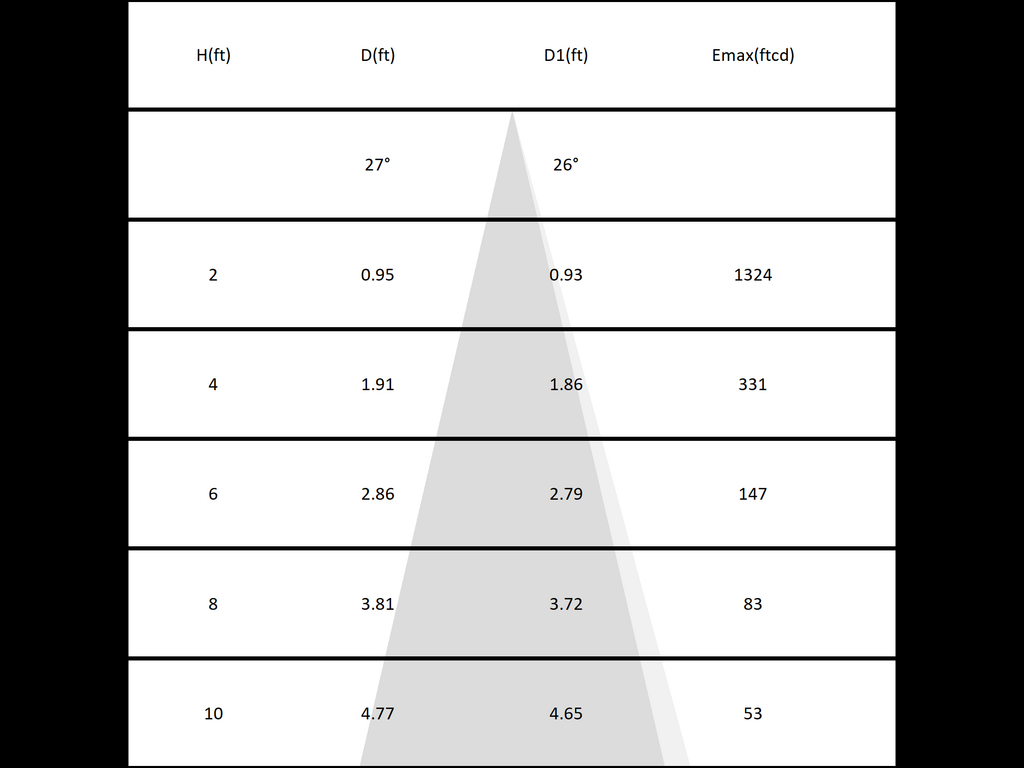

Diagram CONE
x70
NFL - Narrow Flood
25
2700
90
34
700
50000
x70
WFL - Wide Flood
60
2700
90
34
700
50000
x71
NFL - Narrow Flood
25
3000
90
34
700
50000
x71
WFL - Wide Flood
60
3000
90
34
700
50000
x76
NFL - Narrow Flood
25
3500
80
34
700
50000
x76
WFL - Wide Flood
60
3500
80
34
700
50000
Features

Anti-condensation vent allows moisture to exit the fixture but never enter in

Internal optics with adjustable aim

Lens factory adhered to fixture cap providing hermetically sealed optical compartment

Secured with flush, countersunk tamper resistant hardware

Machined solid billet faceplate provides unmatched strength and durability

Heavy wall corrosion-free composite housing for direct burial in soil or concrete

Designed and engineered for easy install

Manufactured in the USA with sustainable processes

Water-tight anti-siphon plug prevents moisture ingress from wireways

Easily replaceable modular components reduce waste and extend fixture life
