In-grade HP2 - No Grout Mask - Remote Driver - Stainless Steel
Downloads
Configure
Date:
Project:
Type:
IMPORTANT: Driver wattage MUST match selected fixture wattage. (example: 12W Light Source = 12W Driver)"
Catalog Number Logic
HP2-NG-DR-RM-SS-___-
- Technical
- Driver
- Finishes

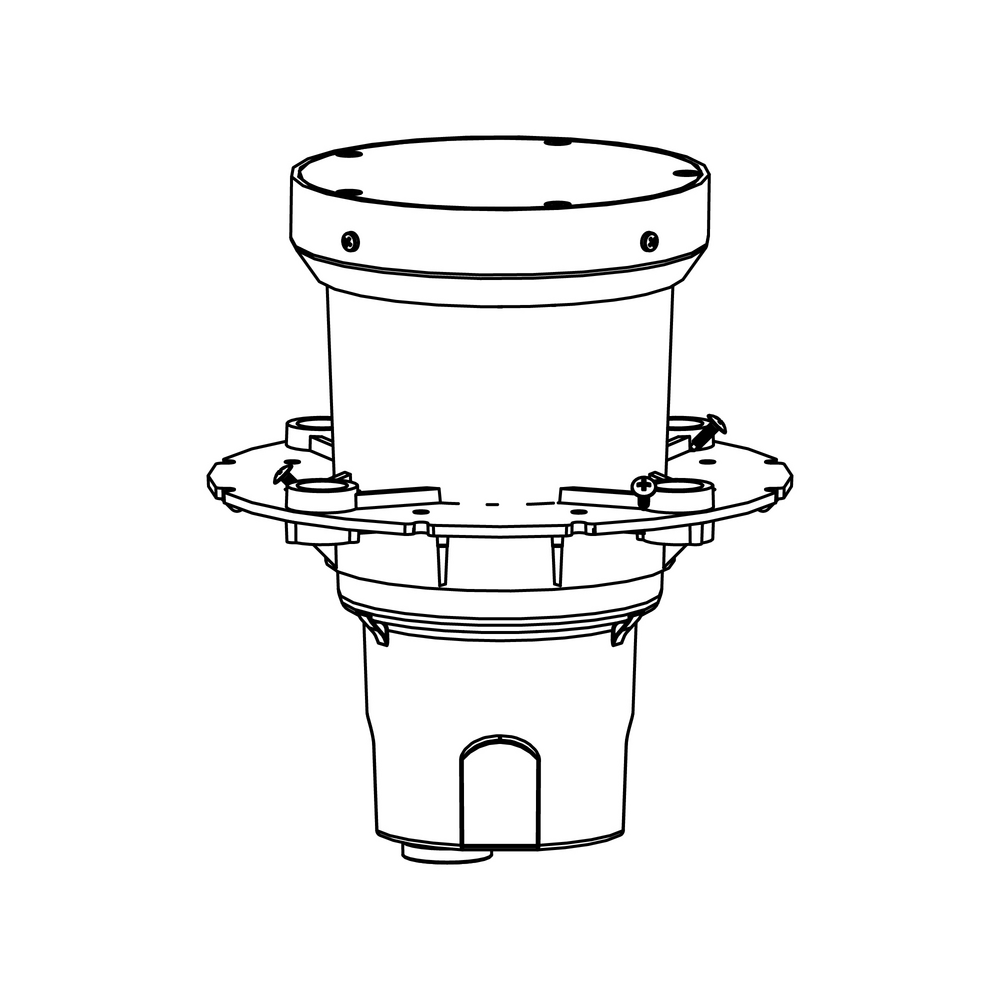

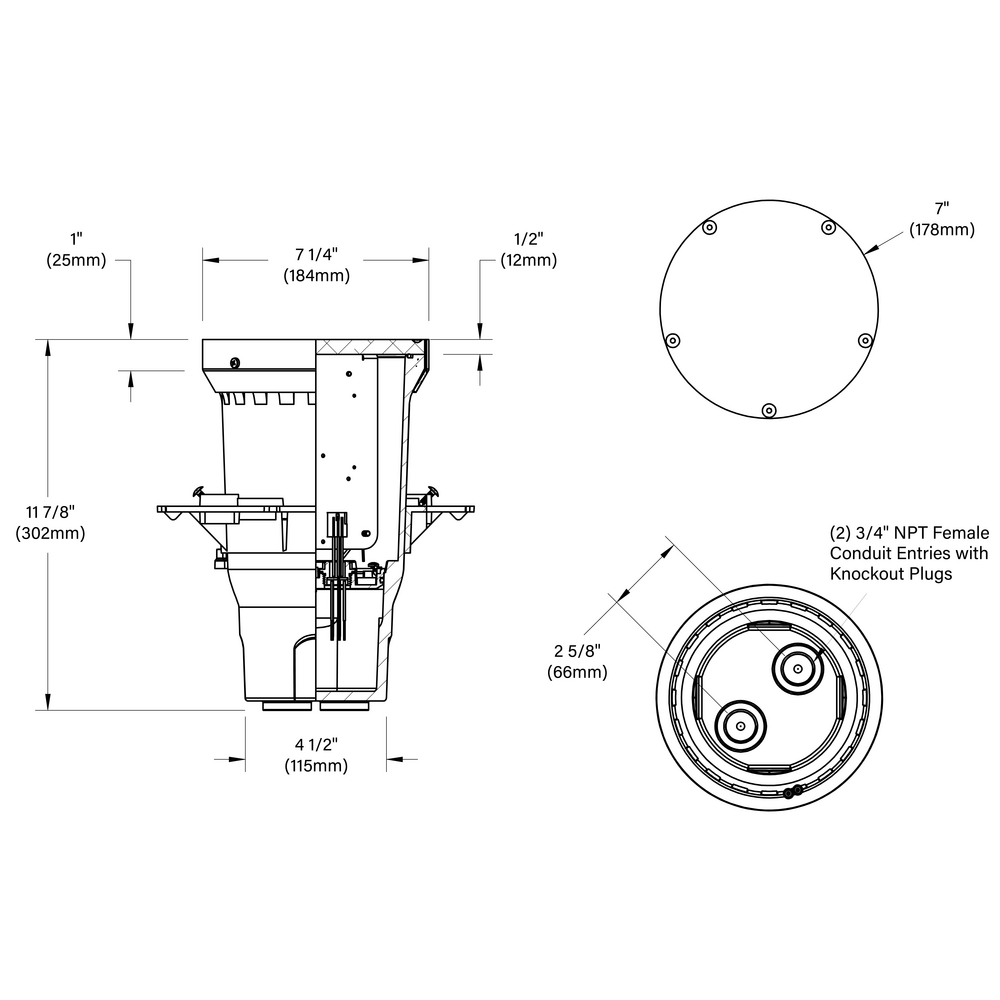

Body: Corrosion-free composite, made from high strength, thermo-formed, sheet molded polyester compound. Glass reinforced, flame retardant with knockout plugs and four (4) side flats for 1/2” or 3/4” conduit adapters.
Material Detail: Furnished in stainless steel (304).
Installation: Integral, aluminum concrete pour collar (CPC) permits direct burial in soil or concrete. Consult Drainage Installation Guide for In-Grade Fixtures (DIG-IT) for compliance with proper soil preparation and drainage requirements prior to installation.
Finish: Stainless Steel Finishes
Note: Drivers are fixture specific. Driver wattage should match fixture wattage. For questions about driver selection, please contact the factory.
Finish Detail: Metal finish option only for stainless steel material.
Warranty: 5-year limited warranty.
Certification: UL tested to IESNA LM-79. UL Listed. Certified to CAN/CSA/ANSI Standards.
Control
Input Voltage
Power Factor
THD (%)
Operation Ambient Temperature
InRush Current
Output Current
Output Power (Max-W)
Output Voltage (Range)
Dimming (Range)
010
120V,277V
>0.90 @ 75-100% load
<20 @ 60-100% load
-30°C to 65°C
<30.0A Max
1400mA
75
18-54Vdc
10-100%
NON
120V,277V
>0.90 @ 75-100% load
<20 @ 60-100% load
-30°C to 65°C
<30.0A Max
1400mA
75
18-54Vdc
10-100%
010
120V,277V
>0.9
<20
-20°C to 50°C
1050mA
50
1.5-55V
0.1%-100%
NON
120V,277V
>0.9
<20
-20°C to 50°C
1050mA
50
1.5-55V
0.1%-100%
010
120V,277V
>0.9
<20
-20°C to 50°C
1050mA
50
2-55V
1-100%
NON
120V,277V
>0.9
<20
-20°C to 50°C
1050mA
50
2-55V
1-100%
010
120V,277V
>0.9
<20
-30°C to 90°C
250mA-1100mA
29.4
14-56v
1-100%
NON
120V,277V
>0.9
<20
-30°C to 90°C
250mA-1100mA
29.4
14-56v
1-100%
INC
120V
1000
1000
1000
700mA
21
20-30Vdc
1-100%
ELV
120V
0.9
<20%
700mA
30
010
120V,277V
0.9
<20%
90°C
700mA
30
010
120V,277V
0.9
<20%
ELV
120V
0
0
350mA
15
21-32Vdc
1-100%
INC
120V
0
0
350mA
15
21-32Vdc
1-100%
INC
120V,277V
ELV
120V
0.9
<20%
700mA
30
010
120V,277V
0
0
350mA
15
21-32Vdc
1-100%
NON
120V,277V
0
0
350mA
15
21-32Vdc
1-100%
STAINLESS STEEL FINISHES
IMPORTANT: Driver wattage MUST match selected fixture wattage. (example: 12W Light Source = 12W Driver)"
