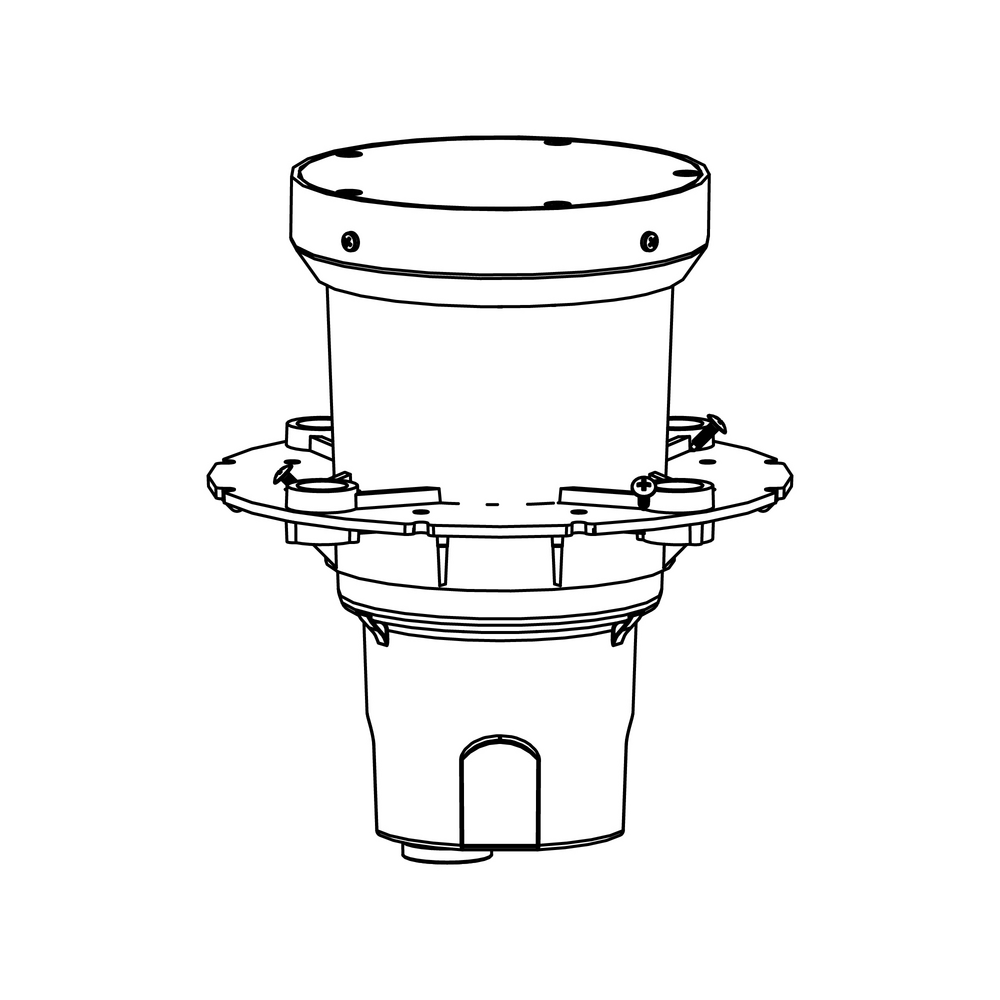

    • In-grade HP2 - No Grout Mask - Remote Transformer - Aluminum

    Award Image
    Award Image
    Award Image
    Award Image
    New
    Downloads
    Page Navigation
    IMPORTANT: Transformer wattage MUST be calculated based on the total load of the luminaires it will support.
    Catalog Number Logic

    HP2-NG-TR-RM-AL-___-___



    Power Supply
    [TR-75-120-MLV]
    75W - 120V - MLV Dimming
    [TR-75-277-MLV]
    75W - 277V - MLV Dimming
    [TR-150-120-MLV]
    150W - 120V - MLV Dimming
    [TR-150-277-MLV]
    150W - 277V - MLV Dimming
    Finishes
    STANDARD FINISHES
    [BLP]
    Satin Black
    [BZP]
    Satin Bronze
    [WHP]
    Satin White
    [SAP]
    Satin Aluminum
    [BLW]
    Black Wrinkle
    [BZW]
    Bronze Wrinkle
    [WHW]
    White Wrinkle
    [VER]
    Verde
    PREMIUM FINISHES
    [CMG]
    Cascade Mountain Granite
    [SMG]
    Sierra Mountain Granite
    [RMG]
    Rocky Mountain Granite
    [AMG]
    Aleutian Mountain Granite
    [TXF]
    Textured Forest
    [BCM]
    Black Chrome
    [BGE]
    Beige
    [WCP]
    Weathered Copper
    [OCP]
    Old Copper
    [HUG]
    Hunter Green
    [ABP]
    Antique Brass Powder
    [BPP]
    Brown Patina Powder
    [SDS]
    Sonoran Desert Sandstone
    [WIR]
    Weathered Iron
    [CAP]
    Clear Anodized Powder
    [CRM]
    Cream
    [AQW]
    Antique White
    [NBP]
    Natural Brass Powder
    OTHER - RAL
    [RAL]
    RAL Color
    OTHER - CUSTOM COLOR
    [CUS]
    Custom Color
    • Technical
    • Transformers
    • Finishes

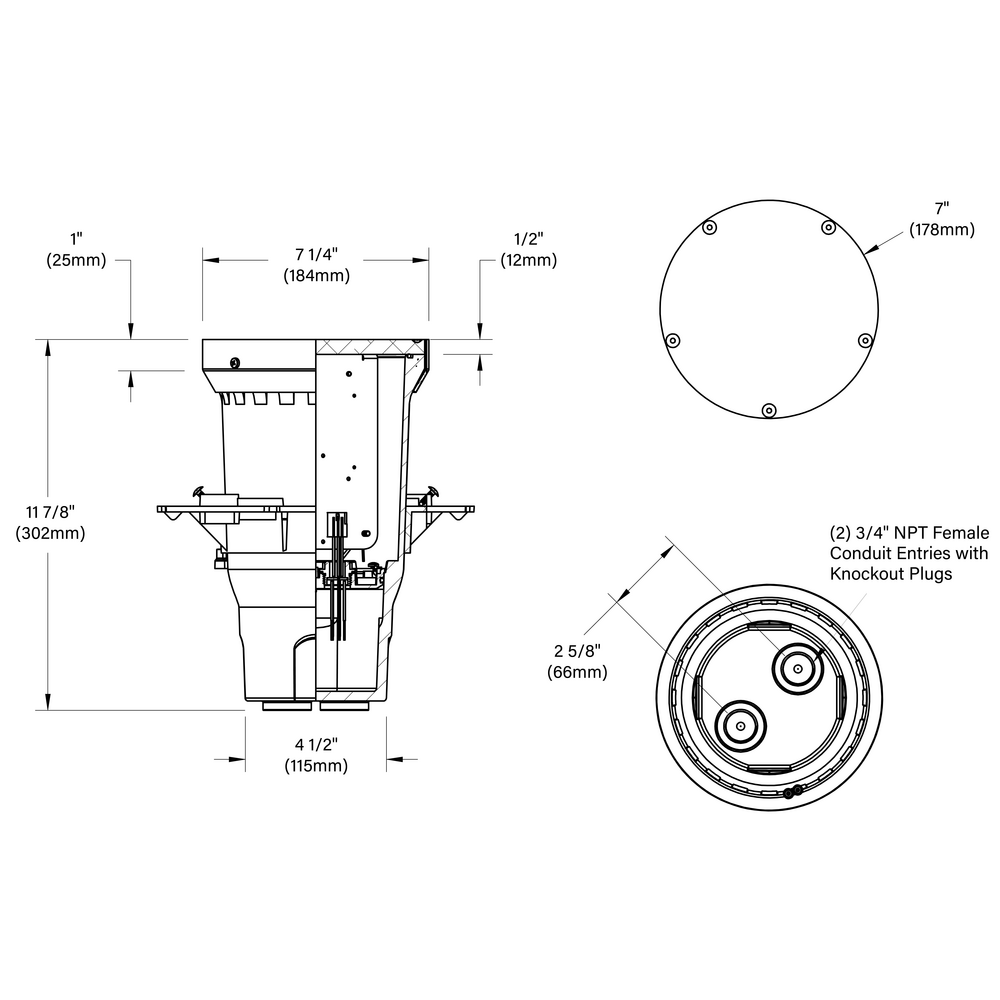

    Body: Corrosion-free composite, made from high strength, thermo-formed, sheet molded polyester compound. Glass reinforced, flame retardant with knockout plugs and four (4) side flats for 1/2” or 3/4” conduit adapters.
    Material Detail: Furnished in copper-free aluminum (6061-T6).
    Installation: Integral, aluminum concrete pour collar (CPC) permits direct burial in soil or concrete. Consult Drainage Installation Guide for In-Grade Fixtures (DIG-IT) for compliance with proper soil preparation and drainage requirements prior to installation.
    Finish: Standard Finishes, Premium Finishes, Other - RAL, Other - Custom Color
    Finish Detail: StarGuard, our 15-stage chromate-free process, cleans and conversion coats aluminum components prior to application of Class ‘A’ TGIC polyester powder coating. It is RoHS compliant.
    Warranty: 5-year limited warranty.
    Certification: UL tested to IESNA LM-79. UL Listed. Certified to CAN/CSA/ANSI Standards.
    Control
    Max Load (W)
    Input Voltage
    Power Factor
    THD (%)
    Operation Ambient Temperature
    Output Current
    Circuit Breaker
    Min Load (W)
    MLV
    75
    120V
    -30°C to 105°C
    12Vac
    MLV
    75
    277V
    -30°C to 105°C
    12Vac
    MLV
    150
    120V
    -30°C to 105°C
    12Vac
    MLV
    150
    277V
    -30°C to 105°C
    12Vac
