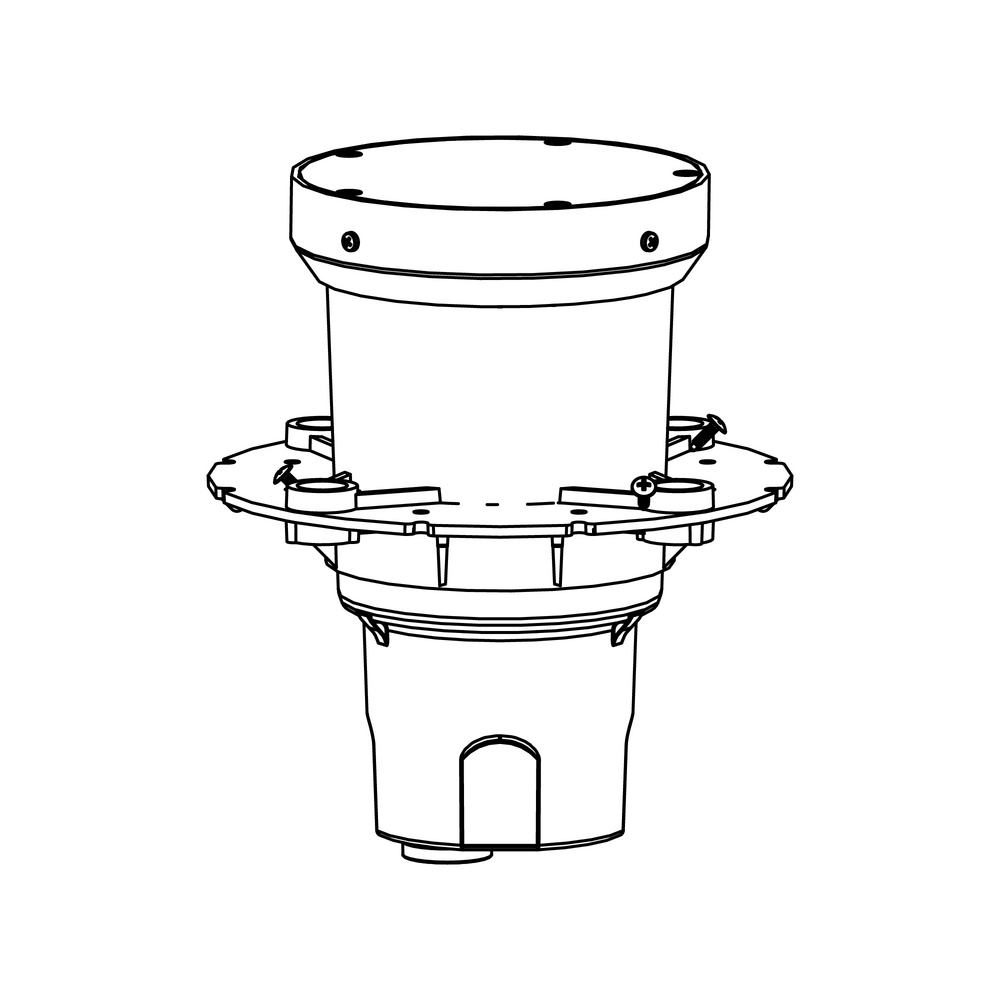

In-grade HP2 - No Grout Mask - Remote Transformer - Stainless Steel
New
Downloads
Configure
Date:
Project:
Type:
IMPORTANT: Transformer wattage MUST be calculated based on the total load of the luminaires it will support.
Catalog Number Logic
HP2-NG-TR-RM-SS-___-
- Technical
- Transformers
- Finishes

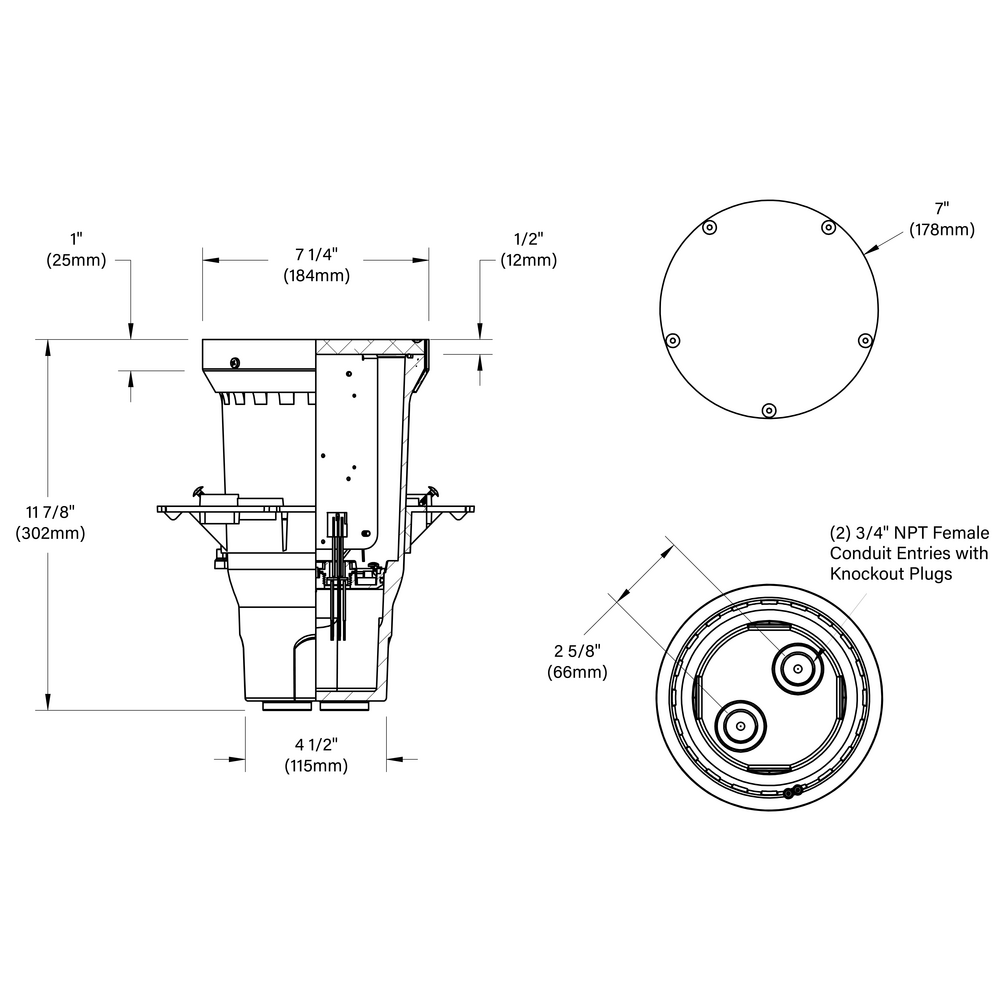

Body: Corrosion-free composite, made from high strength, thermo-formed, sheet molded polyester compound. Glass reinforced, flame retardant with knockout plugs and four (4) side flats for 1/2” or 3/4” conduit adapters.
Material Detail: Furnished in stainless steel (304).
Installation: Integral, aluminum concrete pour collar (CPC) permits direct burial in soil or concrete. Consult Drainage Installation Guide for In-Grade Fixtures (DIG-IT) for compliance with proper soil preparation and drainage requirements prior to installation.
Finish: Stainless Steel Finishes
Finish Detail: Metal finish option only for stainless steel material.
Warranty: 5-year limited warranty.
Certification: UL tested to IESNA LM-79. UL Listed. Certified to CAN/CSA/ANSI Standards.
Control
Max Load (W)
Input Voltage
Power Factor
THD (%)
Operation Ambient Temperature
Output Current
Circuit Breaker
Min Load (W)
MLV
75
277V
-30°C to 105°C
12Vac
MLV
75
120V
-30°C to 105°C
12Vac
MLV
150
120V
-30°C to 105°C
12Vac
MLV
150
277V
-30°C to 105°C
12Vac
