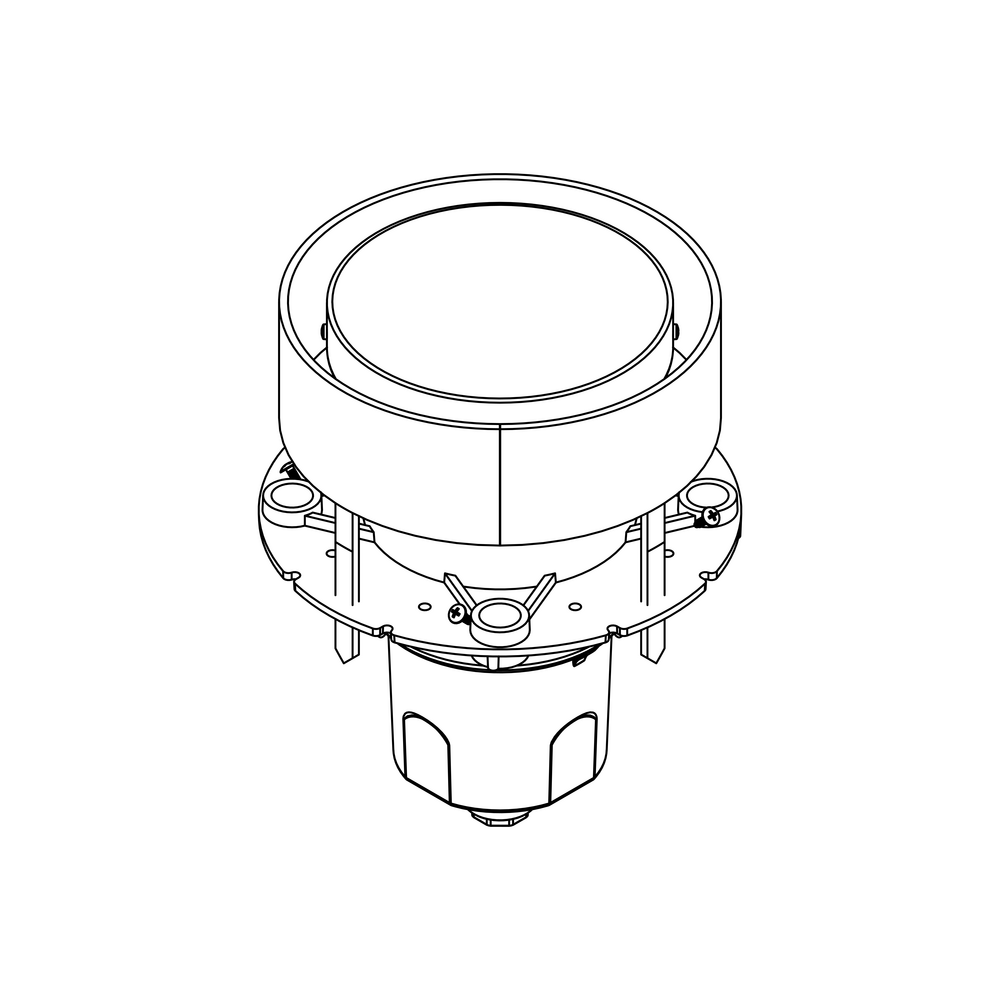

In-grade HP2 - Round Grout Mask - Remote Driver - Brass
Downloads
Configure
Date:
Project:
Type:
IMPORTANT: Driver wattage MUST match selected fixture wattage. (example: 12W Light Source = 12W Driver)"
Catalog Number Logic
HP2-RG-DR-RM-BR-___-___
- Technical
- Driver
- Finishes

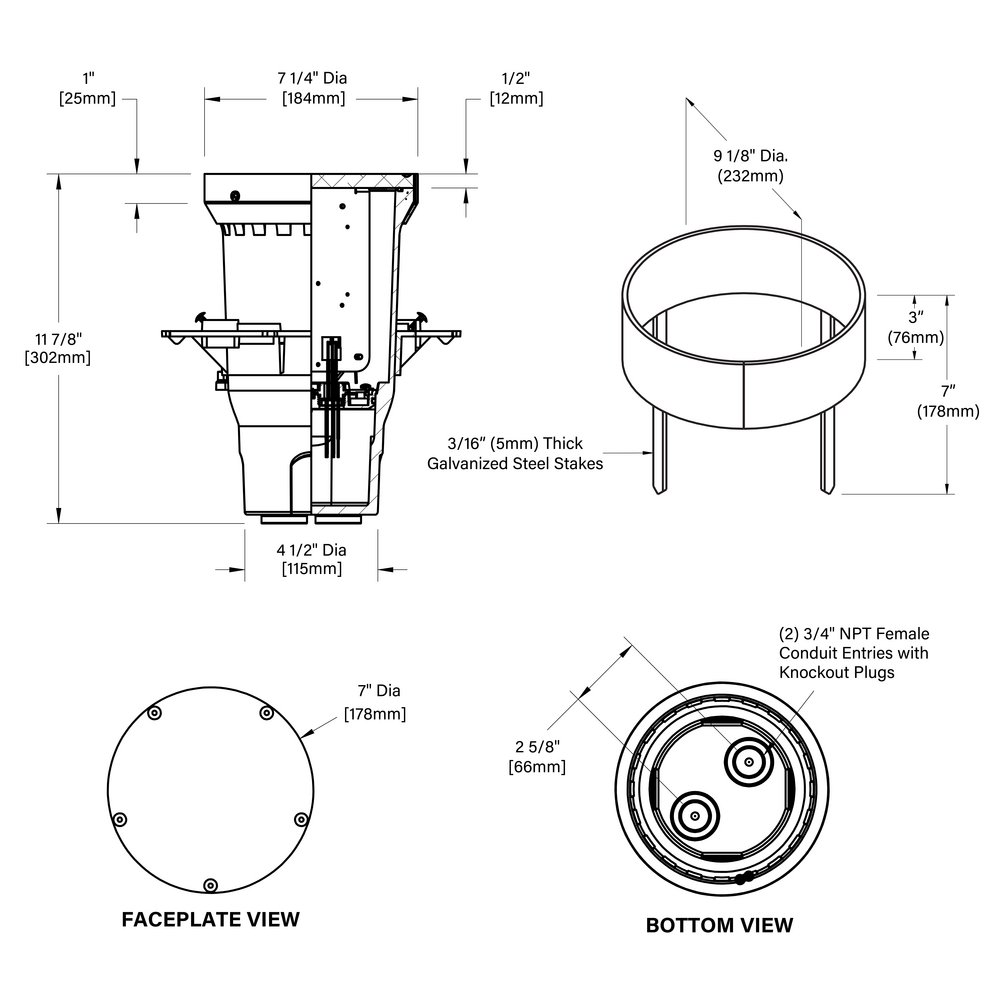

Body: Corrosion-free composite, made from high strength, thermo-formed, sheet molded polyester compound. Glass reinforced, flame retardant with knockout plugs and four (4) side flats for 1/2” or 3/4” conduit adapters.
Material Detail: Furnished in brass (360).
Installation: Integral, aluminum concrete pour collar (CPC) permits direct burial in soil or concrete. Consult Drainage Installation Guide for In-Grade Fixtures (DIG-IT) for compliance with proper soil preparation and drainage requirements prior to installation.
Finish: Standard Finishes, Premium Finishes, Brass Finishes, Other - RAL, Other - Custom Color
Note: Drivers are fixture specific. Driver wattage should match fixture wattage. For questions about driver selection, please contact the factory.
Finish Detail: Powder coat or metal finish options available for brass material.
Warranty: 5-year limited warranty.
Certification: UL tested to IESNA LM-79. UL Listed. Certified to CAN/CSA/ANSI Standards.
Control
Input Voltage
Power Factor
THD (%)
Operation Ambient Temperature
InRush Current
Output Current
Output Power (Max-W)
Output Voltage (Range)
Dimming (Range)
010
120V,277V
>0.90 @ 75-100% load
<20 @ 60-100% load
-30°C to 65°C
<30.0A Max
1400mA
75
18-54Vdc
10-100%
NON
120V,277V
>0.90 @ 75-100% load
<20 @ 60-100% load
-30°C to 65°C
<30.0A Max
1400mA
75
18-54Vdc
10-100%
010
120V,277V
>0.9
<20
-20°C to 50°C
1050mA
50
1.5-55V
0.1%-100%
NON
120V,277V
>0.9
<20
-20°C to 50°C
1050mA
50
1.5-55V
0.1%-100%
010
120V,277V
>0.9
<20
-20°C to 50°C
1050mA
50
2-55V
1-100%
NON
120V,277V
>0.9
<20
-20°C to 50°C
1050mA
50
2-55V
1-100%
010
120V,277V
>0.9
<20
-30°C to 90°C
250mA-1100mA
29.4
14-56v
1-100%
NON
120V,277V
>0.9
<20
-30°C to 90°C
250mA-1100mA
29.4
14-56v
1-100%
ELV
120V
0.9
<20%
700mA
30
ELV
120V
0.9
<20%
700mA
30
INC
120V
1000
1000
1000
700mA
21
20-30Vdc
1-100%
010
120V,277V
0.9
<20%
90°C
700mA
30
010
120V,277V
0.9
<20%
ELV
120V
0
0
350mA
15
21-32Vdc
1-100%
INC
120V
0
0
350mA
15
21-32Vdc
1-100%
010
120V,277V
0
0
350mA
15
21-32Vdc
1-100%
NON
120V,277V
0
0
350mA
15
21-32Vdc
1-100%
INC
120V,277V
STANDARD FINISHES
PREMIUM FINISHES
[CMG]
Cascade Mountain Granite
Cascade Mountain Granite
[SMG]
Sierra Mountain Granite
Sierra Mountain Granite
[RMG]
Rocky Mountain Granite
Rocky Mountain Granite
[AMG]
Aleutian Mountain Granite
Aleutian Mountain Granite
[TXF]
Textured Forest
Textured Forest
[BCM]
Black Chrome
Black Chrome
[BGE]
Beige
Beige
[WCP]
Weathered Copper
Weathered Copper
[OCP]
Old Copper
Old Copper
[HUG]
Hunter Green
Hunter Green
[ABP]
Antique Brass Powder
Antique Brass Powder
[BPP]
Brown Patina Powder
Brown Patina Powder
[SDS]
Sonoran Desert Sandstone
Sonoran Desert Sandstone
[WIR]
Weathered Iron
Weathered Iron
[CAP]
Clear Anodized Powder
Clear Anodized Powder
[CRM]
Cream
Cream
[AQW]
Antique White
Antique White
[NBP]
Natural Brass Powder
Natural Brass Powder
BRASS FINISHES
OTHER - RAL
OTHER - CUSTOM COLOR
IMPORTANT: Driver wattage MUST match selected fixture wattage. (example: 12W Light Source = 12W Driver)"
