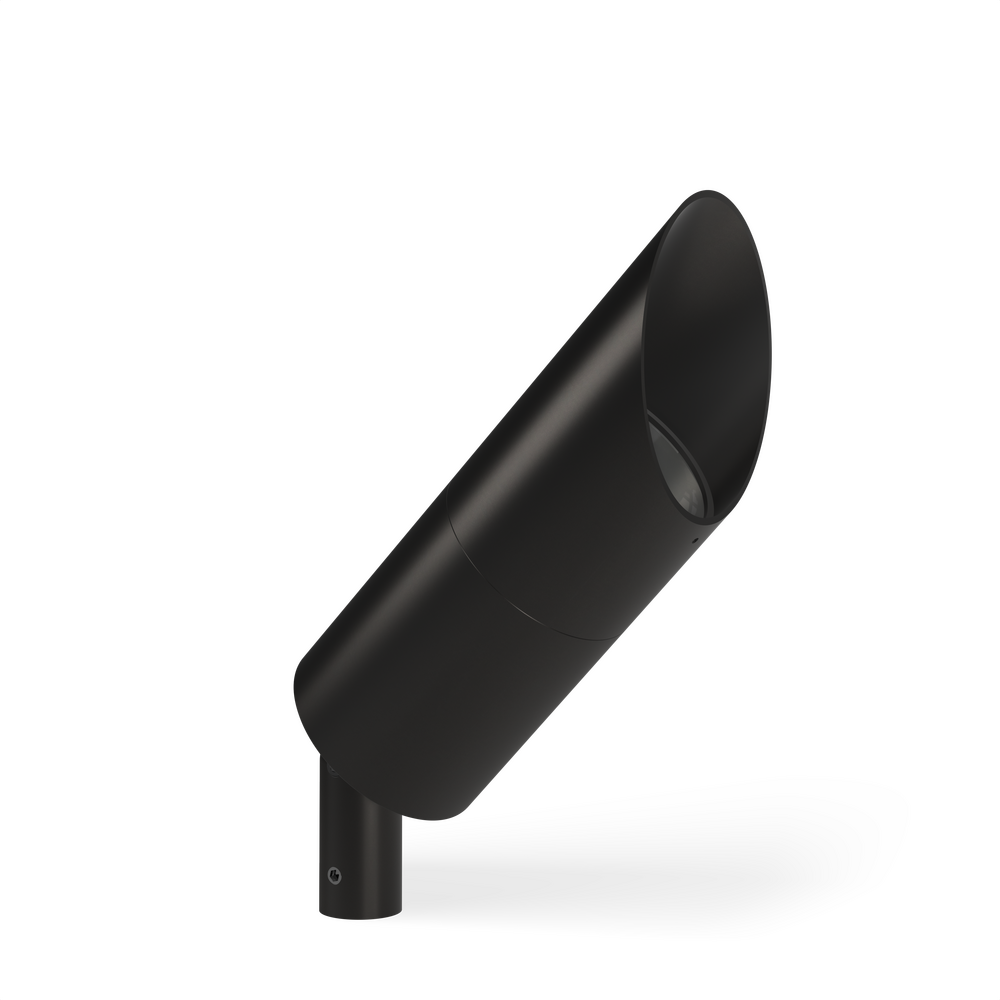

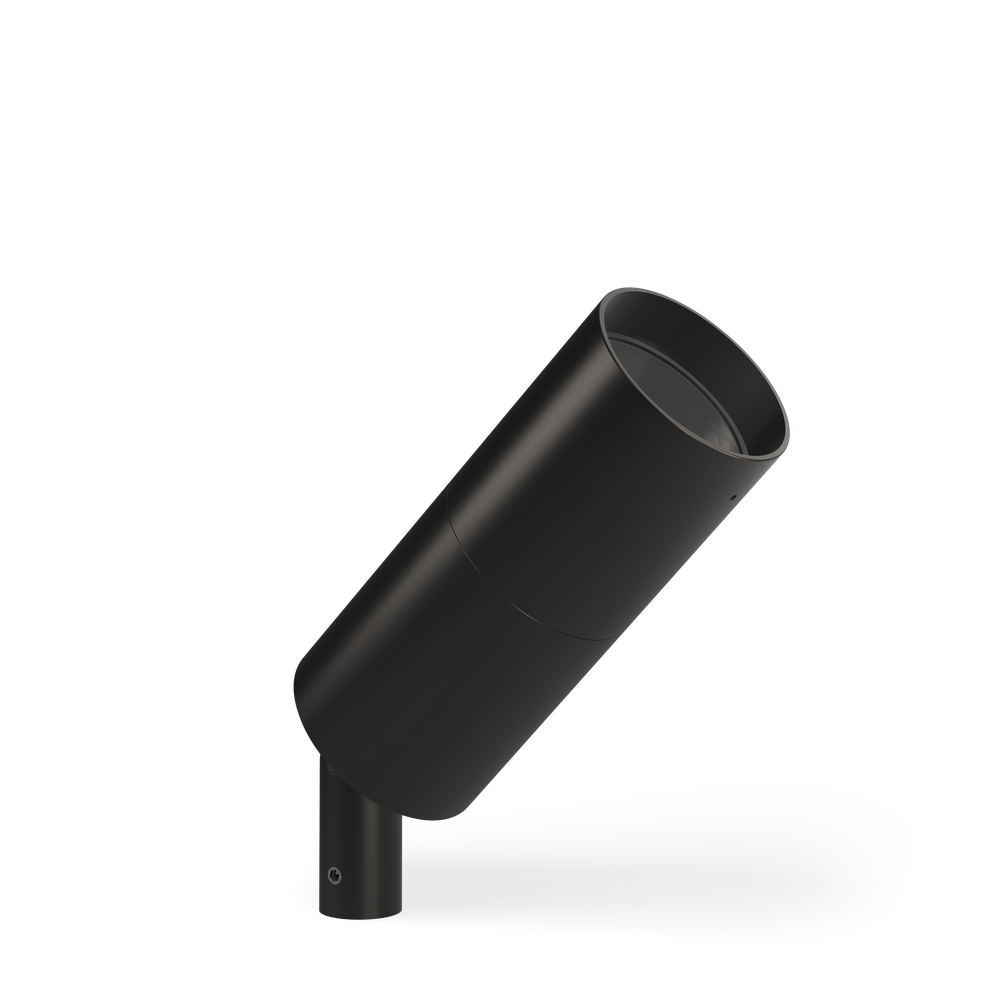

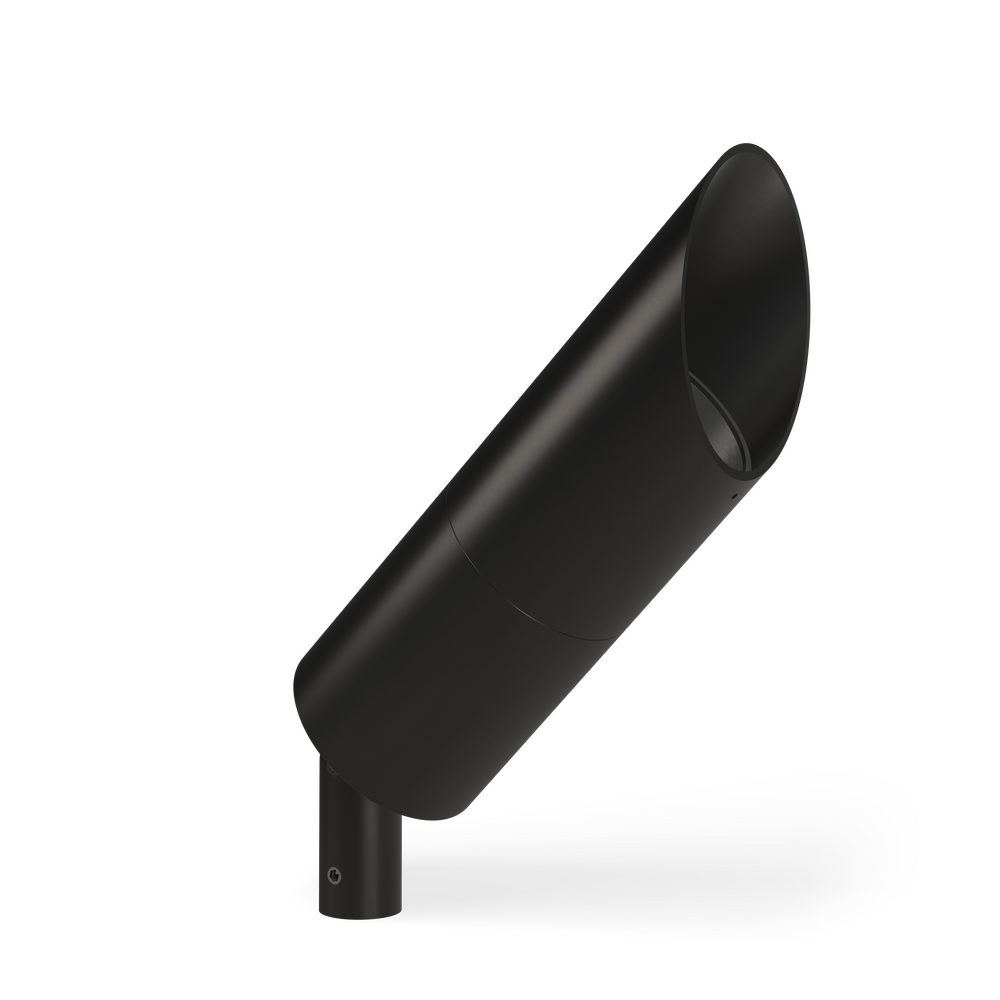

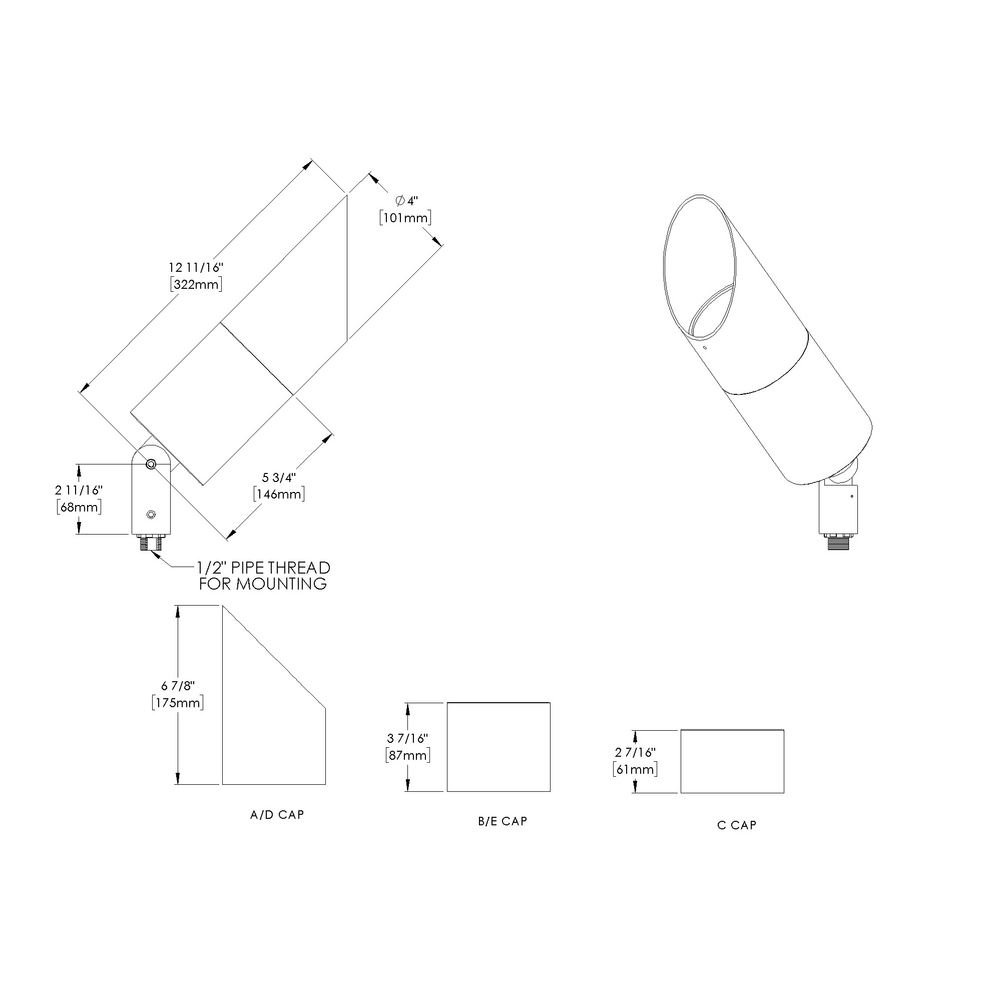

HUME - Floodlight - Line Voltage - LED COB
(formerly Hume / HU-LED)
New
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
HU-
01
FL-
02
LID-
03
LCB-
04
AL-
05
___-
06A
TKM-
06B
___-
06C
___-
06D
___-
06E
___-
07
___-
08
___-
09
___-
10A
___-
10B
___-
11
___-
12
TE-
13
Click options to build your configurationCompleting the first column to render configured product images below
01 SERIES
02 CATEGORY
03 DRIVER
04 LIGHT SOURCE (TYPE)
05 MATERIAL
06A SHAPE
06B MOUNT
06C STYLE
06D VERSION
06E INPUT VOLTAGE
07 LIGHT SOURCE
08 OPTIC
09 CONTROL
10A LENS
10B SHIELDING
11 WIRING LENGTH
12 FINISH
13 OPTION
- Light Source
- Technical
- Finishes
- Options
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
x109
NSP - Narrow Spot
11
2700
90
36
937
14557
900
50000
x110
NSP - Narrow Spot
11
3000
90
36
1275
19814
900
50000
x111
NSP - Narrow Spot
11
3500
90
36
1131
17572
900
50000
x112
NSP - Narrow Spot
11
4000
90
36
1177
18283
900
50000
x117
NFL - Narrow Flood
25
2700
90
34
3099
6746
900
50000
x117
FL - Flood
43
2700
90
34
2680
3522
900
50000
x117
WFL - Wide Flood
56
2700
90
34
2631
2865
900
50000
x118
NFL - Narrow Flood
25
3000
90
34
2705
6812
900
50000
x118
FL - Flood
43
3000
90
34
2706
3557
900
50000
x118
WFL - Wide Flood
56
3000
90
34
2657
2894
900
50000
x119
NFL - Narrow Flood
25
3500
90
34
3065
7719
900
50000
x119
FL - Flood
43
3500
90
34
3066
4030
900
50000
x119
WFL - Wide Flood
56
3500
90
34
3011
3279
900
50000
x120
NFL - Narrow Flood
25
4000
90
34
3285
8273
900
50000
x120
FL - Flood
43
4000
90
34
3286
4320
900
50000
x120
WFL - Wide Flood
56
4000
90
34
3227
3514
900
50000
Features
Anti-condensation vent allows moisture to exit the fixture but never enter in
Lens factory adhered to fixture cap providing hermetically sealed optical compartment
Manufactured in the USA with sustainable processes
Aim & Lock knuckle eliminates need for re-aiming & adjustments
Water-tight anti-siphon plug prevents moisture ingress from wireways
Secured with tamper-resistant, stainless steel hardware
Easily replaceable modular components reduce waste and extend fixture life
Slip fit cap & high temp. silicone 'O' ring provides reliable water-tight seal
Solid billet fixture body provides unmatched durability and heat management
360HD knuckle provides 360° horizontal rotation and vertical adjustment
Technical
Mountings & Power Supplies
NOTE: Ordered separately. Configure fixture first to guarantee compatibility.- Mountings
Canopy
Canopy BC6 - Aluminum
5" Round Machined
Canopy BC10 - Aluminum
3" x 5" Rectangular
Canopy BC11 - Aluminum
2 7/8" x 4 5/8" Rectangular
Canopy BC15 - Aluminum
6" Round, Dual Mount
Pipe

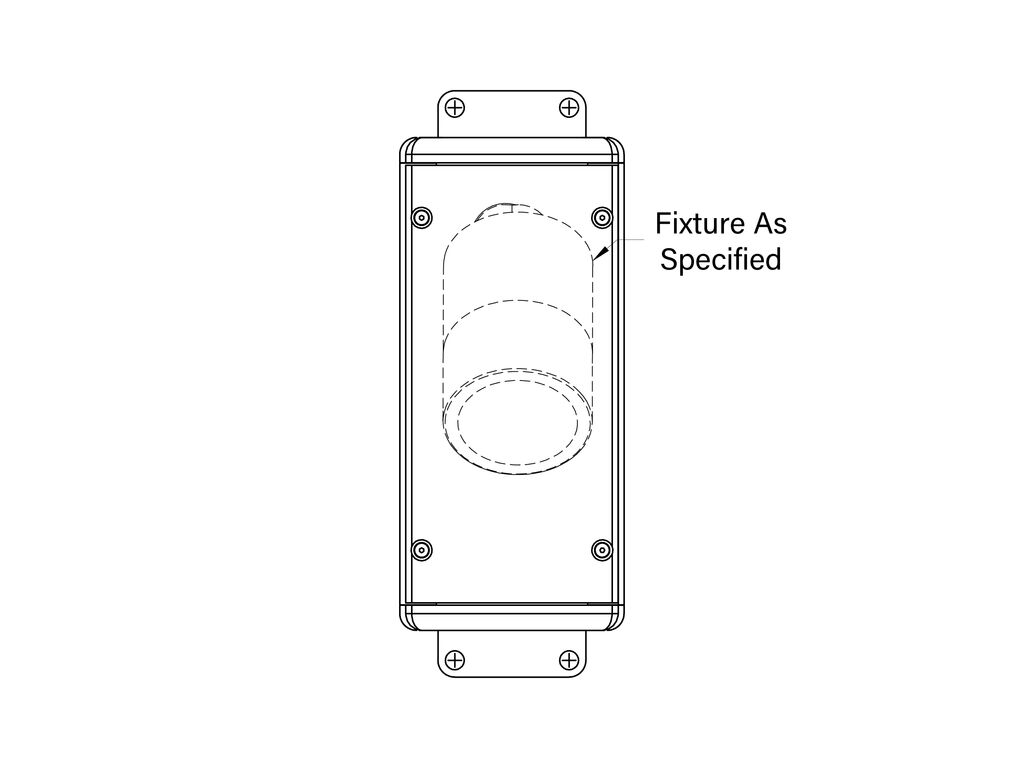

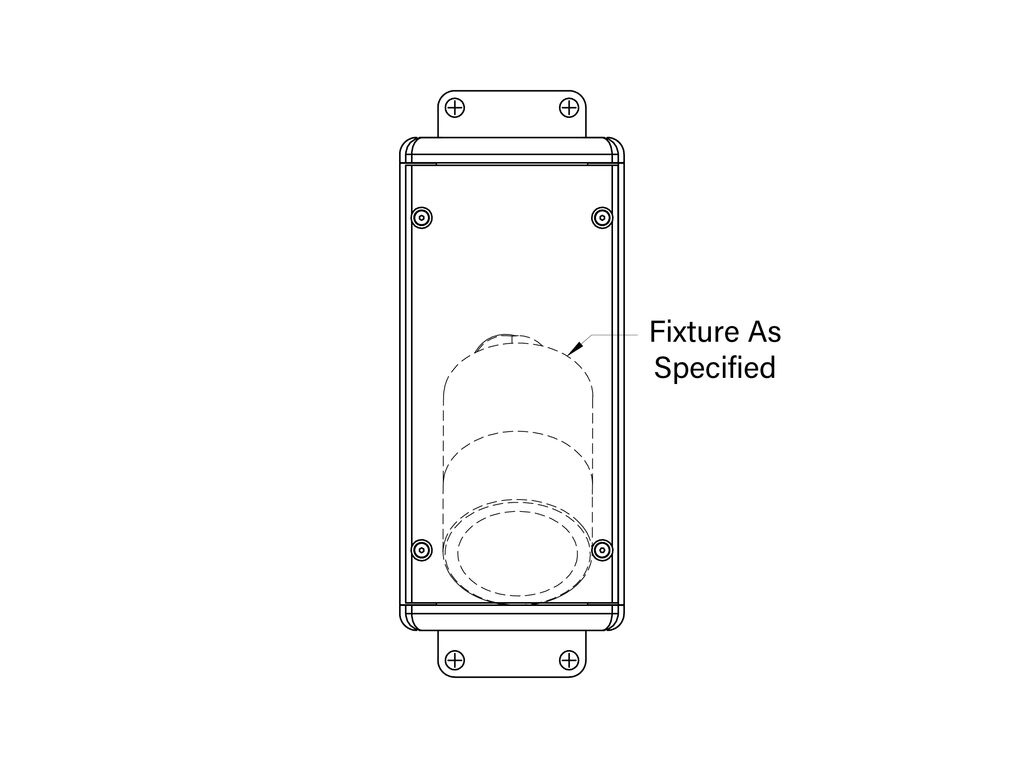

Universal Power Module

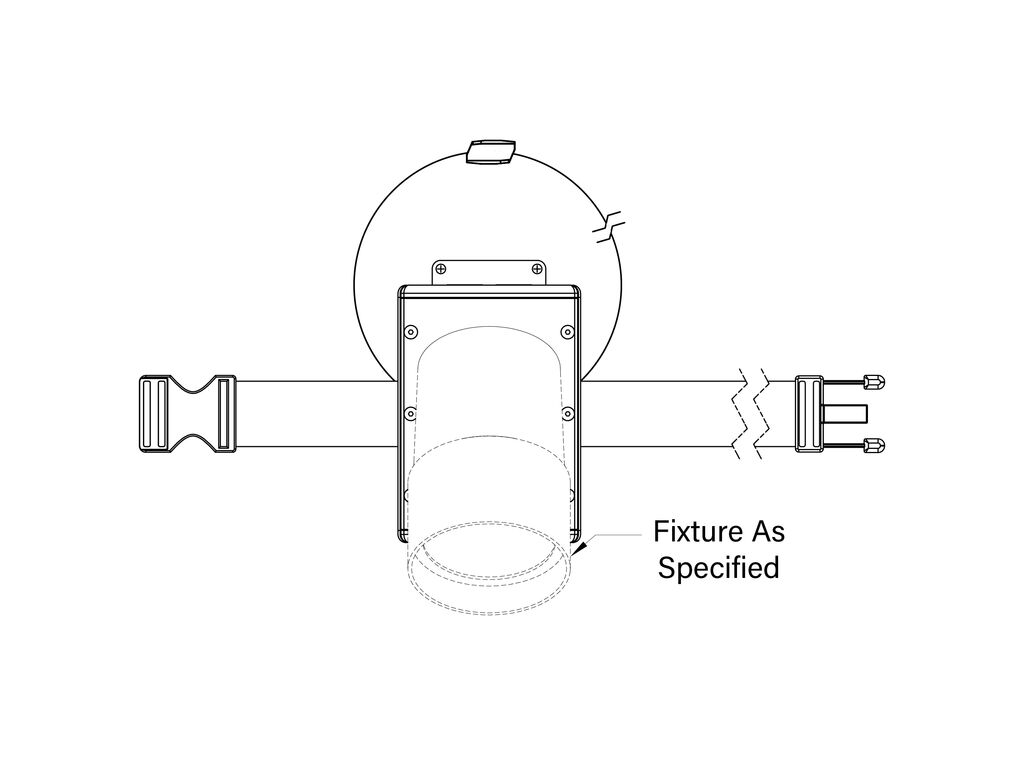

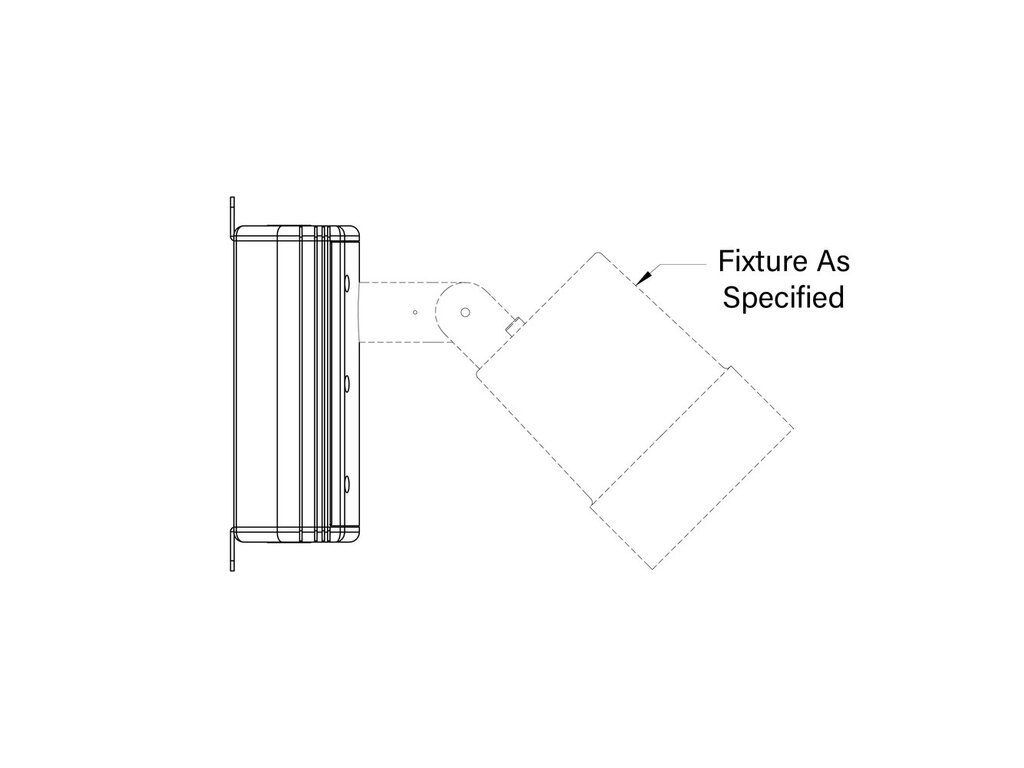

Universal Power Module PM3 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Single - Aluminum
4" to 7" tree/branch diameter

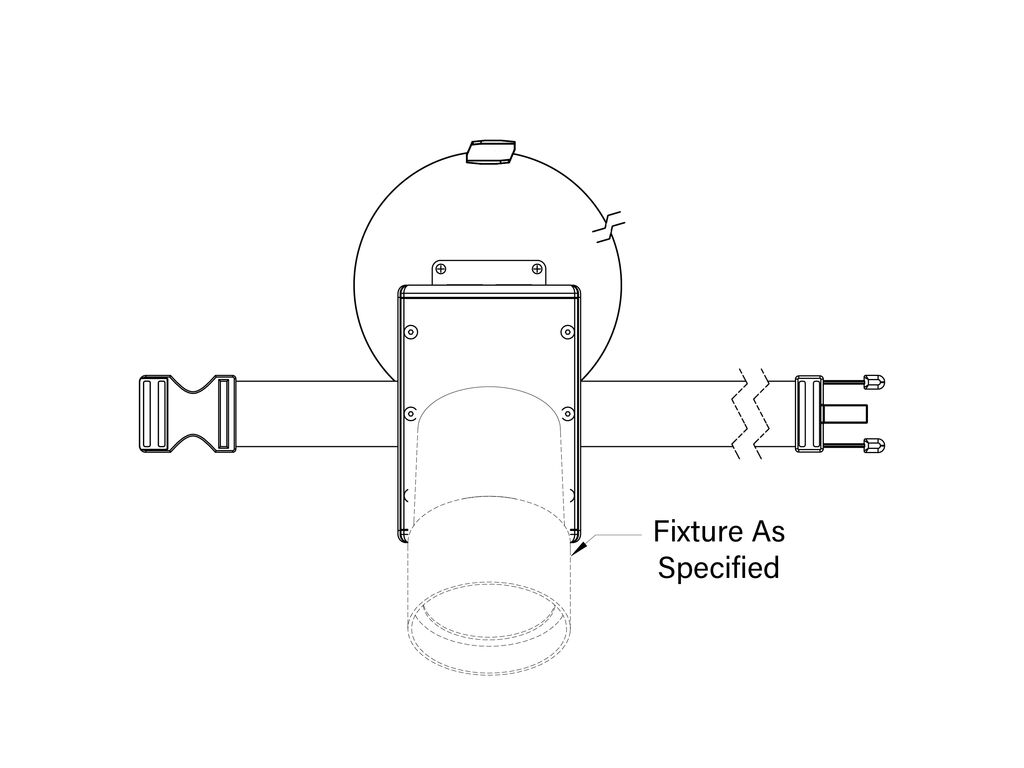

Universal Power Module PM3 - Tree Strap Mount - 24" - With Safety Cable - Single - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 24" - With Safety Cable - Single - Offset - Aluminum
4" to 7" tree/branch diameter

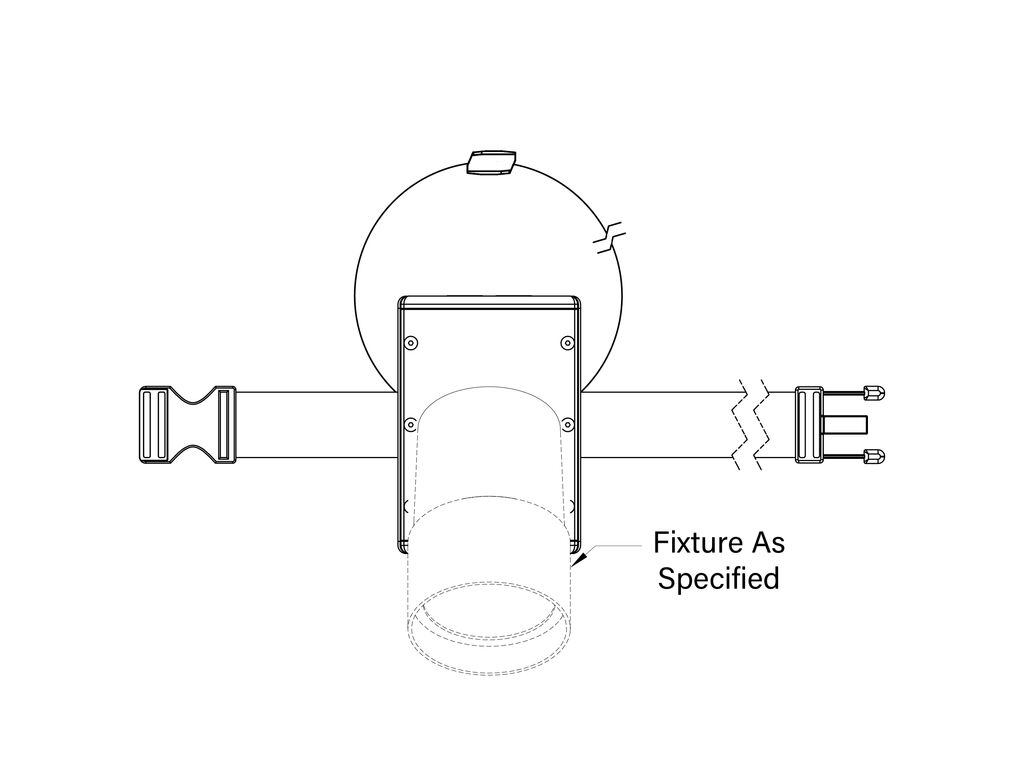

Universal Power Module PM3 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Single - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Single - Offset - Aluminum
4" to 15" tree/branch diameter

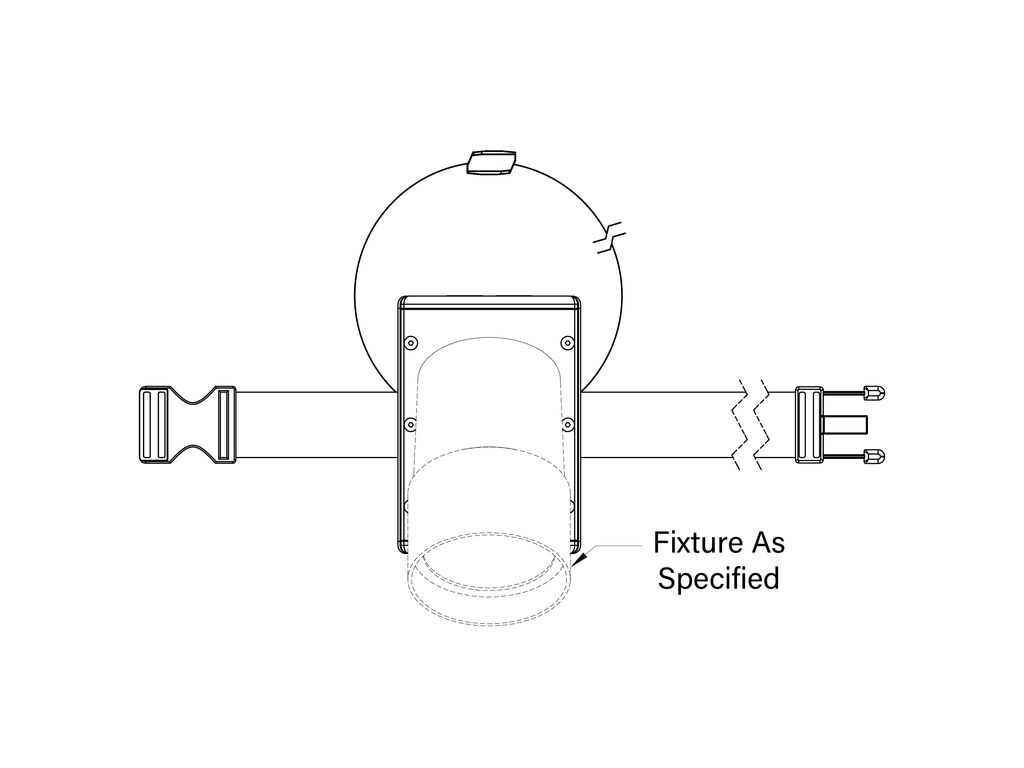

Universal Power Module PM3 - Tree Strap Mount - 48" - With Safety Cable - Single - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 48" - With Safety Cable - Single - Offset - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Single - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Single - Offset - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 72" - With Safety Cable - Single - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 72" - With Safety Cable - Single - Offset - Aluminum
4" to 22" tree/branch diameter
