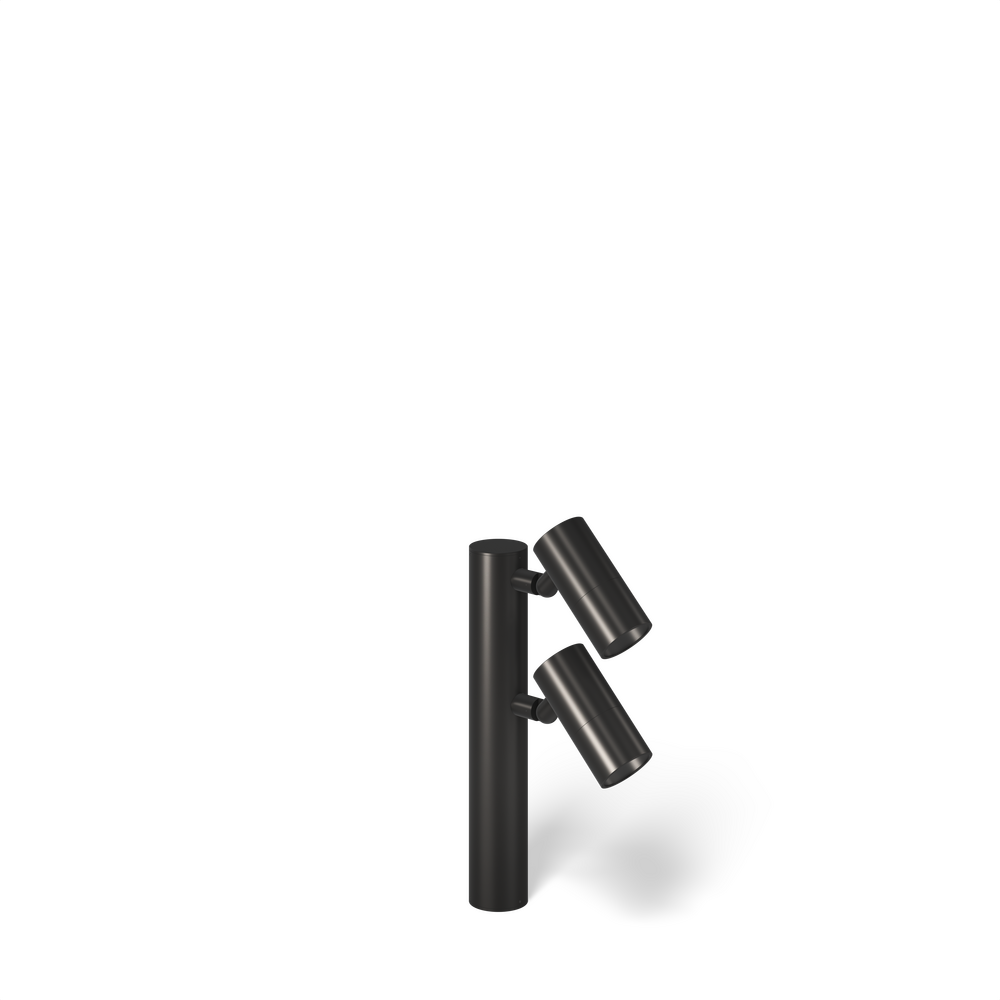

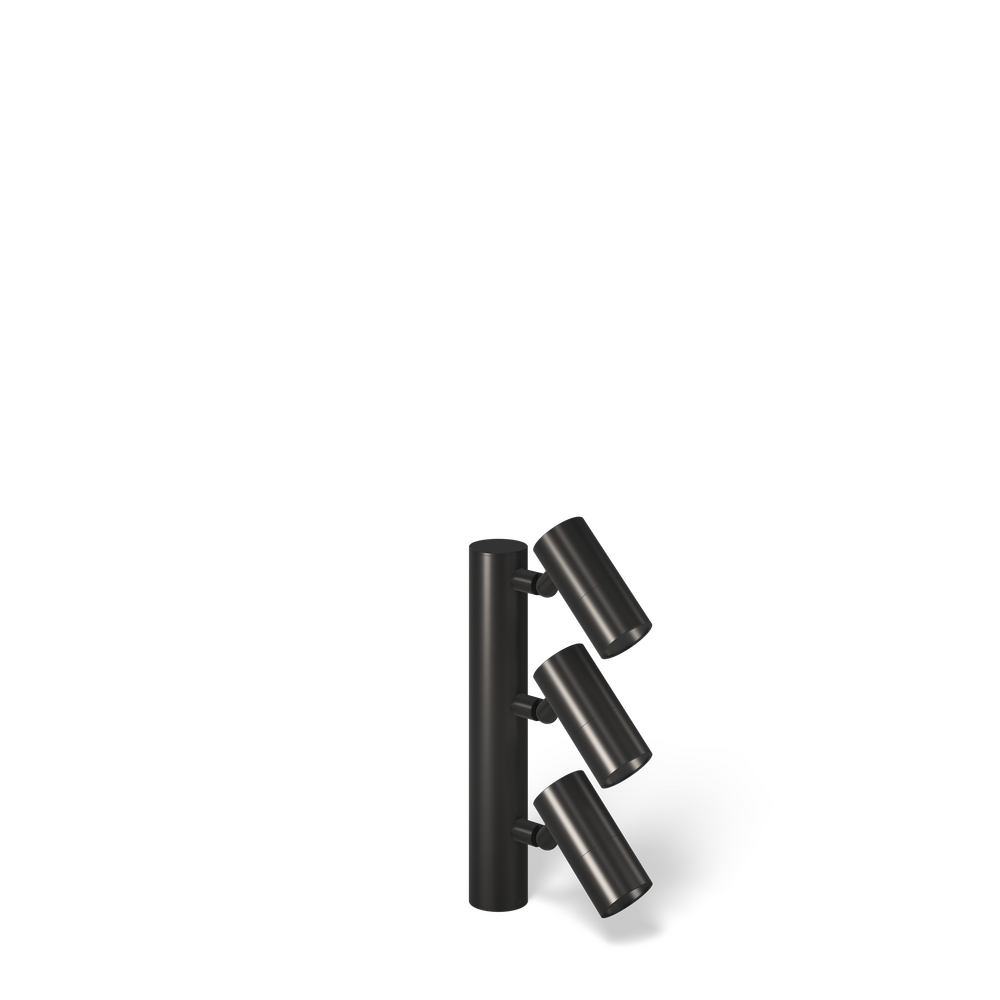

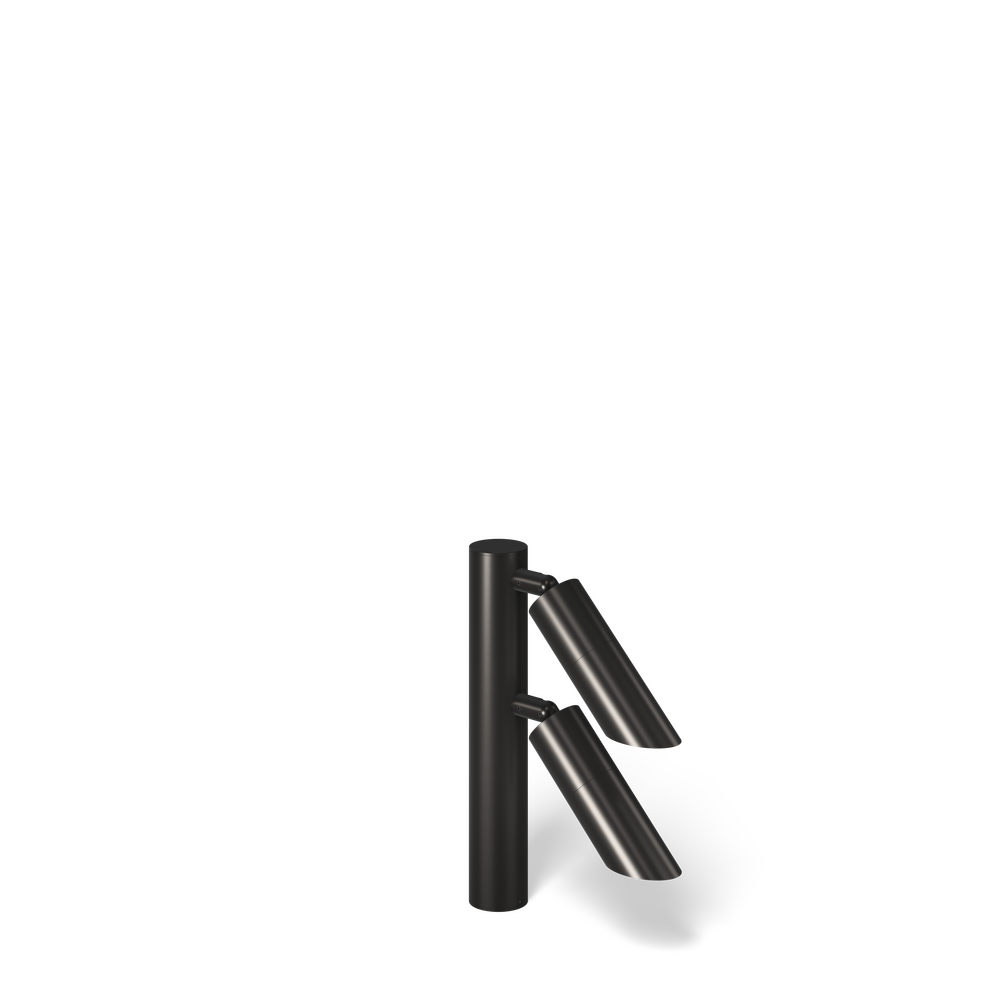

HUME - Pole Top - Line Voltage - LED COB - Vertical - Narrow Optic
New
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
HU-
01
PT-
02
LID-
03
LCB-
04
AL-
05
___-
06A
___-
06C
___-
06D
___-
06E
___-
07
NSP-
08
___-
09
___-
10A
___-
10B
WL00-
11
___-
12
TE-
13
Click options to build your configurationCompleting the first column to render configured product images below
- Light Source
- Technical
- Finishes
- Options
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
x109
NSP - Narrow Spot
11
2700
90
36
937
14557
900
50000
x110
NSP - Narrow Spot
11
3000
90
36
1275
19814
900
50000
x111
NSP - Narrow Spot
11
3500
90
36
1131
17572
900
50000
x112
NSP - Narrow Spot
11
4000
90
36
1177
18283
900
50000
Features
Anti-condensation vent allows moisture to exit the fixture but never enter in
Lens factory adhered to fixture cap providing hermetically sealed optical compartment
Manufactured in the USA with sustainable processes
Aim & Lock knuckle eliminates need for re-aiming & adjustments
Water-tight anti-siphon plug prevents moisture ingress from wireways
Secured with tamper-resistant, stainless steel hardware
Easily replaceable modular components reduce waste and extend fixture life
Slip fit cap & high temp. silicone 'O' ring provides reliable water-tight seal
Solid billet fixture body provides unmatched durability and heat management
360HD knuckle provides 360° horizontal rotation and vertical adjustment
