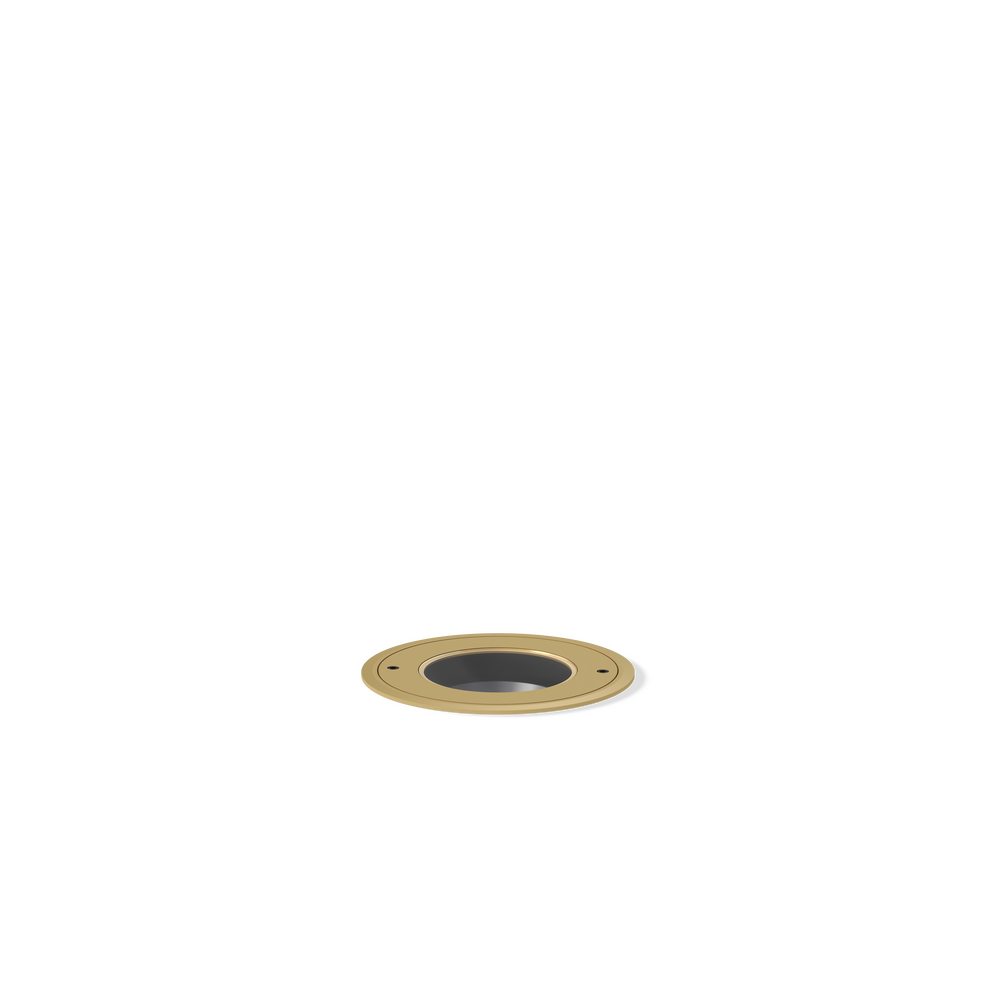

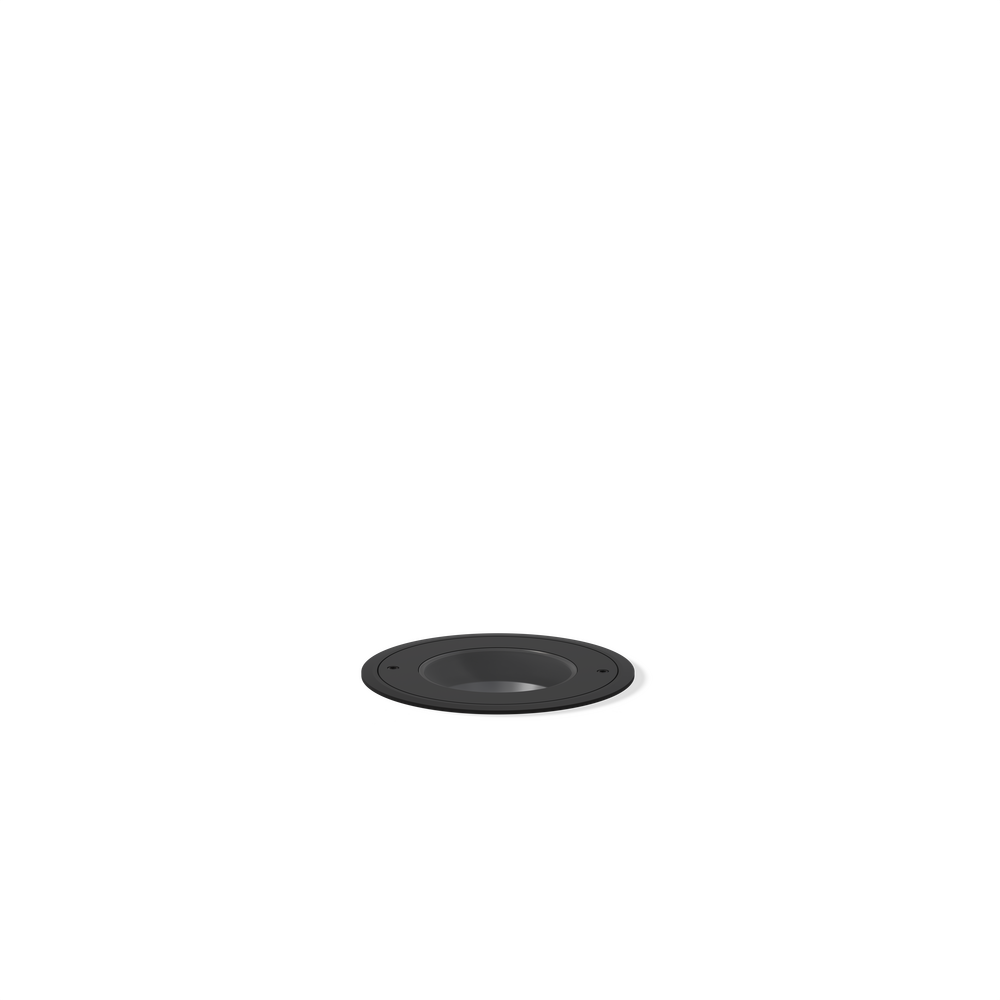

HUME - In-grade - Line Voltage - LED COB - Faceplate Surface Mount
(formerly Hume Recessed Uplight Surface Mount / UL-S-HU)
New
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
HU-
01
IN-
02
LID-
03
LCB-
04
___-
05
FSM-
06B
___-
06D
___-
06E
___-
07
___-
08
___-
09
___-
10A
___-
10B
WL00-
11
___-
12
Click options to build your configurationCompleting the first column to render configured product images below
01 SERIES
02 CATEGORY
03 DRIVER
04 LIGHT SOURCE (TYPE)
05 MATERIAL
06B MOUNT
06D VERSION
06E INPUT VOLTAGE
07 LIGHT SOURCE
08 OPTIC
09 CONTROL
10A LENS
10B SHIELDING
11 WIRING LENGTH
12 FINISH
- Light Source
- Technical

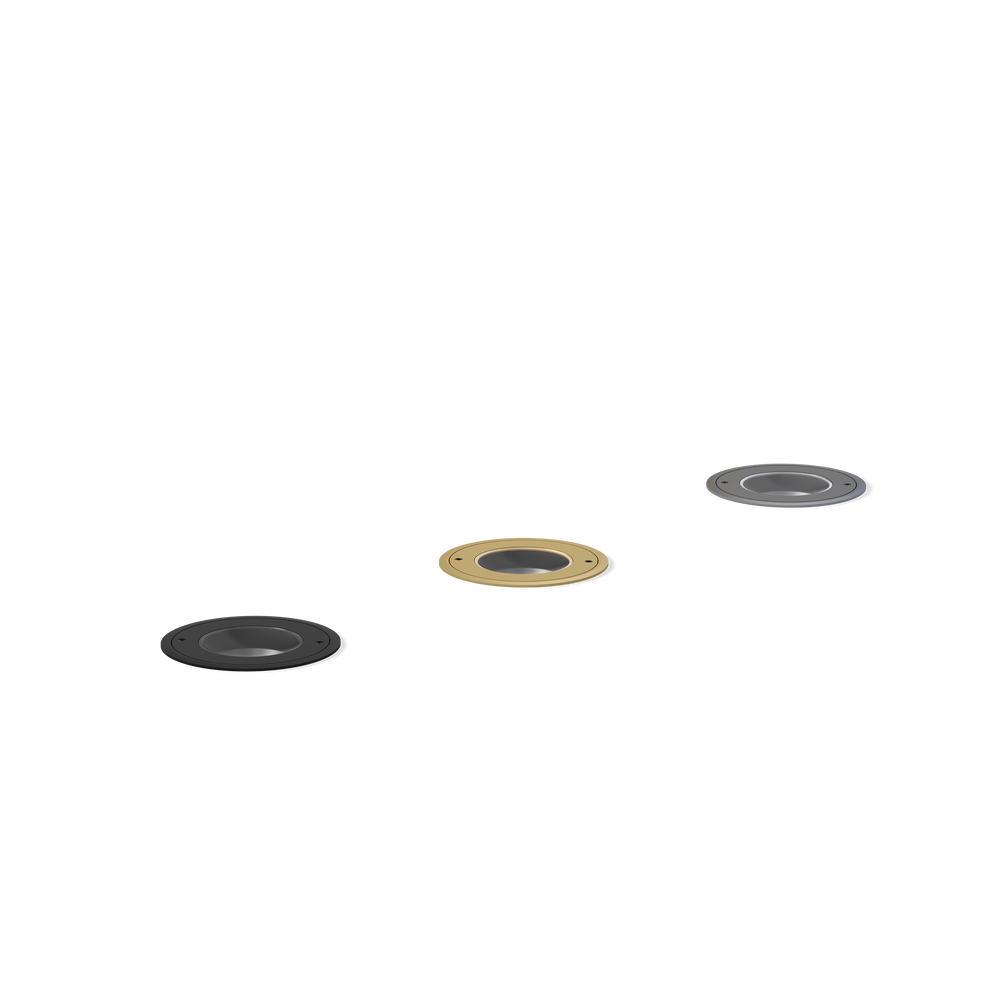

- Finishes
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf

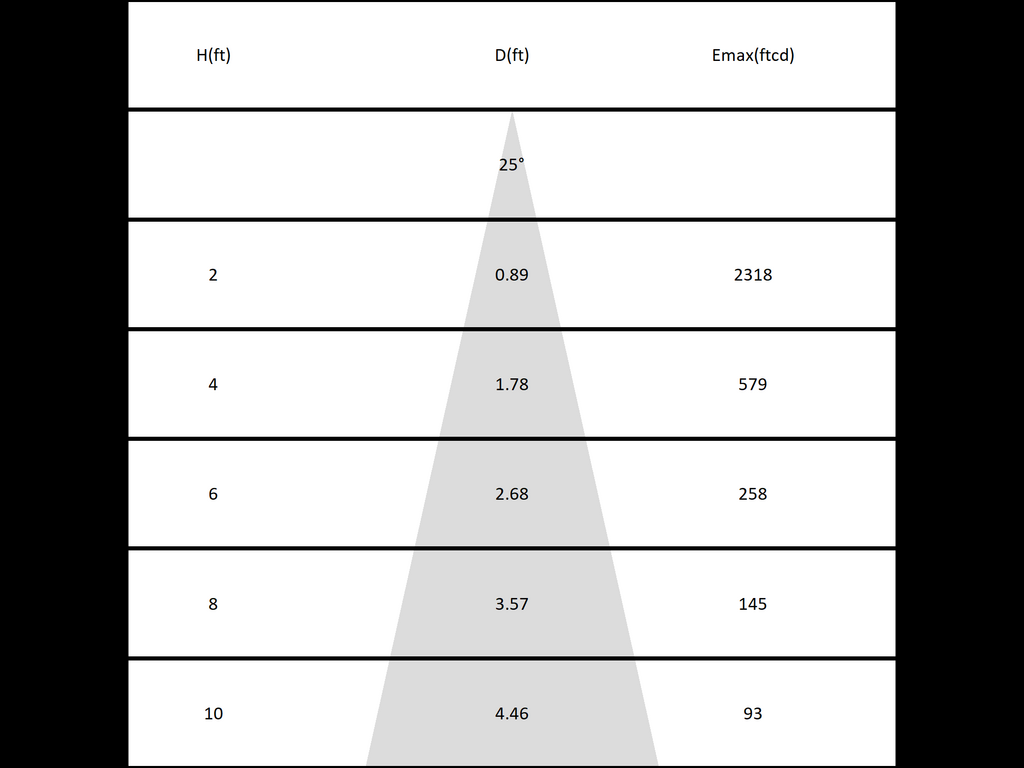

Diagram CONE
x117
NFL - Narrow Flood
25
2700
90
34
3099
6746
900
50000
x117
FL - Flood
43
2700
90
34
2680
3522
900
50000
x117
WFL - Wide Flood
56
2700
90
34
2631
2865
900
50000
x118
NFL - Narrow Flood
25
3000
90
34
2705
6812
900
50000
x118
FL - Flood
43
3000
90
34
2706
3557
900
50000
x118
WFL - Wide Flood
56
3000
90
34
2657
2894
900
50000
x119
NFL - Narrow Flood
25
3500
90
34
3065
7719
900
50000
x119
FL - Flood
43
3500
90
34
3066
4030
900
50000
x119
WFL - Wide Flood
56
3500
90
34
3011
3279
900
50000
x120
NFL - Narrow Flood
25
4000
90
34
3285
8273
900
50000
x120
FL - Flood
43
4000
90
34
3286
4320
900
50000
x120
WFL - Wide Flood
56
4000
90
34
3227
3514
900
50000
x109
NSP - Narrow Spot
11
2700
90
36
937
14557
900
50000
x110
NSP - Narrow Spot
11
3000
90
36
1275
19814
900
50000
x111
NSP - Narrow Spot
11
3500
90
36
1131
17572
900
50000
x112
NSP - Narrow Spot
11
4000
90
36
1177
18283
900
50000
Features
Lens factory adhered to fixture cap providing hermetically sealed optical compartment
Secured with flush, countersunk tamper resistant hardware
Machined solid billet faceplate provides unmatched strength and durability
Manufactured in the USA with sustainable processes
Water-tight anti-siphon plug prevents moisture ingress from wireways
Easily replaceable modular components reduce waste and extend fixture life
Solid billet fixture body provides unmatched durability and heat management
