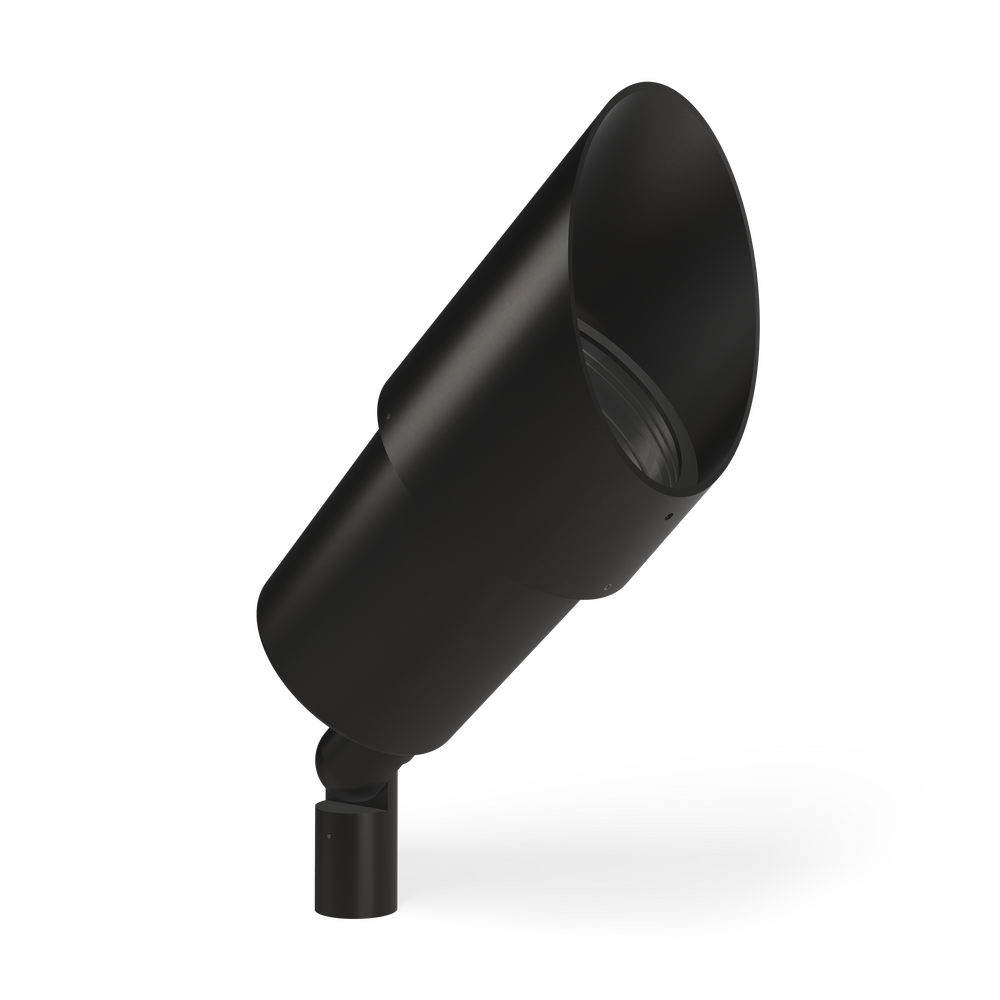

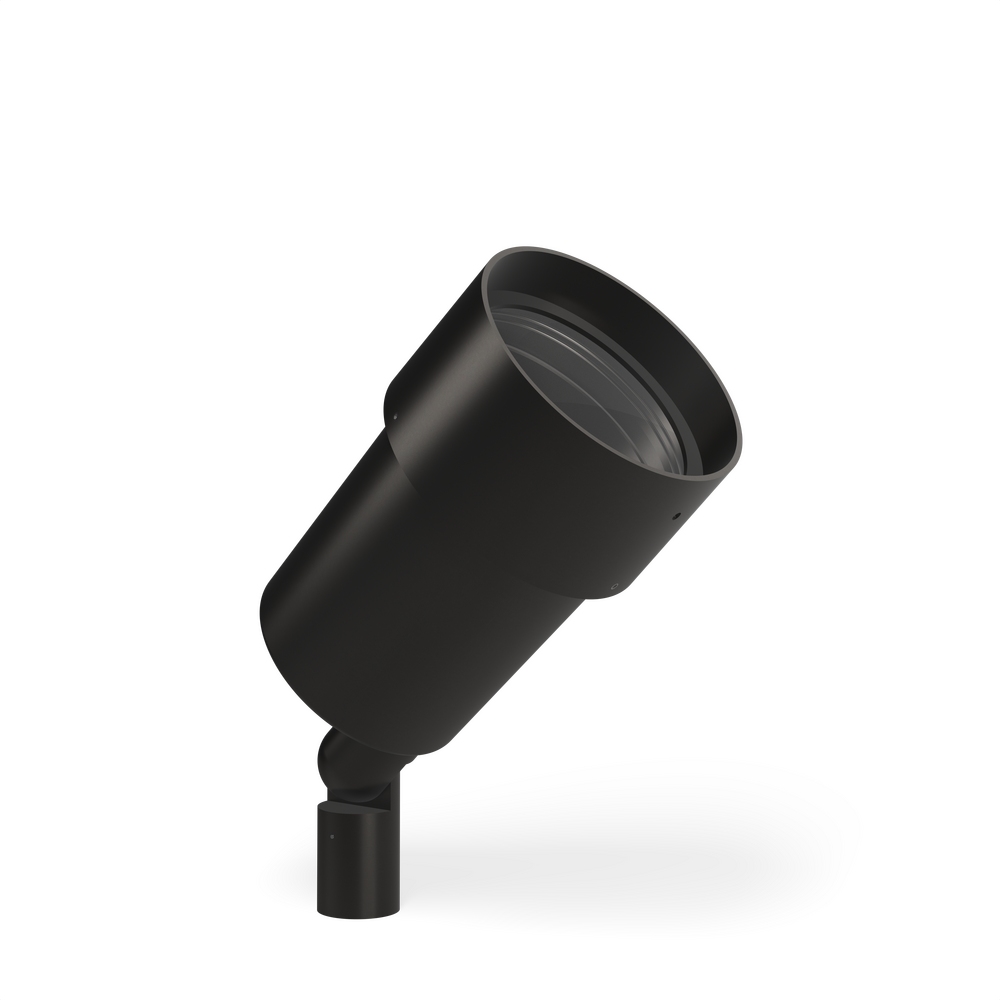

K2 - Floodlight - Remote Driver - LED Color Tuning
(formerly K2 Color Tuning / K2-LED)
Temporarily Unavailable
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
WARNING: This is a remote driver product. Please check "Mountings With A Power Supply" or "Power Supplies" to order remote driver separately. (IMPORTANT: Driver wattage MUST match selected fixture wattage. Example: 12W Light Source = 12W Driver)"
K2-
01
FL-
02
RMD-
03
LCT-
04
AL-
05
TKM-
06B
___-
06C
C26-
07
___-
08
12-
10A
___-
10B
WL00-
11
___-
12
Click options to build your configurationCompleting the first column to render configured product images below
01 SERIES
02 CATEGORY
03 DRIVER
04 LIGHT SOURCE (TYPE)
05 MATERIAL
06B MOUNT
06C STYLE
07 LIGHT SOURCE
08 OPTIC
10A LENS
10B SHIELDING
11 WIRING LENGTH
12 FINISH
- Light Source
- Technical
- Finishes
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf

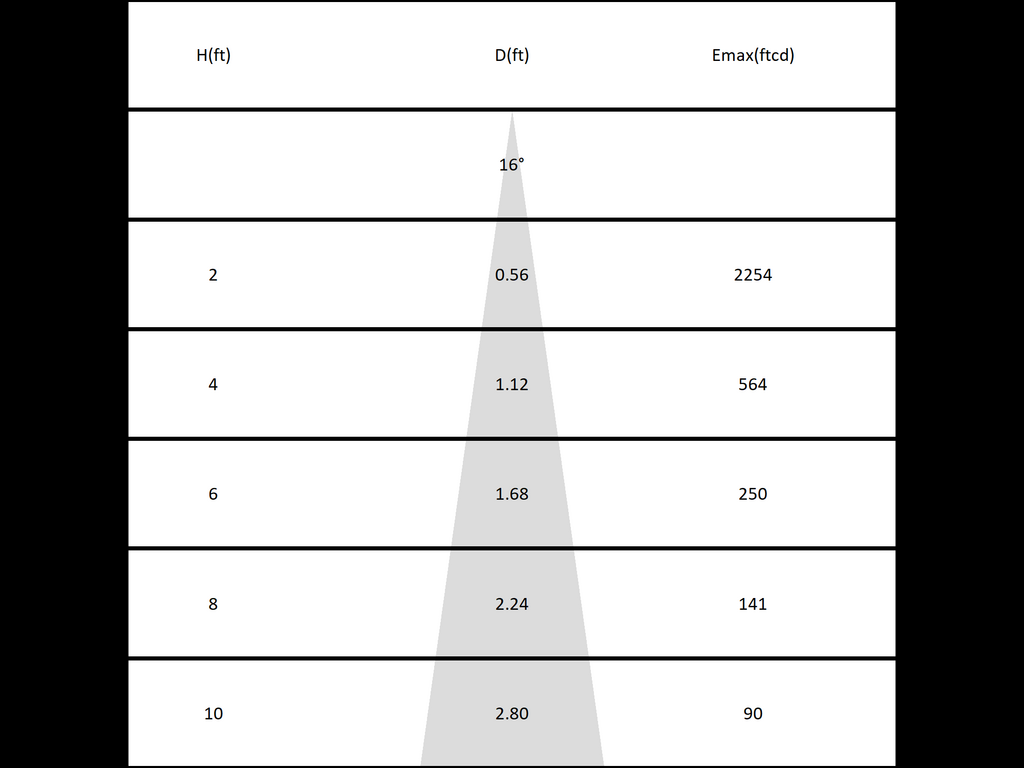

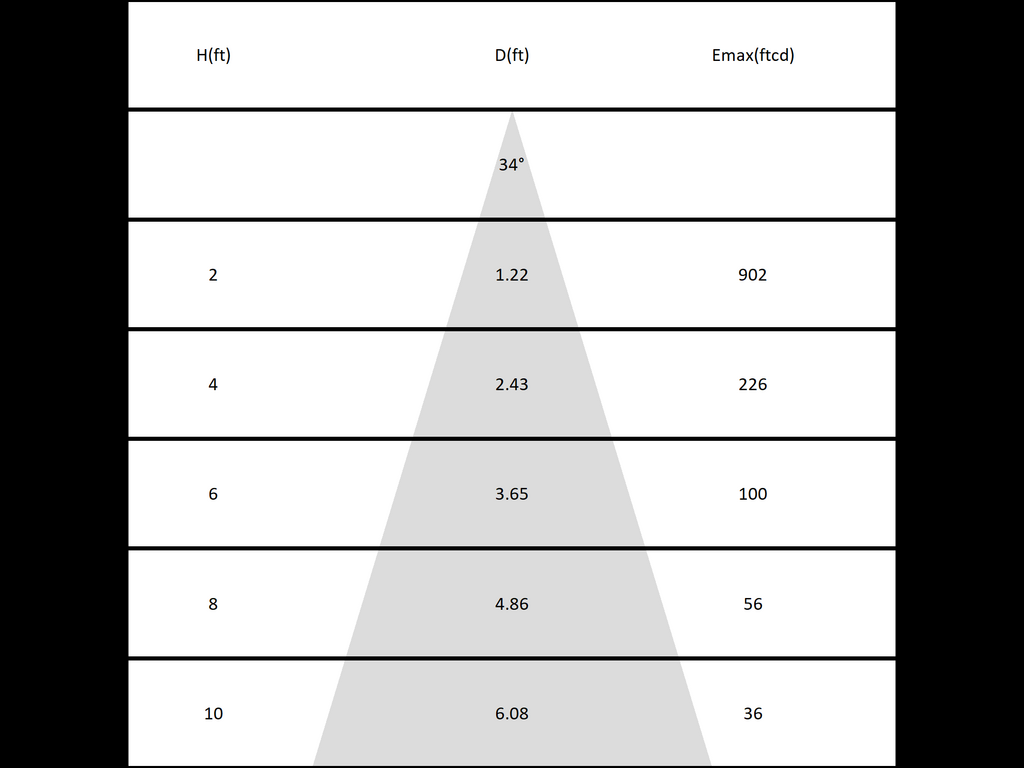

Diagram CONE
C26
SP - Spot
16
2700
95
42
937
5681
50000
Features
Manufactured in the USA with sustainable processes
Aim & Lock knuckle eliminates need for re-aiming & adjustments
Water-tight anti-siphon plug prevents moisture ingress from wireways
Secured with tamper-resistant, stainless steel hardware
Easily replaceable modular components reduce waste and extend fixture life
Technical
Mountings & Power Supplies
NOTE: Ordered separately. Configure fixture first to guarantee compatibility.WARNING: This is a remote driver product. Please check "Mountings With A Power Supply" or "Power Supplies" to order remote driver separately. (IMPORTANT: Driver wattage MUST match selected fixture wattage. Example: 12W Light Source = 12W Driver)"
- Mountings
Canopy
Canopy BC10 - Aluminum
3" x 5" Rectangular
Canopy BC11 - Aluminum
2 7/8" x 4 5/8" Rectangular
Canopy BC6 - Aluminum
5" Round Machined
Canopy BC15 - Aluminum
6" Round, Dual Mount
Box
Tree Strap
Universal Power Module PM3 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Single - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 24" - With Safety Cable - Single - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 24" - With Safety Cable - Single - Offset - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Single - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Single - Offset - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 48" - With Safety Cable - Single - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 48" - With Safety Cable - Single - Offset - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Single - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Single - Offset - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 72" - With Safety Cable - Single - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 72" - With Safety Cable - Single - Offset - Aluminum
4" to 22" tree/branch diameter
