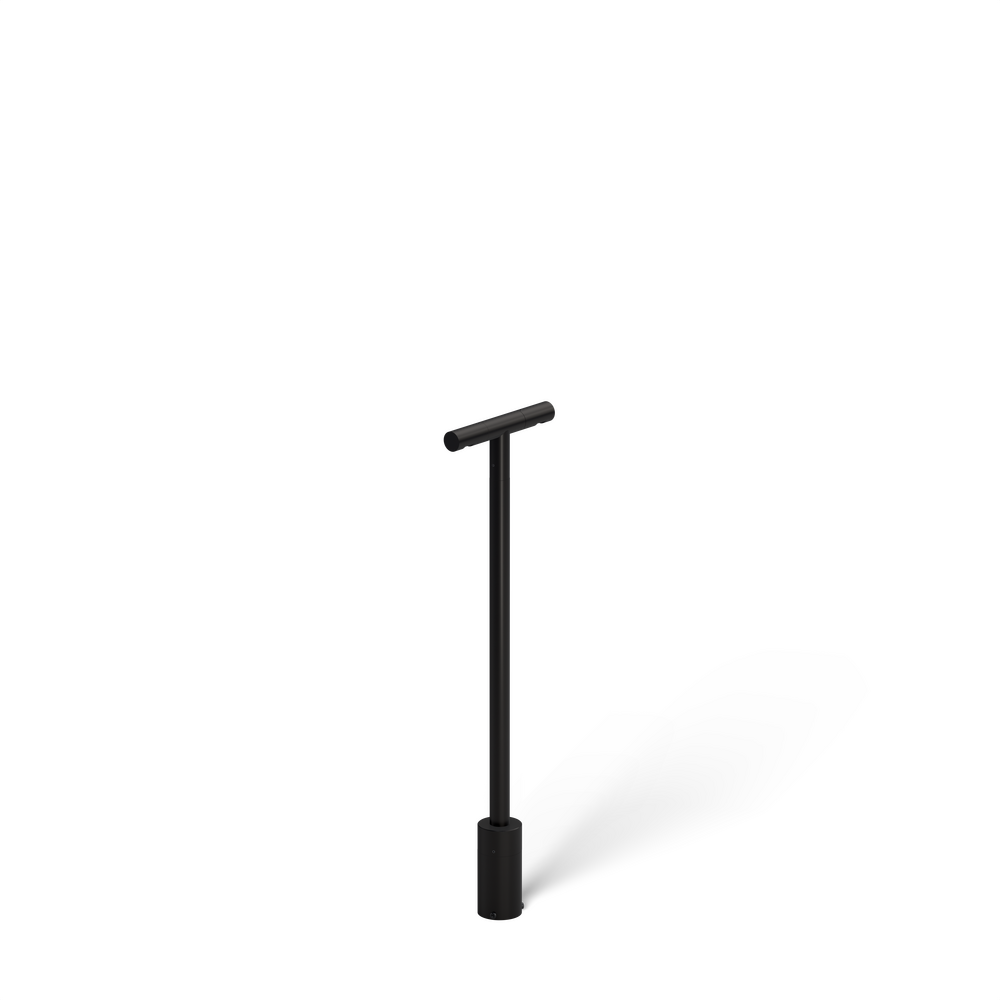

LITESTICK - Bollard - Line Voltage Via Transformer - LED High-Power - Round - T - Power Pipe PP1 - 18" Junction Box
(formerly Litestick Style T / LT-T with PP-TRe20)




Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
LT-
01
BO-
02
LIT-
03
LHP-
04
AL-
05
ROT-
06A
PP1-J18-
06B
___-
06F
___-
07
NON-
09
WL00-
11
___-
12
Click options to build your configurationCompleting the first column to render configured product images below

01 SERIES
02 CATEGORY
03 DRIVER
04 LIGHT SOURCE (TYPE)
05 MATERIAL
06A SHAPE
06B MOUNT
06F SIZE
07 LIGHT SOURCE
09 CONTROL
11 WIRING LENGTH
12 FINISH
Standard Finishes
, , , , , , , Premium Finishes
, , , , , , , , , , , , , , , , , Other - RAL
Other - Custom Color
- Light Source
- Technical
- Transformers
- Finishes
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
e70
-
360h x 270v
2700
80
3
31
500
50000
e71
-
360h x 270v
3000
80
3
32
500
50000
e72
-
360h x 270v
4000
80
3
36
500
50000
e73
-
360h x 270v
Amber
3
500
50000
e87
-
360h x 270v
3500
80
3
500
50000
Features

Manufactured in the USA with sustainable processes

Secured with tamper-resistant, stainless steel hardware

Easily replaceable modular components reduce waste and extend fixture life
