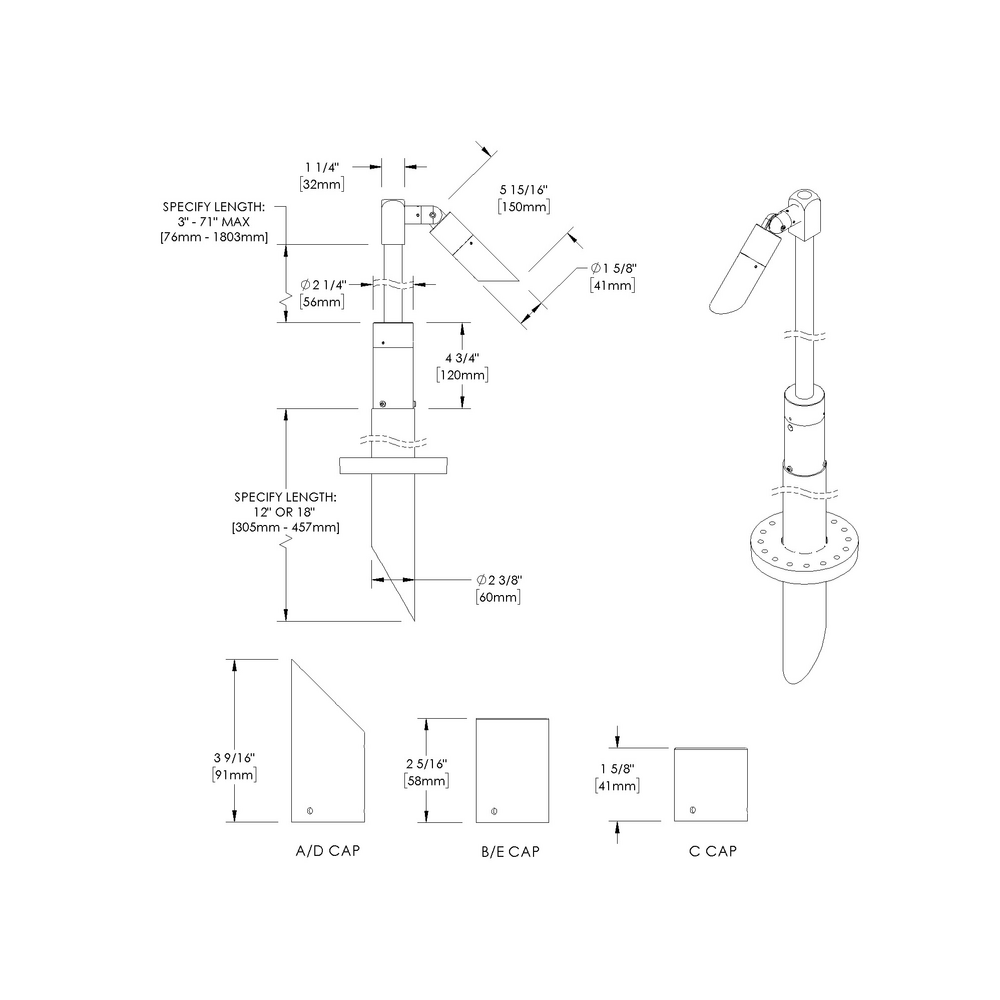

MICRO NITE - Bollard - Line Voltage Via Transformer - LED High-Power - Style C - Single
(formerly Micro Nite Staff Star Style C / SF-#-C-MN with PP-TRe20)
Wildlife Friendly
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
MN-
01
BO-
02
LIT-
03
LHP-
04
AL-
05
PP1-J18-
06B
___-
06C
SC-F10-
06D
___-
06F
___-
07
___-
08
NON-
09
___-
10A
___-
10B
WL00-
11
___-
12
Click options to build your configurationCompleting the first column to render configured product images below
- Light Source
- Technical
- Transformers
- Finishes
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
e75
SP - Spot
17
7
500
50000
e75
NFL - Narrow Flood
25
7
500
50000
e75
MFL - Medium Flood
30
Amber
7
500
50000
e82
SP - Spot
17
2700
90
7
500
50000
e82
NFL - Narrow Flood
25
2700
90
7
500
50000
e82
MFL - Medium Flood
30
2700
90
7
500
50000
e83
SP - Spot
17
3000
90
7
500
50000
e83
NFL - Narrow Flood
25
3000
90
7
500
50000
e83
MFL - Medium Flood
30
3000
90
7
500
50000
e84
SP - Spot
17
3500
80
7
500
50000
e84
NFL - Narrow Flood
25
3500
80
7
500
50000
e84
MFL - Medium Flood
30
3500
80
7
500
50000
Features
Anti-condensation vent allows moisture to exit the fixture but never enter in
Lens factory adhered to fixture cap providing hermetically sealed optical compartment
Manufactured in the USA with sustainable processes
Aim & Lock knuckle eliminates need for re-aiming & adjustments
Water-tight anti-siphon plug prevents moisture ingress from wireways
Secured with tamper-resistant, stainless steel hardware
Easily replaceable modular components reduce waste and extend fixture life
Slip fit cap & high temp. silicone 'O' ring provides reliable water-tight seal
Solid billet fixture body provides unmatched durability and heat management
360SL knuckle provides 360° horizontal rotation and vertical adjustment
