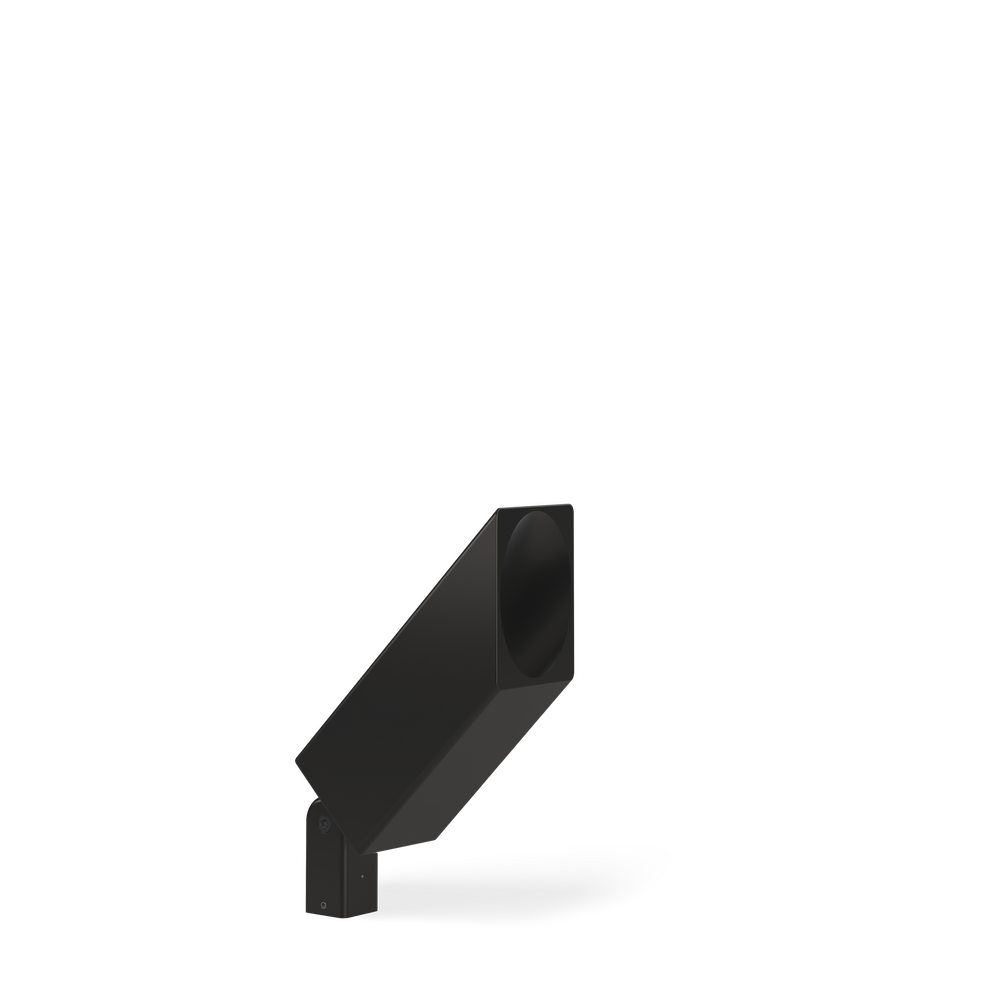

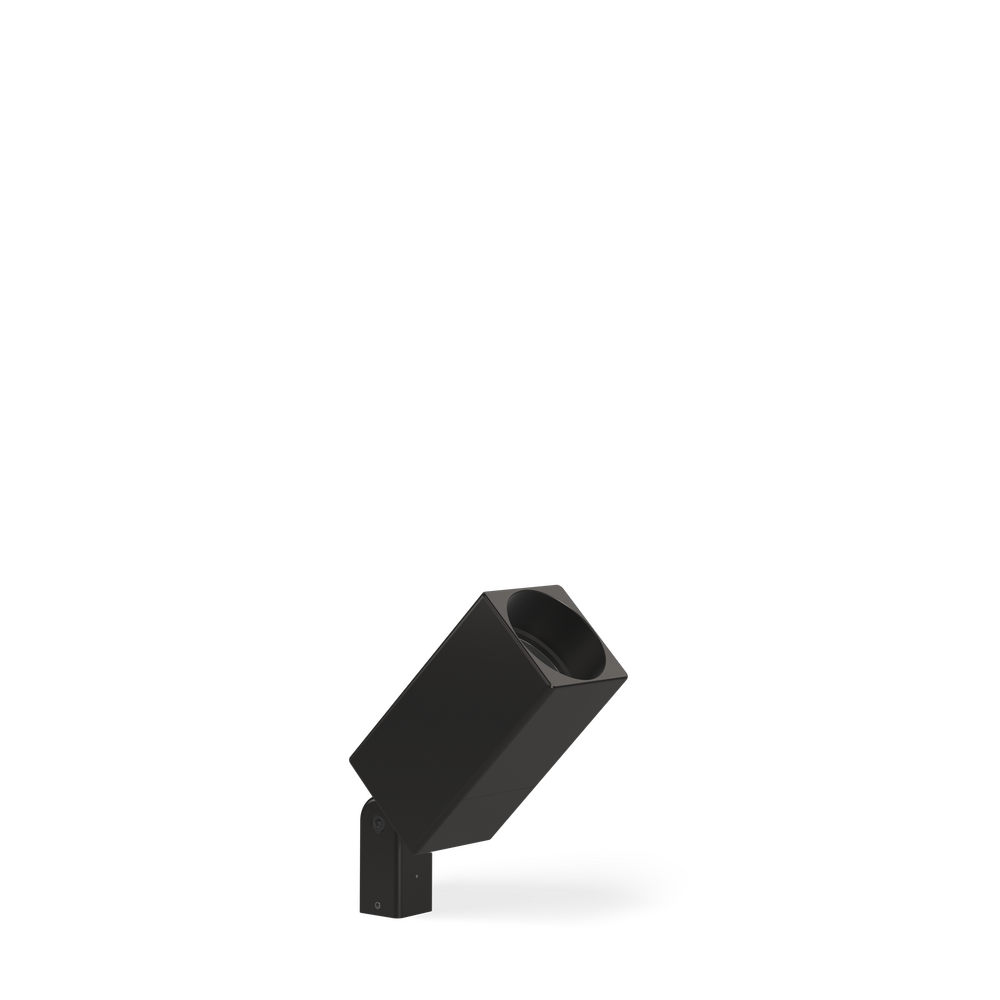

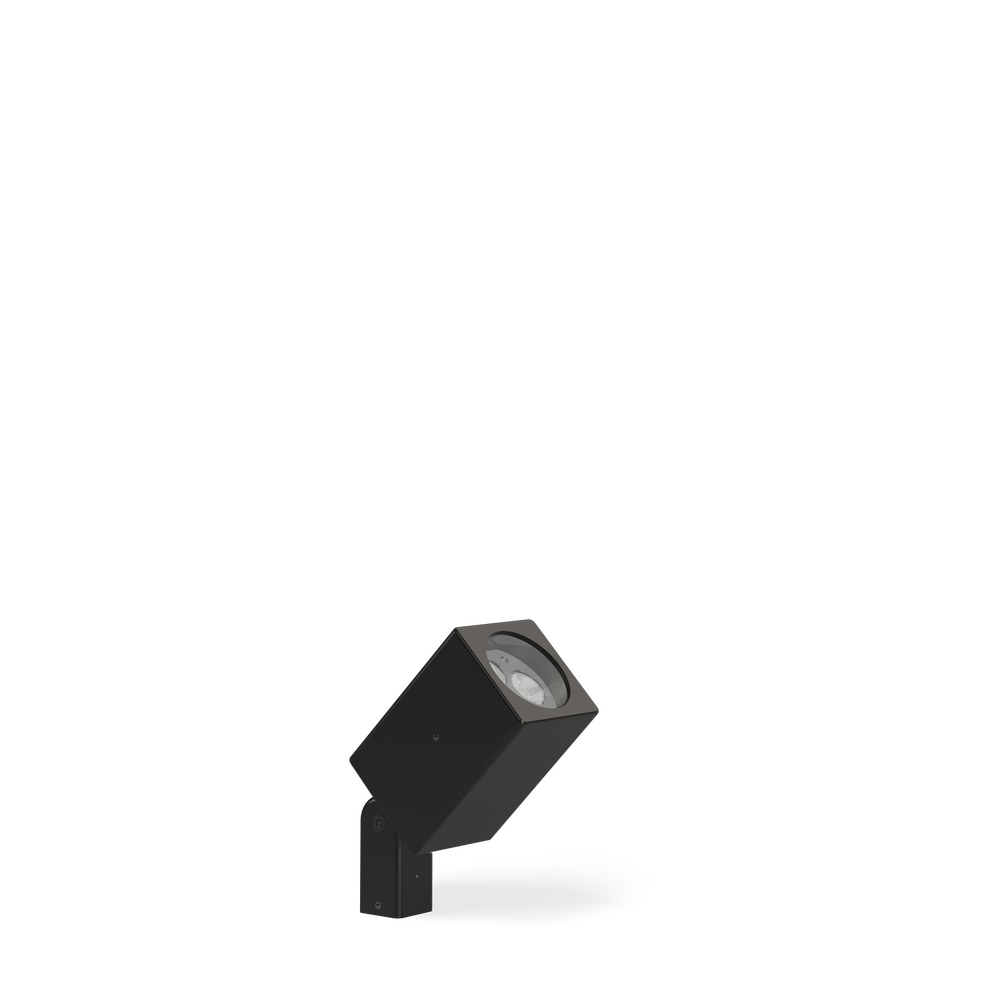

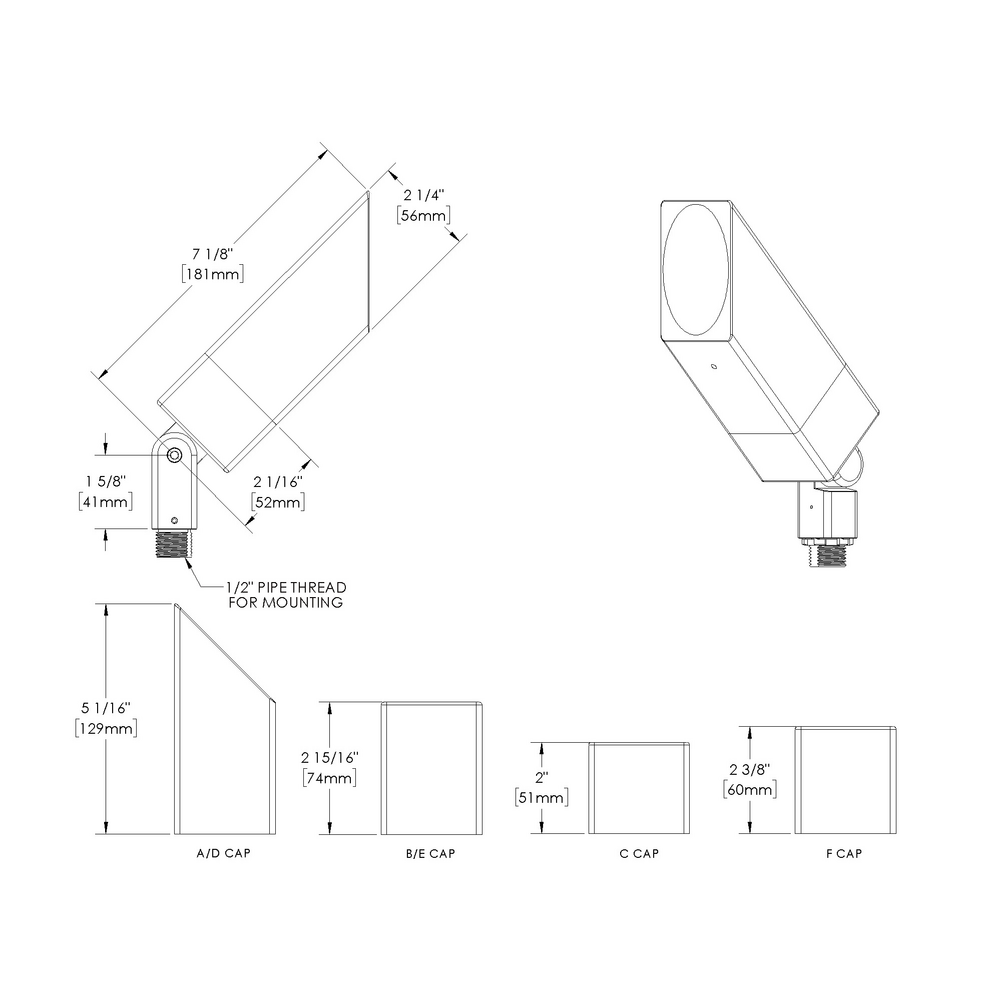

NITE STAR - Floodlight - Low Voltage - LED High-Power - Square
(formerly Square Delta Star / SQ-DS)
Discontinued
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
WARNING: This is a low voltage product. Please check "Mountings With A Power Supply" or "Power Supplies" to order remote transformer separately.
NS-
01
FL-
02
LOD-
03
LHP-
04
___-
05
SQ-
06A
TKM-
06B
___-
06C
___-
07
___-
08
___-
10A
___-
10B
___-
11
___-
12
TE-
13
Click options to build your configurationCompleting the first column to render configured product images below
- Light Source
- Technical
- Finishes
- Options
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
e74
NSP - Narrow Spot
13
Amber
7
299
3927
700
50000
e74
SP - Spot
16
Amber
7
291
2978
700
50000
e74
SP2 - Spot
23
Amber
7
260
1131
700
50000
e74
MFL - Medium Flood
31
Amber
7
262
741
700
50000
e79
NSP - Narrow Spot
13
2700
90
7
700
50000
e79
SP - Spot
16
2700
90
7
700
50000
e79
SP2 - Spot
23
2700
90
7
700
50000
e79
MFL - Medium Flood
31
2700
90
7
700
50000
e80
NSP - Narrow Spot
13
3000
90
7
700
50000
e80
SP - Spot
16
3000
90
7
700
50000
e80
SP2 - Spot
23
3000
90
7
700
50000
e80
MFL - Medium Flood
31
3000
90
7
700
50000
e81
NSP - Narrow Spot
13
3500
80
7
700
50000
e81
SP - Spot
16
3500
80
7
700
50000
e81
SP2 - Spot
23
3500
80
7
700
50000
e81
MFL - Medium Flood
31
3500
80
7
700
50000
Features
Anti-condensation vent allows moisture to exit the fixture but never enter in
Lens factory adhered to fixture cap providing hermetically sealed optical compartment
Manufactured in the USA with sustainable processes
Aim & Lock knuckle eliminates need for re-aiming & adjustments
Water-tight anti-siphon plug prevents moisture ingress from wireways
Secured with tamper-resistant, stainless steel hardware
Easily replaceable modular components reduce waste and extend fixture life
Slip fit cap & high temp. silicone 'O' ring provides reliable water-tight seal
Solid billet fixture body provides unmatched durability and heat management
360SL knuckle provides 360° horizontal rotation and vertical adjustment
Technical
Mountings & Power Supplies
NOTE: Ordered separately. Configure fixture first to guarantee compatibility.WARNING: This is a low voltage product. Please check "Mountings With A Power Supply" or "Power Supplies" to order remote transformer separately.
- Mountings
- Mountings with Power Supply
- Power Supply
Canopy
Canopy BC10 - Aluminum
3" x 5" Rectangular
Canopy BC11 - Aluminum
2 7/8" x 4 5/8" Rectangular
Canopy BC6 - Aluminum
5" Round Machined
Canopy BC1 - Aluminum
2 7/8" x 4 5/8" Rectangular
Canopy BC2 - Aluminum
2 7/8" x 4 5/8" Rectangular
Canopy BC3 - Aluminum
2 3/4" x 4 1/2" Rectangular
Canopy BC4 - Aluminum
4 1/8" Round
Canopy BC5 - Aluminum
4 1/8" Round
Canopy BC15 - Aluminum
6" Round, Dual Mount
Canopy BC10 - Brass
3" x 5" Rectangular
Canopy BC10 - Stainless Steel
3" x 5" Rectangular
Canopy BC7 - Stainless Steel
3 1/2" Round
Canopy BC9 - Stainless Steel
3 1/2" Square
Mount
Universal Power Module
Universal Power Module PM1 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Single - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Two Fixtures - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 24" - With Safety Cable - Single - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 24" - With Safety Cable - Single - Offset - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 24" - With Safety Cable - Two Fixtures - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Single - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Single - Offset - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Two Fixtures - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 48" - With Safety Cable - Single - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 48" - With Safety Cable - Single - Offset - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 48" - With Safety Cable - Two Fixtures - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Single - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Single - Offset - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Two Fixtures - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 72" - With Safety Cable - Single - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 72" - With Safety Cable - Single - Offset - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 72" - With Safety Cable - Two Fixtures - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Two Fixtures - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Two Fixtures - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Two Fixtures - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Two Fixtures - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Two Fixtures - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Single - Offset - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Single - Offset - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Single - Offset - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Single - Offset - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Two Fixtures - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Single - Offset - Aluminum
4" to 7" tree/branch diameter
Pipe
Tree Strap
Tree Strap TMC - 24" - Aluminum
3" to 7" tree/branch diameter
Tree Strap TMC - 48" - Aluminum
3" to 15" tree/branch diameter
Tree Strap TMC - 72" - Aluminum
3" to 22" tree/branch diameter
Tree Strap TMC - Custom - Aluminum
Custom strap length. Contact factory.
Tree Strap MB2 - 24" - Aluminum
4" to 7" tree/branch diameter
Tree Strap MB2 - 48" - Aluminum
4" to 15" tree/branch diameter
Tree Strap MB2 - 72" - Aluminum
4" to 22" tree/branch diameter
Tree Strap MB2 - Custom - Aluminum
Custom strap length. Contact factory.
Tree Strap TMC - 24" - Brass
3" to 7" tree/branch diameter
Tree Strap TMC - 48" - Brass
3" to 15" tree/branch diameter
Tree Strap TMC - 72" - Brass
3" to 22" tree/branch diameter
Tree Strap TMC - Custom - Brass
Custom strap length. Contact factory.
Tree Strap TMC - Custom - Stainless Steel
Custom strap length. Contact factory.
Tree Strap TMC - 72" - Stainless Steel
3" to 22" tree/branch diameter
Tree Strap TMC - 48" - Stainless Steel
3" to 15" tree/branch diameter
Tree Strap TMC - 24" - Stainless Steel
3" to 7" tree/branch diameter
Stake
Stem
Stem ST - 3" - Brass
1" diameter x 3" length
Stem ST - 6" - Brass
1" diameter x 6" length
Stem ST - 12" - Brass
1" diameter x 12" length
Stem ST - 18" - Brass
1" diameter x 18" length
Stem ST - 24" - Brass
1" diameter x 24" length
Stem ST - 6" - Stainless Steel
1" diameter x 6" length
Stem ST - 3" - Stainless Steel
1" diameter x 3" length
Stem ST - 12" - Stainless Steel
1" diameter x 12" length
Stem ST - 18" - Stainless Steel
1" diameter x 18" length
Stem ST - 24" - Stainless Steel
1" diameter x 24" length
Power Canopy
[QT10-120-MLV] 10W - 120V - MLV Dimming
[QT10-277-MLV] 10W - 277V - MLV Dimming
[QT20-120-MLV] 20W - 120V - MLV Dimming
[QT20-277-MLV] 20W - 277V - MLV Dimming
[TRe20-MT-NON] 20W - 120V to 277V - Non-dimming
[QT20-120-MLV] 20W - 120V - MLV Dimming
[QT20-277-MLV] 20W - 277V - MLV Dimming
[TRe20-MT-NON] 20W - 120V to 277V - Non-dimming
Universal Power Module
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Transformer - Single Fixture - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Transformer - Single Fixture - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Transformer - Single Fixture - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Transformer - Single Fixture - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Transformer - Single Fixture - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Transformer - Single Fixture - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Transformer - Single Fixture - Offset - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 24" - With Safety Cable - Transformer - Single Fixture - Offset - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Transformer - Single Fixture - Offset - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 48" - With Safety Cable - Transformer - Single Fixture - Offset - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Transformer - Single Fixture - Offset - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 72" - With Safety Cable - Transformer - Single Fixture - Offset - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Transformer - Single Fixture - Offset - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Transformer - Single Fixture - Offset - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Transformer - Single Fixture - Offset - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Transformer - Single Fixture - Offset - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Transformer - Single Fixture - Offset - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Transformer - Single Fixture - Offset - Aluminum
4" to 22" tree/branch diameter
Power Pipe
Power Pipe
Universal Power Module
Universal Power Module PM1 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 24" - With Safety Cable - Remote Transformer - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 48" - With Safety Cable - Remote Transformer - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 72" - With Safety Cable - Remote Transformer - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Remote Transformer - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Remote Transformer - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Remote Transformer - Aluminum
4" to 22" tree/branch diameter
Transformer
[120-MLV] 120V - 12VAC Transformer
[277-MLV] 277V - 12VAC Transformer
[120-MLV] 120V - 12VAC Transformer
[277-MLV] 277V - 12VAC Transformer
[277-MLV] 277V - 12VAC Transformer
[120-MLV] 120V - 12VAC Transformer
[120-MLV] 120V - 12VAC Transformer
[277-MLV] 277V - 12VAC Transformer
In-grade HP2
[TR-150-120-MLV] 150W - 120V - MLV Dimming
[TR-150-277-MLV] 150W - 277V - MLV Dimming
[TR-75-120-MLV] 75W - 120V - MLV Dimming
[TR-75-277-MLV] 75W - 277V - MLV Dimming
[TR-150-120-MLV] 150W - 120V - MLV Dimming
[TR-150-277-MLV] 150W - 277V - MLV Dimming
[TR-75-120-MLV] 75W - 120V - MLV Dimming
[TR-75-277-MLV] 75W - 277V - MLV Dimming
[TR-150-120-MLV] 150W - 120V - MLV Dimming
[TR-150-277-MLV] 150W - 277V - MLV Dimming
[TR-75-120-MLV] 75W - 120V - MLV Dimming
[TR-75-277-MLV] 75W - 277V - MLV Dimming
[TR-150-120-MLV] 150W - 120V - MLV Dimming
[TR-150-277-MLV] 150W - 277V - MLV Dimming
[TR-75-120-MLV] 75W - 120V - MLV Dimming
[TR-75-277-MLV] 75W - 277V - MLV Dimming
[TR-150-120-MLV] 150W - 120V - MLV Dimming
[TR-150-277-MLV] 150W - 277V - MLV Dimming
[TR-75-120-MLV] 75W - 120V - MLV Dimming
[TR-75-277-MLV] 75W - 277V - MLV Dimming
[TR-150-120-MLV] 150W - 120V - MLV Dimming
[TR-150-277-MLV] 150W - 277V - MLV Dimming
[TR-75-277-MLV] 75W - 277V - MLV Dimming
[TR-75-120-MLV] 75W - 120V - MLV Dimming
[TR-150-120-MLV] 150W - 120V - MLV Dimming
[TR-75-120-MLV] 75W - 120V - MLV Dimming
[TR-150-277-MLV] 150W - 277V - MLV Dimming
[TR-75-277-MLV] 75W - 277V - MLV Dimming
[TR-75-277-MLV] 75W - 277V - MLV Dimming
[TR-75-120-MLV] 75W - 120V - MLV Dimming
[TR-150-277-MLV] 150W - 277V - MLV Dimming
[TR-150-120-MLV] 150W - 120V - MLV Dimming
[TR-75-277-MLV] 75W - 277V - MLV Dimming
[TR-75-120-MLV] 75W - 120V - MLV Dimming
[TR-150-277-MLV] 150W - 277V - MLV Dimming
[TR-150-120-MLV] 150W - 120V - MLV Dimming
