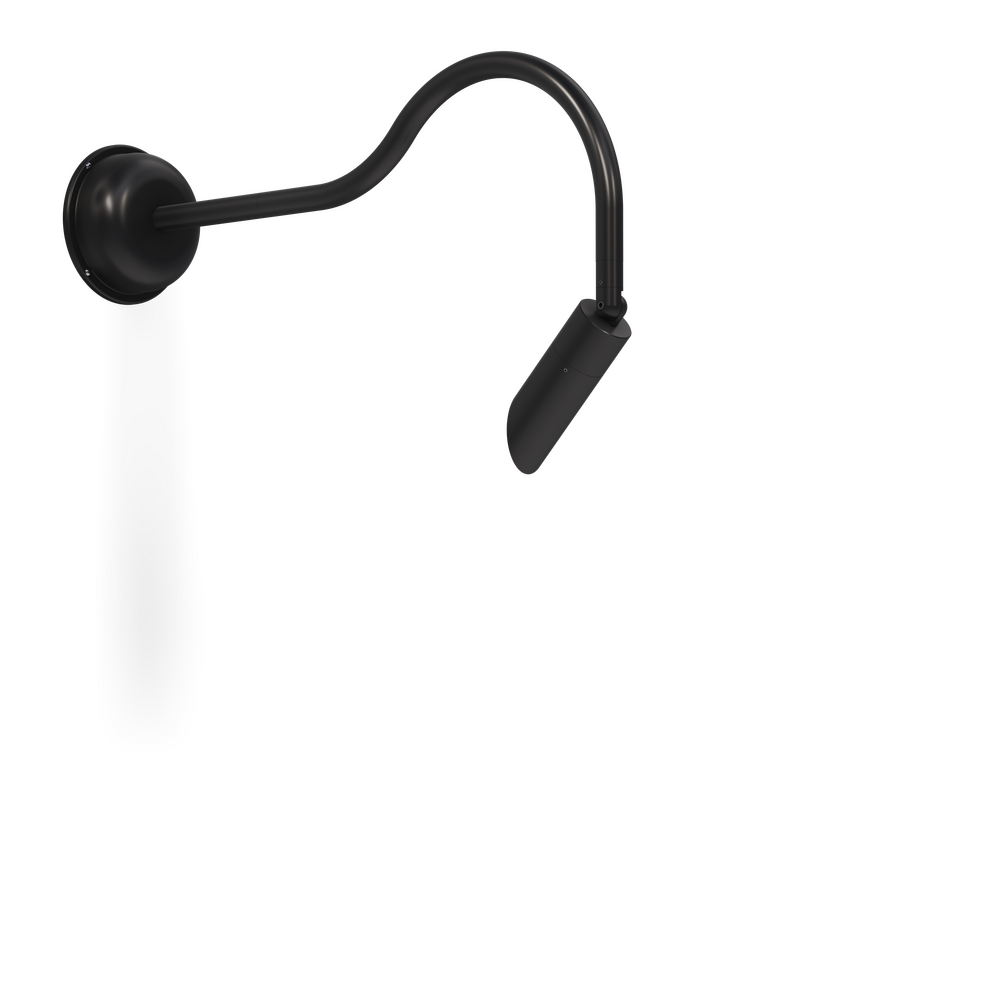

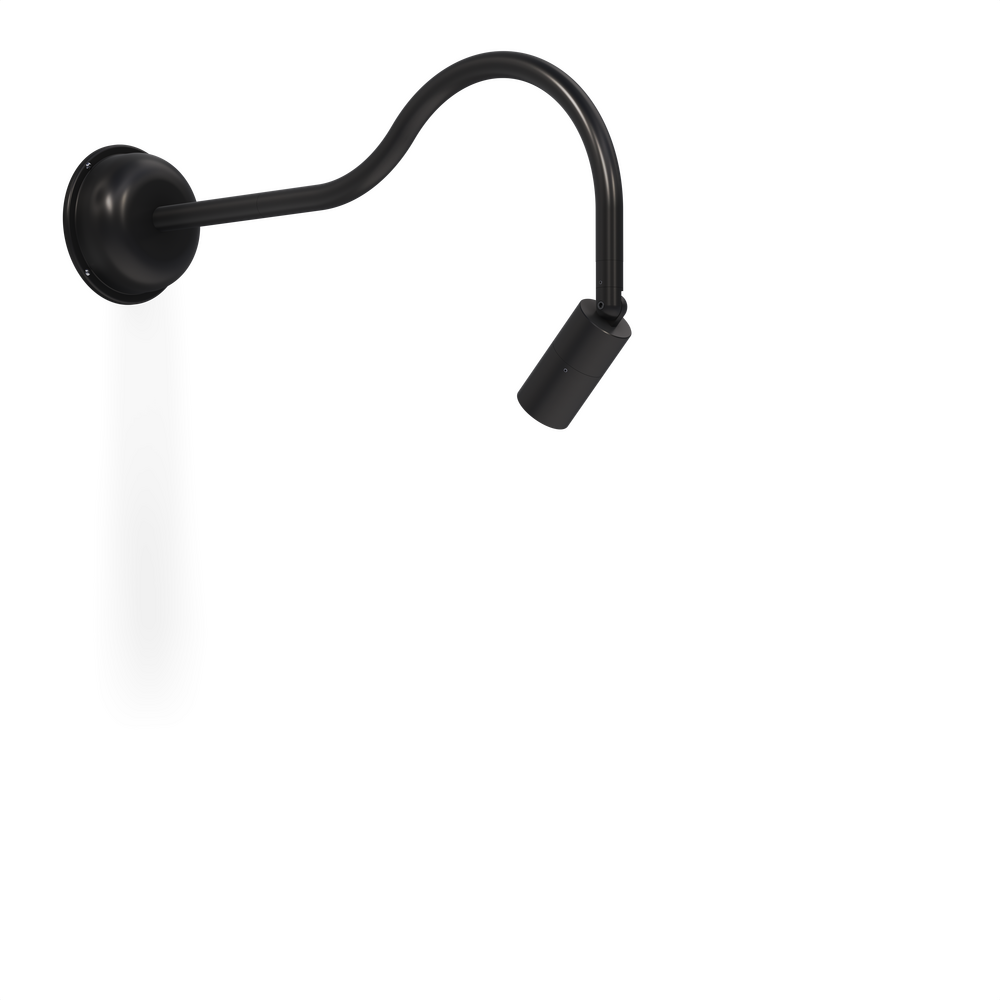

NITE STAR - Wall Mount - Line Voltage Via Transformer - LED High-Power - Style A - Single - Power Canopy PC1
(formerly Delta Star Sign Star Style A / SN-#-A-LED with PC-TRe20)
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
NS-
01
WM-
02
LIT-
03
LHP-
04
AL-
05
RO-
06A
PC1-
06B
___-
06C
SA-F10-
06D
___-
06F
___-
07
___-
08
NON-
09
___-
10A
___-
10B
WL00-
11
___-
12
Click options to build your configurationCompleting the first column to render configured product images below
IMPORTANT: #12 Soft Focus Lens no longer available and not necessary due to optimized LED/optic performance.
- Light Source
- Technical
- Transformers
- Finishes
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
e208
NSP - Narrow Spot
12
2700
90
10
383
5890
50000
e208
SP - Spot
23
2700
90
10
336
1502
50000
e208
MFL - Medium Flood
34
2700
90
10
328
775
50000
e208
WFL - Wide Flood
57
2700
90
10
358
388
50000
e209
NSP - Narrow Spot
12
3000
90
10
417
6413
50000
e209
SP - Spot
23
3000
90
10
366
1635
50000
e209
MFL - Medium Flood
34
3000
90
10
358
844
50000
e209
WFL - Wide Flood
57
3000
90
10
390
422
50000
e210
NSP - Narrow Spot
12
3500
90
10
462
7099
50000
e210
SP - Spot
23
3500
90
10
405
1810
50000
e210
MFL - Medium Flood
34
3500
90
10
396
934
50000
e210
WFL - Wide Flood
57
3500
90
10
432
467
50000
e211
NSP - Narrow Spot
12
4000
90
10
453
6959
50000
e211
SP - Spot
23
4000
90
10
397
1774
50000
e211
MFL - Medium Flood
34
4000
90
10
388
915
50000
e211
WFL - Wide Flood
57
4000
90
10
423
458
50000
Features
Anti-condensation vent allows moisture to exit the fixture but never enter in
Lens factory adhered to fixture cap providing hermetically sealed optical compartment
Manufactured in the USA with sustainable processes
Aim & Lock knuckle eliminates need for re-aiming & adjustments
Water-tight anti-siphon plug prevents moisture ingress from wireways
Secured with tamper-resistant, stainless steel hardware
Easily replaceable modular components reduce waste and extend fixture life
Slip fit cap & high temp. silicone 'O' ring provides reliable water-tight seal
Solid billet fixture body provides unmatched durability and heat management
Integrated knuckle design provides 360° horizontal rotation and vertical adjustment
