    IMPORTANT: Transformer wattage MUST be calculated based on the total load of the luminaires it will support.

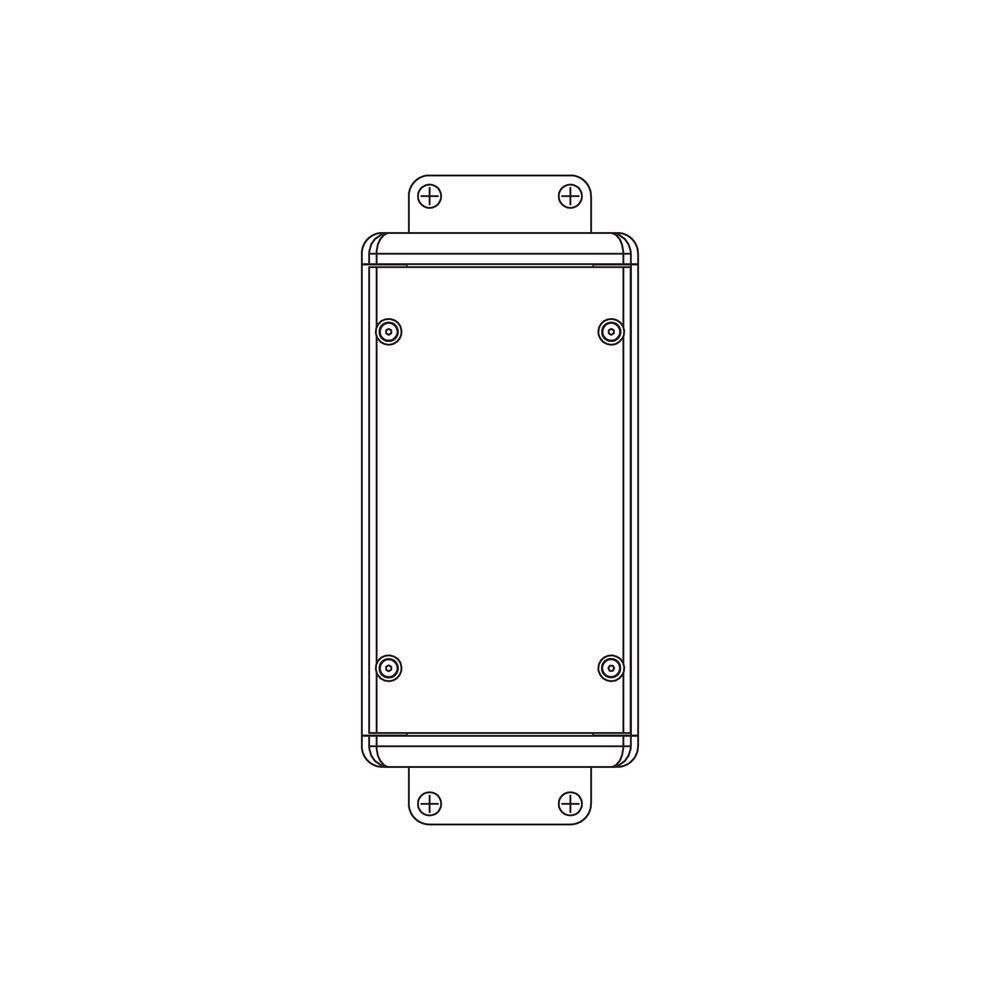

    Catalog Number Logic

    PM1-SM-TR-RM-AL-___-___



    Power Supply
    [TRe20-MT-NON]
    20W - 120V to 277V - Non-dimming
    [TRSS75-120-ELV]
    60W - 120V - ELV Dimming
    [TRSS75-277-NON]
    75W - 277V - Non-dimming
    Finishes
    STANDARD FINISHES
    [BLP]
    Satin Black
    [BZP]
    Satin Bronze
    [WHP]
    Satin White
    [SAP]
    Satin Aluminum
    [BLW]
    Black Wrinkle
    [BZW]
    Bronze Wrinkle
    [WHW]
    White Wrinkle
    [VER]
    Verde
    PREMIUM FINISHES
    [CMG]
    Cascade Mountain Granite
    [SMG]
    Sierra Mountain Granite
    [RMG]
    Rocky Mountain Granite
    [AMG]
    Aleutian Mountain Granite
    [TXF]
    Textured Forest
    [BCM]
    Black Chrome
    [BGE]
    Beige
    [WCP]
    Weathered Copper
    [OCP]
    Old Copper
    [HUG]
    Hunter Green
    [ABP]
    Antique Brass Powder
    [BPP]
    Brown Patina Powder
    [SDS]
    Sonoran Desert Sandstone
    [WIR]
    Weathered Iron
    [CAP]
    Clear Anodized Powder
    [CRM]
    Cream
    [AQW]
    Antique White
    [NBP]
    Natural Brass Powder
    OTHER - RAL
    [RAL]
    RAL Color
    OTHER - CUSTOM COLOR
    [CUS]
    Custom Color
    • Technical
    • Transformers
    • Finishes

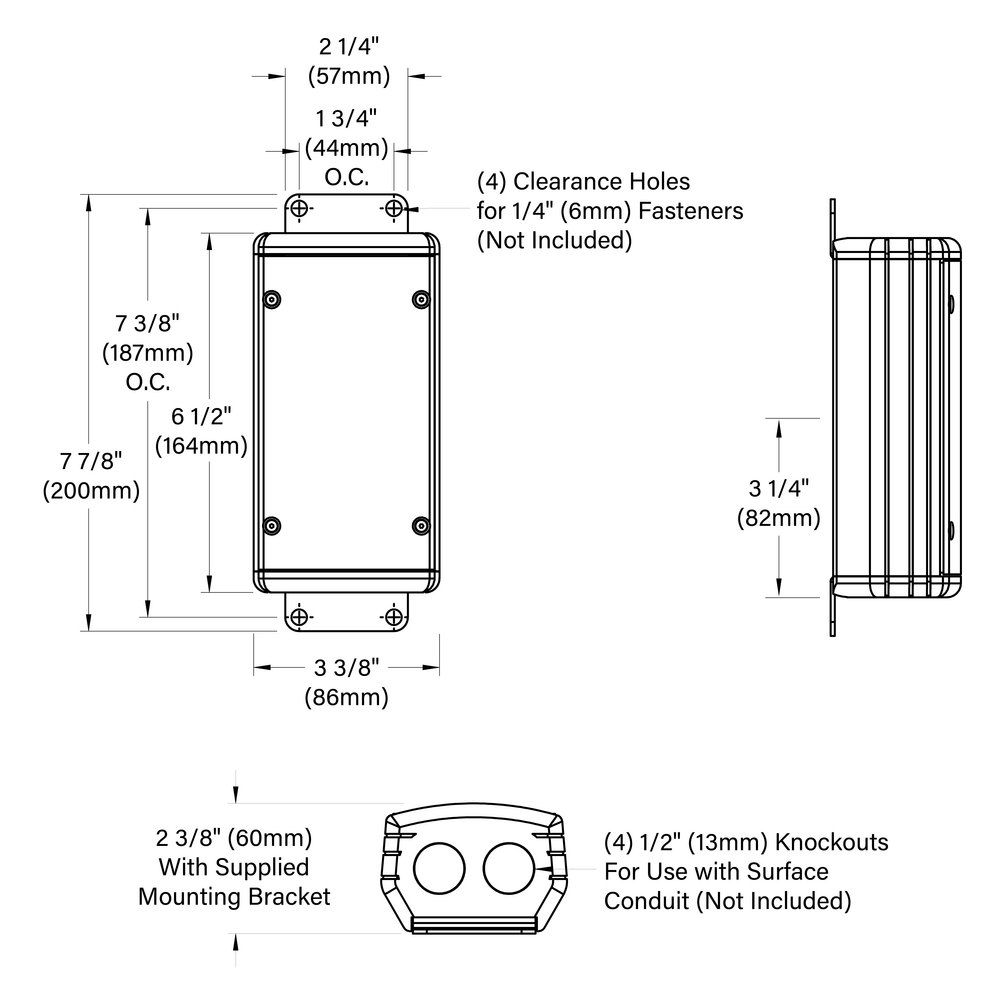

    Body: Extrusion with die cast end caps. Machined cover with countersunk holes for flush hardware installation. Two (2) 1/2” NPT female conduit entries per end cap for through wiring. Patented knockout can be reinserted without compromising seal.
    Material Detail: Furnished in copper-free aluminum (6061-T6).
    Installation: For use with side entry, surface conduits. Mounting brackets to anchor to architectural surface. Stainless steel cable with integral loop allows cover to suspend from housing during installation to simplify wire connection and component attachment.
    Finish: Standard Finishes, Premium Finishes, Other - RAL, Other - Custom Color
    Finish Detail: StarGuard, our 15-stage chromate-free process, cleans and conversion coats aluminum components prior to application of Class ‘A’ TGIC polyester powder coating. It is RoHS compliant.
    Warranty: 5-year limited warranty.
    Certification: RoHS compliant components., UL tested to IESNA LM-79. UL Listed. Certified to CAN/CSA/ANSI Standards.
    Control
    Max Load (W)
    Input Voltage
    Power Factor
    THD (%)
    Operation Ambient Temperature
    Output Current
    Circuit Breaker
    Min Load (W)
    NON
    20
    90
    -30°C to 90°C
    15VDC +/-5%
    1
    ELV
    60
    120
    95
    -30°C to 90°C
    12VAC
    0
    NON
    60
    277
    95
    13
    40°C
    12VDC
    0
