    IMPORTANT: Driver wattage MUST match selected fixture wattage. (example: 12W Light Source = 12W Driver)"
    Catalog Number Logic

    PM2-CR-DR-RM-AL-___-___



    Power Supply
    [LCB-10W-MT-010]
    LCB - 10W - 120V,277V - 0-10V
    [LCB-10W-MT-ELV]
    LCB - 10W - 120V,277V - ELV Dimming (120V dimming only)
    [LCB-10W-MT-INC]
    LCB - 10W - 120V,277V - INC Dimming (120V dimming only)
    [LCB-12W-MT-010]
    LCB - 12W - 120V,277V - 0-10V
    [LCB-12W-MT-ELV]
    LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
    [LCB-12W-MT-INC]
    LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
    [LCB-20W-MT-010]
    LCB - 20W - 120V,277V - 0-10V
    [LCB-20W-MT-ELV]
    LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
    [LCB-20W-MT-INC]
    LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
    [LCB-27W-MT-010]
    LCB - 27W - 120V,277V - 0-10V
    [LCB-27W-MT-ELV]
    LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
    [LCB-27W-MT-INC]
    LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
    Finishes
    STANDARD FINISHES
    [BLP]
    Satin Black
    [BZP]
    Satin Bronze
    [WHP]
    Satin White
    [SAP]
    Satin Aluminum
    [BLW]
    Black Wrinkle
    [BZW]
    Bronze Wrinkle
    [WHW]
    White Wrinkle
    [VER]
    Verde
    PREMIUM FINISHES
    [CMG]
    Cascade Mountain Granite
    [SMG]
    Sierra Mountain Granite
    [RMG]
    Rocky Mountain Granite
    [AMG]
    Aleutian Mountain Granite
    [TXF]
    Textured Forest
    [BCM]
    Black Chrome
    [BGE]
    Beige
    [WCP]
    Weathered Copper
    [OCP]
    Old Copper
    [HUG]
    Hunter Green
    [ABP]
    Antique Brass Powder
    [BPP]
    Brown Patina Powder
    [SDS]
    Sonoran Desert Sandstone
    [WIR]
    Weathered Iron
    [CAP]
    Clear Anodized Powder
    [CRM]
    Cream
    [AQW]
    Antique White
    [NBP]
    Natural Brass Powder
    OTHER - RAL
    [RAL]
    RAL Color
    OTHER - CUSTOM COLOR
    [CUS]
    Custom Color
    • Technical
    • Driver
    • Finishes
    Body: Furnished in copper-free aluminum (6061-T6).
    Material Detail: Furnished in copper-free aluminum (6061-T6).

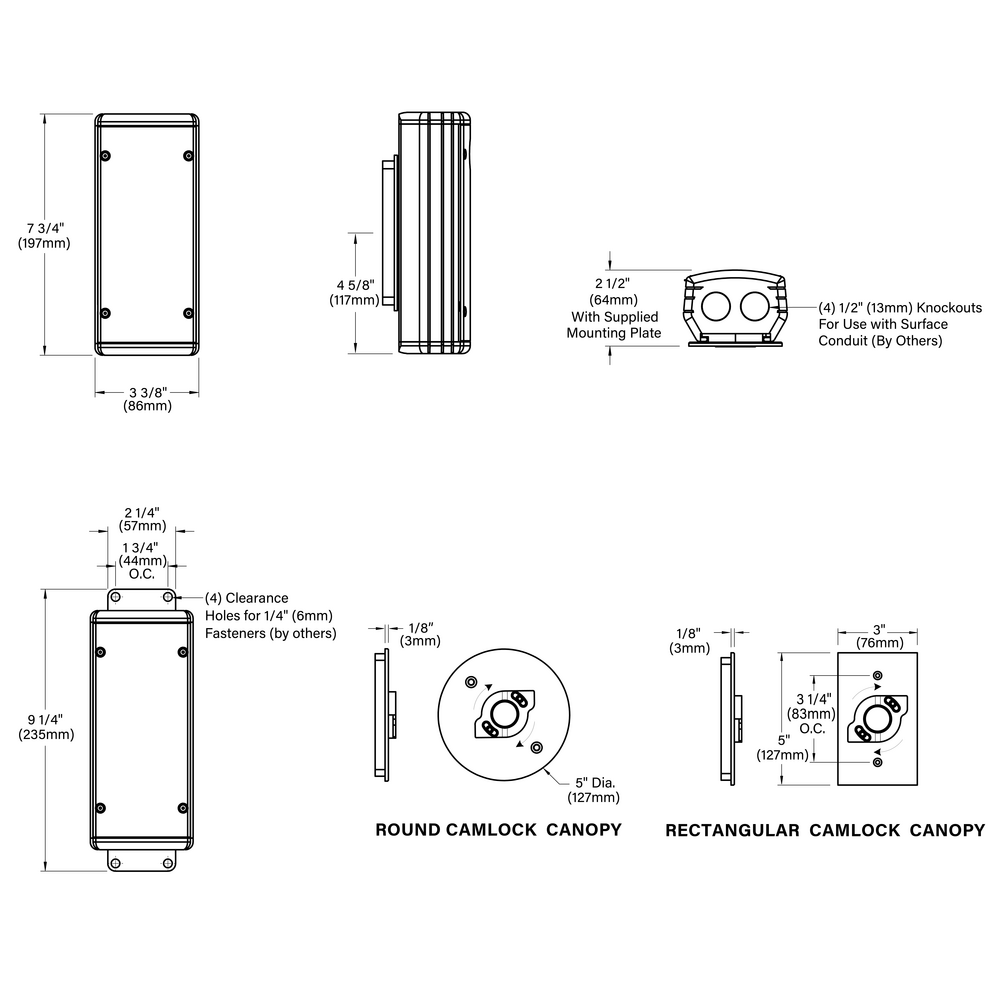

    Installation: 5” dia., machined canopy. Stainless steel universal mounting ring for use with 4” octagonal junction box. Camlock provides additional 30° adjustment for precision alignment of UPM regardless of junction box orientation.
    Finish: Standard Finishes, Premium Finishes, Other - RAL, Other - Custom Color
    Note: Drivers are fixture specific. Driver wattage should match fixture wattage. For questions about driver selection, please contact the factory.
    Finish Detail: StarGuard, our 15-stage chromate-free process, cleans and conversion coats aluminum components prior to application of Class ‘A’ TGIC polyester powder coating. It is RoHS compliant.
    Warranty: 5-year limited warranty.
    Certification: RoHS compliant components., UL tested to IESNA LM-79. UL Listed. Certified to CAN/CSA/ANSI Standards.
    Control
    Input Voltage
    Power Factor
    THD (%)
    Operation Ambient Temperature
    InRush Current
    Output Current
    Output Power (Max-W)
    Output Voltage (Range)
    Dimming (Range)
    ELV
    120V
    0
    0
    350mA
    15
    21-32Vdc
    1-100%
    INC
    120V
    0
    0
    350mA
    15
    21-32Vdc
    1-100%
    ELV
    120V
    0.9
    <20%
    700mA
    30
    ELV
    120V
    0.9
    <20%
    700mA
    30
    INC
    120V
    1000
    1000
    1000
    700mA
    21
    20-30Vdc
    1-100%
    010
    120V,277V
    >0.9
    <20
    -30°C to 90°C
    250mA-1100mA
    29.4
    14-56v
    1-100%
    NON
    120V,277V
    >0.9
    <20
    -30°C to 90°C
    250mA-1100mA
    29.4
    14-56v
    1-100%
    INC
    120V,277V
    010
    120V,277V
    0.9
    <20%
    90°C
    700mA
    30
    010
    120V,277V
    0
    0
    350mA
    15
    21-32Vdc
    1-100%
    NON
    120V,277V
    0
    0
    350mA
    15
    21-32Vdc
    1-100%
    010
    120V,277V
    0.9
    <20%

    STANDARD FINISHES

    [BLP]
    Satin Black
    [BZP]
    Satin Bronze
    [WHP]
    Satin White
    [SAP]
    Satin Aluminum
    [BLW]
    Black Wrinkle
    [BZW]
    Bronze Wrinkle
    [WHW]
    White Wrinkle
    [VER]
    Verde

    PREMIUM FINISHES

    [CMG]
    Cascade Mountain Granite
    [SMG]
    Sierra Mountain Granite
    [RMG]
    Rocky Mountain Granite
    [AMG]
    Aleutian Mountain Granite
    [TXF]
    Textured Forest
    [BCM]
    Black Chrome
    [BGE]
    Beige
    [WCP]
    Weathered Copper
    [OCP]
    Old Copper
    [HUG]
    Hunter Green
    [ABP]
    Antique Brass Powder
    [BPP]
    Brown Patina Powder
    [SDS]
    Sonoran Desert Sandstone
    [WIR]
    Weathered Iron
    [CAP]
    Clear Anodized Powder
    [CRM]
    Cream
    [AQW]
    Antique White
    [NBP]
    Natural Brass Powder

    OTHER - RAL

    [RAL]
    RAL Color

    OTHER - CUSTOM COLOR

    [CUS]
    Custom Color
    IMPORTANT: Driver wattage MUST match selected fixture wattage. (example: 12W Light Source = 12W Driver)"
