Universal Power Module PM2 - Camlock Mount - Rectangular - Remote Transformer - Aluminum
Downloads
Configure
Date:
Project:
Type:
IMPORTANT: Transformer wattage MUST be calculated based on the total load of the luminaires it will support.
Catalog Number Logic
PM2-CT-TR-RM-AL-___-___
- Technical
- Transformers
- Finishes
Body: Furnished in copper-free aluminum (6061-T6).
Material Detail: Furnished in copper-free aluminum (6061-T6).

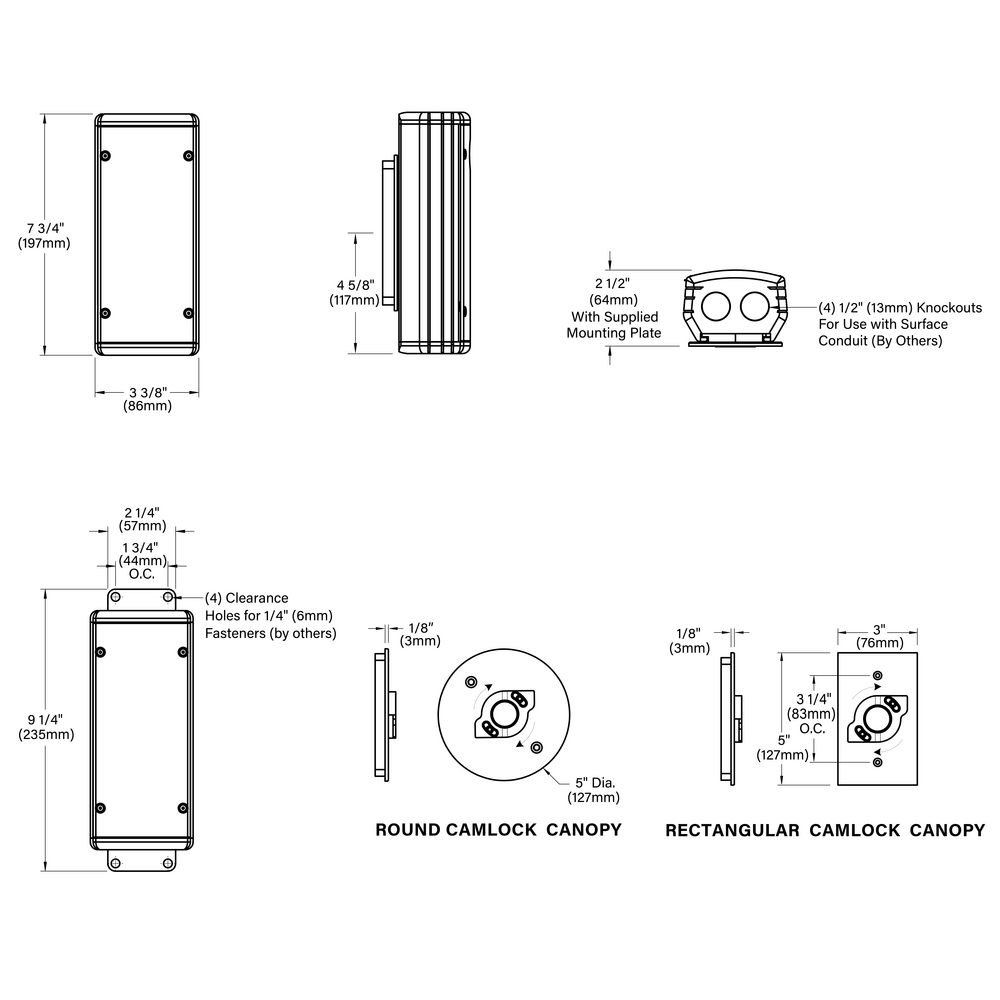

Installation: 5” x 3" canopy. For use with single gang junction box. Integral Camlock provides additional 30° adjustment for precision alignment of UPM regardless of junction box orientation.
Finish: Standard Finishes, Premium Finishes, Other - RAL, Other - Custom Color
Finish Detail: StarGuard, our 15-stage chromate-free process, cleans and conversion coats aluminum components prior to application of Class ‘A’ TGIC polyester powder coating. It is RoHS compliant.
Warranty: 5-year limited warranty.
Certification: RoHS compliant components., UL tested to IESNA LM-79. UL Listed. Certified to CAN/CSA/ANSI Standards.
Control
Max Load (W)
Input Voltage
Power Factor
THD (%)
Operation Ambient Temperature
Output Current
Circuit Breaker
Min Load (W)
NON
20
90
-30°C to 90°C
15VDC +/-5%
1
ELV
60
120V
95
-30°C to 90°C
12VAC
0
NON
60
277V
95
13
40°C
12VDC
0
STANDARD FINISHES
PREMIUM FINISHES
[CMG]
Cascade Mountain Granite
Cascade Mountain Granite
[SMG]
Sierra Mountain Granite
Sierra Mountain Granite
[RMG]
Rocky Mountain Granite
Rocky Mountain Granite
[AMG]
Aleutian Mountain Granite
Aleutian Mountain Granite
[TXF]
Textured Forest
Textured Forest
[BCM]
Black Chrome
Black Chrome
[BGE]
Beige
Beige
[WCP]
Weathered Copper
Weathered Copper
[OCP]
Old Copper
Old Copper
[HUG]
Hunter Green
Hunter Green
[ABP]
Antique Brass Powder
Antique Brass Powder
[BPP]
Brown Patina Powder
Brown Patina Powder
[SDS]
Sonoran Desert Sandstone
Sonoran Desert Sandstone
[WIR]
Weathered Iron
Weathered Iron
[CAP]
Clear Anodized Powder
Clear Anodized Powder
[CRM]
Cream
Cream
[AQW]
Antique White
Antique White
[NBP]
Natural Brass Powder
Natural Brass Powder
