    IMPORTANT: Driver wattage MUST match selected fixture wattage. (example: 12W Light Source = 12W Driver)"
    Catalog Number Logic

    PM2-SM-DR-RM-AL-___-___



    Power Supply
    [LCB-10W-MT-010]
    LCB - 10W - 120V,277V - 0-10V
    [LCB-10W-MT-ELV]
    LCB - 10W - 120V,277V - ELV Dimming (120V dimming only)
    [LCB-10W-MT-INC]
    LCB - 10W - 120V,277V - INC Dimming (120V dimming only)
    [LCB-12W-MT-010]
    LCB - 12W - 120V,277V - 0-10V
    [LCB-12W-MT-ELV]
    LCB - 12W - 120V,277V - ELV Dimming (120V dimming only)
    [LCB-12W-MT-INC]
    LCB - 12W - 120V,277V - INC Dimming (120V dimming only)
    [LCB-20W-MT-010]
    LCB - 20W - 120V,277V - 0-10V
    [LCB-20W-MT-ELV]
    LCB - 20W - 120V,277V - ELV Dimming (120V dimming only)
    [LCB-20W-MT-INC]
    LCB - 20W - 120V,277V - INC Dimming (120V dimming only)
    [LCB-27W-MT-010]
    LCB - 27W - 120V,277V - 0-10V
    [LCB-27W-MT-ELV]
    LCB - 27W - 120V,277V - ELV Dimming (120V dimming only)
    [LCB-27W-MT-INC]
    LCB - 27W - 120V,277V - INC Dimming (120V dimming only)
    Finishes
    STANDARD FINISHES
    [BLP]
    Satin Black
    [BZP]
    Satin Bronze
    [WHP]
    Satin White
    [SAP]
    Satin Aluminum
    [BLW]
    Black Wrinkle
    [BZW]
    Bronze Wrinkle
    [WHW]
    White Wrinkle
    [VER]
    Verde
    PREMIUM FINISHES
    [CMG]
    Cascade Mountain Granite
    [SMG]
    Sierra Mountain Granite
    [RMG]
    Rocky Mountain Granite
    [AMG]
    Aleutian Mountain Granite
    [TXF]
    Textured Forest
    [BCM]
    Black Chrome
    [BGE]
    Beige
    [WCP]
    Weathered Copper
    [OCP]
    Old Copper
    [HUG]
    Hunter Green
    [ABP]
    Antique Brass Powder
    [BPP]
    Brown Patina Powder
    [SDS]
    Sonoran Desert Sandstone
    [WIR]
    Weathered Iron
    [CAP]
    Clear Anodized Powder
    [CRM]
    Cream
    [AQW]
    Antique White
    [NBP]
    Natural Brass Powder
    OTHER - RAL
    [RAL]
    RAL Color
    OTHER - CUSTOM COLOR
    [CUS]
    Custom Color
    • Technical
    • Driver
    • Finishes
    Body: Furnished in copper-free aluminum (6061-T6).
    Material Detail: Furnished in copper-free aluminum (6061-T6).

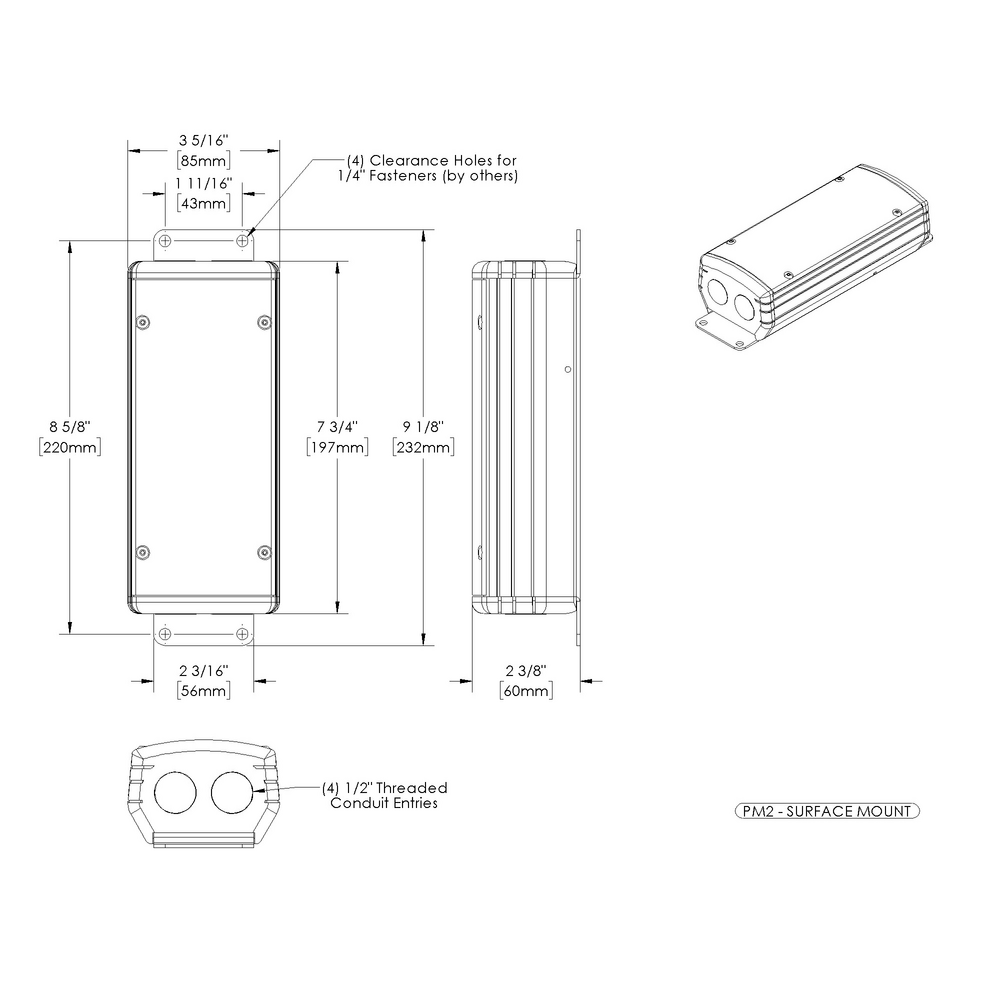

    Installation: For use with side entry, surface conduits. Mounting brackets to anchor to architectural surface. Stainless steel cable with integral loop allows cover to suspend from housing during installation to simplify wire connection and component attachment.
    Finish: Standard Finishes, Premium Finishes, Other - RAL, Other - Custom Color
    Note: Drivers are fixture specific. Driver wattage should match fixture wattage. For questions about driver selection, please contact the factory.
    Finish Detail: StarGuard, our 15-stage chromate-free process, cleans and conversion coats aluminum components prior to application of Class ‘A’ TGIC polyester powder coating. It is RoHS compliant.
    Warranty: 5-year limited warranty.
    Certification: RoHS compliant components., UL tested to IESNA LM-79. UL Listed. Certified to CAN/CSA/ANSI Standards.
    Control
    Input Voltage
    Power Factor
    THD (%)
    Operation Ambient Temperature
    InRush Current
    Output Current
    Output Power (Max-W)
    Output Voltage (Range)
    Dimming (Range)
    ELV
    120V
    0
    0
    350mA
    15
    21-32Vdc
    1-100%
    INC
    120V
    0
    0
    350mA
    15
    21-32Vdc
    1-100%
    010
    120V,277V
    0.9
    <20%
    90°C
    700mA
    30
    010
    120V,277V
    >0.9
    <20
    -30°C to 90°C
    250mA-1100mA
    29.4
    14-56v
    1-100%
    NON
    120V,277V
    >0.9
    <20
    -30°C to 90°C
    250mA-1100mA
    29.4
    14-56v
    1-100%
    ELV
    120V
    0.9
    <20%
    700mA
    30
    ELV
    120V
    0.9
    <20%
    700mA
    30
    010
    120V,277V
    0
    0
    350mA
    15
    21-32Vdc
    1-100%
    NON
    120V,277V
    0
    0
    350mA
    15
    21-32Vdc
    1-100%
    INC
    120V,277V
    010
    120V,277V
    0.9
    <20%
    INC
    120V
    1000
    1000
    1000
    700mA
    21
    20-30Vdc
    1-100%
