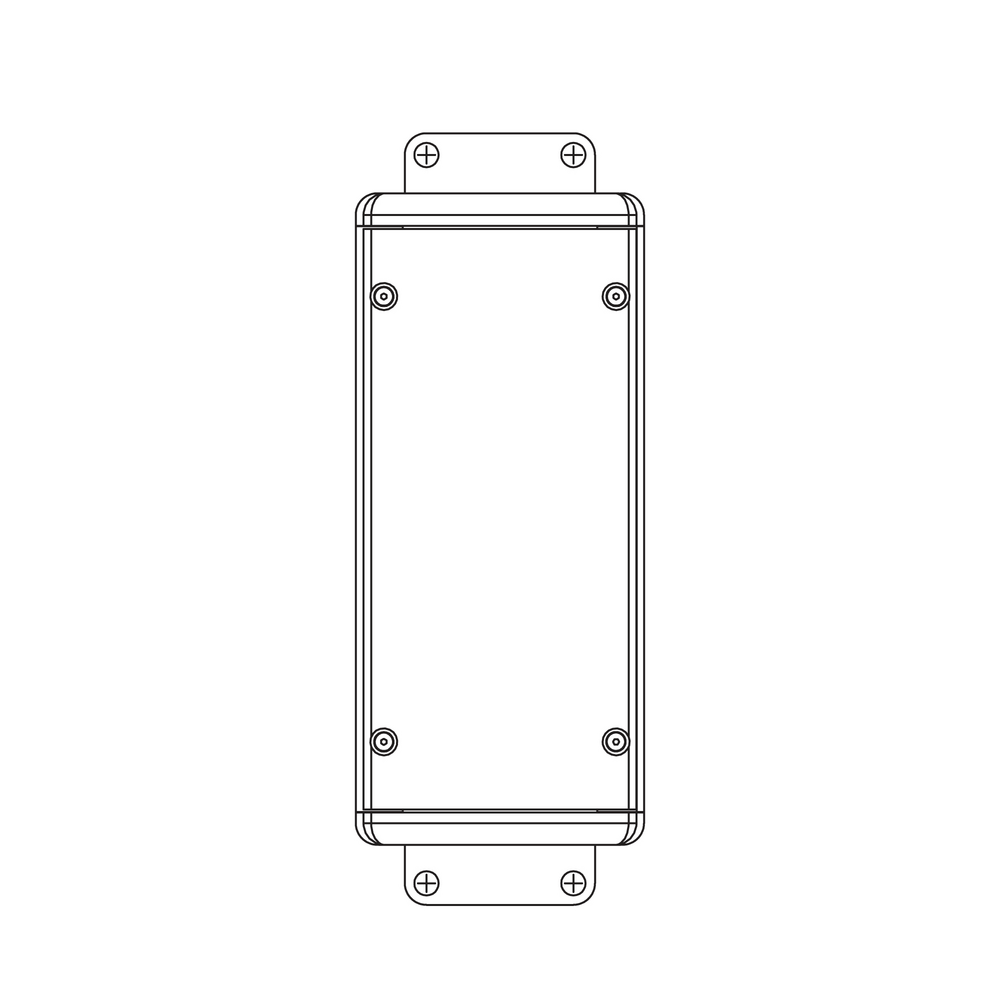

Universal Power Module PM2 - Surface Mount - Remote Transformer - Aluminum
Downloads
Configure
Date:
Project:
Type:
IMPORTANT: Transformer wattage MUST be calculated based on the total load of the luminaires it will support.
Catalog Number Logic
PM2-SM-TR-RM-AL-___-___
- Technical
- Transformers
- Finishes
Body: Furnished in copper-free aluminum (6061-T6).
Material Detail: Furnished in copper-free aluminum (6061-T6).
Installation: For use with side entry, surface conduits. Mounting brackets to anchor to architectural surface. Stainless steel cable with integral loop allows cover to suspend from housing during installation to simplify wire connection and component attachment.
Finish: Standard Finishes, Premium Finishes, Other - RAL, Other - Custom Color
Finish Detail: StarGuard, our 15-stage chromate-free process, cleans and conversion coats aluminum components prior to application of Class ‘A’ TGIC polyester powder coating. It is RoHS compliant.
Warranty: 5-year limited warranty.
Certification: RoHS compliant components., UL tested to IESNA LM-79. UL Listed. Certified to CAN/CSA/ANSI Standards.
Control
Max Load (W)
Input Voltage
Power Factor
THD (%)
Operation Ambient Temperature
Output Current
Circuit Breaker
Min Load (W)
NON
20
90
-30°C to 90°C
15VDC +/-5%
1
ELV
60
120V
95
-30°C to 90°C
12VAC
0
NON
60
277V
95
13
40°C
12VDC
0
STANDARD FINISHES
PREMIUM FINISHES
[CMG]
Cascade Mountain Granite
Cascade Mountain Granite
[SMG]
Sierra Mountain Granite
Sierra Mountain Granite
[RMG]
Rocky Mountain Granite
Rocky Mountain Granite
[AMG]
Aleutian Mountain Granite
Aleutian Mountain Granite
[TXF]
Textured Forest
Textured Forest
[BCM]
Black Chrome
Black Chrome
[BGE]
Beige
Beige
[WCP]
Weathered Copper
Weathered Copper
[OCP]
Old Copper
Old Copper
[HUG]
Hunter Green
Hunter Green
[ABP]
Antique Brass Powder
Antique Brass Powder
[BPP]
Brown Patina Powder
Brown Patina Powder
[SDS]
Sonoran Desert Sandstone
Sonoran Desert Sandstone
[WIR]
Weathered Iron
Weathered Iron
[CAP]
Clear Anodized Powder
Clear Anodized Powder
[CRM]
Cream
Cream
[AQW]
Antique White
Antique White
[NBP]
Natural Brass Powder
Natural Brass Powder
