Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Remote Two Drivers - Aluminum
Downloads
Configure
Date:
Project:
Type:
IMPORTANT: Driver wattage MUST match selected fixture wattage. (example: 12W Light Source = 12W Driver)"
Catalog Number Logic
PM2-TS-24-MB-DRT-RM-AL-___-___
- Technical
- Driver
- Finishes
Body: Furnished in copper-free aluminum (6061-T6).
Material Detail: Furnished in copper-free aluminum (6061-T6).

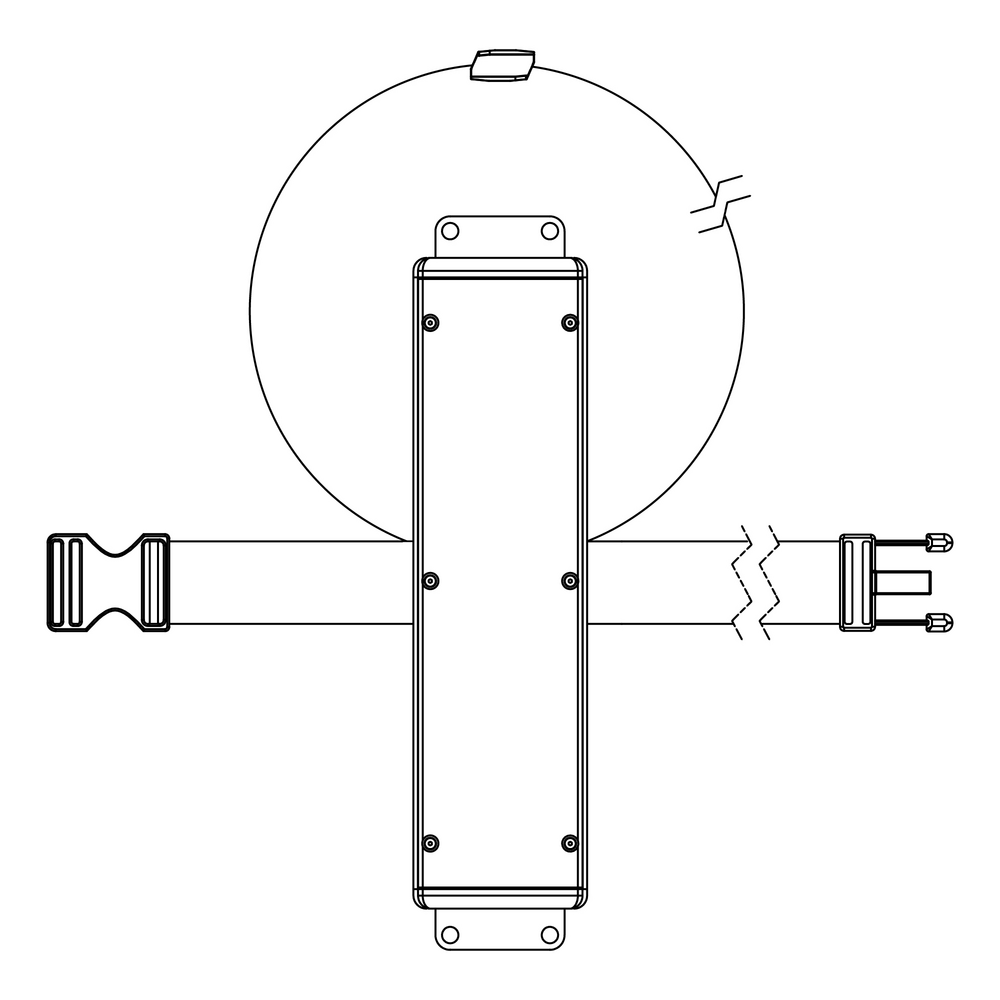

Installation: Tree Strap mounting system facilitates non-invasive installation. Adjustable nylon strap is mold and mildew resistant and will not hinder tree growth. Stainless steel safety cable maintains UPM mounting when nylon strap is disengaged.
Finish: Standard Finishes, Premium Finishes, Other - RAL, Other - Custom Color
Note: Drivers are fixture specific. Driver wattage should match fixture wattage. For questions about driver selection, please contact the factory.
Finish Detail: StarGuard, our 15-stage chromate-free process, cleans and conversion coats aluminum components prior to application of Class ‘A’ TGIC polyester powder coating. It is RoHS compliant.
Warranty: 5-year limited warranty.
Certification: RoHS compliant components., UL tested to IESNA LM-79. UL Listed. Certified to CAN/CSA/ANSI Standards.
Control
Input Voltage
Power Factor
THD (%)
Operation Ambient Temperature
InRush Current
Output Current
Output Power (Max-W)
Output Voltage (Range)
Dimming (Range)
010
120V,277V
>0.9
<20
-30°C to 90°C
250mA-1100mA
29.4
14-56v
1-100%
NON
120V,277V
>0.9
<20
-30°C to 90°C
250mA-1100mA
29.4
14-56v
1-100%
ELV
120V
0.9
<20%
700mA
30
ELV
120V
0.9
<20%
700mA
30
010
120V,277V
0.9
<20%
ELV
120V
0
0
350mA
15
21-32Vdc
1-100%
INC
120V
0
0
350mA
15
21-32Vdc
1-100%
010
120V,277V
0
0
350mA
15
21-32Vdc
1-100%
NON
120V,277V
0
0
350mA
15
21-32Vdc
1-100%
INC
120V
1000
1000
1000
700mA
21
20-30Vdc
1-100%
INC
120V,277V
010
120V,277V
0.9
<20%
90°C
700mA
30
STANDARD FINISHES
PREMIUM FINISHES
[CMG]
Cascade Mountain Granite
Cascade Mountain Granite
[SMG]
Sierra Mountain Granite
Sierra Mountain Granite
[RMG]
Rocky Mountain Granite
Rocky Mountain Granite
[AMG]
Aleutian Mountain Granite
Aleutian Mountain Granite
[TXF]
Textured Forest
Textured Forest
[BCM]
Black Chrome
Black Chrome
[BGE]
Beige
Beige
[WCP]
Weathered Copper
Weathered Copper
[OCP]
Old Copper
Old Copper
[HUG]
Hunter Green
Hunter Green
[ABP]
Antique Brass Powder
Antique Brass Powder
[BPP]
Brown Patina Powder
Brown Patina Powder
[SDS]
Sonoran Desert Sandstone
Sonoran Desert Sandstone
[WIR]
Weathered Iron
Weathered Iron
[CAP]
Clear Anodized Powder
Clear Anodized Powder
[CRM]
Cream
Cream
[AQW]
Antique White
Antique White
[NBP]
Natural Brass Powder
Natural Brass Powder
OTHER - RAL
OTHER - CUSTOM COLOR
IMPORTANT: Driver wattage MUST match selected fixture wattage. (example: 12W Light Source = 12W Driver)"
