Power Pipe PP1 - 18" Junction Box - Remote Transformer - Stainless Steel
(formerly Power Pipe / PP with TRSS75 or TRe20)
Downloads
Configure
Date:
Project:
Type:
IMPORTANT: Transformer wattage MUST be calculated based on the total load of the luminaires it will support.
Catalog Number Logic
PP1-J18-TR-RM-SS-___-
- Technical
- Transformers
- Finishes

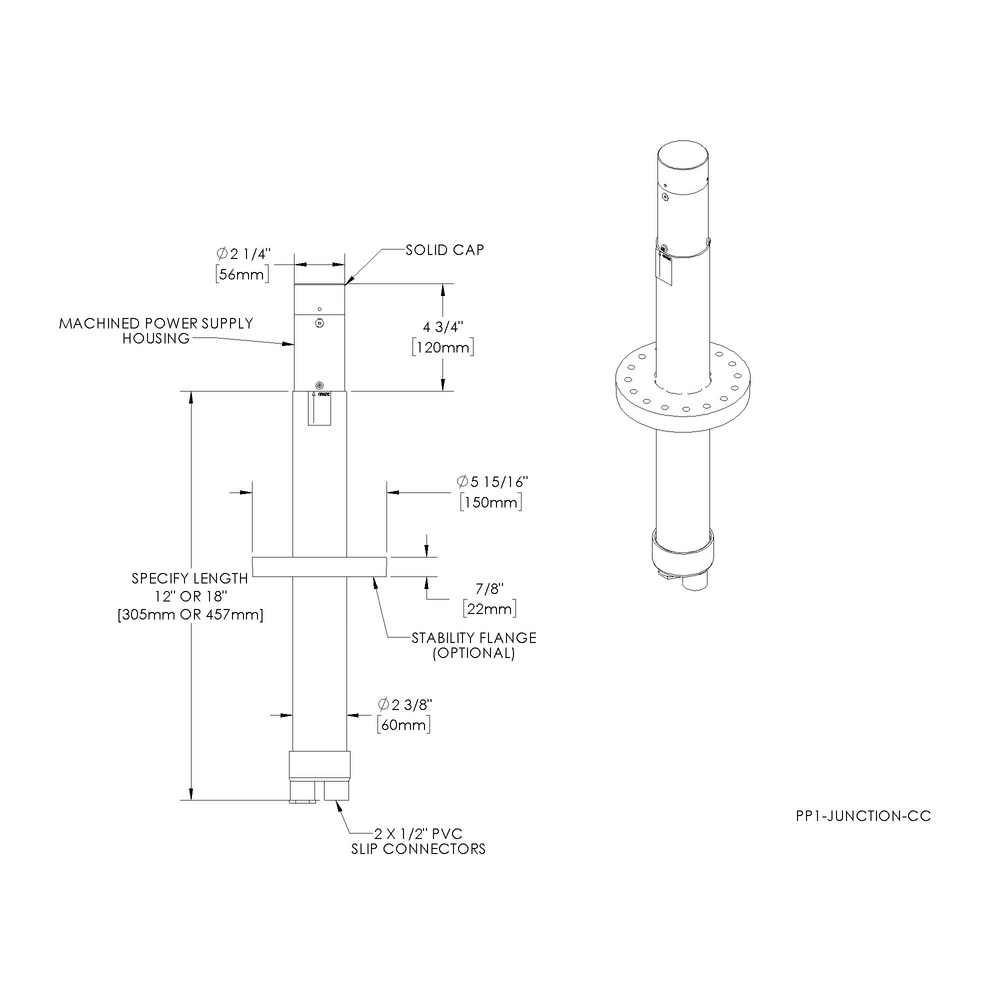

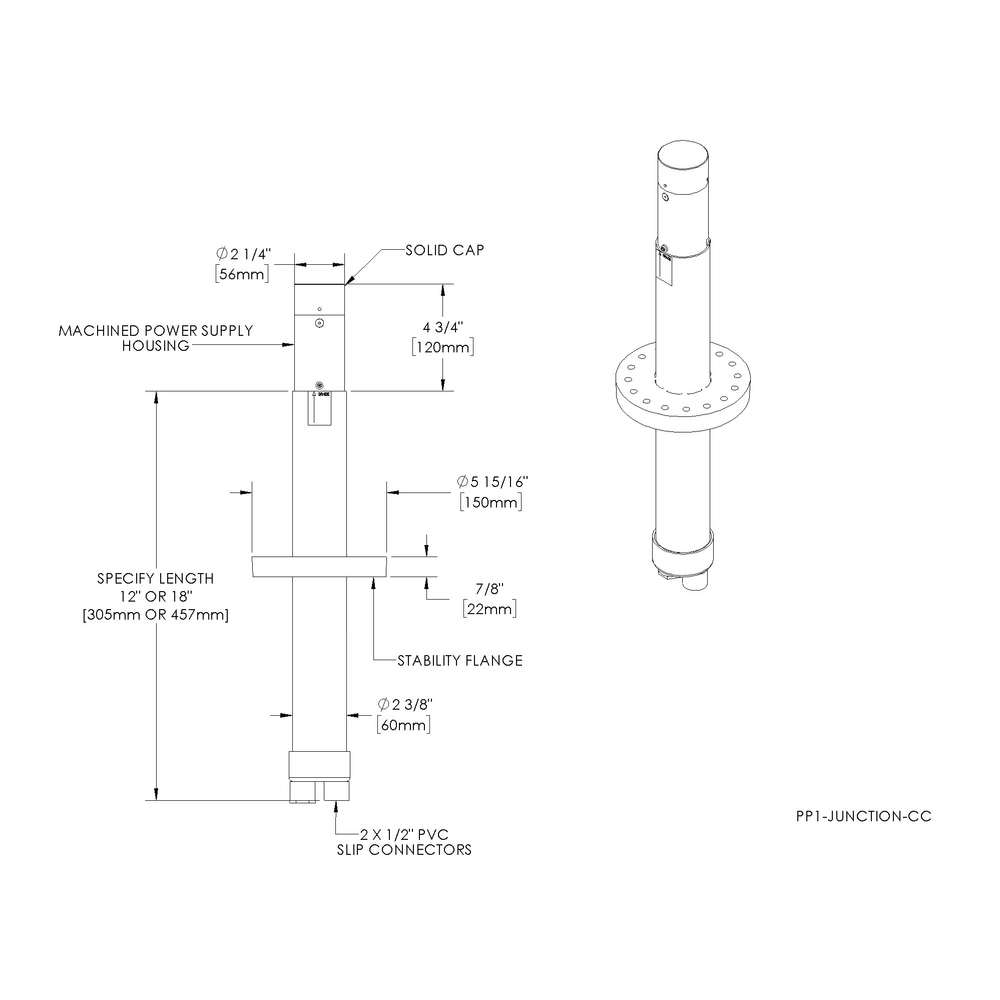

Body: Machined cap and power supply housing. Stainless steel hardware. High temperature, silicone ‘O’ Ring provides watertight seal.
Material Detail: Furnished in stainless steel (304).
Installation: Stability Flange included., 2” Schedule 80 PVC pipe. For direct burial in soil or concrete. Includes two (2) 1/2” PVC slip connectors for branch circuit wiring.
Finish: Stainless Steel Finishes
Finish Detail: Metal finish option only for stainless steel material.
Warranty: 5-year limited warranty.
Certification: RoHS compliant components., UL tested to IESNA LM-79. UL Listed. Certified to CAN/CSA/ANSI Standards.
Control
Max Load (W)
Input Voltage
Power Factor
THD (%)
Operation Ambient Temperature
Output Current
Circuit Breaker
Min Load (W)
NON
20
90
-30°C to 90°C
15VDC +/-5%
1
ELV
60
120V
95
-30°C to 90°C
12VAC
0
NON
60
277V
95
13
40°C
12VDC
0
