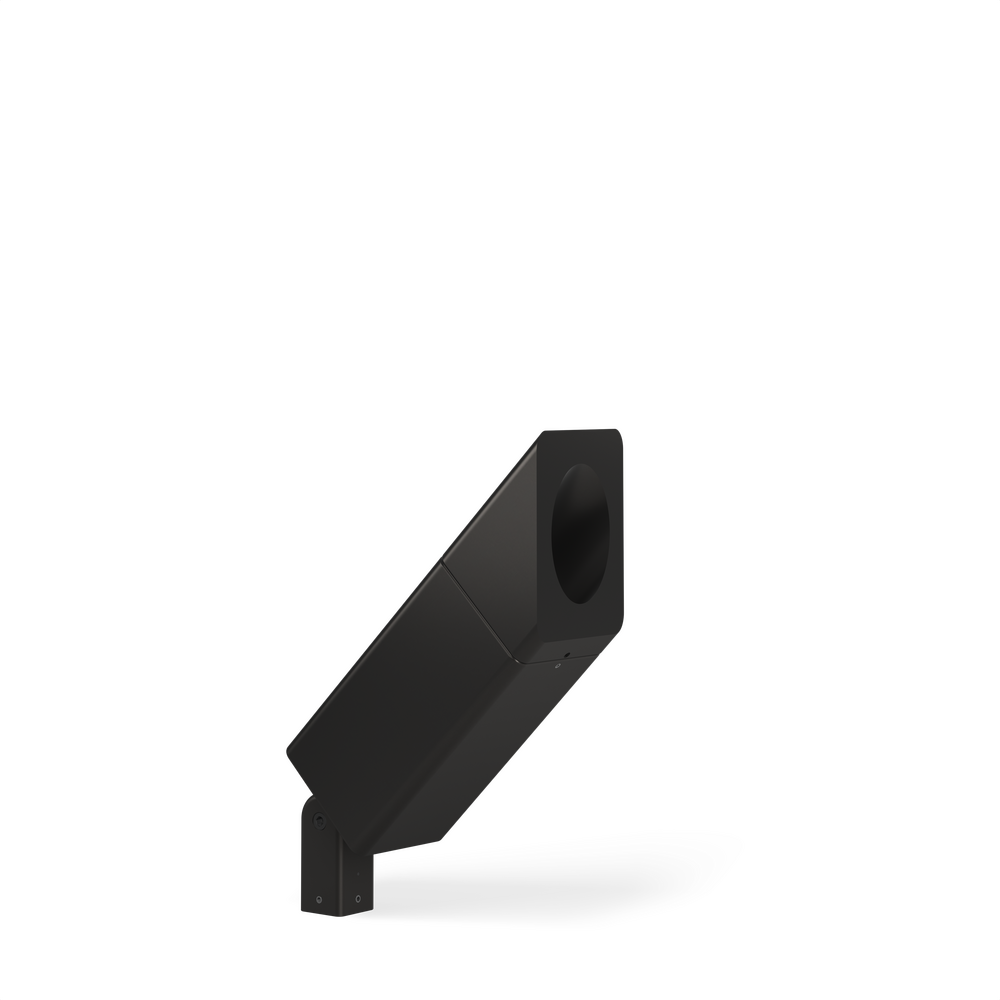

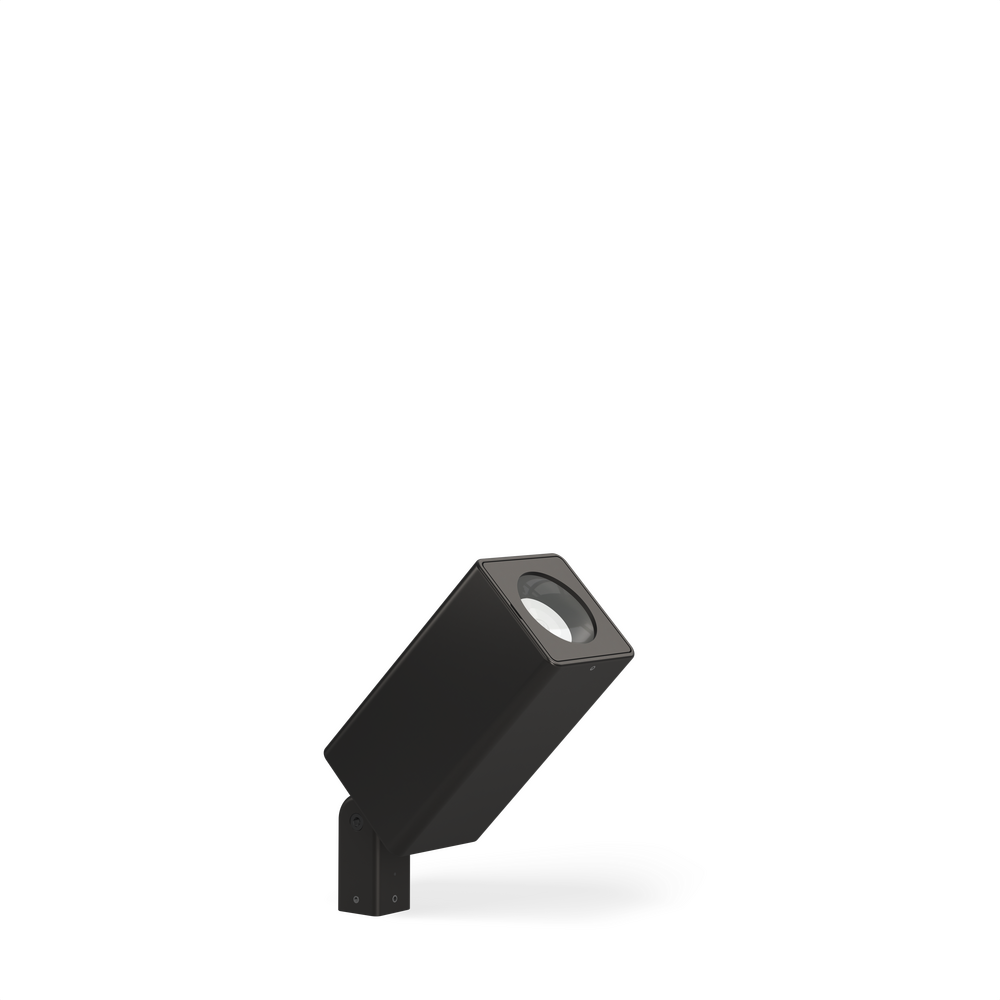

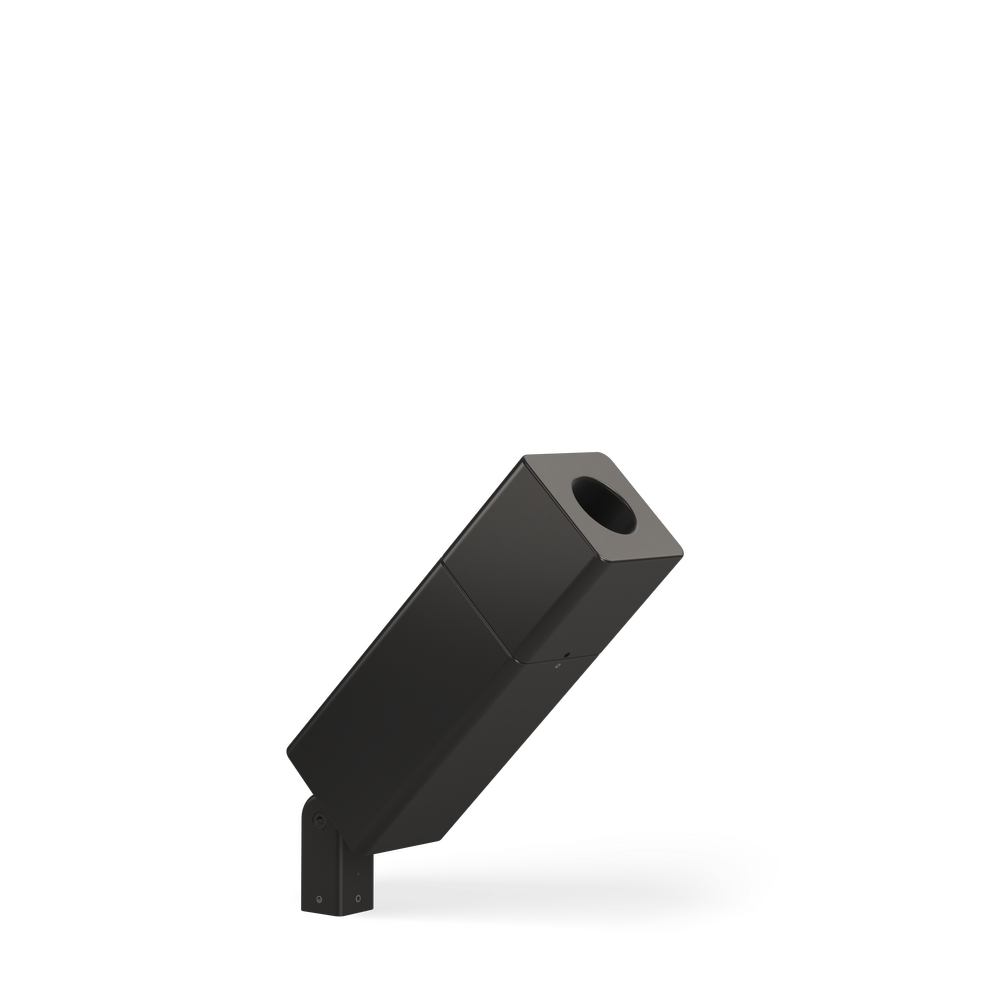

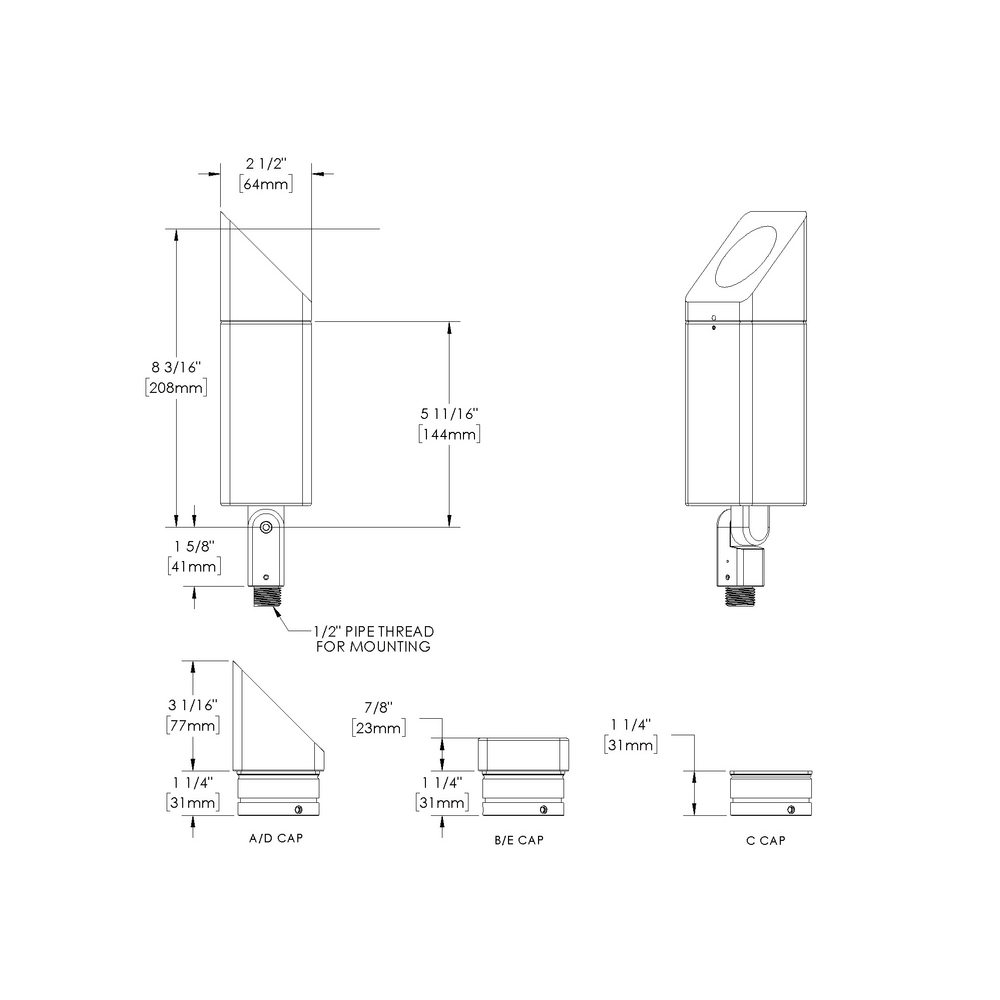

RIO - Floodlight - Line Voltage - Laser - Square
(formerly Square Rio LAZR / SQ-RI-LZR)
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
RI-
01
FL-
02
LID-
03
LZR-
04
AL-
05
SQ-
06A
TKM-
06B
___-
06C
Z1-
07
___-
08
___-
10A
___-
10B
___-
11
___-
12
TE-
13
Click options to build your configurationCompleting the first column to render configured product images below
- Light Source
- Technical
- Finishes
- Options
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
Z1
VNSP - Very Narrow Spot
4
6000
70
14.5
288
14386
1500
10000
Z1
VNSP2 - Very Narrow Spot
5
6000
70
14.5
278
10527
1500
10000
Z1
VNSP3 - Very Narrow Spot
8
6000
70
14.5
277
5019
1500
10000
Features
Anti-condensation vent allows moisture to exit the fixture but never enter in
First and only floodlight to incorporate a true laser diode source
Lens factory adhered to fixture cap providing hermetically sealed optical compartment
Manufactured in the USA with sustainable processes
Aim & Lock knuckle eliminates need for re-aiming & adjustments
Water-tight anti-siphon plug prevents moisture ingress from wireways
Easily replaceable modular components reduce waste and extend fixture life
Slip fit cap & high temp. silicone 'O' ring provides reliable water-tight seal
Solid billet fixture body provides unmatched durability and heat management
Integrated knuckle design provides 360° horizontal rotation and vertical adjustment
Technical
Mountings & Power Supplies
NOTE: Ordered separately. Configure fixture first to guarantee compatibility.- Mountings
Universal Power Module
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Single - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Single - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Single - Offset - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Single - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Single - Offset - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Single - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Single - Offset - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Single - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Single - Offset - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Single - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Single - Offset - Aluminum
4" to 22" tree/branch diameter
Canopy
Canopy BC10 - Aluminum
3" x 5" Rectangular
Canopy BC11 - Aluminum
2 7/8" x 4 5/8" Rectangular
Canopy BC6 - Aluminum
5" Round Machined
Canopy BC1 - Aluminum
2 7/8" x 4 5/8" Rectangular
Canopy BC2 - Aluminum
2 7/8" x 4 5/8" Rectangular
Canopy BC3 - Aluminum
2 3/4" x 4 1/2" Rectangular
Canopy BC4 - Aluminum
4 1/8" Round
Canopy BC5 - Aluminum
4 1/8" Round
Canopy BC15 - Aluminum
6" Round, Dual Mount
