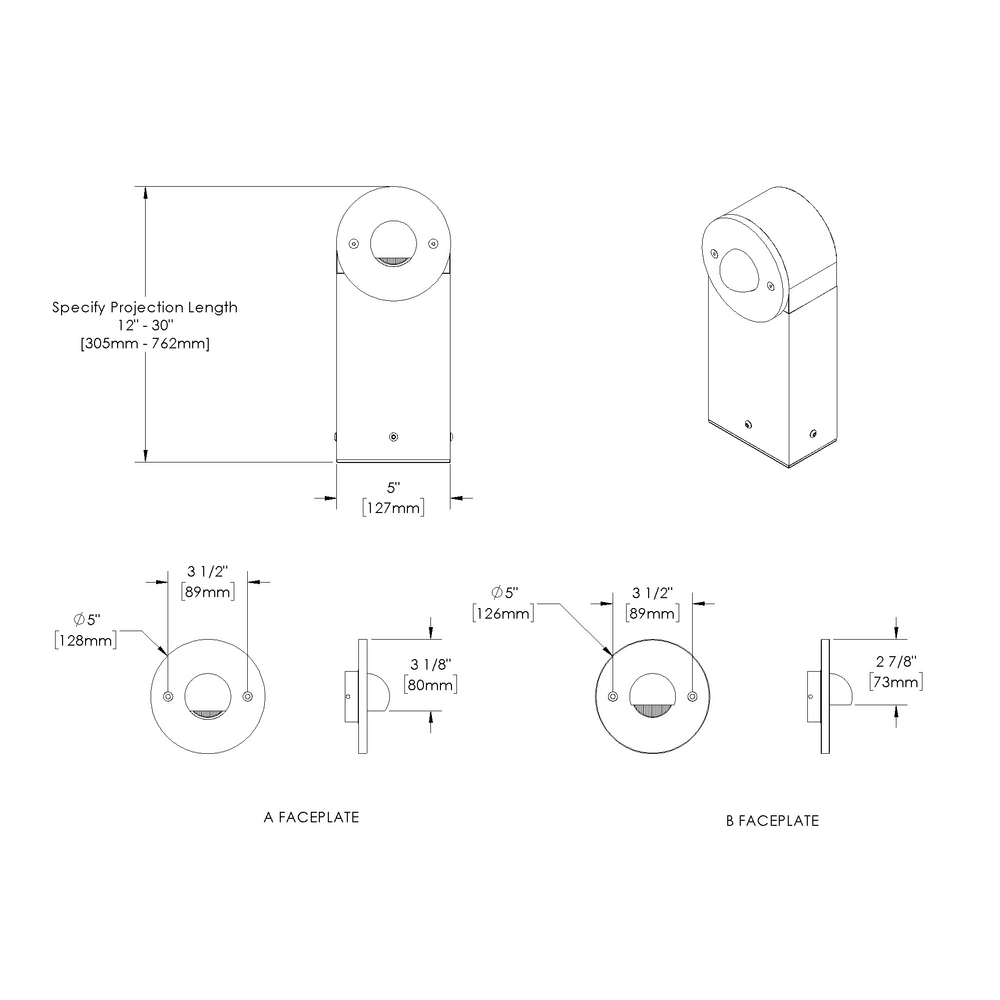

STEP STAR - Bollard - Line Voltage Via Transformer - Lamp MR16 Gu5.3 - Faceplate: Standard
(formerly Path Star MR16 / PS-MR | Bollard Star MR16 / BS-MR)




Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
SS-
01
BO-
02
LIT-
03
LAM16-
04
AL-
05
RO-
06A
___-
06B
___-
06C
___-
06E
___-
06F
___-
07
ELV-
09
13-
10A
00-
10B
WL00-
11
___-
12
Click options to build your configurationCompleting the first column to render configured product images below

01 SERIES
02 CATEGORY
03 DRIVER
04 LIGHT SOURCE (TYPE)
05 MATERIAL
06A SHAPE
06B MOUNT
06C STYLE
06E INPUT VOLTAGE
06F SIZE
07 LIGHT SOURCE
09 CONTROL
10A LENS
10B SHIELDING
11 WIRING LENGTH
12 FINISH
Standard Finishes
, , , , , , , Premium Finishes
, , , , , , , , , , , , , , , , , Other - RAL
Other - Custom Color
- Light Source
- Technical
- Transformers
- Finishes
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
359
NSP - Narrow Spot
10
2700
90
7.5
8000
35000
361
NFL - Narrow Flood
25
2700
90
7.5
3170
35000
362
MFL - Medium Flood
36
2700
90
7.5
1550
35000
363
NSP - Narrow Spot
10
3000
90
7.5
8400
35000
365
NFL - Narrow Flood
25
3000
90
7.5
3300
35000
366
MFL - Medium Flood
36
3000
90
7.5
1650
35000
Features

Internal optics with adjustable aim

Lens factory adhered to fixture cap providing hermetically sealed optical compartment

Secured with flush, countersunk tamper resistant hardware

Machined solid billet faceplate provides unmatched strength and durability

Manufactured in the USA with sustainable processes

Water-tight anti-siphon plug prevents moisture ingress from wireways

Easily replaceable modular components reduce waste and extend fixture life
