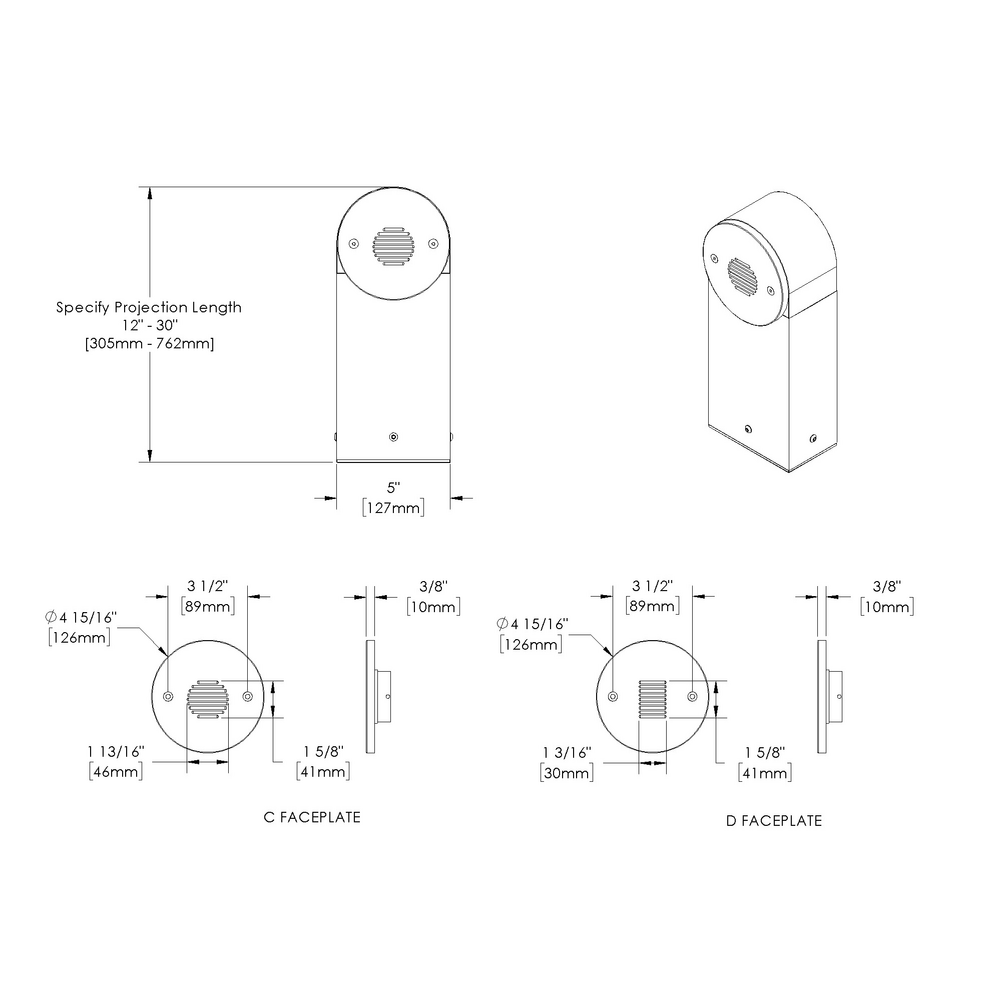

STEP STAR - Bollard - Line Voltage Via Transformer - LED High-Power - Faceplate: Louvered
(formerly Louvered Path Star LED / PSL-LED | Louvered Bollard Star LED / BSL-LED)
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
SS-
01
BO-
02
LIT-
03
LHP-
04
AL-
05
RO-
06A
___-
06B
FLDC-
06C
___-
06E
___-
06F
___-
07
___-
09
WL00-
11
___-
12
Click options to build your configurationCompleting the first column to render configured product images below
- Light Source
- Technical
- Transformers
- Finishes
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
e100
-
30
2700
80
5
59
500
50000
e101
-
30
3000
80
5
60
500
50000
e103
-
30
Amber
5
500
50000
e104
-
30
2700
90
5
500
50000
e105
-
30
3000
90
5
500
50000
e106
-
30
3500
80
5
500
50000
Features
Internal optics with adjustable aim
Lens factory adhered to fixture cap providing hermetically sealed optical compartment
Secured with flush, countersunk tamper resistant hardware
Machined solid billet faceplate provides unmatched strength and durability
Manufactured in the USA with sustainable processes
Water-tight anti-siphon plug prevents moisture ingress from wireways
Easily replaceable modular components reduce waste and extend fixture life
