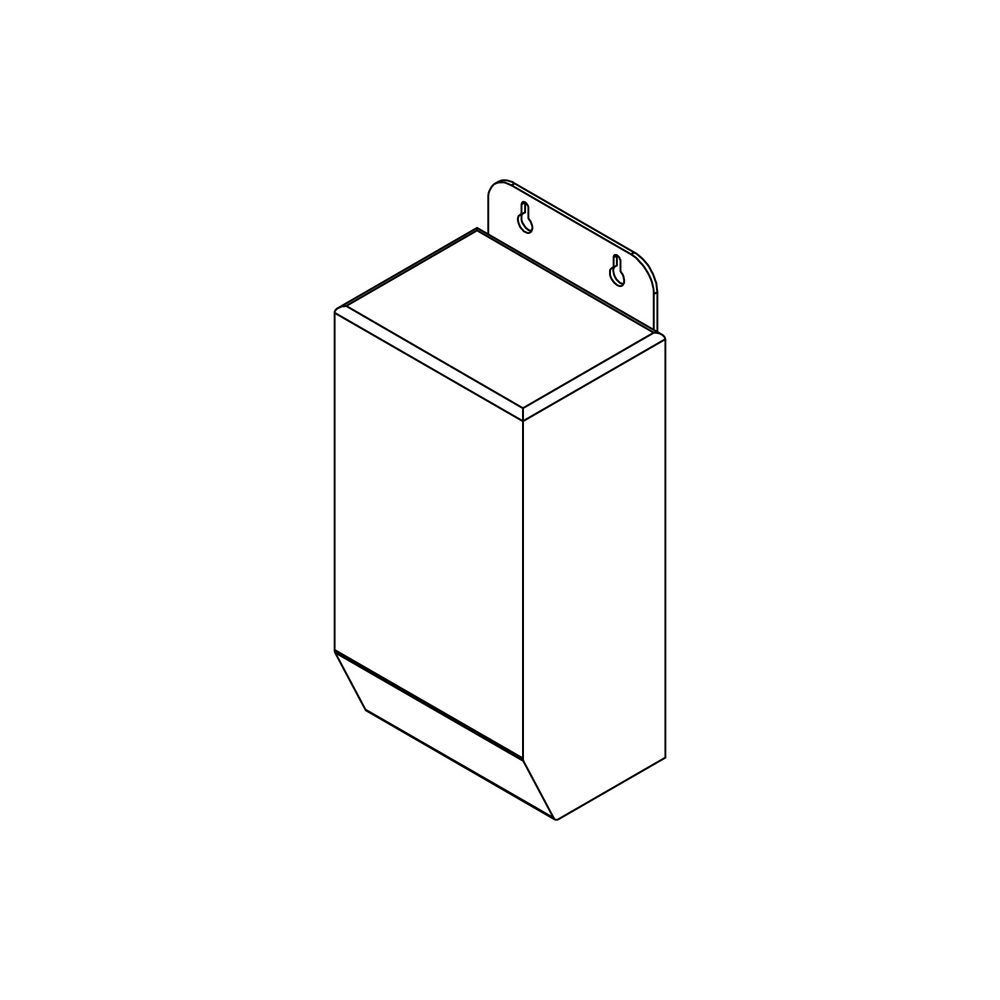

Magnetic Transformer 300W
Configure
Date:
Project:
Type:
IMPORTANT: Transformer wattage MUST be calculated based on the total load of the luminaires it will support.
Catalog Number Logic
TR300-___
- Technical
- Transformers

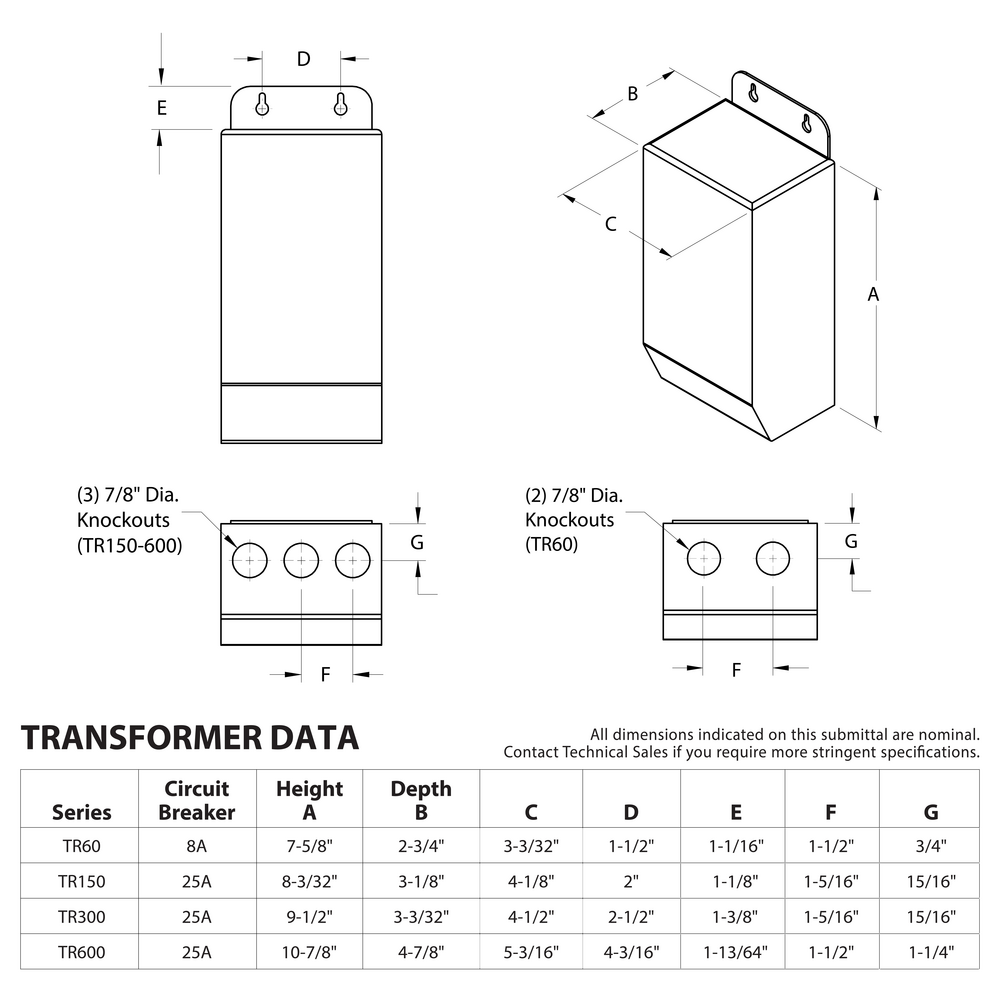

Body: NEMA Outdoor 3R rated enclosure. [2] (TR60) or [3] (TR150-600) bottom entry 7/8” knockouts provide access to wiring compartment. Riveted, hinged cover opens vertically from bottom to top for service access.
Material Detail: Furnished in stainless steel (304).
Installation: Surface mount via mounting bracket. Mounting hardware not included.
Warranty: 5-year limited warranty.
Certification: UL tested to IESNA LM-79. UL Listed. Certified to CAN/CSA/ANSI Standards.
Control
Max Load (W)
Input Voltage
Power Factor
THD (%)
Operation Ambient Temperature
Output Current
Circuit Breaker
Min Load (W)
MLV
300
120V
-30°C to 105°C
12Vac
MLV
300
277V
-30°C to 105°C
12Vac
