    • TRe20 Electronic Transformer for LED - Aluminum

    Award Image
    Downloads
    Page Navigation
    IMPORTANT: Transformer wattage MUST be calculated based on the total load of the luminaires it will support.
    Catalog Number Logic

    TRe20-AL-MT-NON



    Power Supply
    [MT-NON]
    120V,277V - Non-dimming
    • Technical
    • Transformers

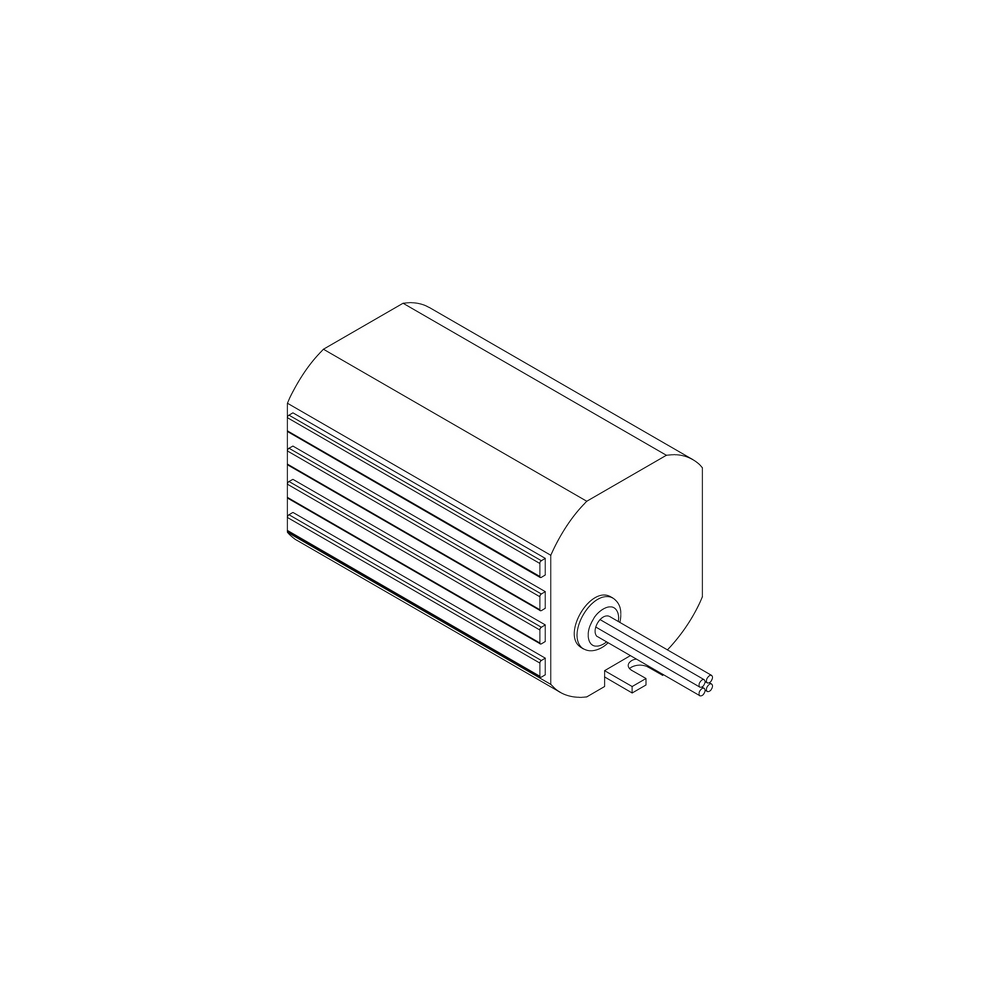

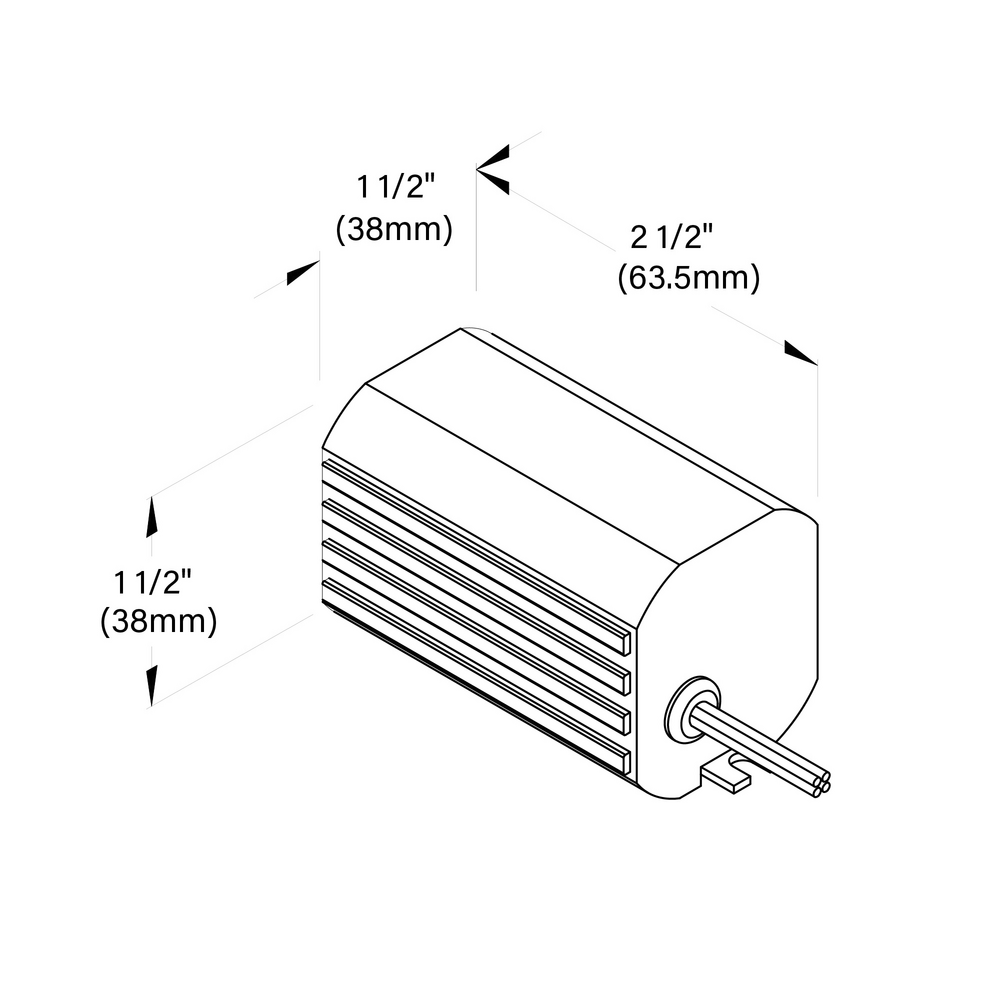

    Body: Fully encapsulated, extruded aluminum casing with black anodized finish. Class ‘A’ sound rating. Captive retractable mounting feet for mechanical attachment.
    Installation: Suitable for use in ambient temperatures ranging from -10F to 130F. Not to exceed 15' overall wiring distance using 12 gauge stranded copper wire. Suitable for installation into 4” Octagonal junction box with extension ring or larger fill size.
    Warranty: 5-year limited warranty.
    Certification: UL tested to IESNA LM-79. UL Listed. Certified to CAN/CSA/ANSI Standards.
    Control
    Max Load (W)
    Input Voltage
    Power Factor
    THD (%)
    Operation Ambient Temperature
    Output Current
    Circuit Breaker
    Min Load (W)
    NON
    20
    90
    -30°C to 90°C
    15VDC +/-5%
    1
