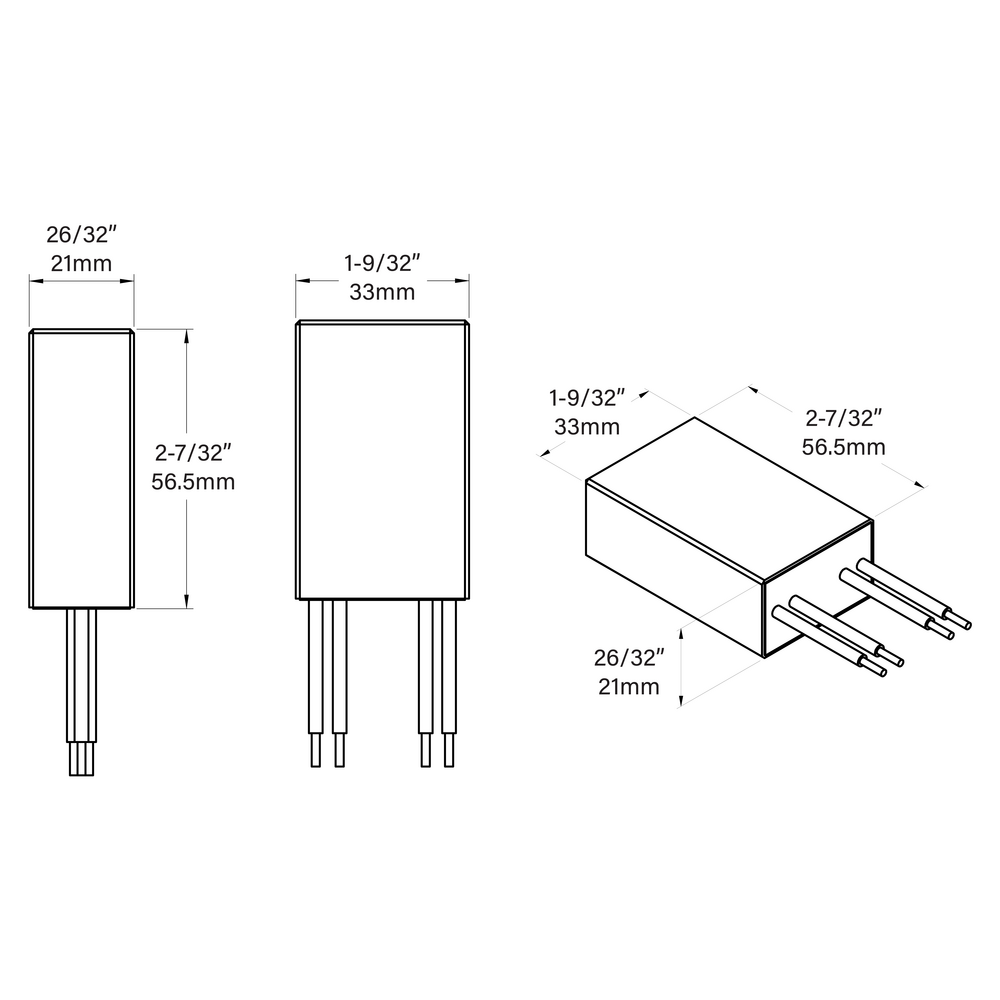

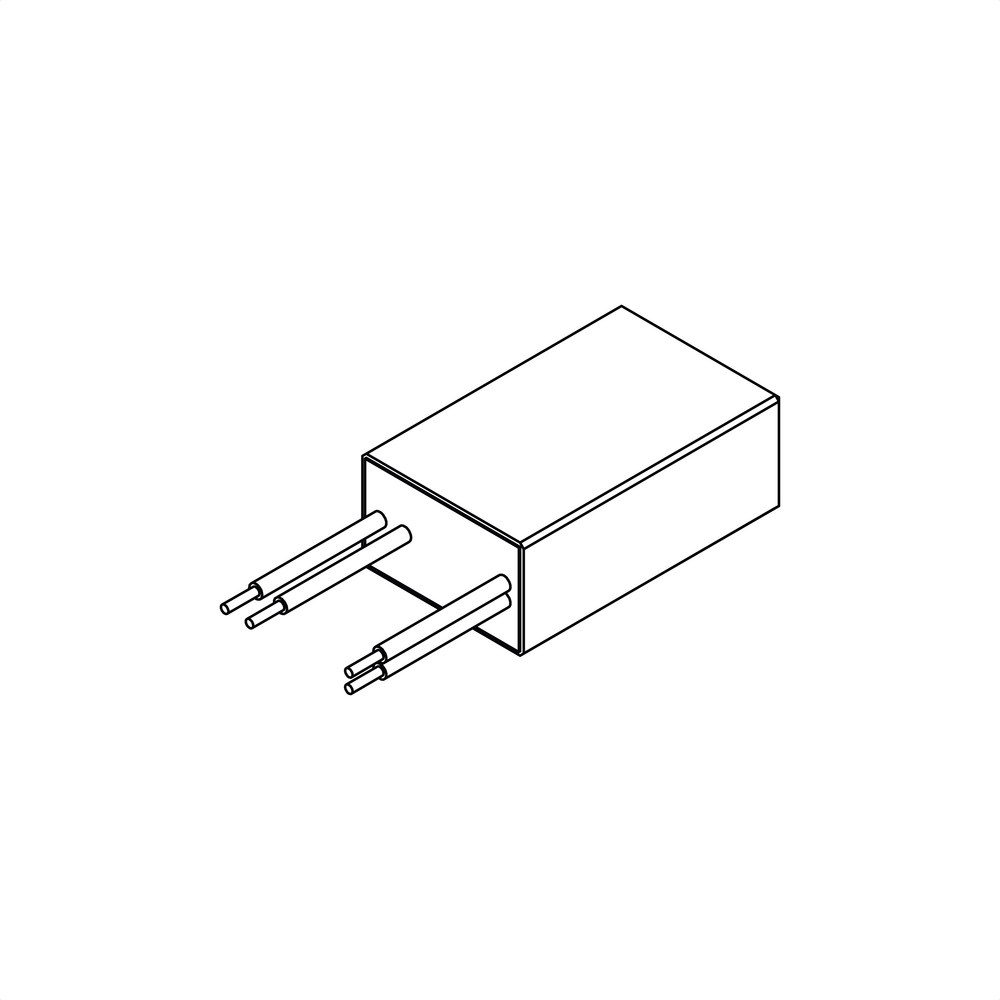

TRSS-75 Electronic Transformer
Configure
Date:
Project:
Type:
IMPORTANT: Transformer wattage MUST be calculated based on the total load of the luminaires it will support.
Catalog Number Logic
TRSS75-___
- Technical
- Transformers
Body: Fully encapsulated, flame retardant plastic casing. Class A Insulation. For use in weather proof enclosure. Suitable for use in ambient temperatures ranging from -10°F to 130°F.
Warranty: 5-year limited warranty.
Certification: UL tested to IESNA LM-79. UL Listed. Certified to CAN/CSA/ANSI Standards.
Control
Max Load (W)
Input Voltage
Power Factor
THD (%)
Operation Ambient Temperature
Output Current
Circuit Breaker
Min Load (W)
ELV
60
120
95
-30°C to 90°C
12VAC
0
NON
60
277
95
13
40°C
12VDC
0
