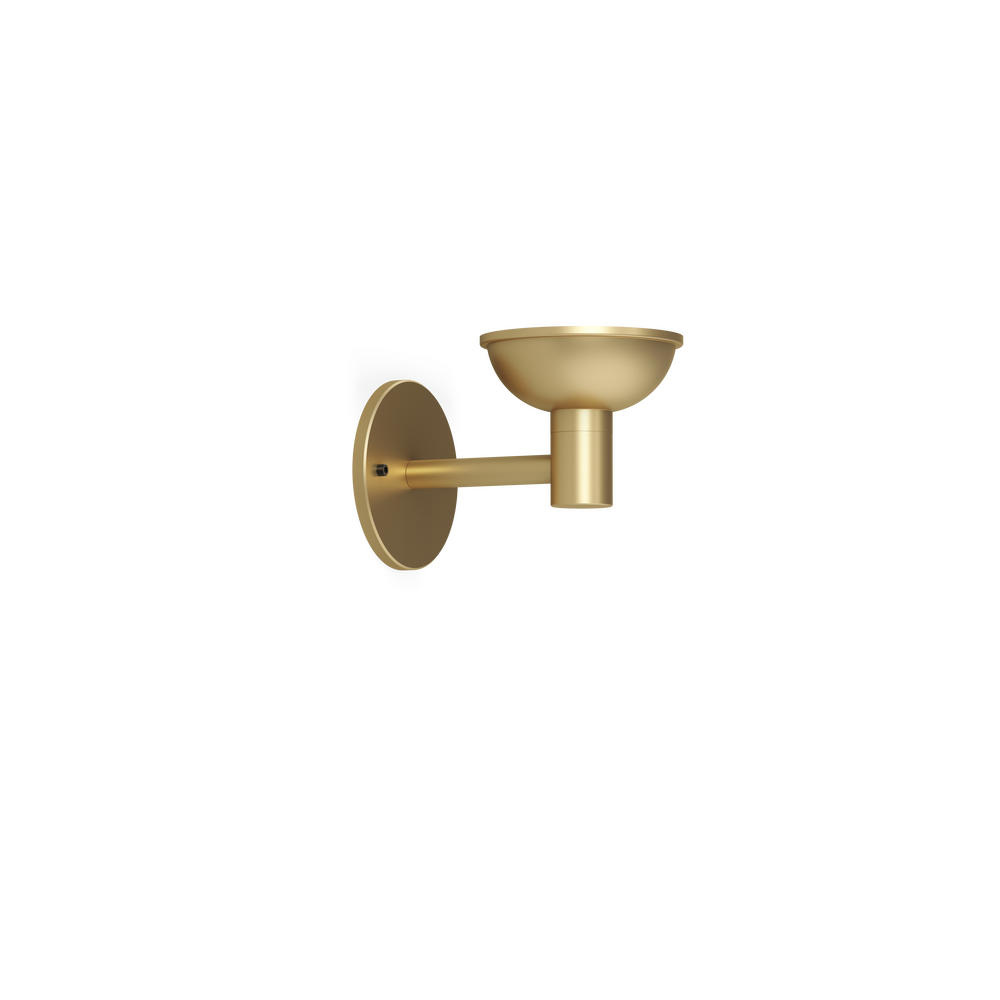

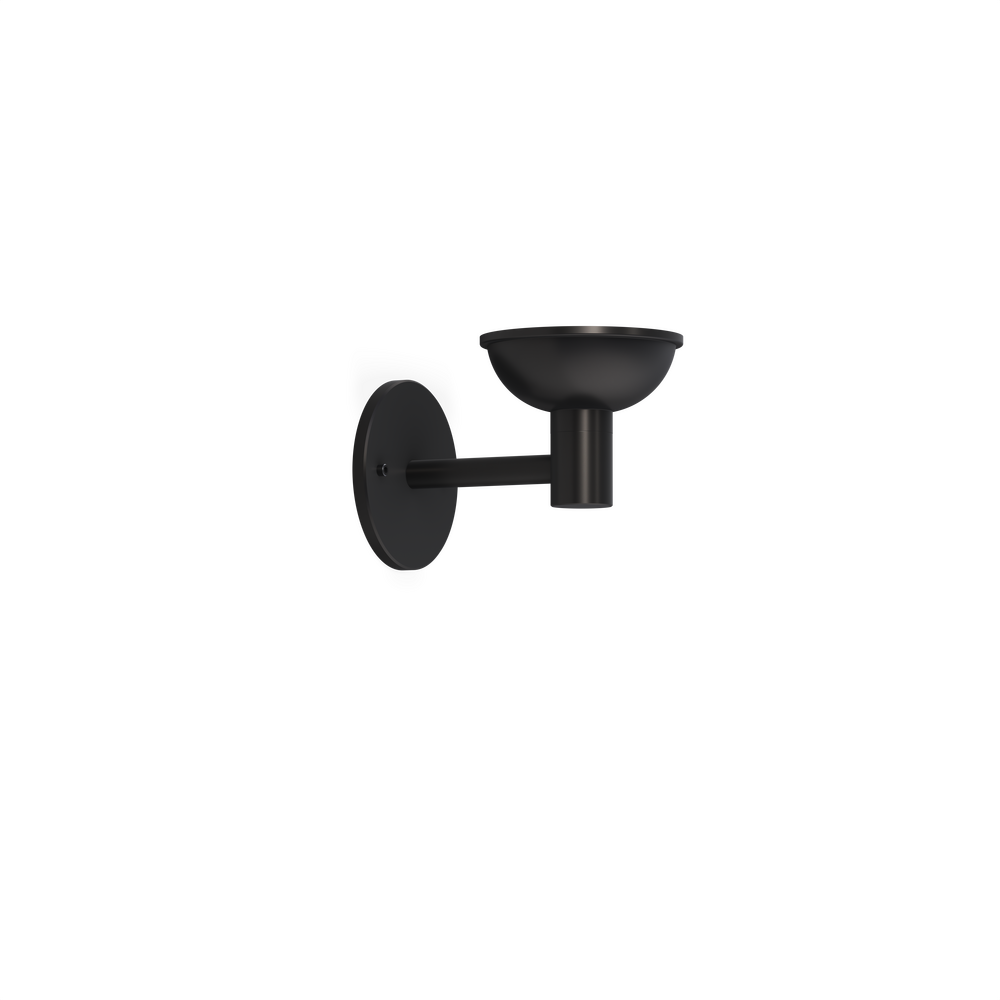

TETON - Wall Mount - Low Voltage - LED High-Power
(formerly Teton / TT-LED)




Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
WARNING: This is a low voltage product. Please check "Mountings With A Power Supply" or "Power Supplies" to order remote transformer separately.
TT-
01
WM-
02
LOD-
03
LHP-
04
___-
05
BC-
06B
___-
07
WL00-
11
___-
12
Click options to build your configurationCompleting the first column to render configured product images below

01 SERIES
02 CATEGORY
03 DRIVER
04 LIGHT SOURCE (TYPE)
05 MATERIAL
06B MOUNT
07 LIGHT SOURCE
11 WIRING LENGTH
12 FINISH
Standard Finishes
, , , , , , , Premium Finishes
, , , , , , , , , , , , , , , , , Other - RAL
Other - Custom Color
Brass Finishes
, , - Light Source
- Technical
- Finishes
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
e67
-
17
2700
80
7
459
3632
500
50000
e68
-
17
3000
80
7
489
3871
500
50000
e75
-
17
Amber
7
500
50000
e82
-
17
2700
90
7
500
50000
e83
-
17
3000
90
7
500
50000
e84
-
17
3500
80
7
500
50000
Features

Anti-condensation vent allows moisture to exit the fixture but never enter in

Lens factory adhered to fixture cap providing hermetically sealed optical compartment

Machined solid billet canopy provides unmatched strength and durability

Manufactured in the USA with sustainable processes

Water-tight anti-siphon plug prevents moisture ingress from wireways

Secured with tamper-resistant, stainless steel hardware

Easily replaceable modular components reduce waste and extend fixture life
Slip fit cap & high temp. silicone 'O' ring provides reliable water-tight seal

Solid billet fixture body provides unmatched durability and heat management
Technical
Mountings & Power Supplies
NOTE: Ordered separately. Configure fixture first to guarantee compatibility.WARNING: This is a low voltage product. Please check "Mountings With A Power Supply" or "Power Supplies" to order remote transformer separately.
- Power Supply
Transformer Within Junction Box
Universal Power Module PM1 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Remote Two Transformers - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 48" - With Safety Cable - Remote Two Transformers - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Remote Two Transformers - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Remote Two Transformers - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum
4" to 22" tree/branch diameter
[TR-150-120-MLV] 150W - 120V - MLV Dimming
[TR-150-277-MLV] 150W - 277V - MLV Dimming
[TR-75-120-MLV] 75W - 120V - MLV Dimming
[TR-75-277-MLV] 75W - 277V - MLV Dimming
[TR-150-120-MLV] 150W - 120V - MLV Dimming
[TR-150-277-MLV] 150W - 277V - MLV Dimming
[TR-75-120-MLV] 75W - 120V - MLV Dimming
[TR-75-277-MLV] 75W - 277V - MLV Dimming
[TR-150-120-MLV] 150W - 120V - MLV Dimming
[TR-150-277-MLV] 150W - 277V - MLV Dimming
[TR-75-120-MLV] 75W - 120V - MLV Dimming
[TR-75-277-MLV] 75W - 277V - MLV Dimming
[TR-150-120-MLV] 150W - 120V - MLV Dimming
[TR-150-277-MLV] 150W - 277V - MLV Dimming
[TR-75-120-MLV] 75W - 120V - MLV Dimming
[TR-75-277-MLV] 75W - 277V - MLV Dimming
[TR-150-120-MLV] 150W - 120V - MLV Dimming
[TR-150-277-MLV] 150W - 277V - MLV Dimming
[TR-75-120-MLV] 75W - 120V - MLV Dimming
[TR-75-277-MLV] 75W - 277V - MLV Dimming
[TR-150-120-MLV] 150W - 120V - MLV Dimming
[TR-150-277-MLV] 150W - 277V - MLV Dimming
[TR-75-277-MLV] 75W - 277V - MLV Dimming
[TR-75-120-MLV] 75W - 120V - MLV Dimming
[TR-150-120-MLV] 150W - 120V - MLV Dimming
[TR-150-277-MLV] 150W - 277V - MLV Dimming
[TR-75-120-MLV] 75W - 120V - MLV Dimming
[TR-75-277-MLV] 75W - 277V - MLV Dimming
[TR-150-120-MLV] 150W - 120V - MLV Dimming
[TR-150-277-MLV] 150W - 277V - MLV Dimming
[TR-75-120-MLV] 75W - 120V - MLV Dimming
[TR-75-277-MLV] 75W - 277V - MLV Dimming
[TR-150-120-MLV] 150W - 120V - MLV Dimming
[TR-150-277-MLV] 150W - 277V - MLV Dimming
[TR-75-120-MLV] 75W - 120V - MLV Dimming
[TR-75-277-MLV] 75W - 277V - MLV Dimming
Transformer With Tree Strap
Universal Power Module PM1 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Remote Two Transformers - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 24" - With Safety Cable - Remote Transformer - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 24" - With Safety Cable - Remote Two Transformers - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 48" - With Safety Cable - Remote Transformer - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Remote Two Transformers - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 72" - With Safety Cable - Remote Transformer - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM1 - Tree Strap Mount - 72" - With Safety Cable - Remote Two Transformers - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Remote Two Transformers - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Remote Transformer - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Remote Two Transformers - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Remote Transformer - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Remote Transformer - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Remote Two Transformers - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Remote Transformer - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Remote Two Transformers - Aluminum
4" to 22" tree/branch diameter
Transformer
[120-MLV] 120V - 12VAC Transformer
[277-MLV] 277V - 12VAC Transformer
[120-MLV] 120V - 12VAC Transformer
[277-MLV] 277V - 12VAC Transformer
[277-MLV] 277V - 12VAC Transformer
[120-MLV] 120V - 12VAC Transformer
[120-MLV] 120V - 12VAC Transformer
[277-MLV] 277V - 12VAC Transformer
