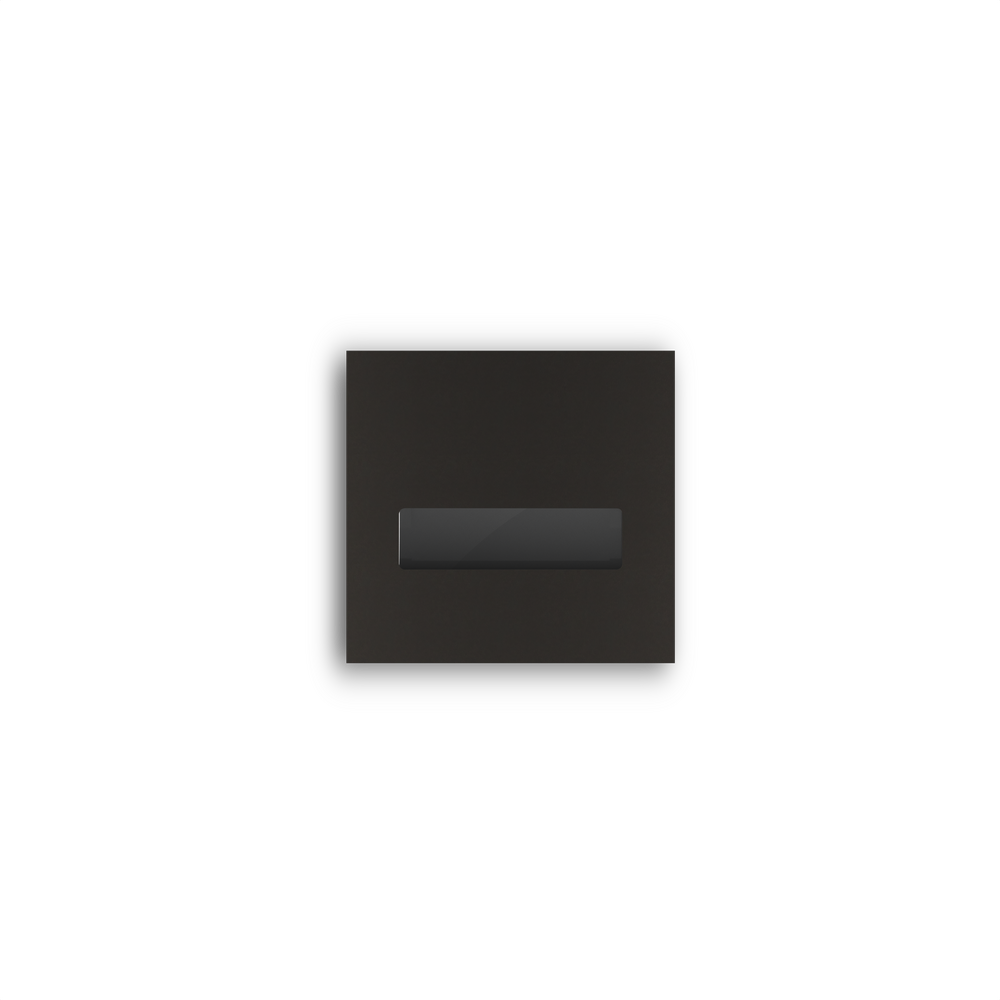

MINI YUKON - Wall Recessed - Line Voltage - LED High-Power - Indirect - Mini
(formerly Mini Yukon / MYK-I)
Wildlife Friendly
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
YK-
01
WR-
02
LID-
03
LHP-
04
AL-
05
RH-
06A
JB-
06B
FSD-BCU-
06C
IN-MIN-
06D
___-
06E
___-
07
___-
08
___-
09
WL00-
11
___-
12
BF-
13
Click options to build your configurationCompleting the first column to render configured product images below
- Light Source
- Technical
- Driver
- Finishes
- Options
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf
Diagram CONE
e194
T2-W - Type II-Wide
2700
90
8
320
750
50000
e195
T2-W - Type II-Wide
3000
90
8
301
750
50000
e200
T2-F - Type II-Forward
2700
90
8
426
750
50000
e201
T2-F - Type II-Forward
3000
90
8
401
750
50000
e202
T2-W - Type II-Wide
Amber
7
73
750
50000
Features
Secured with hidden tamper-resistant stainless steel hardware

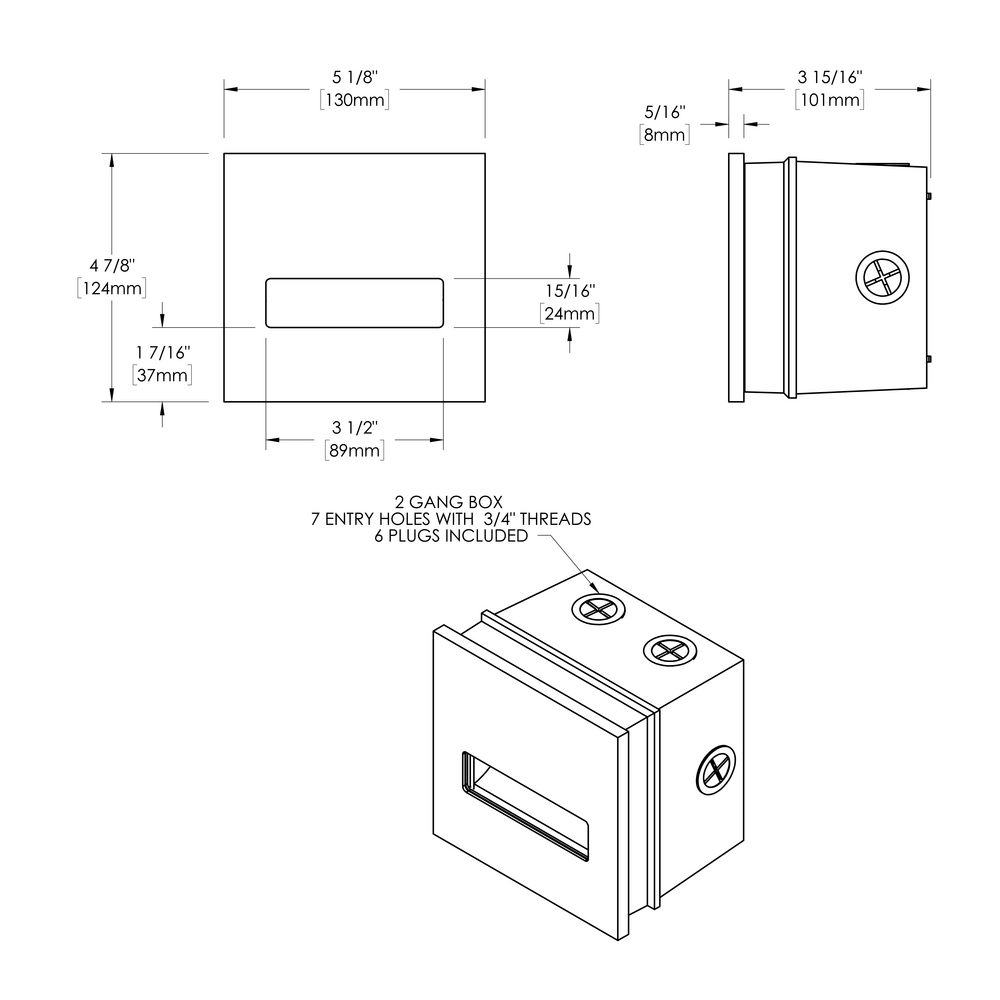

Compact housing designed to fit standard stud wall construction
Manufactured in the USA with sustainable processes
Easily replaceable modular components reduce waste and extend fixture life
