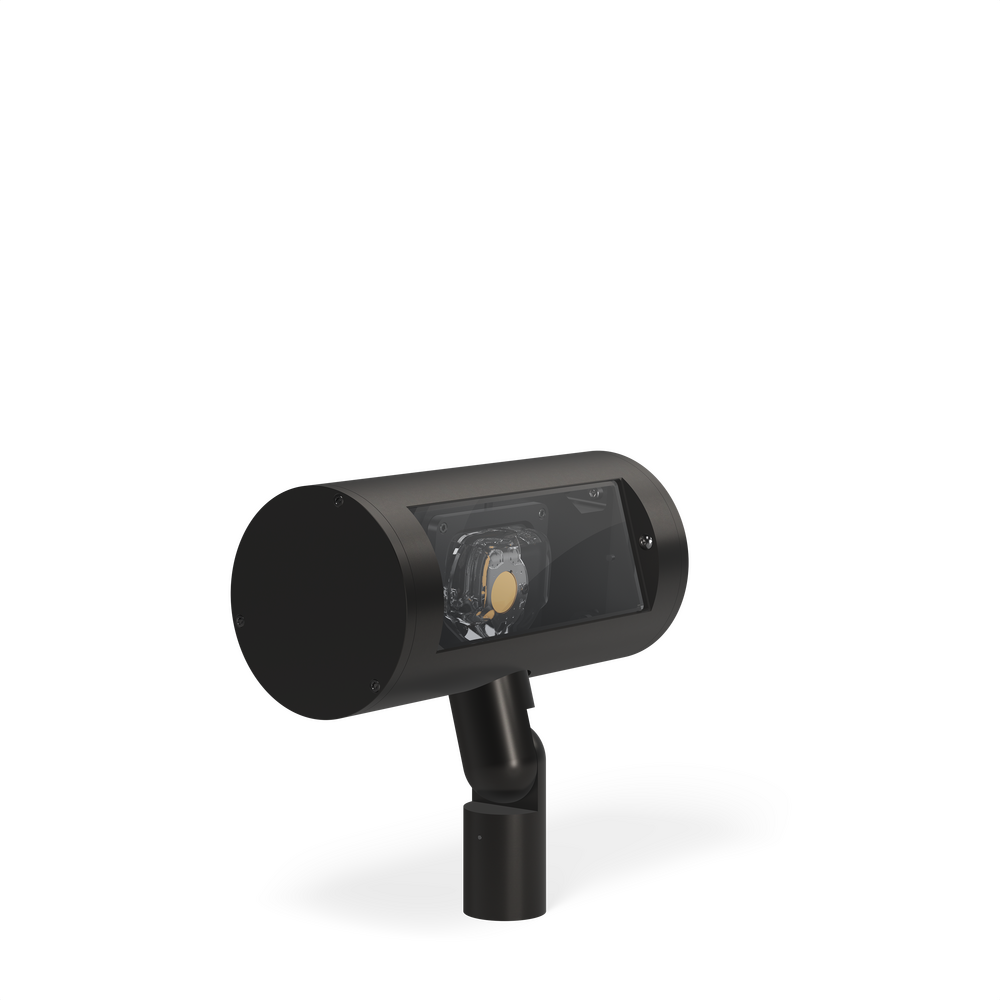

YOSEMITE - Floodlight - Line Voltage - LED COB
(formerly Yosemite Integral / YO-LED-TR)
Downloads
Configure Product
Download as configured
NOTE: Please configure the LEFT column found below to activate these download links.
Date:
Project:
Type:
YO-
01
FL-
02
LID-
03
LCB-
04
AL-
05
TKM-
06B
___-
06E
___-
07
WW-
08
___-
09
09-
10A
___-
10B
WL00-
11
___-
12
___-
14
Click options to build your configurationCompleting the first column to render configured product images below
01 SERIES
02 CATEGORY
03 DRIVER
04 LIGHT SOURCE (TYPE)
05 MATERIAL
06B MOUNT
06E INPUT VOLTAGE
07 LIGHT SOURCE
08 OPTIC
09 CONTROL
10A LENS
10B SHIELDING
11 WIRING LENGTH
12 FINISH
14 ACCESSORY
- Light Source
- Technical
- Finishes
- Accessory
Light Source
Optic
Beam Angle
CCT (K)
CRI
Input Power (W)
Delivered Lumens (Lm)
CBCP
MacAdam Ellipses (SDCM)
Operating Current (mA)
L70 (Hours)
L90B10 (Hours)
IES File
IES Pdf

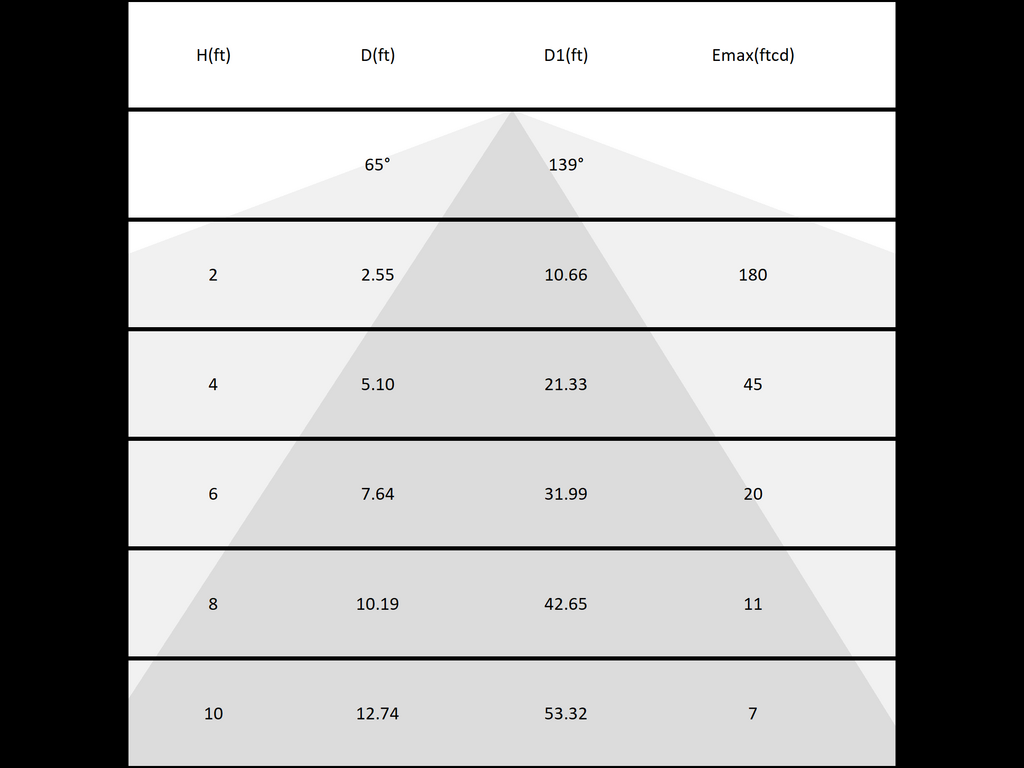

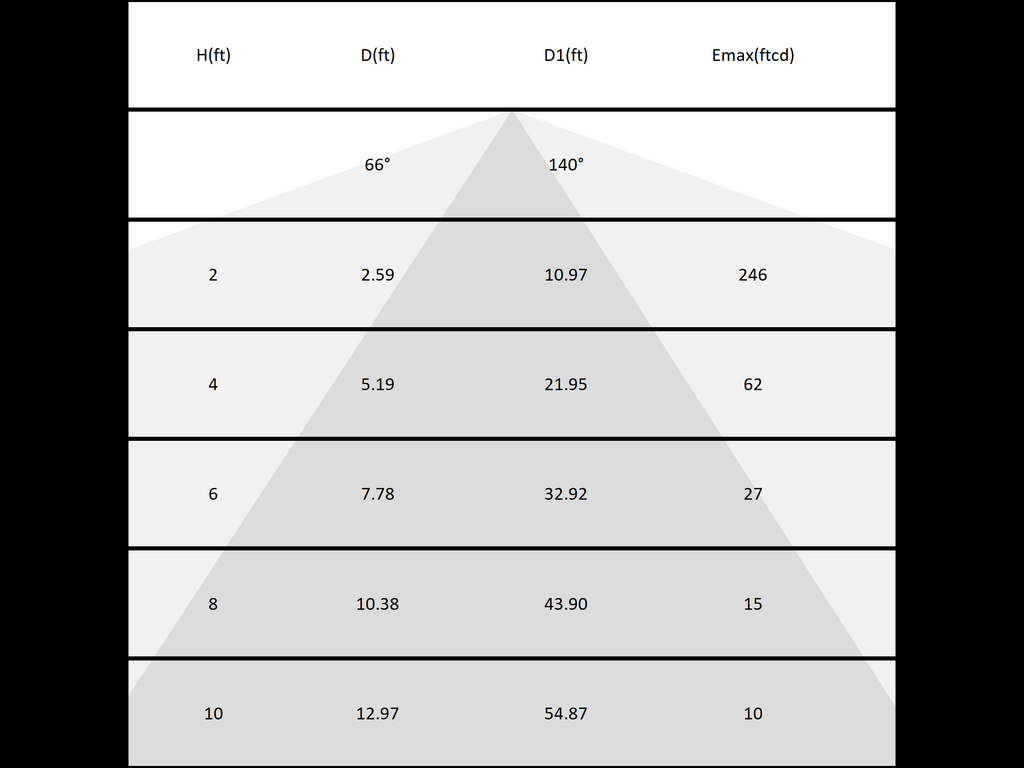

Diagram CONE
x113
WW - Wall Wash
2700
80
34
2611
900
50000
x114
WW - Wall Wash
3000
80
34
2631
900
50000
x117
WW - Wall Wash
2700
90
34
50000
x118
WW - Wall Wash
3000
90
34
50000
x120
WW - Wall Wash
3500
90
34
50000
x130
WW - Wall Wash
2700
80
23
1884
600
50000
x131
WW - Wall Wash
3000
80
23
1924
600
50000
x134
WW - Wall Wash
2700
90
23
50000
x135
WW - Wall Wash
3000
90
23
50000
x137
WW - Wall Wash
3500
90
23
50000
Features
Lens factory adhered to fixture cap providing hermetically sealed optical compartment
Manufactured in the USA with sustainable processes
Aim & Lock knuckle eliminates need for re-aiming & adjustments
Water-tight anti-siphon plug prevents moisture ingress from wireways
Secured with tamper-resistant, stainless steel hardware
Easily replaceable modular components reduce waste and extend fixture life
360HD knuckle provides 360° horizontal rotation and vertical adjustment

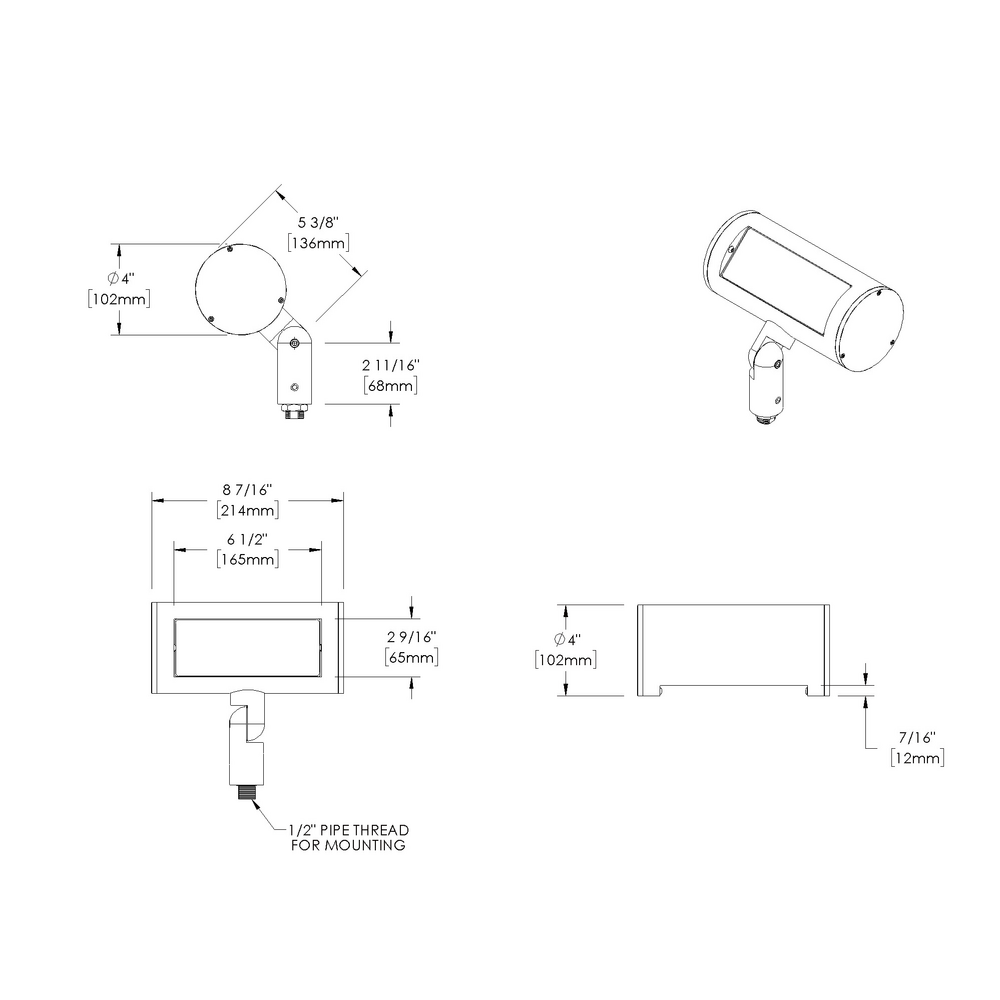

Technical
Mountings & Power Supplies
NOTE: Ordered separately. Configure fixture first to guarantee compatibility.- Mountings
Canopy
Canopy BC6 - Aluminum
5" Round Machined
Canopy BC10 - Aluminum
3" x 5" Rectangular
Canopy BC11 - Aluminum
2 7/8" x 4 5/8" Rectangular
Canopy BC15 - Aluminum
6" Round, Dual Mount
Universal Power Module
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Single - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Single - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 24" - With Safety Cable - Single - Offset - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Single - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Single - Offset - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Single - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 48" - With Safety Cable - Single - Offset - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Single - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Single - Offset - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Single - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM2 - Tree Strap Mount - 72" - With Safety Cable - Single - Offset - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 72" - With Safety Cable - Single - Offset - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 72" - With Safety Cable - Single - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Single - Offset - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 72" - With Safety Cable and Mounting Brackets - Single - Aluminum
4" to 22" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 48" - With Safety Cable - Single - Offset - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 48" - With Safety Cable - Single - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Single - Offset - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 48" - With Safety Cable and Mounting Brackets - Single - Aluminum
4" to 15" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 24" - With Safety Cable - Single - Offset - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 24" - With Safety Cable - Single - Aluminum
4" to 7" tree/branch diameter
Universal Power Module PM3 - Tree Strap Mount - 24" - With Safety Cable and Mounting Brackets - Single - Aluminum
4" to 7" tree/branch diameter
